porsche 2022 (992-1 gt3/rs/st) wheel carrier wheel hub parts diagram

401-050 - Wheel carrier Wheel hub

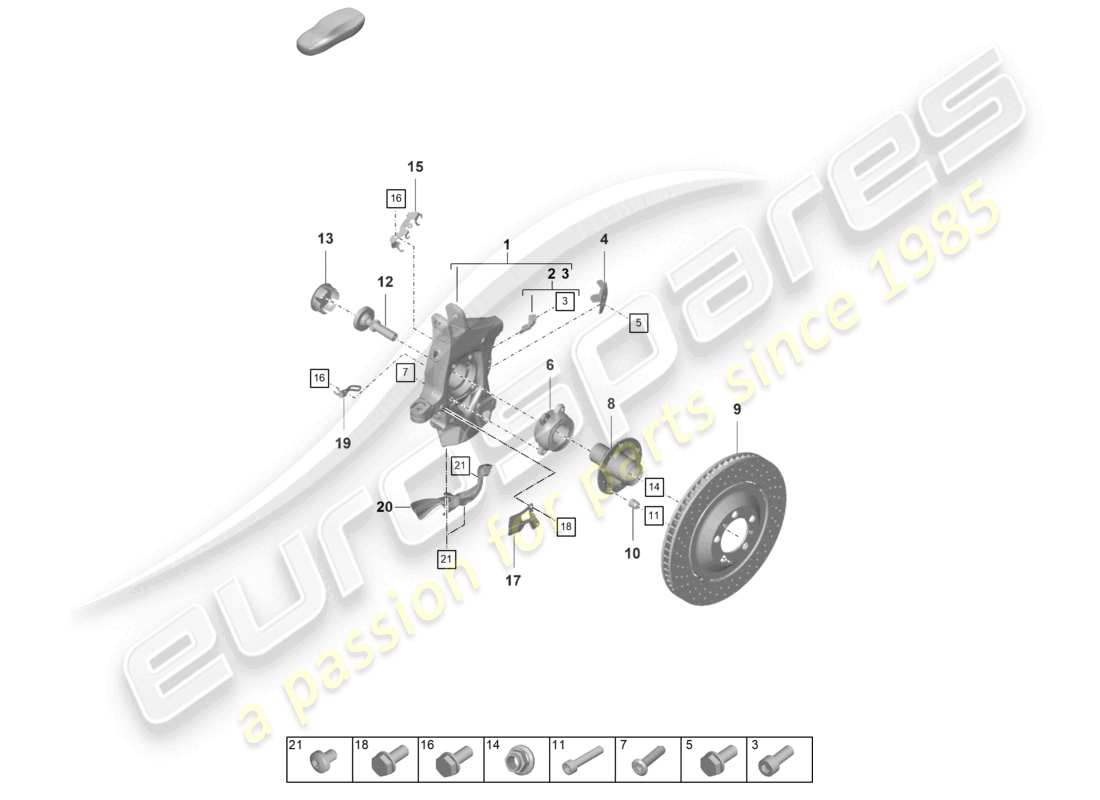

Porsche 2022 (992-1 GT3/RS/ST) Wheel carrier Wheel hub Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 9GT407245C
                                      SWIVEL MOUNTING LEFT INCLUDED SPEED SENSOR 1X 971 927 807 SOCKET HEAD BOLT 1X N 014 740 11
                                      from £674.73
                                      from £674.73
                                      SWIVEL MOUNTING Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 9GT407246C
                                      SWIVEL MOUNTING RIGHT INCLUDED SPEED SENSOR 1X 971 927 807 SOCKET HEAD BOLT 1X N 014 740 11
                                      from £674.73
                                      from £674.73
                                      SWIVEL MOUNTING Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 971927807
                                      SPEED SENSOR
                                      from £139.22
                                      from £139.22
                                      SPEED SENSOR Genuine Porsche Part - New (to order)
                                      SPEED SENSOR Genuine Bentley Part - New (to order)
                                      # 3
                                      MPN: N 01474011
                                      Socket head bolt with M6X16 hexagon socket head
                                      from £1.04
                                      from £1.04
                                      bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> Genuine Porsche Part - New In stock
                                      SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                                      PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
                                      # 4
                                      MPN: 9GT407721A
                                      SHIELDING FOR SPEED SENSOR LEFT
                                      from £15.17
                                      from £15.17
                                      ABSCHIRMUNG F?R DREHZAHLF?HLER Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 9GT407722A
                                      SHIELDING FOR SPEED SENSOR RIGHT
                                      from £14.88
                                      from £14.88
                                      ABSCHIRMUNG F?R DREHZAHLF?HLER Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: PAF100829
                                      HEXAGON HEAD BOLT (COMBI) M6X16
                                      from £0.61
                                      from £0.61
                                      This part replaces part number 99921711601 - and 1 more. Click to view details
                                      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                                      # 7
                                      MPN: WHT004835
                                      BALL SCREW M12X1,25X45
                                      from £3.83
                                      from £3.83
                                      BALL SCREW Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 9GT407581
                                      Wheel hub Central locking
                                      Wheel hub Central locking
                                      from £281.62
                                      from £281.62
                                      WHEEL HUB Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 9GT407581A
                                      Wheel hub Central locking
                                      from £368.64
                                      from £368.64
                                      This part replaces part number 99134160781
                                      WHEEL HUB Genuine Porsche Part - New (to order)
                                      Alternative (#EAP1510476) FRONT WHEEL HUB & BEARING WITH STUB AXLE Eurospares Approved Part - New (to order)
                                      Alternative (#EAP1510476) FRONT WHEEL HUB & BEARING WITH STUB AXLE Eurospares Approved Part - Used In stock
                                      # 9
                                      -
                                      BRAKE DISC SEE ILLUSTRATION: 602-000
                                      P1LR (Standard front disc brake) | P1LS (Standard front disc brake)
                                      # 9
                                      -
                                      BRAKE DISC SEE ILLUSTRATION: 602-010
                                      P1LQ (Front disc brake PCCB) | P1LX (Front disc brake PCCB (EXC))
                                      # 11
                                      MPN: PAF009591
                                      Torx M8X32 socket head bolt
                                      from £1.00
                                      from £1.00
                                      TORX SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: WHT007021
                                      HEX. NUT, SELF-LOCKING WITH M22X1.5 WASHER
                                      from £6.65
                                      from £6.65
                                      HEX. NUT, SELF-LOCKING WITH WASHER, M22 X 1.5 Genuine Porsche Part - New (to order)
                                      HEX. NUT, SELF-LOCKING WITH WASHER Genuine Bentley Part - New (to order)
                                      # 15
                                      MPN: 9GT611845A
                                      RETAINER FOR BRAKE HOSE LEFT
                                      from £13.98
                                      from £13.98
                                      RETAINER FOR BRAKE HOSE Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 9GT611846A
                                      RETAINER FOR BRAKE HOSE RIGHT
                                      from £13.98
                                      from £13.98
                                      RETAINER FOR BRAKE HOSE Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 9GT611846B
                                      RETAINER FOR BRAKE HOSE RIGHT
                                      from £13.98
                                      from £13.98
                                      RETAINER FOR BRAKE HOSE Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: PAF100829
                                      HEXAGON HEAD BOLT (COMBI) M6X16
                                      from £0.61
                                      from £0.61
                                      This part replaces part number 99921711601 - and 1 more. Click to view details
                                      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                                      # 17
                                      MPN: 9GT615311A
                                      COVER PLATE LEFT
                                      from £23.72
                                      from £23.72
                                      COVER PLATE Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: 9GT615312A
                                      COVER PLATE RIGHT
                                      from £23.72
                                      from £23.72
                                      COVER PLATE Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: PAF100829
                                      HEXAGON HEAD BOLT (COMBI) M6X16
                                      from £0.61
                                      from £0.61
                                      This part replaces part number 99921711601 - and 1 more. Click to view details
                                      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                                      # 19
                                      MPN: 9GT971003A
                                      CABLE HOLDER LEFT WHEEL CARRIER
                                      from £6.03
                                      from £6.03
                                      CABLE HOLDER Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: 9GT971003B
                                      CABLE HOLDER RIGHT WHEEL CARRIER
                                      from £6.03
                                      from £6.03
                                      CABLE HOLDER Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615169C
                                      AIR GUIDE LEFT
                                      AIR GUIDE LEFT
                                      from £33.47
                                      from £33.47
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615169E
                                      AIR GUIDE LEFT
                                      AIR GUIDE LEFT
                                      from £45.38
                                      from £45.38
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615169F
                                      AIR GUIDE LEFT
                                      from £46.31
                                      from £46.31
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615170C
                                      AIR GUIDE RIGHT
                                      AIR GUIDE RIGHT
                                      from £33.47
                                      from £33.47
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615170E
                                      AIR GUIDE RIGHT
                                      AIR GUIDE RIGHT
                                      from £46.15
                                      from £46.15
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 9GT615170F
                                      AIR GUIDE RIGHT
                                      from £46.31
                                      from £46.31
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: N 10747401
                                      Hexagon socket flat M6X12 head bolt
                                      from £0.66
                                      from £0.66
                                      HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
