porsche 2022 (992-1 gt3/rs/st) anti-roll bar coupling rod parts diagram

502-100 - Anti-roll bar Coupling rod

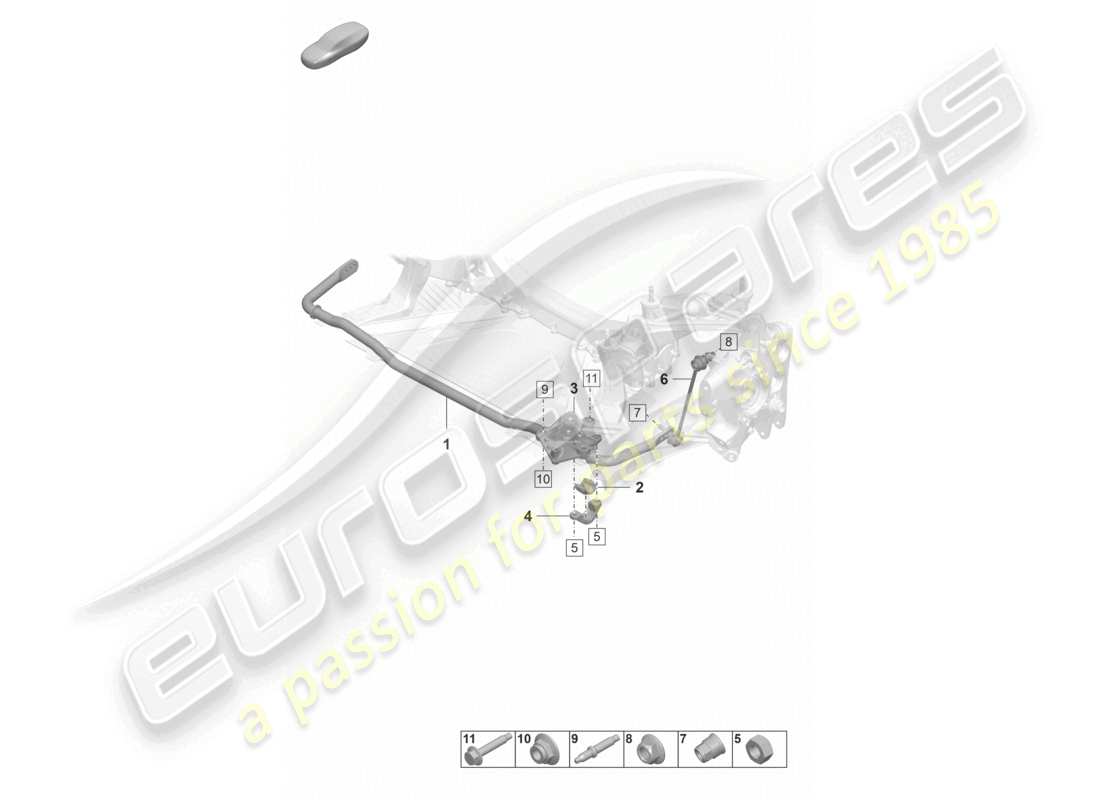

Porsche 2022 (992-1 GT3/RS/ST) Anti-roll bar Coupling rod Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 9GT511025B

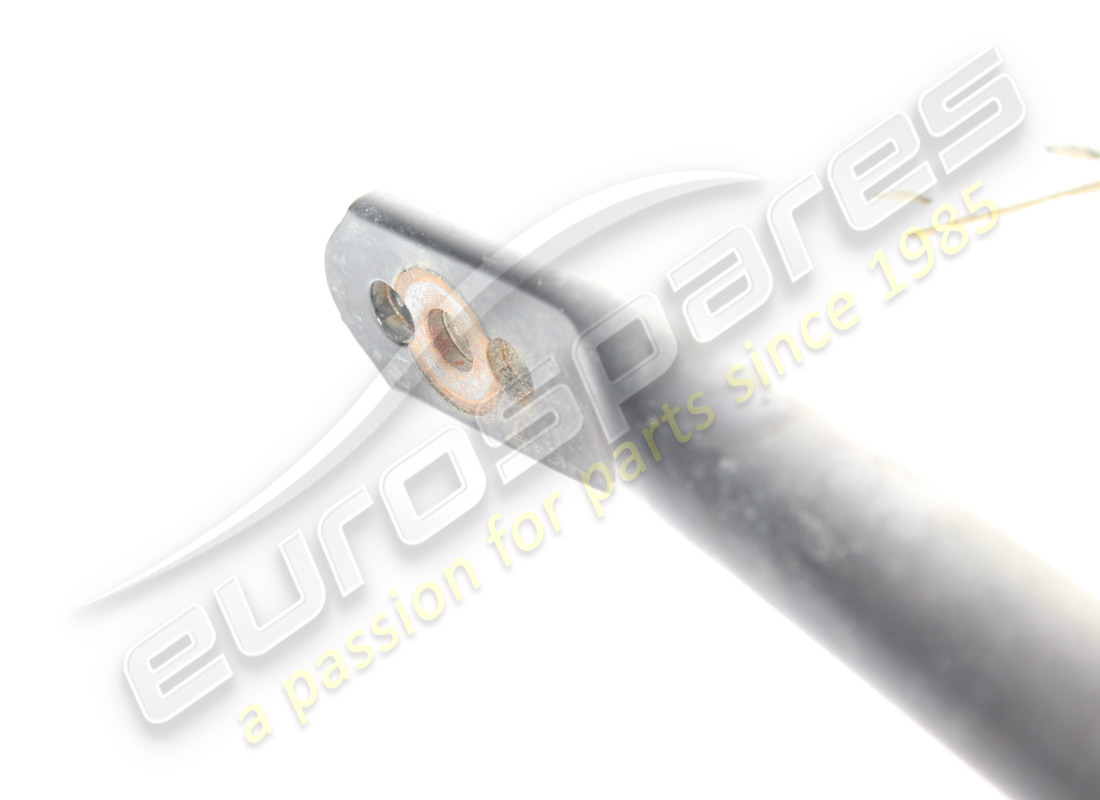

                        ANTI-ROLL BAR
                        from £205.90
                        from £205.90
                        ANTI-ROLL BAR Genuine Porsche Part - New (to order)
                        ANTI-ROLL BAR Genuine Porsche Part - Used In stock
                        # 2
                        MPN: 9GT511035
                        ANTI-ROLL BAR BEARING BRACKET
                        from £36.88
                        from £36.88
                        ANTI-ROLL BAR BEARING BRACKET Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 9GT505261A

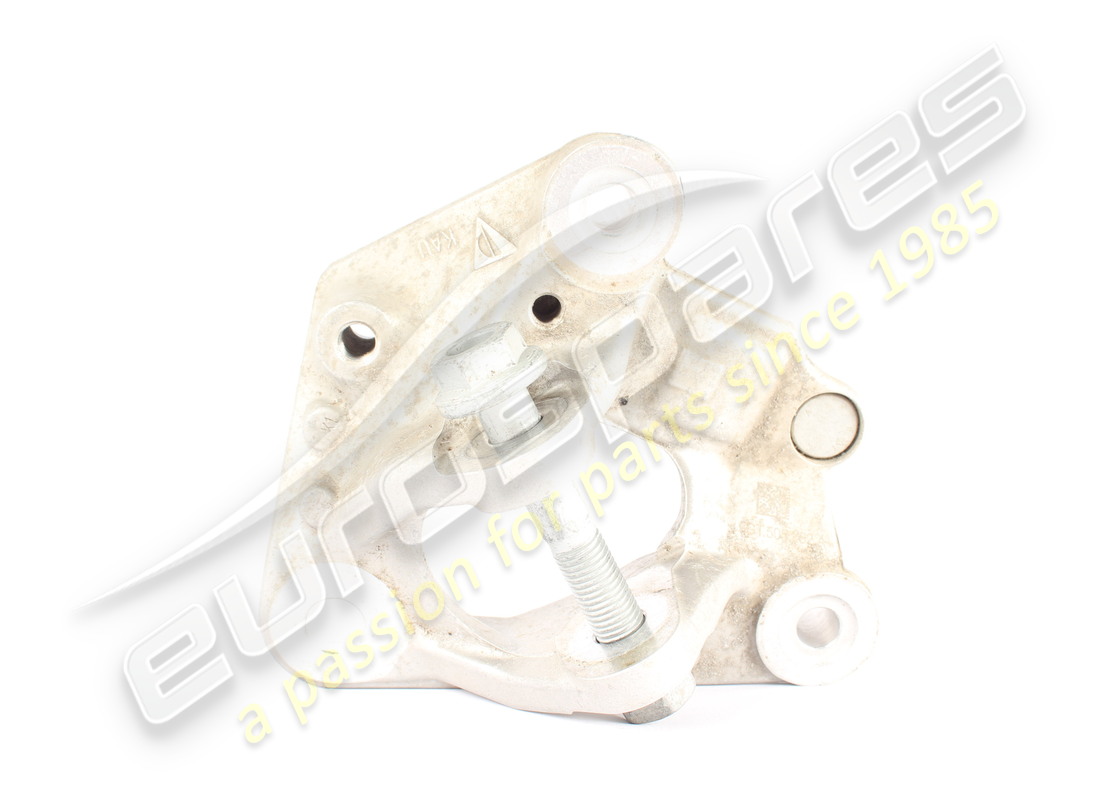

                        SUPPORT LEFT TRAILING ARM
                        from £62.85
                        from £62.85
                        SUPPORT Genuine Porsche Part - New (to order)
                        SUPPORT Genuine Porsche Part - Used In stock
                        # 3
                        MPN: 9GT505262A
                        SUPPORT RIGHT TRAILING ARM
                        from £62.85
                        from £62.85
                        SUPPORT Genuine Porsche Part - New (to order)
                        SUPPORT Genuine Porsche Part - Used In stock
                        # 4
                        MPN: 9GT511418A

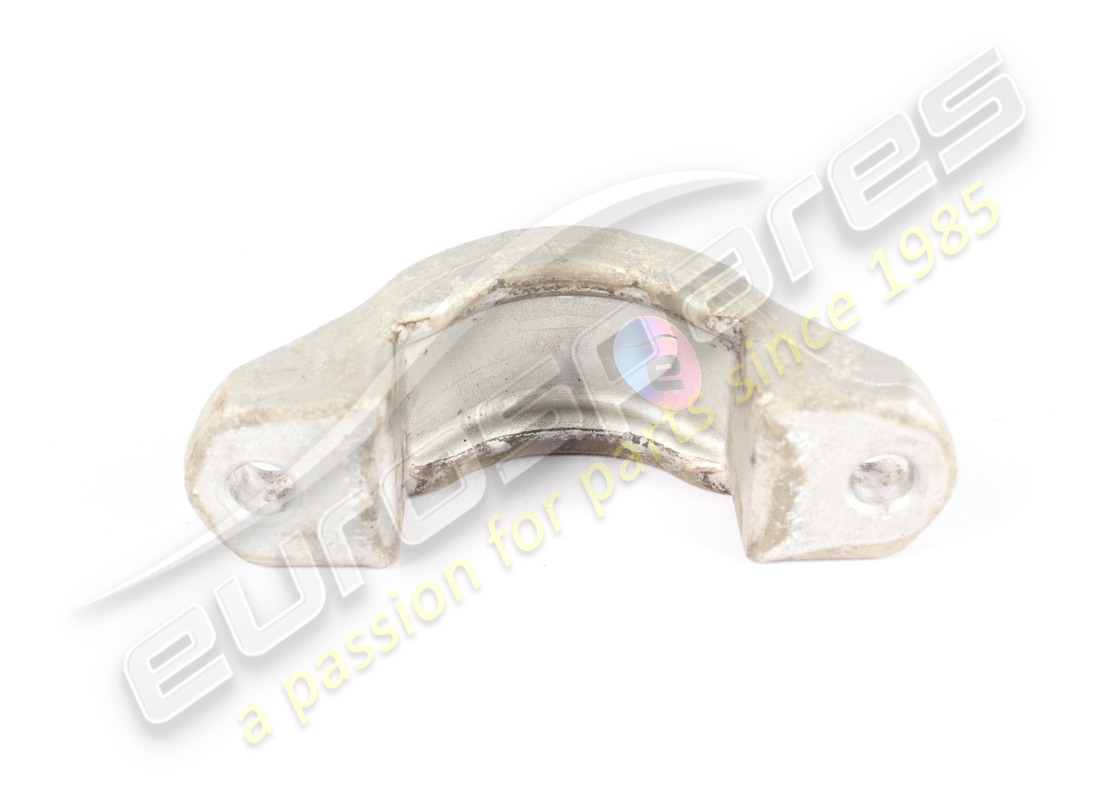

                        CLAMP
                        from £24.71
                        from £24.71
                        CLAMP Genuine Porsche Part - New (to order)
                        CLAMP Genuine Porsche Part - Used In stock
                        # 5
                        MPN: PAF011008
                        HEXAGON NUT M8
                        from £1.43
                        from £1.43
                        HEXAGON NUT Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 9GT511467
                        COUPLING ROD LEFT
                        from £74.88
                        from £74.88
                        COUPLING ROD Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 9GT511468
                        COUPLING ROD RIGHT
                        from £74.88
                        from £74.88
                        COUPLING ROD Genuine Porsche Part - New (to order)
                        # 7
                        MPN: PAF007957
                        HEX. NUT M10
                        from £3.42
                        from £3.42
                        HEX. NUT Genuine Porsche Part - New (to order)
                        # 8
                        MPN: PAF909664
                        HEXAGON COLLAR NUT M12X1,5 SELF-LOCKING
                        from £1.78
                        from £1.78
                        This part replaces part number N 90966402
                        SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
                        # 9
                        MPN: PAF008654
                        THREADED PIN M10X68,5
                        from £4.52
                        from £4.52
                        STUD Genuine Porsche Part - New (to order)
                        # 10
                        MPN: PAF008868
                        HEXAGON NUT M10
                        from £2.29
                        from £2.29
                        This part replaces part number 99907605301
                        HEX. NUT Genuine Porsche Part - New (to order)
                        # 11
                        MPN: PAF009588
                        BOLT WITH WASHER M10X58
                        from £4.16
                        from £4.16
                        BOLT WITH WASHER Genuine Porsche Part - New (to order)
