porsche 2026 (992-2 gt3/rs/st) wishbone rear axle parts diagram

501-050 - Wishbone Rear axle

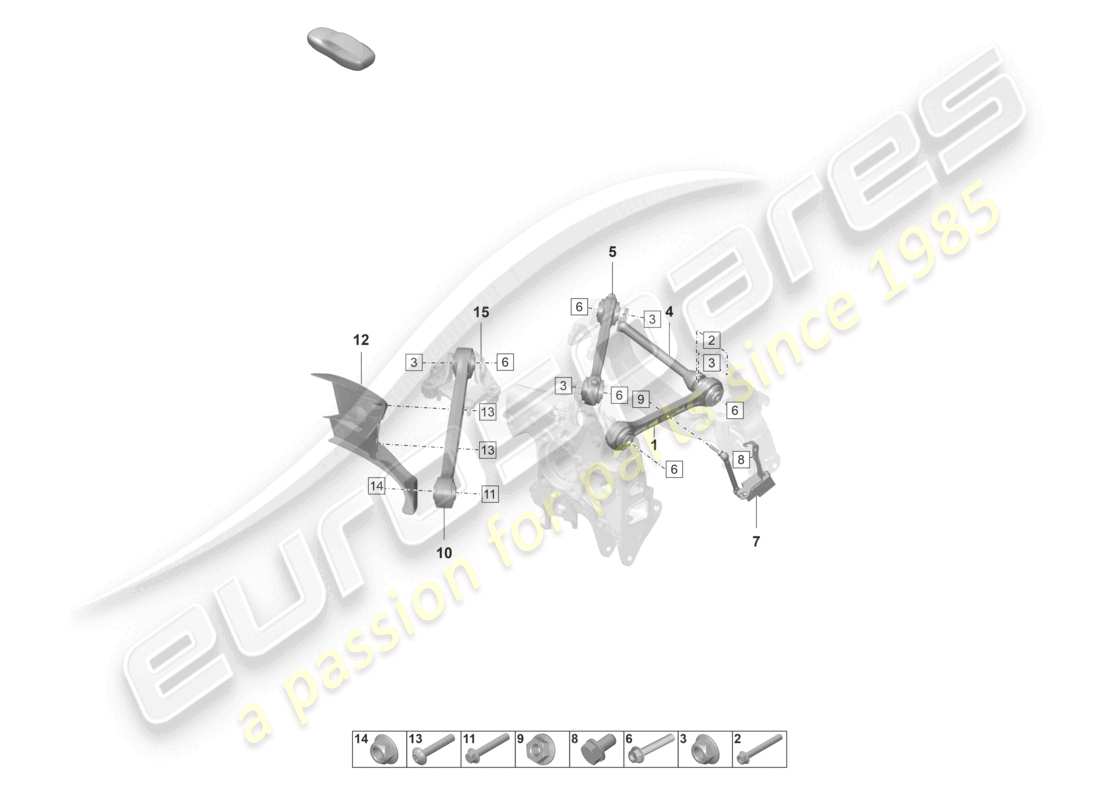

Porsche 2026 (992-2 GT3/RS/ST) Wishbone Rear axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 9P1505397A
                                Wishbone upper Rear axle
                                from £105.21
                                from £105.21
                                This part replaces part number 99133104703
                                track control arm Genuine Porsche Part - New (to order)
                                # 2
                                MPN: PAF009972
                                HEXAGON BOLT M12X1,5X95 REAR AXLE
                                from £8.72
                                from £8.72
                                HEXAGON BOLT Genuine Porsche Part - New (to order)
                                # 3
                                MPN: PAF909664
                                HEXAGON COLLAR NUT M12X1,5 SELF-LOCKING
                                from £1.78
                                from £1.78
                                This part replaces part number N 90966402
                                SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 9GT505477
                                BRACE LEFT SIDE PART
                                from £80.80
                                from £80.80
                                BRACE Genuine Porsche Part - New (to order)
                                BRACE Genuine Porsche Part - Used In stock
                                # 4
                                MPN: 9GT505478
                                BRACE RIGHT SIDE PART
                                from £80.80
                                from £80.80
                                BRACE Genuine Porsche Part - New (to order)
                                BRACE Genuine Porsche Part - Used In stock
                                # 5
                                MPN: 9GT505237B
                                TRAILING ARM UPPER REAR AXLE
                                from £71.88
                                from £71.88
                                TRAILING ARM Genuine Porsche Part - New (to order)
                                TRAILING ARM Genuine Porsche Part - Used In stock
                                # 6
                                MPN: 9A700867700
                                HEXAGON BOLT M12X1,5X80
                                from £5.09
                                from £5.09
                                This part replaces part number 99907286801
                                SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                # 7
                                MPN: 992616571
                                LEVEL SENSOR LEFT REAR AXLE
                                from £186.96
                                from £186.96
                                LEVEL SENSOR Genuine Porsche Part - New (to order)
                                # 7
                                MPN: 992616572
                                Level sensor right Rear axle
                                from £183.10
                                from £183.10
                                LEVEL SENSOR Genuine Porsche Part - New (to order)
                                # 8
                                MPN: N 10005306
                                hexagon head bolt (combi) M6X12 Bolt with washer
                                from £0.79
                                from £0.79
                                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                                HEXAGON HEAD BOLT (COMBI) Genuine Bentley Part - New (to order)
                                # 9
                                MPN: PAF015082
                                HEXAGON COLLAR NUT M6
                                from £1.58
                                from £1.58
                                This part replaces part number N 01508210
                                shouldered hex. nut Genuine Porsche Part - New In stock
                                # 10
                                MPN: 9GT505223B
                                TRAILING ARM LOWER
                                from £122.53
                                from £122.53
                                TRAILING ARM Genuine Porsche Part - New (to order)
                                TRAILING ARM Genuine Porsche Part - Used In stock
                                # 11
                                MPN: PAF009589
                                THREADED PIN M12X1,5X75
                                from £4.74
                                from £4.74
                                THREADED PIN Genuine Porsche Part - New (to order)
                                # 12
                                MPN: 9GT615457
                                AIR GUIDE LEFT
                                from £20.65
                                from £20.65
                                AIR GUIDE Genuine Porsche Part - New (to order)
                                AIR GUIDE Genuine Porsche Part - Used In stock
                                # 12
                                MPN: 9GT615458
                                AIR GUIDE RIGHT
                                from £37.54
                                from £37.54
                                AIR GUIDE Genuine Porsche Part - New (to order)
                                # 13
                                MPN: PAF107388
                                TORX M6X35 LENS FLANGE SCREW
                                from £1.62
                                from £1.62
                                SCREW Genuine Porsche Part - New (to order)
                                # 14
                                MPN: PAF909664
                                HEXAGON COLLAR NUT M12X1,5 SELF-LOCKING
                                from £1.78
                                from £1.78
                                This part replaces part number N 90966402
                                SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
                                # 15
                                -
                                SUPPORT TRAILING ARM SEE ILLUSTRATION: 502-100
