porsche 2026 (992-2 gt3/rs/st) brake master cylinder brake servo parts diagram

604-000 - Brake master cylinder Brake servo

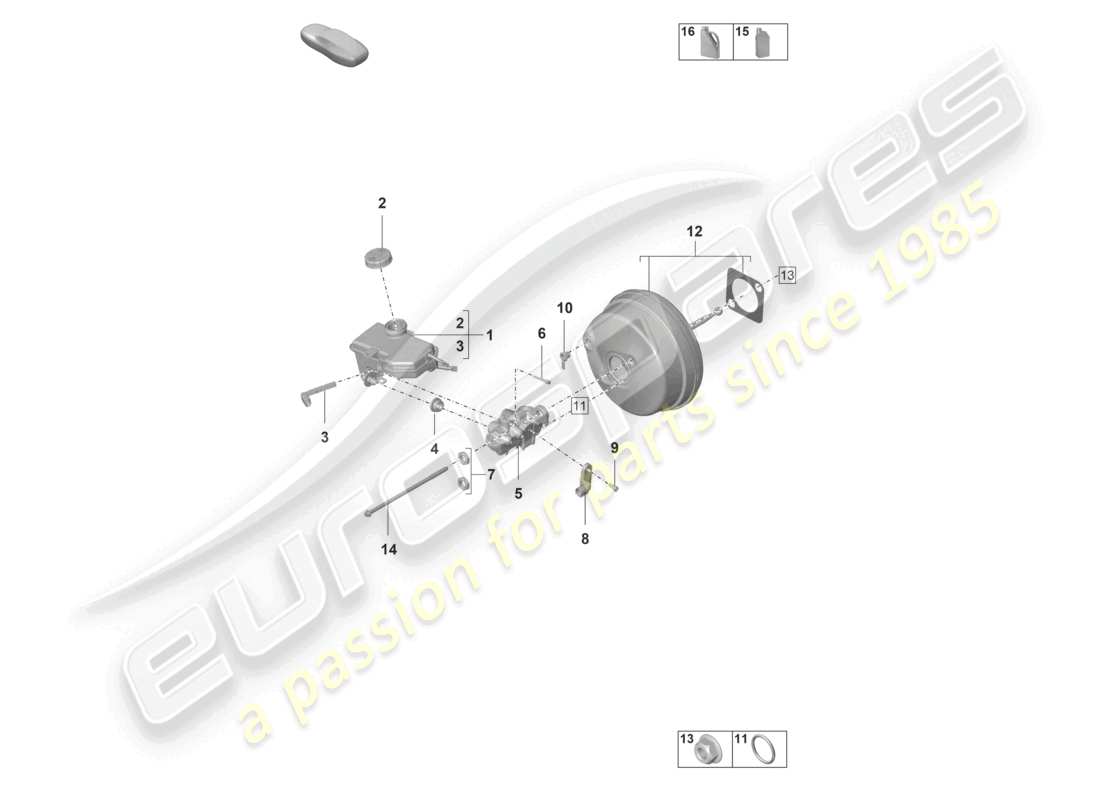

Porsche 2026 (992-2 GT3/RS/ST) Brake master cylinder Brake servo Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9GT616123
                          RESERVOIR FOR BRAKE FLUID CONTAINS: CONTACTS END CAP
                          from £64.05
                          from £64.05
                          RESERVOIR FOR BRAKE FLUID Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 5Q0611349B
                          CAP FOR EXPANSION TANK
                          P without B0T
                          from £4.74
                          from £4.74
                          CAP FOR Genuine Porsche Part - New (to order)
                          SCREW CAP Genuine Lamborghini - New (to order)
                          # 2
                          MPN: 5Q0611349A
                          CAP FOR EXPANSION TANK
                          PB0T (Component set for USA)
                          from £4.74
                          from £4.74
                          CAP FOR Genuine Porsche Part - New (to order)
                          SCREW CAP Genuine Lamborghini - New (to order)
                          # 3
                          MPN: 1S0611377
                          CONTACTS
                          from £17.54
                          from £17.54
                          CONTACT Genuine Porsche Part - New (to order)
                          CONTACT INSERT Genuine Lamborghini - New (to order)
                          # 4
                          MPN: PAB611817
                          BUNGS
                          from £4.50
                          from £4.50
                          RUBBER SEAL Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 9GT614019
                          brake master cylinder
                          from £371.31
                          from £371.31
                          brake master cylinder Genuine Porsche Part - New (to order)
                          # 6
                          MPN: 9A700791600
                          HEXAGON HEAD BOLT M5X51
                          from £3.94
                          from £3.94
                          HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                          # 8
                          MPN: PAB945459
                          BRAKE LIGHT SENSOR
                          from £24.70
                          from £24.70
                          BRAKE LIGHT SENSOR Genuine Porsche Part - New (to order)
                          # 9
                          MPN: N 10451405
                          OVAL HEXAGON SOCKET HEAD BOLT M6X16
                          from £0.78
                          from £0.78
                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                          HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                          # 10
                          MPN: PAB612250
                          SEALING PLUG
                          from £5.03
                          from £5.03
                          SEAL Genuine Porsche Part - New (to order)
                          # 11
                          MPN: PAB611243
                          GASKET BETWEEN BRAKE SERVO ANDBRAKE TANDEM MASTER CYLINDER
                          from £4.32
                          from £4.32
                          GASKET BETWEEN Genuine Porsche Part - New (to order)
                          # 12
                          MPN: 9GT614106A
                          BRAKE SERVO CONTAINS: SEAL ADAPTER
                          PL0R (Right-hand drive version)
                          from £648.05
                          from £648.05
                          BRAKE SERVO Genuine Porsche Part - New (to order)
                          # 13
                          MPN: N 02300314
                          HEXAGON NUT, SELF-LOCKING M8
                          from £1.26
                          from £1.26
                          HEX. NUT, SELF-LOCKING Genuine Porsche Part - New (to order)
                          # 14
                          MPN: PAF009838
                          HEXAGON HEAD BOLT BM8X212X43
                          PL0L (Left-hand drive version)
                          from £15.17
                          from £15.17
                          HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                          # 15
                          MPN: 00004321082
                          BRAKE FLUID 1.0 LTR.
                          from £19.23
                          from £19.23
                          BRAKE FLUID Genuine Porsche Part - New In stock
                          # 16
                          MPN: 00004321086
                          BRAKE FLUID 30LTR.
                          from £284.35
                          from £284.35
                          BRAKE FLUID Genuine Porsche Part - New (to order)
