porsche 2026 (992-2 gt3/rs/st) underbody trim parts diagram

801-705 - UNDERBODY TRIM

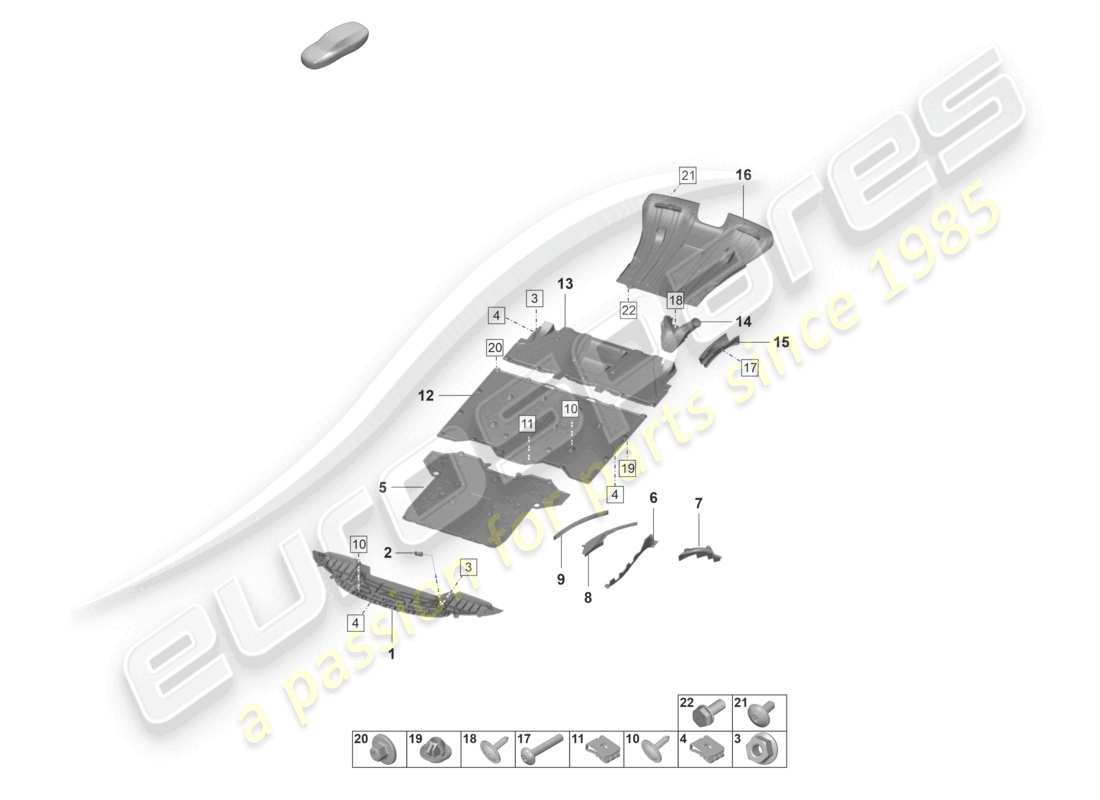

Porsche 2026 (992-2 GT3/RS/ST) Underbody trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 9GT807568A OK1
                                            UNDERBODY TRIM FRONT - MATT BLACK
                                            from £204.44
                                            from £204.44
                                            UNDERBODY TRIM MATT BLACK Genuine Porsche Part - New (to order)
                                            # 2
                                            MPN: 9GT861749A
                                            CABLE UNDERBODY TRIM
                                            from £24.20
                                            from £24.20
                                            CABLE Genuine Porsche Part - New (to order)
                                            # 3
                                            MPN: N 10609204
                                            Hexagon collar nut to be used for item: 2
                                            from £1.15
                                            from £1.15
                                            shouldered hex. nut Genuine Porsche Part - New (to order)
                                            HEXAGON FLANGE NUT M8 Genuine Lamborghini - New In stock
                                            # 4
                                            MPN: N 91242501
                                            CLAMPING NUT ST4.8X22X18 TO BE USED FOR ITEM: 1,5
                                            from £0.87
                                            from £0.87
                                            This part replaces part number 99950730902 - and 2 more. Click to view details
                                            CLAMPING NUT Genuine Porsche Part - New In stock
                                            SNAP NUT CLAMP ST4.8X22X18 Genuine Lamborghini - New In stock
                                            # 5
                                            MPN: 992825523M
                                            UNDERBODY TRIM FRONT FOR FRONT AXLE
                                            from £59.62
                                            from £59.62
                                            UNDERBODY TRIM Genuine Porsche Part - New (to order)
                                            UNDERBODY TRIM Genuine Porsche Part - Damaged In stock
                                            Damage to corner
                                            # 6
                                            MPN: 9GT807957
                                            AIR DUCT LEFT WHEEL HOUSING
                                            from £80.50
                                            from £80.50
                                            AIR DUCT Genuine Porsche Part - New (to order)
                                            # 6
                                            MPN: 9GT807958
                                            AIR DUCT RIGHT WHEEL HOUSING
                                            from £78.17
                                            from £78.17
                                            AIR DUCT Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 9GT805897A
                                            AIR GUIDE LEFT WHEEL HOUSING LINER
                                            from £81.77
                                            from £81.77
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 9GT805898A
                                            AIR GUIDE RIGHT WHEEL HOUSING LINER
                                            from £81.77
                                            from £81.77
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 9GT805639A
                                            AIR GUIDE LEFT UNDERBODY D >>- 30.08.2023
                                            from £83.19
                                            from £83.19
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 9GT805639C
                                            AIR GUIDE LEFT UNDERBODY D - 31.08.2023>>
                                            from £83.19
                                            from £83.19
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 9GT805640A
                                            AIR GUIDE RIGHT UNDERBODY D >>- 30.08.2023
                                            from £83.19
                                            from £83.19
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 9GT805640C
                                            AIR GUIDE RIGHT UNDERBODY D - 31.08.2023>>
                                            from £83.19
                                            from £83.19
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 9GT825487
                                            AIR GUIDE LEFT UNDERBODY INNER
                                            from £75.17
                                            from £75.17
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 9GT825488
                                            AIR GUIDE RIGHT UNDERBODY INNER
                                            from £75.17
                                            from £75.17
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 10
                                            MPN: 9A700769800
                                            PANEL SCREW ST4.8X16-C
                                            from £0.78
                                            from £0.78
                                            This part replaces part number 99907323109 - and 2 more. Click to view details
                                            tapping screw Genuine Porsche Part - New In stock
                                            # 11
                                            MPN: N 91242501
                                            CLAMPING NUT ST4.8X22X18
                                            from £0.87
                                            from £0.87
                                            This part replaces part number 99950730902 - and 2 more. Click to view details
                                            CLAMPING NUT Genuine Porsche Part - New In stock
                                            SNAP NUT CLAMP ST4.8X22X18 Genuine Lamborghini - New In stock
                                            # 12
                                            MPN: 992825505
                                            Underbody trim center
                                            from £171.68
                                            from £171.68
                                            Genuine Porsche Part (no longer available to order)
                                            UNDERBODY LINING Genuine Porsche Part - Used In stock
                                            (small damage to corner)
                                            # 13
                                            MPN: 9GT825521A
                                            UNDERBODY TRIM REAR
                                            from £254.18
                                            from £254.18
                                            UNDERBODY TRIM Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 9GT521511
                                            AIR GUIDE LEFT
                                            from £52.40
                                            from £52.40
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 9GT521512
                                            AIR GUIDE RIGHT
                                            from £52.40
                                            from £52.40
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 15
                                            MPN: 9GT615457
                                            AIR GUIDE LEFT REAR AXLE
                                            from £19.74
                                            from £19.74
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            AIR GUIDE Genuine Porsche Part - Used In stock
                                            # 15
                                            MPN: 9GT615458
                                            AIR GUIDE RIGHT REAR AXLE
                                            from £35.89
                                            from £35.89
                                            AIR GUIDE Genuine Porsche Part - New (to order)
                                            # 16
                                            MPN: 9GT825197B OK1
                                            Underbody trim rear Rear diffuser Included Accessories single parts see illustration: 801-720 - Matt black
                                            from £2,224.74
                                            from £2,224.74
                                            UNDERBODY TRIM MATT BLACK Genuine Porsche Part - New (to order)
                                            # 17
                                            MPN: PAF107388
                                            TORX LENS FLANGE SCREW TO BE USED FOR ITEM: 15
                                            from £1.62
                                            from £1.62
                                            SCREW Genuine Porsche Part - New (to order)
                                            # 18
                                            MPN: 9A700769800
                                            PANEL SCREW ST4.8X16-C
                                            from £0.78
                                            from £0.78
                                            This part replaces part number 99907323109 - and 2 more. Click to view details
                                            tapping screw Genuine Porsche Part - New In stock
                                            # 19
                                            MPN: 9P1853385
                                            Securing clip Cover
                                            from £4.39
                                            from £4.39
                                            SECURING CLIP Genuine Porsche Part - New (to order)
                                            # 20
                                            MPN: N 91242801
                                            HEX. NUT WITH WASHER C6 HEXAGON NUT
                                            from £0.50
                                            from £0.50
                                            This part replaces part number 99904903240
                                            HEX. NUT WITH WASHER Genuine Porsche Part - New In stock
                                            # 21
                                            MPN: PAF910423
                                            OVAL HEXAGON SOCKET HEAD BOLT M6X16 REAR TO BE USED FOR ITEM: 16
                                            from £0.72
                                            from £0.72
                                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
