107-010 - intake air distributor

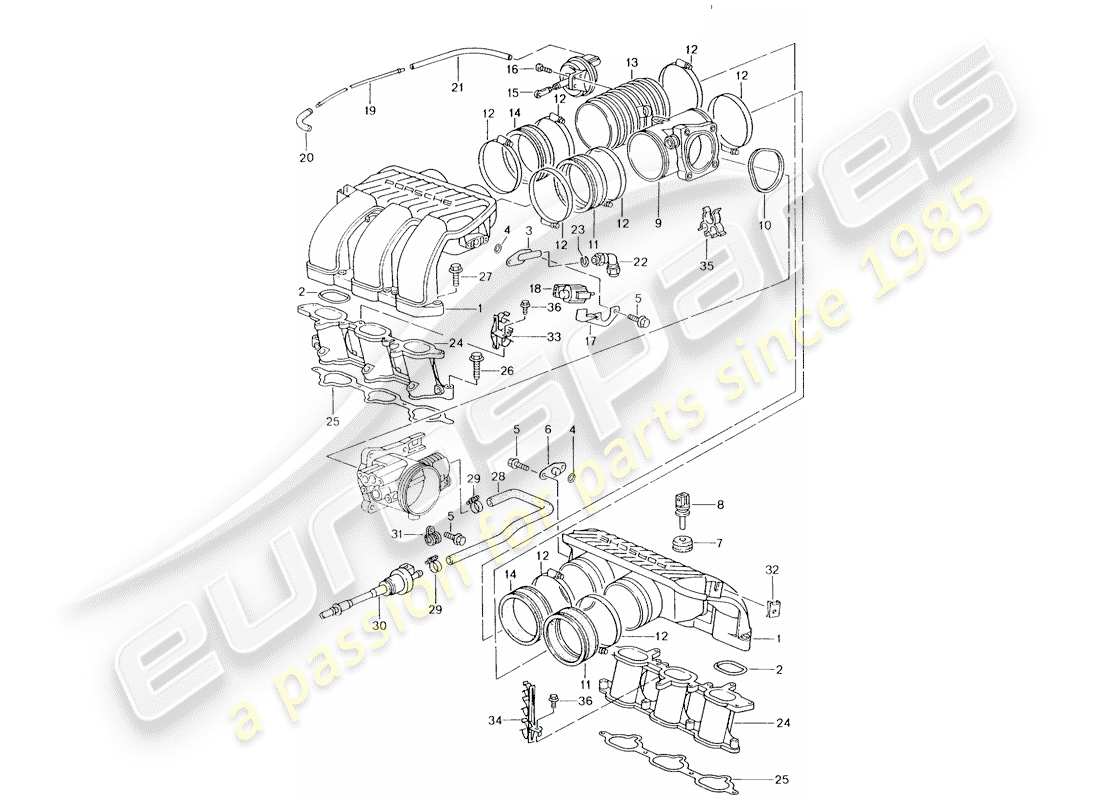

Porsche 1999 (996) INTAKE AIR DISTRIBUTOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99611001555
intake air distributor
# 1
MPN: 99611098040
intake air distributor
(PR:X51)
# 2
MPN: 99611024750
GASKET
Supersession
Supersession
# 3
MPN: 99611015151
adapter - D >> - MJ 1998
from £21.88
from £21.88
# 3
MPN: 99611015152
adapter - D >> - MJ 2000
from £25.15
from £25.15
# 3
MPN: 99611015152
adapter - D - MJ 2001>>
(PR:480)
from £25.15
from £25.15
# 3
MPN: 99611015101
adapter - D - MJ 2001>>
(PR:249)
from £21.88
from £21.88
# 4
MPN: 99970116340
O-RING - 11 X 2,5
# 5
MPN: 99991912509
SCREW, HEX. HD. - 6,0 X 16
from £2.68
from £2.68
# 6
MPN: 99611025151
SEALING CAP
from £2.29
from £2.29
# 7
MPN: 99311053000
GROMMET
Supersession
Supersession
# 8
MPN: 99660611300
TEMPERATURE SENSOR
from £35.89
from £35.89
# 9
MPN: 99611021553
INTERMEDIATE PIECE
from £24.90
from £24.90
# 9
MPN: 99611011600
INTERMEDIATE PIECE
(PR:339)
# 10
MPN: 99611031750
SEAL RING - DISCONTINUED PART
# 10
MPN: 99611031752
SEAL RING
from £18.85
from £18.85
# 10
MPN: 99611031900
GASKET
(PR:339)
Supersession
Supersession
# 11
MPN: 99611068552
RUBBER SLEEVE
from £20.04
from £20.04
# 12
MPN: 99951253900
Hose Clamp - 90 - 110/9
Supersession
Supersession
# 12
MPN: 99951253901
Hose Clamp - 90 - 110/9
from £4.52
from £4.52
This part replaces part number 99951253900
# 13
MPN: 99611012053
INTAKE AIR DUCT
from £239.67
from £239.67
# 14
MPN: 99611068650
Rubber sleeve - D >> - MJ 2000
from £21.06
from £21.06
# 14
MPN: 99611068651
Rubber sleeve - D - MJ 2001>>
# 15
MPN: 99311046202
VACUUM UNIT
Supersession
Supersession
# 16
MPN: 90014612302
SCREW - M 5 X 16
# 17
MPN: 99611051052
RETAINING BRACKET
from £3.78
from £3.78
# -
-
retaining bracket - suction pump - D - MJ 2001>>
(PR:249)
# 18
MPN: 99660512301
Change-over valve
Supersession
Supersession
# 18
MPN: 7PP906270
Change-over valve
from £37.47
from £37.47
This part replaces part number 99660512301
# -
-
TUBE - 4 X 1
This part replaces part number 90091801740
# 19
-
SHORTEN TO:
420 MM
# 20
MPN: 92857471703
MOLDED HOSE
Supersession
Supersession
# -
-
HOSE - 3,5 X 2
# 21
-
SHORTEN TO:
148 MM (PR:661)
# 21
-
SHORTEN TO:
176 MM
# 22
MPN: 99923049840
ELBOW
from £14.70
from £14.70
# 23
MPN: 99923053540
FUSE
# 24
MPN: 99611010152
INTAKE MANIFOLD
from £463.51
from £463.51
# 24
MPN: 99611098300
INTAKE MANIFOLD
(PR:X51)
from £95.08
from £95.08
# 25
MPN: 99611010350
GASKET
from £3.78
from £3.78
# 26
MPN: 90037817409
SCREW, HEX. HD. - M 6 X 35
from £0.84
from £0.84
# 27
MPN: 90037817209
SCREW, HEX. HD. - M 6 X 35 - DISCONTINUED PART
# 27
MPN: 90038501701
Torx screw - M 6 X 35
Supersession
Supersession
# 28
MPN: 99611012750
breather line
from £69.12
from £69.12
# 28
MPN: 99611012730
breather line
(PR:339)
# 29
MPN: 99951255400
HOSE CLAMP - 14 X 12
from £2.68
from £2.68
This part replaces part number 90027200302
# 30
MPN: 99611012952
BREATHER LINE - DISCONTINUED PART
# 30
MPN: 99611012953
breather line
from £183.31
from £183.31
# 31
MPN: 99951115502
CLAMP - 15 X 15 - DISCONTINUED PART
# 31
MPN: 99951115501
CLAMP - 15 X 15 - DISCONTINUED PART
# 31
MPN: 99951115503
CLAMP - 15 X 15
from £5.35
from £5.35
# 32
MPN: 99950724602
SPEED NUT - M 6
# 33
MPN: 99660710700
BRACKET
from £6.14
from £6.14
# 34
MPN: 99660710800
BRACKET
from £21.30
from £21.30
# 35
MPN: 99660710900
bracket - D >> - MJ 2001
from £6.14
from £6.14
# 35
MPN: 99660701300
bracket - D - MJ 2002>> - MJ 2002
from £3.73
from £3.73
# 35
MPN: 99660714300
bracket - D - MJ 2003>>
from £3.65
from £3.65
# 36
MPN: 90037816309
SCREW, HEX. HD. - M 6 X 16
Supersession
Supersession
