porsche 1999 (996) rear axle - wheel carrier - upper link - wheel hub parts diagram

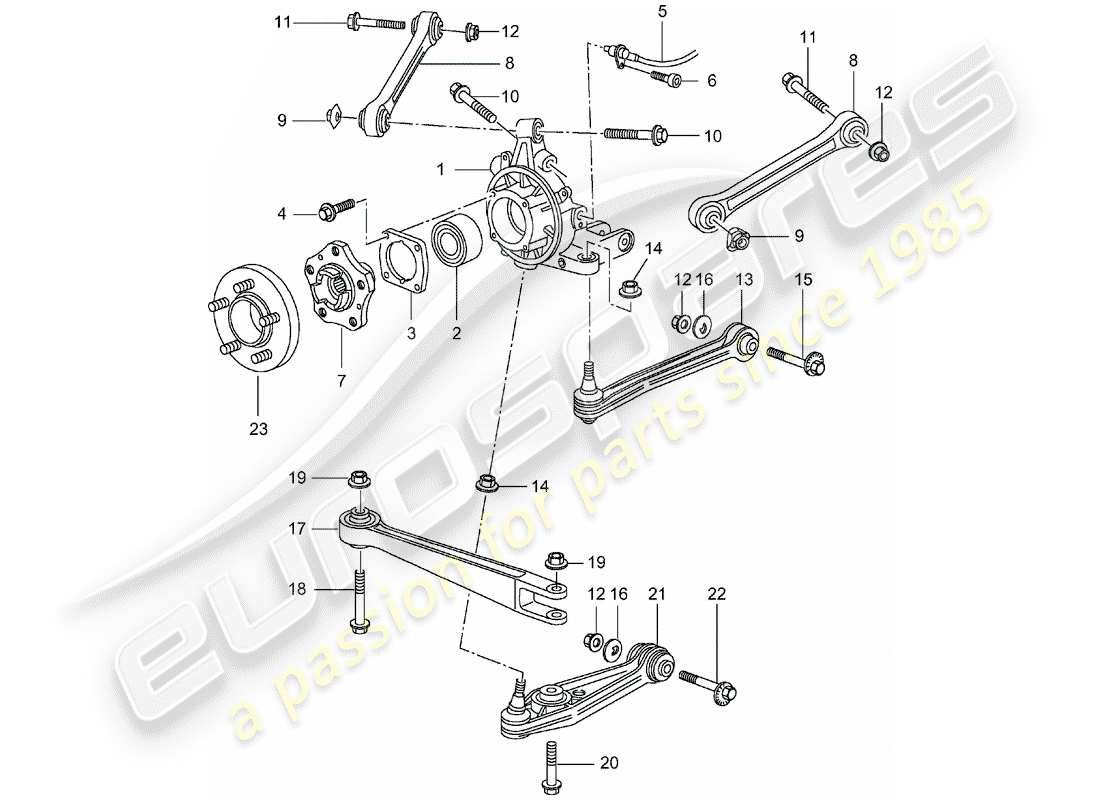

501-000 - REAR AXLE - WHEEL CARRIER - UPPER LINK - WHEEL HUB

Porsche 1999 (996) REAR AXLE - WHEEL CARRIER - UPPER LINK - WHEEL HUB Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # -
                                              -
                                              SEE TECHNICAL MANUAL - 42-27 - 42-28 - 42-29
                                              # 1
                                              MPN: 99633111105
                                              Wheel carrier - F >> 99-XS608 187 - F >> 99-XS646 091 - F >> 99-XS608 184 - F >> 99-XS646 090
                                              LEFT
                                              from £717.55
                                              from £717.55
                                              # 1
                                              MPN: 99633111106
                                              Wheel carrier - F 99-XS608 188>> - F 99-XS646 092>> - F 99-XS608 185>> - F 99-XS646 091>>
                                              LEFT
                                              from £717.55
                                              from £717.55
                                              # 1
                                              MPN: 99633111205
                                              Wheel carrier - F >> 99-XS608 187 - F >> 99-XS646 091 - F >> 99-XS608 184 - F >> 99-XS646 090
                                              RIGHT
                                              from £717.55
                                              from £717.55
                                              # 1
                                              MPN: 99633111206
                                              Wheel carrier - F 99-XS608 188>> - F 99-XS646 092>> - F 99-XS608 185>> - F 99-XS646 091>>
                                              RIGHT
                                              from £717.55
                                              from £717.55
                                              # 2
                                              MPN: 99905305502
                                              BALL BEARING
                                              from £116.38
                                              from £116.38
                                              # 3
                                              MPN: 99633166101
                                              COVER
                                              from £13.64
                                              from £13.64
                                              # 4
                                              MPN: 99921704209
                                              SCREW, HEX. HD. - M 8 X 35
                                              from £0.89
                                              from £0.89
                                              # 5
                                              MPN: 99660640600
                                              SPEED SENSOR
                                              from £135.55
                                              from £135.55
                                              # 6
                                              MPN: 90006711709
                                              SCREW, CHEESE HD. - M 6 X 16 - DISCONTINUED PART
                                              # 6
                                              MPN: 90006711704
                                              SCREW, CHEESE HD. - M 6 X 16
                                              from £2.29
                                              from £2.29
                                              # 7
                                              MPN: 99733160500
                                              WHEEL HUB
                                              # 8
                                              MPN: 99633104702
                                              track control arm - D >> - MJ 2001
                                              Supersession
                                              Supersession
                                              # 8
                                              MPN: 99633104703
                                              track control arm - D >> - MJ 2003
                                              # 8
                                              MPN: 99633104705
                                              track control arm - D - MJ 2004>>
                                              # 9
                                              MPN: 99908445209
                                              HEX. NUT - M 12 X 1,5
                                              from £3.66
                                              from £3.66
                                              # 10
                                              MPN: 90037813909
                                              SCREW, HEX. HD. - M 12 X 80 - DISCONTINUED PART
                                              # 10
                                              MPN: 90037813901
                                              SCREW, HEX. HD. - M 12 X 80
                                              from £9.00
                                              from £9.00
                                              # 11
                                              MPN: 90037808809
                                              SCREW, HEX. HD. - M 12 X 100 - DISCONTINUED PART
                                              # 11
                                              MPN: 90037808801
                                              SCREW, HEX. HD. - M 12 X 100
                                              from £5.97
                                              from £5.97
                                              # 13
                                              MPN: 99633104506
                                              tie rod - F >> 99-WS600 422
                                              # 13
                                              MPN: 99633104507
                                              TIE ROD - DISCONTINUED PART
                                              # 13
                                              MPN: 99633104508
                                              tie rod - F 99-WS600 423>> - Discontinued part
                                              # 13
                                              MPN: 99633104512
                                              TIE ROD
                                              Supersession
                                              Supersession
                                              # 14
                                              MPN: 99908444909
                                              LOCK NUT - M 12 X 1,5
                                              from £2.29
                                              from £2.29
                                              # 15
                                              MPN: 99633121702
                                              ECCENTRIC SCREW - M 12 X 83
                                              # 16
                                              MPN: 99633121900
                                              ECCENTRIC WASHER
                                              Supersession
                                              Supersession
                                              # 17
                                              MPN: 99634104306
                                              UPPER LINK
                                              Supersession
                                              Supersession
                                              # 18
                                              MPN: 90037805109
                                              SCREW, HEX. HD. - M 14 X 100
                                              # 19
                                              MPN: 90038001209
                                              HEX. NUT - M 14 X 1,5 - DISCONTINUED PART
                                              Supersession
                                              Supersession
                                              # 19
                                              MPN: 90038001201
                                              HEX. NUT - M 14 X 1,5
                                              from £1.62
                                              from £1.62
                                              # 20
                                              MPN: 90037813509
                                              SCREW, HEX. HD. - M 14 X 75 - DISCONTINUED PART
                                              # 20
                                              MPN: 90037813501
                                              SCREW, HEX. HD. - M 14 X 75
                                              from £7.97
                                              from £7.97
                                              # 21
                                              MPN: 99634105307
                                              track control arm - D >> - MJ 2003 - Discontinued part
                                              Supersession
                                              Supersession
                                              # 21
                                              MPN: 99634105316
                                              track control arm - D - MJ 2004>> - MJ 2004
                                              Supersession
                                              Supersession
                                              # 21
                                              MPN: 99634105317
                                              track control arm - D - MJ 2005>>
                                              Supersession
                                              Supersession
                                              # 23
                                              MPN: 99636161700
                                              SPACER RING - 17 MM - WITH: - WHEEL MOUNTING BOLT - D - MJ 2001>> - MJ 2001
                                              (PR:XRN)
                                              from £66.77
                                              from £66.77
                                              # 23
                                              MPN: 99636161700
                                              spacer ring - 17 MM - with: - wheel mounting bolt - D - MJ 2002>>
                                              (/C4S PR:XRN)
                                              from £66.77
                                              from £66.77
                                              # 23
                                              MPN: 99636160590
                                              SPACER RING - 5 MM - WITHOUT: - WHEEL MOUNTING BOLT - D - MJ 2001>>
                                              (PR:XRP)
