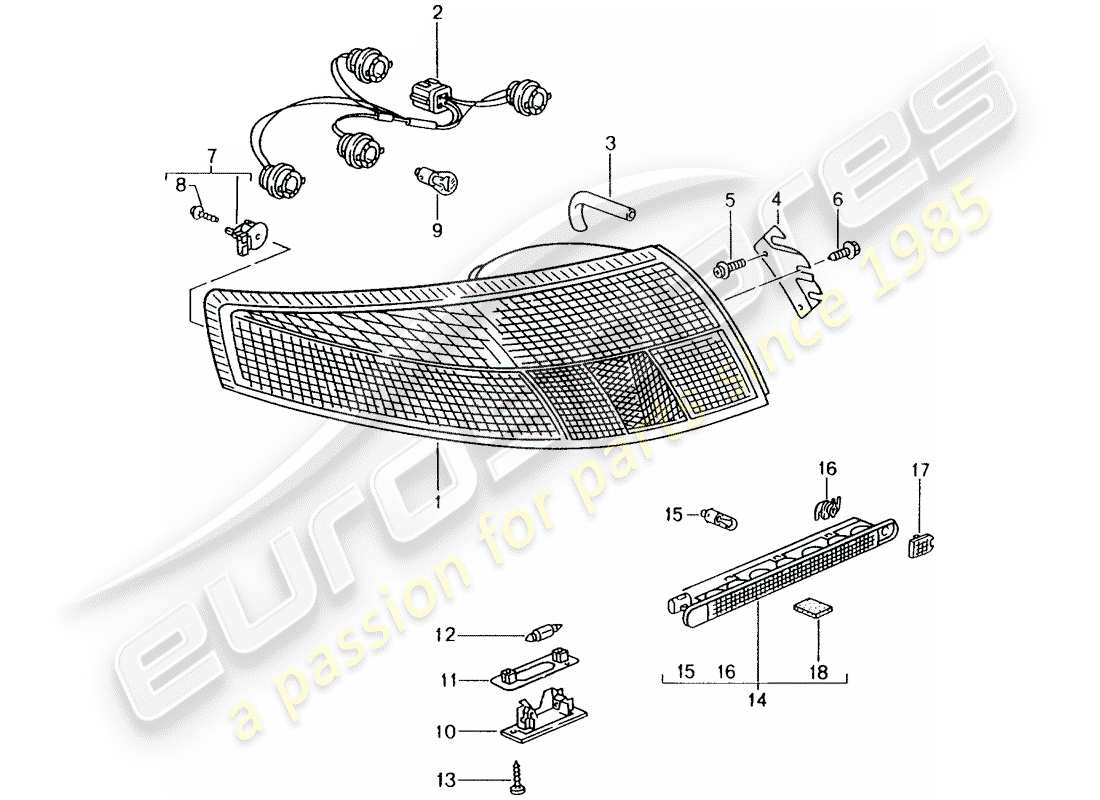

905-005 - rear light - license plate light - additional brake light
Porsche 2000 (996) REAR LIGHT - LICENSE PLATE LIGHT - ADDITIONAL BRAKE LIGHT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99663143301
Rear light - D - MJ 1998>> - MJ 1998
left (CARRERA)
from £430.85
from £430.85
# 1
MPN: 99663148500
Rear light - D - MJ 1999>>
left (CARRERA)
Supersession
Supersession
# 1
MPN: 99663148700
Rear light - D - MJ 2002>>
left (C4S)
Supersession
Supersession
# 1
MPN: 99663143401
Rear light - D - MJ 1998>> - MJ 1998
right (CARRERA)
from £422.42
from £422.42
# 1
MPN: 99663148600
Rear light - D - MJ 1999>>
right (CARRERA)
from £407.25
from £407.25
# 1
MPN: 99663148800
Rear light - D - MJ 2002>>
right (C4S)
Supersession
Supersession
# 2
MPN: 99663143500
harness - D - MJ 1998>> - MJ 1998
(CARRERA)
# 2
MPN: 99663143601
harness - D - MJ 1999>>
(CARRERA)
from £174.39
from £174.39
# 2
MPN: 99663143701
harness - D - MJ 2002>>
(C4S)
from £174.41
from £174.41
# 3
MPN: 99663145101
ADAPTER
from £28.02
from £28.02
# 4
MPN: 99663146302
BRACKET
left (CARRERA)
from £18.75
from £18.75
# 4
MPN: 99663146501
bracket - D - MJ 2002>>
left (C4S)
from £19.71
from £19.71
# 4
MPN: 99663146402
BRACKET
right (CARRERA)
from £18.75
from £18.75
# 4
MPN: 99663146601
bracket - D - MJ 2002>>
right (C4S)
from £19.71
from £19.71
# 5
MPN: 99907411302
BOLT WITH WASHER - M 5 X 18
from £1.15
from £1.15
# 6
MPN: 99907411509
SCREW, HEX. HD. - M 6 X 16
(CARRERA)
from £1.15
from £1.15
# 6
MPN: 99907325009
fillister hd. screw - M 5 X 15 - D - MJ 2002>>
(C4S)
from £0.91
from £0.91
# 7
MPN: 99663147100
MOUNTING
from £2.13
from £2.13
# 8
MPN: 99991912109
FILLISTER HD. SCREW
from £0.59
from £0.59
# 9
MPN: 90063112790
BULB - 21 W - WHITE
from £1.34
from £1.34
# 9
MPN: 90063113190
bulb - 21 W - yellow - D - MJ 1999>>
# 9
MPN: 90063112890
BULB - 21/5 W
from £3.98
from £3.98
# 9
MPN: 90063110490
BULB - 5 W - D - MJ 2002>>
(C4S)
from £3.59
from £3.59
# 10
MPN: 96463162000
license plate light - D >> - MJ 2001
(CARRERA)
Supersession
Supersession
# 10
MPN: 99763162001
license plate light - D - MJ 2002>> - Discontinued part
(CARRERA)
Supersession
Supersession
# 10
MPN: 99763162002
license plate light - D - MJ 2002>>
(CARRERA)
Supersession
Supersession
# 10
MPN: 96463162000
license plate light - D - MJ 2002>>
(C4S)
Supersession
Supersession
# 11
MPN: 99363116600
PACKING - - D >> - MJ 2001
(CARRERA C4S)
from £2.13
from £2.13
# 12
MPN: 90063110590
BULB - 12V 5W
from £2.04
from £2.04
# 13
MPN: 90014308507
tapping screw - 4,2 X 16 - D >> - MJ 2001
(CARRERA C4S)
from £1.28
from £1.28
# 14
MPN: 99663105000
ADDITIONAL BRAKE LIGHT - DISCONTINUED PART
(PR:602)
Supersession
Supersession
# 14
MPN: 99663105002
ADDITIONAL BRAKE LIGHT - DISCONTINUED PART
(PR:602)
# 14
MPN: 99663105004
ADDITIONAL BRAKE LIGHT - DISCONTINUED PART
(PR:602)
# 14
MPN: 99663105006
ADDITIONAL BRAKE LIGHT
(PR:602)
from £199.73
from £199.73
This part replaces part number 99663105000
# 15
MPN: 90063101990
GLASS-BASE BULB - 3 W
(PR:602)
from £2.16
from £2.16
# 16
MPN: 99663116800
ATTACHMENT ELEMENT
(PR:602)
from £2.53
from £2.53
# 17
MPN: 99663116500
CAP
(PR:602)
from £7.66
from £7.66
# 18
MPN: 99663110500
PACKING
(PR:602)
from £1.89
from £1.89
