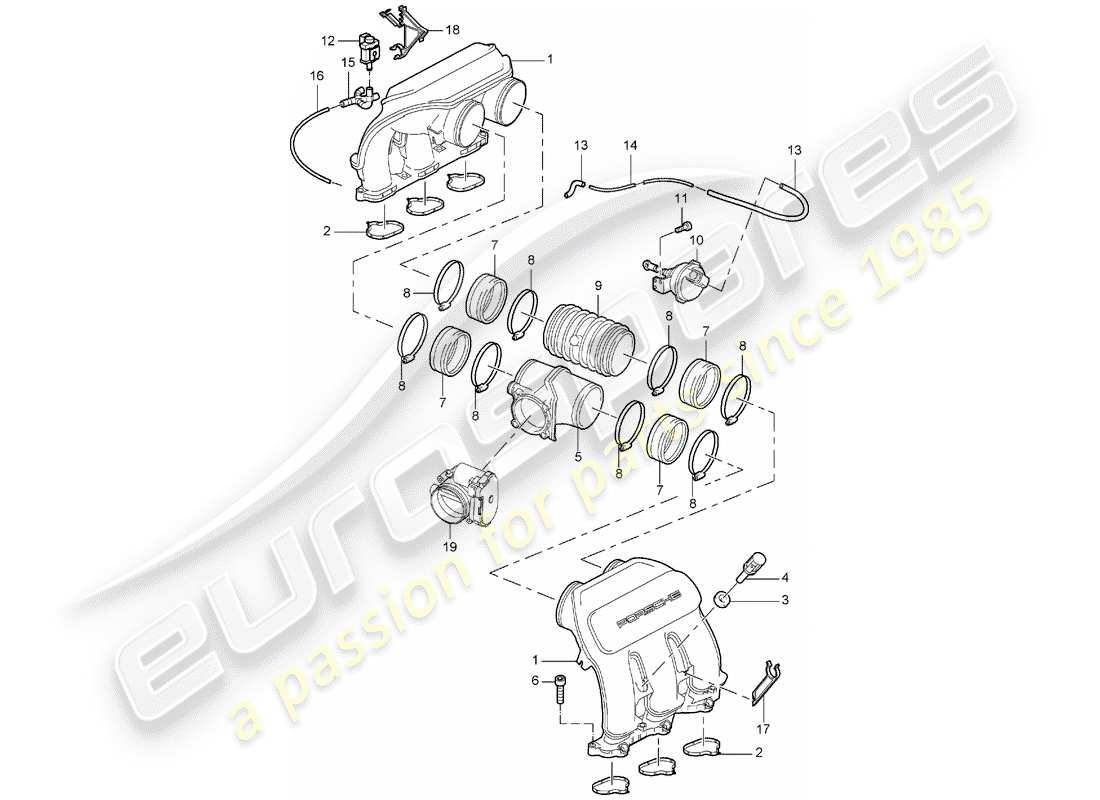

107-010 - intake air distributor
Porsche 2005 (997-1) INTAKE AIR DISTRIBUTOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99711011503
intake air distributor
(9701)
Supersession
Supersession
# 1
MPN: 99611001555
intake air distributor
M >> 695 08696 (9605)
# -
-
INTAKE MANIFOLD
(9605)
# 1
MPN: 99711003601
intake air distributor
M 695 08697 >> (9605)
from £254.93
from £254.93
# 1
MPN: 99711011540
intake air distributor
D - MJ 2006>> (9701+ PR:X51)
from £695.59
from £695.59
# 2
MPN: 99711024701
GASKET
Supersession
Supersession
# 3
MPN: 99311053001
GROMMET
Supersession
Supersession
# 4
MPN: 99760621300
TEMPERATURE SENSOR
Supersession
Supersession
# 5
MPN: 99711041603
Distributor tube
(9701)
from £150.34
from £150.34
# 5
MPN: 99611011601
Distributor tube
(9605)
from £93.39
from £93.39
# 5
MPN: 99711041640
Distributor tube
D - MJ 2006>> (9701+ PR:X51)
from £744.91
from £744.91
# 6
MPN: 90038501704
TORX SCREW
M 6 X 35 | Discontinued part
# 6
MPN: 90038501701
TORX SCREW
M 6 X 35
Supersession
Supersession
# 7
MPN: 99711068500
RUBBER SLEEVE
from £7.65
from £7.65
# 7
MPN: 99711068540
RUBBER SLEEVE
D - MJ 2006>> (9701+ PR:X51)
from £31.55
from £31.55
# 8
MPN: 99951253900
HOSE CLAMP
90 - 110/9 (PR:-X51)
Supersession
Supersession
# 8
MPN: 99951253901
HOSE CLAMP
90 - 110/9 (PR:-X51)
from £4.52
from £4.52
This part replaces part number 99951253900
# 8
MPN: 99951269400
HOSE CLAMP
170 - 190/9 |
D - MJ 2006>> (9701+ PR:X51)
D - MJ 2006>> (9701+ PR:X51)
from £5.10
from £5.10
# 9
MPN: 99611012053
INTAKE AIR DUCT
from £239.67
from £239.67
# 10
MPN: 99311046202
VACUUM UNIT
Supersession
Supersession
# 11
MPN: 90014612302
SCREW
M 5 X 16
# 12
MPN: 99660512301
Change-over valve
Supersession
Supersession
# 13
MPN: 92857471705
MOLDED HOSE
Supersession
Supersession
# 13
MPN: 92857471707
MOLDED HOSE
No longer use the part here
# 13
MPN: 9P1129487
MOLDED HOSE
from £5.97
from £5.97
This part replaces part number 92857471703 - and 1 more. Click to view details
# -
-
TUBE
4 X 1
# 14
-
SHORTEN TO:
340 MM (9605)
# 14
-
SHORTEN TO:
420 MM (9701)
# 14
-
SHORTEN TO:
210 MM |
D - MJ 2006>> (9701+ PR:X51)
D - MJ 2006>> (9701+ PR:X51)
# 15
MPN: 92857372703
DISTRIBUTOR PIECE
Triple | Discontinued part
Supersession
Supersession
# 15
MPN: 92857372705
DISTRIBUTOR PIECE
Triple
from £11.71
from £11.71
This part replaces part number 92857372703
# 15
MPN: 92857372903
DISTRIBUTOR PIECE
Fourfold | Discontinued part
# 15
MPN: 92857372905
DISTRIBUTOR PIECE
Fourfold
from £13.66
from £13.66
# 15
MPN: 92857471705
MOLDED HOSE
Supersession
Supersession
# 15
MPN: 92857471707
MOLDED HOSE
No longer use the part here
# 15
MPN: 9P1129487
MOLDED HOSE
from £5.97
from £5.97
This part replaces part number 92857471703 - and 1 more. Click to view details
# 16
-
SHORTEN TO:
270 MM (9605)
# 16
-
SHORTEN TO:
210 MM (9701)
# 16
-
SHORTEN TO:
210 MM |
D - MJ 2006>> (9701+ PR:X51)
D - MJ 2006>> (9701+ PR:X51)
# 16
-
SHORTEN TO:
1100 MM (9701)
# 16
-
SHORTEN TO:
1140 MM (PR:249)
# 17
-
SEE ILLUSTRATION:
104-011
# 18
MPN: 99711054700
LINE HOLDER
Lines (9701)
from £3.82
from £3.82
# 19
-
SEE ILLUSTRATION:
107-000
# -
-
BRACKET
Change-over valve |
D - MJ 2006>> (9701+ PR:X51)
D - MJ 2006>> (9701+ PR:X51)
