porsche 2007 (997-1 gt3) disc brakes parts diagram

602-000 - disc brakes

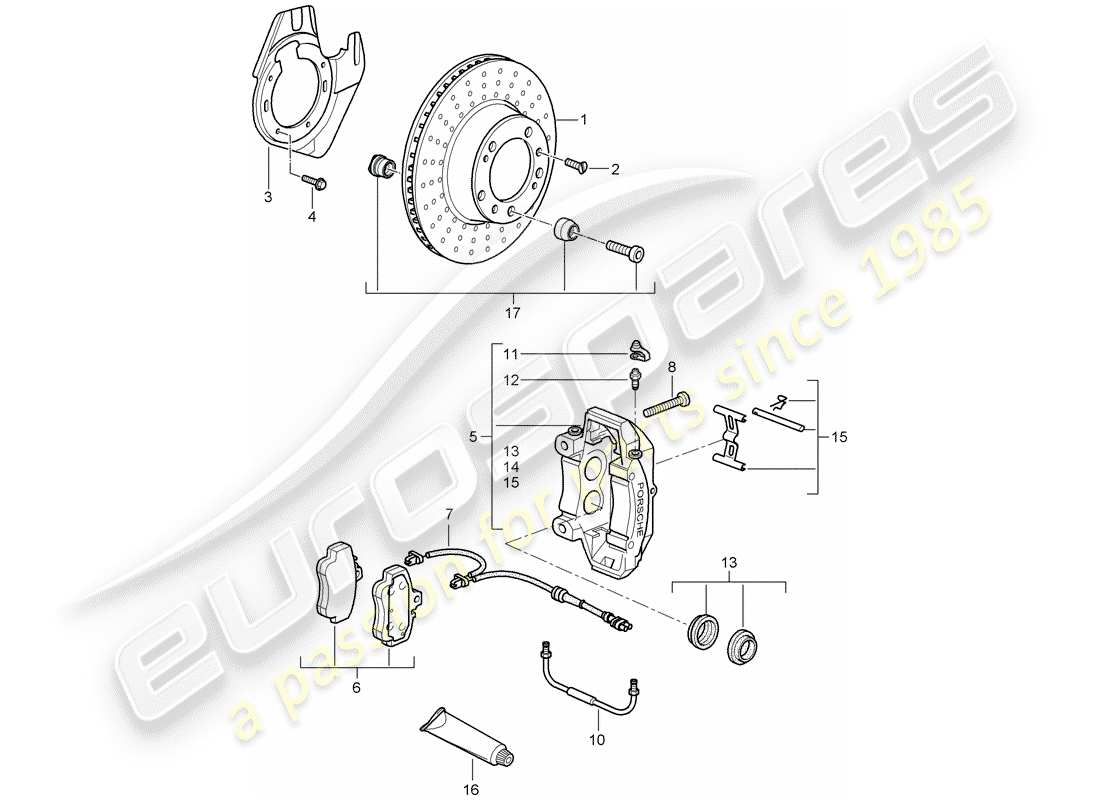

Porsche 2007 (997-1 GT3) DISC BRAKES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # -
    -
    BRAKE DISC
    Only | in pairs | Replace | Technical manual | Attention (PR:450)
    # 1
    MPN: 99735140990
    BRAKE DISC
    left front |
    D >> - MJ 2008
    from £567.22
    from £567.22
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735140991
    BRAKE DISC
    left front |
    also use: | See technical manual |
    Group: | 46 50 19 Xx 99734190100 |
    D - MJ 2010>>
    from £803.34
    from £803.34
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735103191
    BRAKE DISC
    left front |
    D >> - MJ 2008 (PR:450)
    from £3,219.50
    from £3,219.50
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735103196
    BRAKE DISC
    left front |
    also use: 997 341 901 00 | See technical manual |
    Group: | 46 51 19 |
    D - MJ 2010>> (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 1
    MPN: 99735141090
    BRAKE DISC
    right front |
    D >> - MJ 2008
    from £614.43
    from £614.43
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735141091
    BRAKE DISC
    right front |
    also use: | See technical manual |
    Group: | 46 50 19 Xx 99734190100 |
    D - MJ 2010>>
    from £803.34
    from £803.34
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735103291
    BRAKE DISC
    right front |
    D >> - MJ 2008 (PR:450)
    from £3,684.56
    from £3,684.56
    BRAKE DISC Genuine Porsche Part - New (to order)
    # 1
    MPN: 99735103296
    BRAKE DISC
    right front |
    also use: 997 341 901 00 | See technical manual |
    Group: | 46 51 19 |
    D - MJ 2010>> (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 2
    MPN: 90026904709
    SCREW, CSK. HD.
    M 6 X 12 |
    D >> - MJ 2008 | Discontinued part
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 2
    MPN: 90026904701
    SCREW, CSK. HD.
    M 6 X 12
    from £0.59
    from £0.59
    This part replaces part number 90026904709
    SCREW, COUNTERSUNK HD. - M 6 X 12 - D - MJ 2004>> Genuine Porsche Part - New In stock
    # 2
    MPN: 99901502509
    OVAL-HEAD SCREW
    M 6 X 12 |
    D >> - MJ 2010
    from £2.29
    from £2.29
    OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
    # 3
    MPN: 99635181390
    COVER PLATE
    left | lower |
    D - MJ 2007>> - MJ 2007
    cover plate - - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735181390
    COVER PLATE
    left | lower |
    D - MJ 2008>>
    from £35.12
    from £35.12
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99635181590
    AIR DEFLECTOR PLATE
    LEFT
    from £32.69
    from £32.69
    air deflector plate - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 3
    MPN: 99635181490
    COVER PLATE
    right | lower |
    D - MJ 2007>> - MJ 2007
    cover plate - - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 3
    MPN: 99735181490
    COVER PLATE
    right | lower |
    D - MJ 2008>>
    from £35.12
    from £35.12
    COVER PLATE Genuine Porsche Part - New (to order)
    # 3
    MPN: 99635181690
    AIR DEFLECTOR PLATE
    RIGHT
    from £32.69
    from £32.69
    air deflector plate - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # -
    -
    SCREW, HEX. HD.
    M 6 x 16 |
    D - MJ 2007>> - MJ 2007
    # -
    -
    SCREW, HEX. HD.
    M 6 x 16 |
    D - MJ 2008>>
    This part replaces part number 90037803609
    # -
    -
    HEX. NUT
    _M 6 |
    D - MJ 2007>> - MJ 2007
    # -
    -
    HEX. NUT
    M 6 |
    D - MJ 2008>>
    # 4
    MPN: 99921711609
    SCREW, HEX. HD.
    M 6 x 16 |
    D - MJ 2007>> - MJ 2007
    SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
    # 4
    MPN: 99921711601
    SCREW, HEX. HD.
    M 6 x 16 |
    D - MJ 2008>>
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 5
    MPN: 99635143190
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 4x 99906704709 |
    D >> - MJ 2008
    from £1,470.15
    from £1,470.15
    calliper without brake pads - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 5
    MPN: 99735143194
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 4x 99906705409 |
    D - MJ 2010>>
    from £1,577.22
    from £1,577.22
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99735143192
    CALLIPER WITHOUT BRAKE PADS
    left |
    also use: 4x 99906705409 (PR:450)
    from £1,417.37
    from £1,417.37
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99635143290
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 4x 99906704709
    from £1,470.15
    from £1,470.15
    calliper without brake pads - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 5
    MPN: 99735143294
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 4x 99906705409 |
    D - MJ 2010>>
    from £1,577.22
    from £1,577.22
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 5
    MPN: 99735143292
    CALLIPER WITHOUT BRAKE PADS
    right |
    also use: 4x 99906705409 (PR:450)
    from £1,417.37
    from £1,417.37
    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
    # 6
    MPN: 99635194800
    1 SET OF BRAKE PADS FOR DISC
    front | brakes |
    also use: | fasteners |
    also use: 4x 99906704709 |
    D >> - MJ 2008
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 6
    MPN: 99735194891
    1 SET OF BRAKE PADS FOR DISC
    front | brakes |
    also use: | fasteners |
    also use: 4x 99906705409 |
    D - MJ 2010>>
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 6
    MPN: 99735194802
    1 SET OF BRAKE PADS FOR DISC
    front | brakes |
    also use: 4x 99906705409 |
    D - MJ 2007>> - MJ 2007 (PR:450)
    from £602.86
    from £602.86
    1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
    # 6
    MPN: 99735194890
    1 SET OF BRAKE PADS FOR DISC
    front | brakes |
    also use: 4x 99906705409 |
    D - MJ 2008>> (PR:450)
    from £573.48
    from £573.48
    1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
    # -
    -
    DAMPING PLATE
    Only in combination with: | 1 set of brake pads for disc | brakes | 996.351.948.00 |
    D >> - MJ 2008 | Discontinued part
    # -
    -
    DAMPING PLATE
    Only in combination with: | 1 set of brake pads for disc | brakes | 996.351.948.00
    # 7
    MPN: 99761267790
    SENDER WIRE
    (pad wear indicator)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    BRACKET FOR SPEED SENSOR
    # -
    -
    LINE HOLDER
    for | Warning contact
    # 8
    MPN: 99906704709
    SCREW, CHEESE HD.
    M 12 X 1,5 X 85 |
    D - MJ 2007>> - MJ 2007
    screw, cheese hd. - M 12 X 1,5 X 85 - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 8
    MPN: 99906705309
    SCREW, CHEESE HD.
    m 12 x 1,5 x 85 |
    D - MJ 2008>>
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 8
    MPN: 99906705409
    SCREW, CHEESE HD.
    M 12 X 1,5 X 62 |
    D - MJ 2010>>
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 8
    MPN: 99906705409
    SCREW, CHEESE HD.
    M 12 X 1,5 X 62 (PR:450)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 10
    MPN: 99635196130
    connecting line
    D >> - MJ 2008
    from £39.98
    from £39.98
    Connecting line - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 10
    MPN: 99735196191
    connecting line
    D - MJ 2010>>
    from £48.66
    from £48.66
    connecting line Genuine Porsche Part - New (to order)
    # 10
    MPN: 98035196100
    connecting line
    (PR:450)
    from £43.81
    from £43.81
    connecting line Genuine Porsche Part - New (to order)
    # 11
    MPN: 93035192700
    DUST CAP
    Discontinued part
    dust cap - Discontinued part Genuine Porsche Part - New (to order)
    # 11
    MPN: 93035192701
    DUST CAP
    from £1.73
    from £1.73
    DUST CAP Genuine Porsche Part - New (to order)
    # 12
    MPN: 99735291900
    BLEEDER VALVE
    from £13.16
    from £13.16
    BLEEDER VALVE Genuine Porsche Part - New (to order)
    # 13
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM |
    D >> - MJ 2008
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 99635191500
    repair kit
    Protection caps | 32 MM |
    D >> - MJ 2008
    from £13.98
    from £13.98
    repair kit - Protection caps - 32 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 99635191501
    repair kit
    Protection caps | 38 MM |
    D >> - MJ 2008
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 13
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM |
    D - MJ 2010>>
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 95135291701
    repair kit
    Protection caps | 30 MM |
    D - MJ 2010>>
    from £10.88
    from £10.88
    repair kit - Protection caps - 30 MM Genuine Porsche Part - New (to order)
    # 13
    MPN: 99635191500
    repair kit
    Protection caps | 32 MM |
    D - MJ 2010>>
    from £13.98
    from £13.98
    repair kit - Protection caps - 32 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 95135291700
    repair kit
    Protection caps | 28 MM (PR:450)
    from £12.52
    from £12.52
    repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 99635191500
    repair kit
    Protection caps | 32 MM (PR:450)
    from £13.98
    from £13.98
    repair kit - Protection caps - 32 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 13
    MPN: 95135291701
    repair kit
    Protection caps | 30 mm (PR:450)
    from £10.88
    from £10.88
    repair kit - Protection caps - 30 MM Genuine Porsche Part - New (to order)
    # 15
    MPN: 99635195930
    repair kit
    fasteners | pin | speader spring | screw
    from £54.54
    from £54.54
    repair kit - fasteners - pin - screw - speader spring - D - MJ 2004>> Genuine Porsche Part - New (to order)
    # 16
    MPN: 00004311700
    BRAKE CYLINDER PASTE
    50 G
    brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
    # 16
    MPN: 00004302000
    ASSEMBLY PASTE
    100 G
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 17
    MPN: 99734190100
    ASSEMBLY KIT
    comprising: | Driving pin 5x | sleeve 5x | Fastening screw 5x | See technical manual | 46 50 19 | 46 51 19 |
    D - MJ 2010>> (PR:430)
    from £159.37
    from £159.37
    ASSEMBLY KIT Genuine Porsche Part - New (to order)
