porsche 2007 (997-1 gt3) bumper parts diagram

802-005 - BUMPER

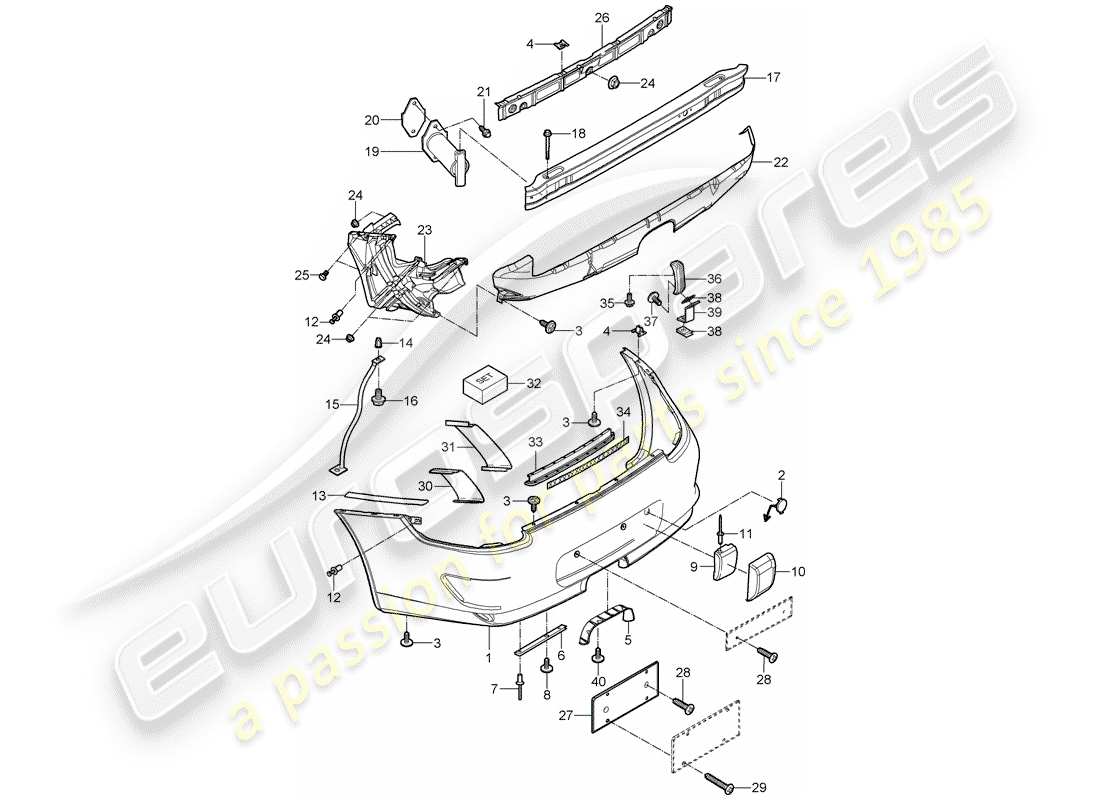

Porsche 2007 (997-1 GT3) BUMPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 99750541193
            LINING
            primed |
            D >> - MJ 2009 | Discontinued part (PR:-004)
            LINING Genuine Porsche Part - New (to order)
            # 1
            MPN: 997505411A2
            LINING
            primed |
            D >> - MJ 2009 (PR:-004)
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 1
            MPN: 9975054119A
            LINING
            primed |
            D - MJ 2010>> (PR:-004)
            from £2,493.18
            from £2,493.18
            LINING Genuine Porsche Part - New (to order)
            # 1
            MPN: 99750541195
            LINING
            D >> - MJ 2009 | Discontinued part (PR:004)
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # -
            -
            PRIMED
            This part replaces part number 99750541195
            # 1
            MPN: 997505411A4
            LINING
            D >> - MJ 2009 (PR:004)
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # -
            -
            PRIMED
            This part replaces part number 997505411A4
            # 1
            MPN: 997505421A4
            LINING
            primed |
            D - MJ 2010>> (PR:004)
            from £2,493.18
            from £2,493.18
            LINING Genuine Porsche Part - New (to order)
            # 2
            MPN: 99750580300
            COVER FOR TOWING EYE
            D >> - MJ 2009
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # -
            -
            PRIMED
            This part replaces part number 99750580300
            # 2
            MPN: 99750580302
            COVER
            D - MJ 2010>>
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # -
            -
            Orange
            This part replaces part number 99750580302
            # 3
            MPN: 99907322709
            tapping screw
            4,8 X 16
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 4
            MPN: 99950759002
            NUT
            ST 4,8
            NUT Genuine Porsche Part - New (to order)
            # 5
            MPN: 99750581190
            SHIELD
            muffler - exhaust |
            D >> - MJ 2009
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 5
            MPN: 99750581191
            SHIELD
            muffler - exhaust |
            D - MJ 2010>>
            from £127.97
            from £127.97
            SHIELD Genuine Porsche Part - New (to order)
            # 6
            MPN: 99750583790
            RETAINING STRIP
            lower |
            D >> - MJ 2009
            from £7.98
            from £7.98
            RETAINING STRIP Genuine Porsche Part - New (to order)
            # 6
            MPN: 99750583791
            RETAINING STRIP
            left | lower |
            D - MJ 2010>>
            from £58.58
            from £58.58
            RETAINING STRIP Genuine Porsche Part - New (to order)
            # 6
            MPN: 99750583891
            RETAINING STRIP
            right | lower | left |
            D - MJ 2010>>
            from £58.58
            from £58.58
            RETAINING STRIP Genuine Porsche Part - New (to order)
            # 7
            MPN: 99919010430
            POP-RIVET
            3,2 X 7,9
            from £0.59
            from £0.59
            pop-rivet - D >> - MJ 1990 - Discontinued part Genuine Porsche Part - New In stock
            # 8
            MPN: 99907331409
            tapping screw
            ST 4,8 X 16
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 12
            MPN: 99959194140
            RIVET
            ST 4,2
            from £0.91
            from £0.91
            rivet - ST 4,2 Genuine Porsche Part - New (to order)
            # 13
            MPN: 99750463100
            PROTECTIVE FOIL
            from £6.04
            from £6.04
            PROTECTIVE FOIL Genuine Porsche Part - New (to order)
            # 14
            MPN: 99950008401
            SPEED NUT
            from £2.68
            from £2.68
            SPEED NUT - M 6 Genuine Porsche Part - New (to order)
            # 15
            MPN: 99750568101
            cross support
            LEFT
            from £53.71
            from £53.71
            cross support Genuine Porsche Part - New (to order)
            # 15
            MPN: 99750568201
            cross support
            RIGHT
            from £53.71
            from £53.71
            cross support Genuine Porsche Part - New (to order)
            # 16
            MPN: 90037803501
            SCREW, HEX. HD.
            M6 X 16
            from £0.91
            from £0.91
            screw, hex. hd. - M 6 X 16 - D - MJ 1999>> Genuine Porsche Part - New (to order)
            # 17
            MPN: 99750512190
            BUMPER BRACKET
            D >> - MJ 2009
            from £563.12
            from £563.12
            BUMPER BRACKET Genuine Porsche Part - New (to order)
            # 17
            MPN: 99750512192
            BRACKET
            D - MJ 2010>>
            from £609.94
            from £609.94
            BRACKET Genuine Porsche Part - New (to order)
            # 18
            MPN: 90037808801
            SCREW, HEX. HD.
            M 12 X 100
            from £5.97
            from £5.97
            screw, hex. hd. - M 12X100 Genuine Porsche Part - New (to order)
            # 19
            MPN: 99650501901
            BUFFER
            from £24.53
            from £24.53
            BUFFER Genuine Porsche Part - New (to order)
            # 20
            MPN: 99650577500
            PACKING
            from £3.68
            from £3.68
            PACKING Genuine Porsche Part - New (to order)
            # 21
            MPN: 90037826701
            SCREW, HEX. HD.
            M 8 X 30
            SCREW, HEX. HD Genuine Porsche Part - New (to order)
            # 22
            MPN: 99750547590
            heat deflector
            center |
            D >> - MJ 2009
            from £360.45
            from £360.45
            heat deflector Genuine Porsche Part - New (to order)
            # 22
            MPN: 99750547591
            heat deflector
            center |
            D - MJ 2010>>
            from £645.21
            from £645.21
            heat deflector Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563190
            BRACKET
            left | side |
            D >> - MJ 2009
            from £282.03
            from £282.03
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563192
            BRACKET
            left | side |
            D - MJ 2010>>
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563191
            BRACKET
            left | side |
            D >> - MJ 2009 (PR:004)
            from £454.23
            from £454.23
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563193
            BRACKET
            left | side |
            D - MJ 2010>> (PR:004)
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563290
            BRACKET
            right | side |
            D >> - MJ 2009
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563292
            BRACKET
            right | side |
            D - MJ 2010>>
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563291
            BRACKET
            right | side |
            D >> - MJ 2009 (PR:004)
            BRACKET Genuine Porsche Part - New (to order)
            # 23
            MPN: 99750563293
            BRACKET
            right | side |
            D - MJ 2010>> (PR:004)
            BRACKET Genuine Porsche Part - New (to order)
            # 24
            MPN: 99907607809
            HEX. NUT
            M 6
            HEX. NUT Genuine Porsche Part - New (to order)
            # 26
            MPN: 99750564102
            ATTACHMENT STRIP
            center |
            D >> - MJ 2009
            from £38.91
            from £38.91
            ATTACHMENT STRIP Genuine Porsche Part - New (to order)
            # 26
            MPN: 99750564103
            ATTACHMENT STRIP
            center |
            D - MJ 2010>>
            from £54.60
            from £54.60
            ATTACHMENT STRIP Genuine Porsche Part - New (to order)
            # 27
            MPN: 99770111300
            LICENSE PLATE BRACKET
            (PR:218)
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # -
            -
            Black
            This part replaces part number 99770111300
            # -
            -
            ASSEMBLY KIT
            rear | license plate bracket | comprising: | bracket | nut | Rubber buffer (PR:209)
            # -
            -
            ASSEMBLY KIT
            rear | license plate bracket | comprising: | spacer | Washer | screw | nut | lock ring (PR:209)
            # 28
            MPN: 999919228A2
            SCREW
            license plate bracket | 5 X 28
            from £2.68
            from £2.68
            SCREW Genuine Porsche Part - New In stock
            # 29
            MPN: 999919227A2
            tapping screw
            license plate bracket | 5 X 13
            from £2.68
            from £2.68
            tapping screw Genuine Porsche Part - New In stock
            # 30
            MPN: 99750582390
            AIR DUCT
            left |
            D >> - MJ 2009
            from £84.82
            from £84.82
            AIR DUCT Genuine Porsche Part - New (to order)
            # 30
            MPN: 99750581790
            AIR DUCT
            left |
            D - MJ 2010>>
            from £120.70
            from £120.70
            AIR DUCT Genuine Porsche Part - New (to order)
            # 30
            MPN: 99750582490
            AIR DUCT
            right |
            D >> - MJ 2009
            from £84.82
            from £84.82
            AIR DUCT Genuine Porsche Part - New (to order)
            # 30
            MPN: 99750581890
            GRILLE
            right |
            D - MJ 2010>>
            from £120.70
            from £120.70
            GRILLE Genuine Porsche Part - New (to order)
            # 31
            MPN: 99750581390
            Frame
            left | air duct |
            D >> - MJ 2009
            from £65.07
            from £65.07
            Frame Genuine Porsche Part - New (to order)
            # 31
            MPN: 99750585190
            retaining frame
            left | air duct |
            D - MJ 2010>>
            from £78.51
            from £78.51
            retaining frame Genuine Porsche Part - New (to order)
            # 31
            MPN: 99750581490
            Frame
            right | air duct |
            D >> - MJ 2009
            from £56.03
            from £56.03
            Frame Genuine Porsche Part - New (to order)
            # 31
            MPN: 99750585290
            retaining frame
            right | air duct |
            D - MJ 2010>>
            from £78.51
            from £78.51
            retaining frame Genuine Porsche Part - New (to order)
            # -
            -
            FILLISTER HD. SCREW
            for | retaining frame | air duct |
            D - MJ 2010>>
            # 32
            MPN: 00004320604
            ADHESIVE TAPE
            air duct | Processing instructions |
            Group: | 63 55 37
            Adhesive tape - roller - 4 METER - D - MJ 2003>> Genuine Porsche Part - New (to order)
            # 33
            MPN: 99750583590
            retaining frame
            upper | for 1x | grille 1x | air duct
            from £102.08
            from £102.08
            retaining frame Genuine Porsche Part - New (to order)
            # 34
            MPN: 99750582990
            GRILLE
            upper | air duct
            from £261.76
            from £261.76
            GRILLE Genuine Porsche Part - New (to order)
            # 35
            MPN: 99907505601
            BOLT WITH WASHER
            M8
            from £1.10
            from £1.10
            BOLT WITH WASHER Genuine Porsche Part - New (to order)
            # 36
            MPN: 99750563900
            RETAINING STRAP
            D >> - MJ 2009
            from £16.75
            from £16.75
            RETAINING STRAP Genuine Porsche Part - New (to order)
            # 36
            MPN: 99750563992
            RETAINING STRAP
            D - MJ 2010>>
            from £29.94
            from £29.94
            RETAINING STRAP Genuine Porsche Part - New (to order)
            # 37
            MPN: 90007533502
            BOLT WITH WASHER
            M6x22
            BOLT WITH WASHER - M 6 X 22 Genuine Porsche Part - New (to order)
            # 38
            MPN: 99950779509
            SPEED NUT
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 39
            MPN: 99750564900
            FILLER PLATE
            bracket |
            D >> - MJ 2009
            from £23.97
            from £23.97
            FILLER PLATE Genuine Porsche Part - New (to order)
            # 39
            MPN: 99750564991
            BRACKET
            D - MJ 2010>>
            from £26.93
            from £26.93
            BRACKET Genuine Porsche Part - New (to order)
            # 40
            MPN: 99991926401
            FILLISTER HD. SCREW
            3,0X8,0
            from £0.59
            from £0.59
            FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
