porsche 2008 (997-1) brake master cylinder parts diagram

604-000 - brake master cylinder

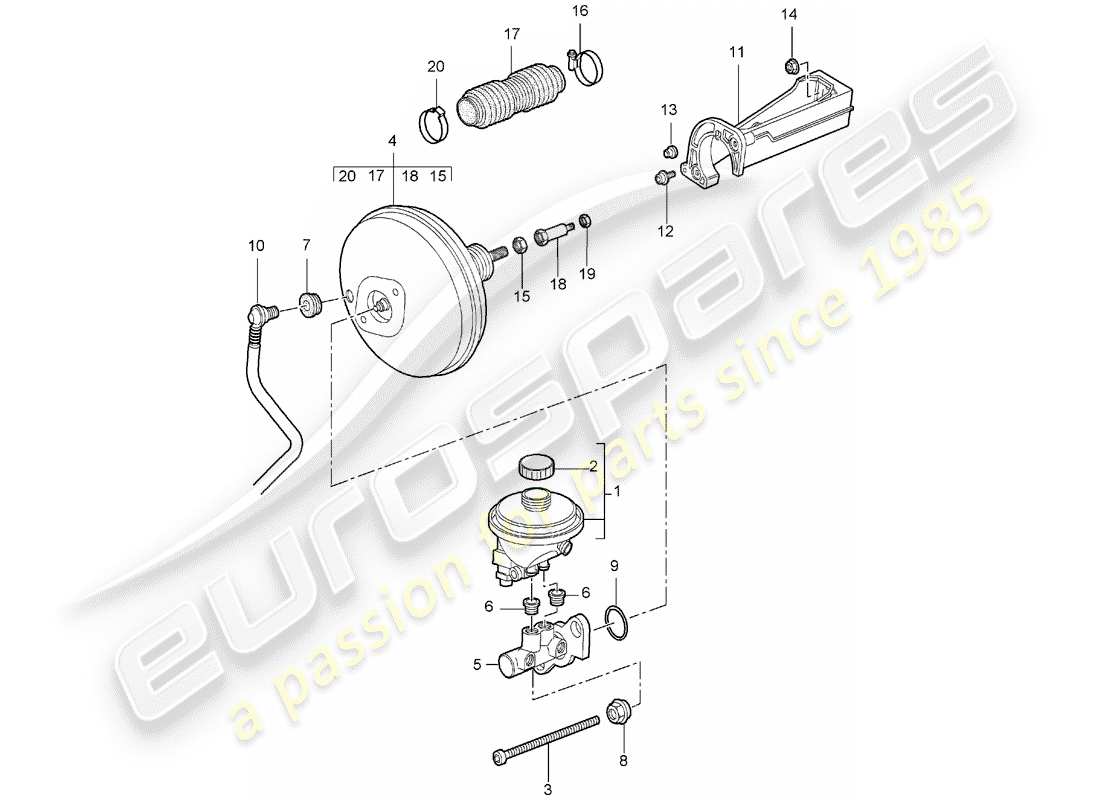

Porsche 2008 (997-1) BRAKE MASTER CYLINDER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # -
                    MPN: 00004321082
                    BRAKE FLUID
                    1,0ltr.
                    from £19.23
                    from £19.23
                    BRAKE FLUID Genuine Porsche Part - New In stock
                    # -
                    MPN: 00004321086
                    BRAKE FLUID
                    30ltr.
                    from £284.35
                    from £284.35
                    BRAKE FLUID Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99735501301
                    RESERVOIR FOR
                    brake fluid (PR:480)
                    from £173.91
                    from £173.91
                    RESERVOIR FOR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99735501321
                    RESERVOIR FOR
                    brake fluid (PR:249)
                    from £170.34
                    from £170.34
                    RESERVOIR FOR Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99635511901
                    CATCH
                    from £6.65
                    from £6.65
                    CATCH Genuine Porsche Part - New (to order)
                    # -
                    -
                    PARK/NEUTRAL POSITION SWITCH
                    for | container
                    # 3
                    MPN: 99907312409
                    SCREW, CHEESE HD.
                    M 8 X 154 X 80 2x | Discontinued part (CARRERA 2 CARRERA 2S)
                    SCREW, CHEESE HD. - M 8 X 154 X 80 Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99907312402
                    SCREW, CHEESE HD.
                    M 8 X 154 X 80 2x | Discontinued part (CARRERA 2 CARRERA 2S)
                    SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99907361501
                    SCREW, CHEESE HD.
                    M 8 X 154 X 80 2x (CARRERA 2 CARRERA 2S)
                    from £8.77
                    from £8.77
                    SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99907332709
                    SCREW, CHEESE HD.
                    M 8 X 197 X 29 2x | 2x | 2x (CARRERA 4 CARRERA 4S TARGA TARGA S)
                    from £17.47
                    from £17.47
                    SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99735592300
                    BRAKE BOOSTER
                    1x (CARRERA 2 CARRERA 2S)
                    from £550.08
                    from £550.08
                    BRAKE BOOSTER Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99735592320
                    BRAKE BOOSTER
                    1x (CARRERA 4 CARRERA 4S TARGA)
                    from £357.48
                    from £357.48
                    BRAKE BOOSTER Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99735592537
                    BRAKE BOOSTER
                    (PR:450 CARRERA 4)
                    from £367.82
                    from £367.82
                    BRAKE BOOSTER Genuine Porsche Part - New (to order)
                    # -
                    -
                    CATCH
                    Threaded joint | brake booster
                    # 5
                    MPN: 99735591000
                    brake master cylinder
                    (CARRERA 2)
                    brake master cylinder Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99735591010
                    brake master cylinder
                    (CARRERA 2S PR:450)
                    brake master cylinder Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99735591010
                    brake master cylinder
                    (CARRERA 2S)
                    brake master cylinder Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99735591010
                    brake master cylinder
                    1x (CARRERA 4 TARGA)
                    brake master cylinder Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99735591030
                    brake master cylinder
                    (PR:450 CARRERA 4)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 99735591030
                    brake master cylinder
                    1x (CARRERA 4S TARGA S)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 6
                    MPN: 99335592200
                    GROMMET
                    from £16.67
                    from £16.67
                    GROMMET Genuine Porsche Part - New In stock
                    # 7
                    MPN: 99970218240
                    RUBBER BUSH
                    from £6.78
                    from £6.78
                    RUBBER BUSH Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 99735592500
                    HEX. NUT
                    from £9.34
                    from £9.34
                    HEX. NUT Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99335521200
                    GASKET
                    from £4.61
                    from £4.61
                    GASKET Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99735557700
                    VACUUM LINE
                    1x (CARRERA 2 CARRERA 2S PR:098)
                    from £158.54
                    from £158.54
                    VACUUM LINE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99735557725
                    VACUUM LINE
                    1x | 1x | 1x (CARRERA 4 CARRERA 4S TARGA TARGA S PR:098)
                    VACUUM LINE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99735557800
                    VACUUM LINE
                    1x (CARRERA 2 CARRERA 2S PR:099)
                    from £158.54
                    from £158.54
                    VACUUM LINE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99735557825
                    VACUUM LINE
                    1x | 1x | 1x (CARRERA 4 CARRERA 4S TARGA TARGA S PR:099)
                    VACUUM LINE Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99742325100
                    INTERMEDIATE PIECE
                    from £60.31
                    from £60.31
                    INTERMEDIATE PIECE Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 99907318901
                    SCREW, ROUND HD.
                    M 6 X 12
                    from £0.91
                    from £0.91
                    SCREW, ROUND HD Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 99970344850
                    PLUG
                    RIGHT
                    from £0.65
                    from £0.65
                    PLUG Genuine Porsche Part - New (to order)
                    # 14
                    MPN: 99908463009
                    HEX. NUT
                    M 8
                    hex. nut - M 8 Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 90018301502
                    HEX. NUT
                    M 12 X 1,5
                    hex. nut - M 12 X 1,5 - D - MJ 1991>> Genuine Porsche Part - New (to order)
                    # -
                    -
                    GASKET
                    brake booster | filler plate
                    # 16
                    MPN: 99951247800
                    HOSE CLAMP
                    from £5.33
                    from £5.33
                    Hose Clamp - F 99-YS690 532>> Genuine Porsche Part - New (to order)
                    # 17
                    MPN: 99642326905
                    BELLOWS
                    1x (CARRERA 2 CARRERA 2S)
                    from £17.12
                    from £17.12
                    bellows - F 99-YS605 32 >> Genuine Porsche Part - New (to order)
                    # 17
                    MPN: 99735596900
                    BELLOWS
                    1x | 1x | 1x (CARRERA 4 CARRERA 4S TARGA TARGA S)
                    from £9.34
                    from £9.34
                    BELLOWS Genuine Porsche Part - New (to order)
                    # 18
                    MPN: 99635592701
                    CONNECTING PIECE
                    from £34.29
                    from £34.29
                    CONNECTING PIECE Genuine Porsche Part - New (to order)
                    # 19
                    MPN: 90038001509
                    HEX. NUT
                    M 6 | Discontinued part
                    hex. nut - VM 6 - Discontinued part Genuine Porsche Part - New (to order)
                    # 19
                    MPN: 90038001501
                    HEX. NUT
                    M 6
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 20
                    MPN: 99951267200
                    Retaining Clip
                    from £5.33
                    from £5.33
                    retaining clip - F 99-YS690 532>> Genuine Porsche Part - New (to order)
