porsche 2010 (997-2 gt3) lines parts diagram

104-006 - lines

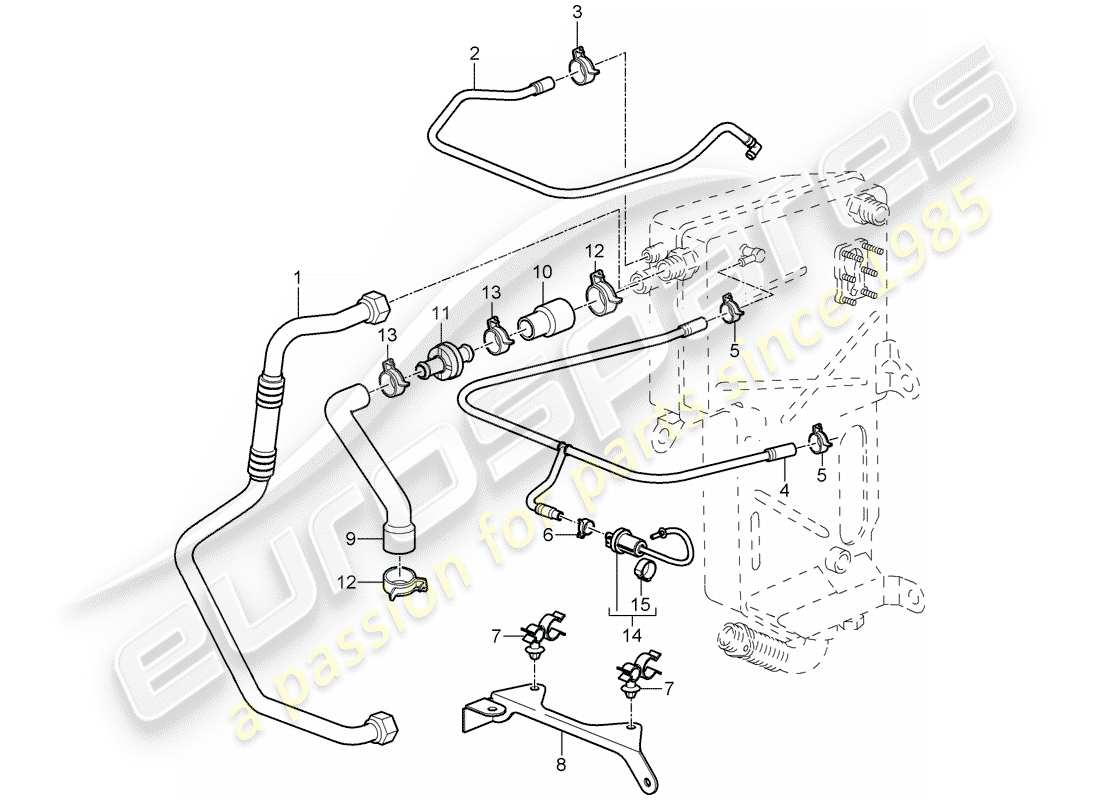

Porsche 2010 (997-2 GT3) LINES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 99610702794
        RETURN LINE
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 2
        MPN: 99720703790
        breather line
        Full load
        from £103.80
        from £103.80
        breather line Genuine Porsche Part - New (to order)
        # 3
        MPN: 99951265609
        HOSE CLAMP
        25 X 12
        from £2.29
        from £2.29
        Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New (to order)
        HOSE CLAMP Genuine Bentley Part - New (to order)
        # 4
        MPN: 99720703990
        breather line
        Teillast
        from £161.05
        from £161.05
        breather line Genuine Porsche Part - New (to order)
        # 5
        MPN: 99951268609
        HOSE CLAMP
        17 X 2
        from £2.29
        from £2.29
        HOSE CLAMP - B 17 X 12 - FOR - PLUG - AIR DUCT Genuine Porsche Part - New (to order)
        # 6
        MPN: 99951265109
        HOSE CLAMP
        15 X 12
        from £0.91
        from £0.91
        HOSE CLAMP Genuine Porsche Part - New (to order)
        HOSE CLAMP Genuine Bentley Part - New (to order)
        # 7
        MPN: 99950784340
        BRACKET FOR HOSE
        16,0 / 10,0
        from £6.62
        from £6.62
        BRACKET FOR HOSE Genuine Porsche Part - New (to order)
        # 8
        MPN: 99720767590
        BRACKET FOR
        BREATHER HOSE
        from £25.75
        from £25.75
        BRACKET FOR Genuine Porsche Part - New (to order)
        # 9
        MPN: 99720714391
        MOLDED HOSE
        Bleeding | crankcase
        from £69.86
        from £69.86
        MOLDED HOSE Genuine Porsche Part - New (to order)
        # 10
        MPN: 99720714591
        MOLDED HOSE
        Discontinued part
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 10
        MPN: 99720714592
        MOLDED HOSE
        from £32.82
        from £32.82
        This part replaces part number 99720714591
        MOLDED HOSE Genuine Porsche Part - New (to order)
        # 11
        MPN: 99710749190
        CHECK VALVE
        Discontinued part
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 11
        MPN: 99710749191
        CHECK VALVE
        from £89.02
        from £89.02
        This part replaces part number 99710749190
        CHECK VALVE Genuine Porsche Part - New (to order)
        # 12
        MPN: 99951266209
        HOSE CLAMP
        32 X 12
        from £1.45
        from £1.45
        HOSE CLAMP Genuine Porsche Part - New (to order)
        # 13
        MPN: 99951265609
        HOSE CLAMP
        25 X 12
        from £2.29
        from £2.29
        Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New (to order)
        HOSE CLAMP Genuine Bentley Part - New (to order)
        # 14
        MPN: 99711012991
        breather line
        from £379.85
        from £379.85
        breather line Genuine Porsche Part - New (to order)
        # 15
        MPN: 99711020190
        THRUST RING
        from £17.29
        from £17.29
        THRUST RING Genuine Porsche Part - New (to order)
