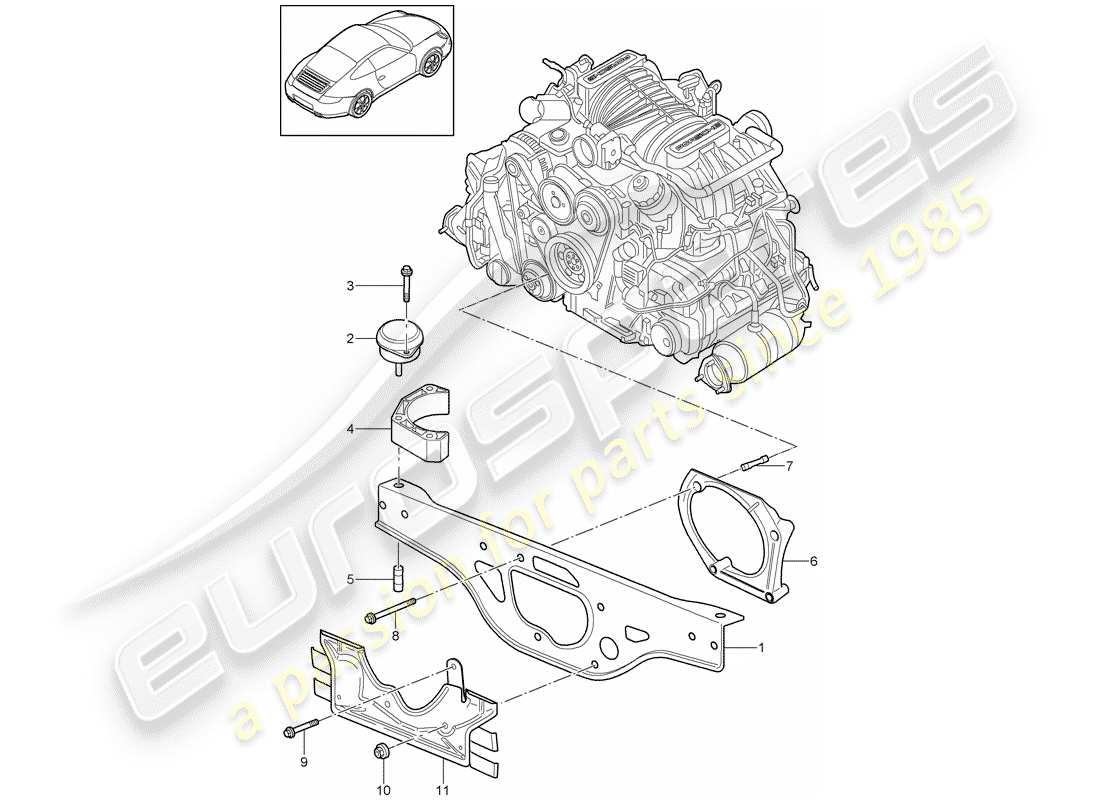

Porsche 2011 (997-2) ENGINE SUSPENSION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 9A137501303
        ENGINE CARRIER
        from £449.72
        from £449.72
        ENGINE CARRIER Genuine Porsche Part - New (to order)
        # 2
        MPN: 99737504907
        HYDRO-MOUNTING
        (CABRIO/TARGA)
        from £294.40
        from £294.40
        This part replaces part number 99737504903
        HYDRO-MOUNTING Genuine Porsche Part - New In stock
        # 2
        MPN: 99737504908
        HYDRO-MOUNTING
        (Coupe)
        from £294.40
        from £294.40
        This part replaces part number 99737504904
        HYDRO-MOUNTING Genuine Porsche Part - New (to order)
        # 3
        MPN: 90037815901
        SCREW, HEX. HD.
        M 8 X 60
        from £0.91
        from £0.91
        This part replaces part number 90037815909
        SCREW, HEX. HD Genuine Porsche Part - New (to order)
        # 4
        MPN: 99637522102
        ADAPTER
        from £21.79
        from £21.79
        ADAPTER Genuine Porsche Part - New (to order)
        # 5
        MPN: 9A137542501
        SLEEVE
        M12 X 1,5
        from £19.94
        from £19.94
        SLEEVE Genuine Porsche Part - New (to order)
        # 6
        MPN: 9A137523502
        INTERMEDIATE FLANGE
        from £122.94
        from £122.94
        INTERMEDIATE FLANGE Genuine Porsche Part - New (to order)
        # 7
        MPN: 9A137524501
        SPACER SLEEVE
        INTERMEDIATE FLANGE
        from £9.49
        from £9.49
        SPACER SLEEVE Genuine Porsche Part - New (to order)
        # 8
        MPN: 90037828301
        TORX SCREW
        M10 X 130 | No longer use the part here
        TORX SCREW Genuine Porsche Part - New (to order)
        # 8
        MPN: 90038528601
        HEXAGON HEAD BOLT
        BM10 X 130
        from £13.96
        from £13.96
        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
        # 9
        MPN: 90037831001
        SCREW, HEX. HD.
        M10 X 80 | No longer use the part here
        from £2.29
        from £2.29
        SCREW, HEX. HD Genuine Porsche Part - New (to order)
        # 9
        MPN: 90038506201
        HEXAGON HEAD BOLT
        BM10 X 80
        from £4.20
        from £4.20
        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
        # 10
        MPN: 90038002101
        HEX. NUT
        M 10
        HEX. NUT Genuine Porsche Part - New (to order)
        # 11
        -
        BRACKET
        exhaust silencer, front |
        see illustration: 202-000
