903-005 - SWITCH

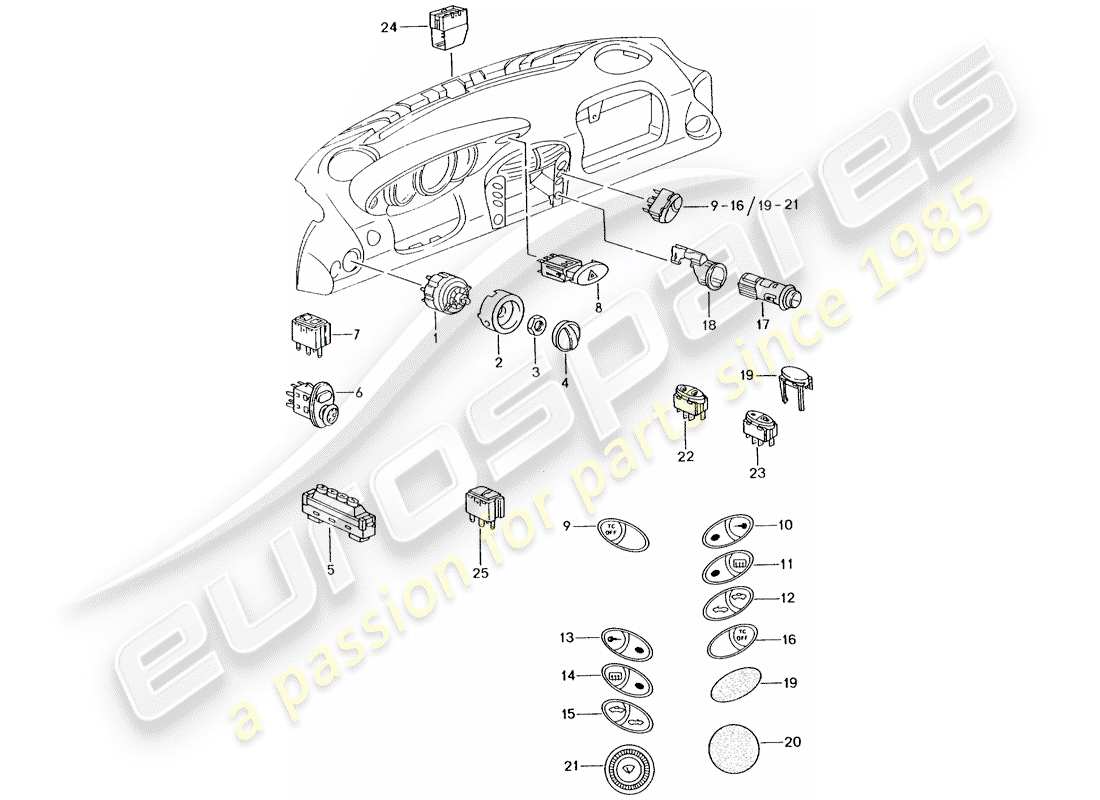

Porsche 1998 (986 Boxster) Switch Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99661353500
SWITCH FOR LIGHTING
Supersession
Supersession
# 1
MPN: 99965034640
RD. CONNECTOR SLEEVE HOUSING
from £2.14
from £2.14
# 1
MPN: 99965034340
COVER
from £2.14
from £2.14
# 1
MPN: 99965243712
contact pin $ 4,0
from £1.23
from £1.23
# 1
MPN: 99965235122
contact pin $ 2,5
from £2.62
from £2.62
# 2
MPN: 99661363101
Lighting lhd
Lighting lhd
# 2
MPN: 99661363102
Lighting lhd
from £152.94
from £152.94
# 2
MPN: 99661363201
LIGHTING RHD
from £139.46
from £139.46
# 2
MPN: 99965297240
PUSH-ON CONNECTOR
PUSH-ON CONNECTOR
# 2
MPN: 99965051240
PUSH-ON CONNECTOR
from £1.47
from £1.47
# 2
MPN: 99965297340
COVER CAP
COVER CAP
# 2
MPN: 99965051240
PUSH-ON CONNECTOR
from £1.47
from £1.47
# 2
MPN: 99965290122
FLAT CONTACT
from £1.11
from £1.11
# 3
MPN: 99903403009
HEXAGON NUT M 16 X 1
# 4
MPN: 99661353301A01
ROT. KNOB D >>- MJ 2001 - GLOSS BLACK
from £31.22
from £31.22
# 4
MPN: 99661353310A05
ROT. KNOB D - MJ 2002>>- MATT BLACK
from £27.81
from £27.81
# 5
MPN: 99661310301
MEMORY SWITCH FOR SEAT AND MIRROR ADJUSTMENT D >>- MJ 2001
P537 (Seating position control for comfort seat, left) | P538 (Seating position control for comfort seat, right)
from £98.93
from £98.93
# 5
MPN: 99661310302
MEMORY SWITCH FOR SEAT AND MIRROR ADJUSTMENT D - MJ 2002>>
P537 (Seating position control for comfort seat, left) | P538 (Seating position control for comfort seat, right)
from £237.14
from £237.14
# 6
MPN: 99661324100EAL
SWITCH D - MJ 1997>>- MJ 1997 - GLOSS BLACK EXTERIOR MIRROR
P273 (Door mirrors, electrically adjustable and heatable)
# 6
MPN: 9966132410001C
SWITCH D - MJ 1998>>- SATIN BLACK EXTERIOR MIRROR
P273 (Door mirrors, electrically adjustable and heatable)
from £87.65
from £87.65
# 6
MPN: 99361250100
PUSH-ON CONNECTOR
from £1.38
from £1.38
# 6
MPN: N 90335204
FLAT CONTACT
from £4.39
from £4.39
# 6
MPN: 99965279012
ROUND INSERT SLEEVE
from £0.59
from £0.59
# 7
MPN: 99661310200
PUSH BUTTON REAR SPOILER
from £16.40
from £16.40
# 7
MPN: 99965003540
PUSH-ON CONNECTOR
from £2.14
from £2.14
# 7
MPN: 99965033000
FLAT CONTACT
from £1.15
from £1.15
# 8
MPN: 98661312001A02
EMERGENCY LIGHT SWITCH LHD D >>- MJ 2001 - GLOSS BLACK
from £94.21
from £94.21
# 8
MPN: 98661312101A02
EMERGENCY LIGHT SWITCH RHD D >>- MJ 2001 - GLOSS BLACK
from £111.14
from £111.14
# 8
MPN: 98661312010A05
EMERGENCY LIGHT SWITCH LHD D - MJ 2002>>- MATT BLACK
from £94.86
from £94.86
# 8
MPN: 98661312110A05
EMERGENCY LIGHT SWITCH RHD D - MJ 2002>>- MATT BLACK
from £94.86
from £94.86
# 8
MPN: 99965019140
PUSH-ON CONNECTOR
from £2.14
from £2.14
# 8
MPN: 99965019240
LOCKING MECHANISM
from £0.56
from £0.56
# 8
MPN: 99965247522
FLAT CONNECTOR
from £1.11
from £1.11
# 9
MPN: 98661314100A02
PUSH BUTTON LHD D >>- MJ 2000 - GLOSS BLACK
P222 (Anti-slip regulation (ASR))
from £50.26
from £50.26
# 9
MPN: 98661314500A02
PUSH BUTTON LHD D - MJ 2001>>- MJ 2001 - GLOSS BLACK
P476 (Porsche Stability Management (PSM))
from £23.68
from £23.68
# 9
MPN: 98661314510A05
PUSH BUTTON LHD D - MJ 2002>>- MJ 2002 - MATT BLACK
P476 (Porsche Stability Management (PSM))
from £38.74
from £38.74
# 9
MPN: 99661314510A05
PUSH BUTTON LHD D - MJ 2003>>- MATT BLACK
P476 (Porsche Stability Management (PSM))
from £56.27
from £56.27
# 9
MPN: 99965010740
PUSH-ON CONNECTOR YELLOW
# 9
MPN: 99965010312
FLAT CONTACT
from £0.82
from £0.82
# 10
MPN: 98661314400A02
Push button lhd D >>- MJ 2001 - Gloss black central locking system
from £34.06
from £34.06
# 10
MPN: 98661314410A05
PUSH BUTTON LHD D - MJ 2002>>- MJ 2002 - MATT BLACK CENTRAL LOCKING SYSTEM
from £34.06
from £34.06
# 10
MPN: 99661314410A05
PUSH BUTTON LHD D - MJ 2003>>- MATT BLACK CENTRAL LOCKING SYSTEM
# 10
MPN: 99965010740
PUSH-ON CONNECTOR YELLOW
# 10
MPN: 99965033000
FLAT CONTACT
from £1.15
from £1.15
# 11
MPN: 98661313400A02
SWITCH LHD D >>- MJ 2001 - GLOSS BLACK HEATER REAR WINDOW EXTERIOR MIRROR
P550 (Hardtop) | P273 (Door mirrors, electrically adjustable and heatable)
from £34.45
from £34.45
This part replaces part number 98661313400
# 11
MPN: 98661313410A05
SWITCH LHD D - MJ 2002>>- MJ 2002 - MATT BLACK HEATER REAR WINDOW EXTERIOR MIRROR
P550 (Hardtop) | P273 (Door mirrors, electrically adjustable and heatable)
from £34.45
from £34.45
# 11
MPN: 99661313410A05
PUSH BUTTON LHD D - MJ 2003>>- MATT BLACK HEATER REAR WINDOW EXTERIOR MIRROR
from £36.98
from £36.98
# 11
MPN: 99965011040
PUSH-ON CONNECTOR
from £1.10
from £1.10
# 11
MPN: 99965010312
FLAT CONTACT
from £0.82
from £0.82
# 12
MPN: 98661313800A02
PUSH BUTTON LHD D >>- MJ 2001 - GLOSS BLACK ACTUATOR CONVERTIBLE TOP
from £32.58
from £32.58
# 12
MPN: 98661313810A05
PUSH BUTTON LHD D - MJ 2002>>- MJ 2002 - MATT BLACK ACTUATOR CONVERTIBLE TOP
from £32.58
from £32.58
# 12
MPN: 99661313810A05
PUSH BUTTON LHD D - MJ 2003>>- MATT BLACK ACTUATOR CONVERTIBLE TOP
from £38.51
from £38.51
# 12
MPN: 99965011140
PUSH-ON CONNECTOR
from £2.14
from £2.14
# 12
MPN: 99965033000
FLAT CONTACT
from £1.15
from £1.15
# 13
MPN: 98661314300A02
PUSH BUTTON RHD D - MJ 2001>>- MJ 2001 - GLOSS BLACK CENTRAL LOCKING SYSTEM
from £46.72
from £46.72
# 13
MPN: 98661314310A05
PUSH BUTTON RHD D - MJ 2002>>- MJ 2002 - MATT BLACK CENTRAL LOCKING SYSTEM
from £46.72
from £46.72
# 13
MPN: 99661314310A05
PUSH BUTTON RHD D - MJ 2003>>- MATT BLACK CENTRAL LOCKING SYSTEM
from £46.72
from £46.72
# 13
MPN: 99965010740
PUSH-ON CONNECTOR YELLOW
# 13
MPN: 99965033000
FLAT CONTACT
from £1.15
from £1.15
# 14
MPN: 98661313300A02
SWITCH RHD D >>- MJ 2001 - GLOSS BLACK HEATER REAR WINDOW EXTERIOR MIRROR
P550 (Hardtop) | P273 (Door mirrors, electrically adjustable and heatable)
from £47.10
from £47.10
This part replaces part number 98661313300
# 14
MPN: 98661313310A05
SWITCH RHD D - MJ 2002>>- MJ 2002 - MATT BLACK HEATER REAR WINDOW EXTERIOR MIRROR
P550 (Hardtop) | P273 (Door mirrors, electrically adjustable and heatable)
from £47.10
from £47.10
# 14
MPN: 99661313310A05
PUSH BUTTON RHD D - MJ 2003>>- MATT BLACK HEATER REAR WINDOW EXTERIOR MIRROR
from £36.98
from £36.98
# 14
MPN: 99965011040
PUSH-ON CONNECTOR
from £1.10
from £1.10
# 14
MPN: 99965010312
FLAT CONTACT
from £0.82
from £0.82
# 15
MPN: 98661313700A02
PUSH BUTTON RHD D >>- MJ 2001 - GLOSS BLACK ACTUATOR CONVERTIBLE TOP
from £45.15
from £45.15
# 15
MPN: 98661313710A05
PUSH BUTTON RHD D - MJ 2002>>- MJ 2002 - MATT BLACK ACTUATOR CONVERTIBLE TOP
from £45.15
from £45.15
# 15
MPN: 99661313710A05
PUSH BUTTON RHD D - MJ 2003>>- MATT BLACK ACTUATOR CONVERTIBLE TOP
from £36.98
from £36.98
# 15
MPN: 99965011140
PUSH-ON CONNECTOR
from £2.14
from £2.14
# 15
MPN: 99965033000
FLAT CONTACT
from £1.15
from £1.15
# 16
MPN: 98661314200A02
PUSH BUTTON RHD D >>- MJ 2000 - GLOSS BLACK
P222 (Anti-slip regulation (ASR))
from £50.26
from £50.26
# 16
MPN: 98661314600A02
PUSH BUTTON RHD D - MJ 2001>>- MJ 2001 - GLOSS BLACK
P476 (Porsche Stability Management (PSM))
from £16.48
from £16.48
# 16
MPN: 98661314610A05
PUSH BUTTON RHD D - MJ 2002>>- MJ 2002 - MATT BLACK
P476 (Porsche Stability Management (PSM))
from £38.74
from £38.74
# 16
MPN: 99661314610A05
PUSH BUTTON RHD D - MJ 2003>>- MATT BLACK
P476 (Porsche Stability Management (PSM))
from £33.60
from £33.60
# 16
MPN: 99965010740
PUSH-ON CONNECTOR YELLOW
# 16
MPN: 99965010312
FLAT CONTACT
from £0.82
from £0.82
# 17
MPN: 99665210100
CIGARETTE LIGHTER D >>- MJ 2001
from £18.18
from £18.18
# 17
MPN: 99765210100A05
CIGARETTE LIGHTER D - MJ 2002>>- MATT BLACK
from £21.23
from £21.23
This part replaces part number 99765210100
# 17
MPN: 99965028440
PUSH-ON CONNECTOR
from £1.15
from £1.15
# 17
MPN: 99965273512
FLAT CONTACT
from £0.82
from £0.82
# 17
MPN: 99665210300A01
SOCKET - GLOSS BLACK
P580 (Non-smoker's package)
from £5.70
from £5.70
# 18
MPN: 99665210201
LIGHTING D >>- MJ 2001
from £8.10
from £8.10
# 18
MPN: 99665210210
LIGHTING D - MJ 2002>>
from £8.10
from £8.10
# 18
MPN: 99665210400
SPRING PIN
P580 (Non-smoker's package)
from £4.72
from £4.72
# 19
MPN: 99655242500
COVER PANEL D >>- MJ 1999
Supersession
Supersession
# 19
MPN: 99655242500A01
COVER PANEL D >>- MJ 1999 - GLOSS BLACK
from £3.51
from £3.51
This part replaces part number 99655242500
# 19
MPN: 98661342500
DUMMY COVER D >>- MJ 2001
# 19
MPN: 98661342500A01
DUMMY COVER D >>- MJ 2001 - GLOSS BLACK SWITCH DUMMY COVER
from £39.14
from £39.14
# 19
MPN: 99661342510
DUMMY COVER D - MJ 2002>>
# 19
MPN: 99661342510A05
DUMMY COVER D - MJ 2002>>- MATT BLACK TRIM FOR SWITCH
from £6.69
from £6.69
# 19
MPN: 99661398006A05
PUSH BUTTON D - MJ 2002>>- MATT BLACK FOOTWELL LIGHT
PXX2 (footwell light)
from £36.98
from £36.98
# 20
MPN: 98655254300
COVER D - MJ 1997>>
# 20
MPN: 98655254300B12
COVER D - MJ 1997>>- BLACK GREY
from £3.51
from £3.51
# 20
MPN: 98655254301
COVER D - MJ 1998>>
# 20
MPN: 98655254301D05
COVER D - MJ 1998>>- GRANITE GREY
from £8.45
from £8.45
# 20
MPN: 98655254301C02
COVER D - MJ 1998>>- METAL GREY
from £8.41
from £8.41
# 20
MPN: 98655254301A03
COVER D - MJ 1998>>- BLACK D - MJ 2000>>
from £7.46
from £7.46
# 20
MPN: 98655298305
COVER ARCTIC SILVER D - MJ 2001>>- MJ 2001
PXKW (Center nozzle bracket arctic silver)
from £71.15
from £71.15
# 21
MPN: 99661311500A02
POTENTIOMETER D >>- MJ 2001 - GLOSS BLACK FOR MODELS WITH INTERMITTENT WIPE SYSTEM
P008 (986 S 3,2 litres displacement)
from £83.33
from £83.33
# 21
MPN: 99661311510A05
POTENTIOMETER D - MJ 2002>>- MATT BLACK FOR MODELS WITH INTERMITTENT WIPE SYSTEM
P008 (986 S 3,2 litres displacement)
from £70.30
from £70.30
# 21
MPN: 99661312700A02
POTENTIOMETER D - MJ 2001>>- MJ 2001 - GLOSS BLACK FOR MODELS WITH INTERMITTENT WIPE SYSTEM
P265 (Automatic anti-dazzle interior mirror with rain sensor)
from £80.93
from £80.93
# 21
MPN: 99661312710A05
POTENTIOMETER D - MJ 2002>>- MATT BLACK FOR MODELS WITH INTERMITTENT WIPE SYSTEM
P265 (Automatic anti-dazzle interior mirror with rain sensor)
from £70.30
from £70.30
# 22
MPN: 99661315100A02
PUSH BUTTON D >>- MJ 2001 - GLOSS BLACK WINDOW REGULATOR
from £56.27
from £56.27
# 22
MPN: 99661315110A05
PUSH BUTTON D - MJ 2002>>- MATT BLACK WINDOW REGULATOR
from £37.58
from £37.58
# 22
MPN: 99965010940
PUSH-ON CONNECTOR LEFT
from £2.14
from £2.14
# 22
MPN: 99965033000
FLAT CONTACT LEFT
from £1.15
from £1.15
# 22
MPN: 99965003540
PUSH-ON CONNECTOR RIGHT
from £2.14
from £2.14
# 22
MPN: 99965033000
FLAT CONTACT RIGHT
from £1.15
from £1.15
# 23
MPN: 98661315200A02
PUSH BUTTON D >>- MJ 2001 - GLOSS BLACK SWITCH FOR SEAT HEATING
P139 (Seat heating system, left seat) | P340 (Seat heating system, right seat)
from £33.41
from £33.41
# 23
MPN: 98661315210A05
PUSH BUTTON D - MJ 2002>>- MJ 2002 - MATT BLACK SEAT HEATER 03-
P139 (Seat heating system, left seat) | P340 (Seat heating system, right seat) - P342 (Seat heating system, left/right seat)
from £33.41
from £33.41
# 23
MPN: 99965010940
PUSH-ON CONNECTOR LEFT
from £2.14
from £2.14
# 23
MPN: 99965033000
FLAT CONTACT LEFT
from £1.15
from £1.15
# 23
MPN: 99965003540
PUSH-ON CONNECTOR RIGHT
from £2.14
from £2.14
# 23
MPN: 99965033000
FLAT CONTACT RIGHT
from £1.15
from £1.15
# 24
MPN: 99663713700
LIGHT ALARM SYSTEM
P534 (Theft security system) | P535 (Anti-theft lock 315 MHz)
from £31.09
from £31.09
# 24
MPN: 99965005340
PUSH-ON CONNECTOR
from £2.17
from £2.17
# 24
MPN: N 90335204
FLAT CONTACT F >>98-VS604 498
from £4.39
from £4.39
# 24
MPN: 99665325100
SUN SENSOR ALARM SYSTEM WITH: LIGHT
P534 (Theft security system) | P535 (Anti-theft lock 315 MHz) | P573 (Air conditioner)
from £56.21
from £56.21
# 24
MPN: 99965022140
PUSH-ON CONNECTOR F 98-VS604 499>>
from £3.66
from £3.66
# 25
MPN: 99661310510A05
PUSH BUTTON D - MJ 2001>>- MATT BLACK FRONT COVER
from £56.27
from £56.27
This part replaces part number 99661310510
# 25
MPN: 99661310610A05
PUSH BUTTON D - MJ 2001>>- MATT BLACK REAR COVER
from £56.27
from £56.27
-part-diagram-903-010.webp "PORSCHE 1998 (986 BOXSTER) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1998 (986 BOXSTER) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1998 (986 BOXSTER) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 1998 (986 BOXSTER) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1998 (986 BOXSTER) HEADLIGHTS TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-905-001.webp "PORSCHE 1998 (986 BOXSTER) HEADLIGHTS TURN SIGNAL REPEATER D - MJ 1999>> PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1998 (986 BOXSTER) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 1998 (986 BOXSTER) COMBI-INSTRUMENT (COMPLETE) PARTS DIAGRAM")
-part-diagram-906-002.webp "PORSCHE 1998 (986 BOXSTER) COMBI-INSTRUMENT (COMPLETE) D - MJ 2001>> PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1998 (986 BOXSTER) RADIO UNIT AMPLIFIERS D >>- MJ 2002 PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 1998 (986 BOXSTER) RADIO UNIT AMPLIFIERS NAVIGATION SYSTEM TELEPHONE D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 1998 (986 BOXSTER) LOUDSPEAKER LOUDSPEAKER M 680/MJ.02- SEE ILLUSTRATION: 911-006 PARTS DIAGRAM")
-part-diagram-911-006.webp "PORSCHE 1998 (986 BOXSTER) LOUDSPEAKER D - MJ 2002>> PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 1998 (986 BOXSTER) PREPARATION FOR TELEPHONE PARTS DIAGRAM")
-part-diagram-911-015.webp "PORSCHE 1998 (986 BOXSTER) NAVIGATION SYSTEM OPERATING UNIT/RECEIVER D >>- MJ 2002 PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1998 (986 BOXSTER) TOOL JACK PARTS DIAGRAM")
-part-diagram-001-002.webp "PORSCHE 1998 (986 BOXSTER) ACCESSORIES PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1998 (986 BOXSTER) POLISH PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1998 (986 BOXSTER) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-007.webp "PORSCHE 1998 (986 BOXSTER) KEY CASE PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1998 (986 BOXSTER) FLOOR MAT LUGGAGE COMPARTMENT LINER PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1998 (986 BOXSTER) PAINT TOUCH-UP APPLICATOR PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1998 (986 BOXSTER) REPLACEMENT ENGINE WITHOUT: CLUTCH PLATE TIPTRONIC WITHOUT: FLYWHEEL MANUAL GEARBOX WITHOUT: COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1998 (986 BOXSTER) CRANKCASE HOUSING REPAIR SET FOR MAINTENANCE SEE ILLUSTRATION: 198-000 PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1998 (986 BOXSTER) BELT TENSIONER DAMPER IDLER PULLEY CONSOLE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1998 (986 BOXSTER) CRANKSHAFT DUAL-MASS FLYWHEEL POLY-V-BELT CRANK DRIVE PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1998 (986 BOXSTER) PISTON PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 1998 (986 BOXSTER) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- CONTROL AND REGULATING UNIT PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1998 (986 BOXSTER) BRAKE FLUID PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1998 (986 BOXSTER) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1998 (986 BOXSTER) CAMSHAFT TIMING CHAIN PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1998 (986 BOXSTER) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1998 (986 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 1998 (986 BOXSTER) CRANKCASE HOUSING OIL SEPARATOR PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1998 (986 BOXSTER) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1998 (986 BOXSTER) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1998 (986 BOXSTER) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 1998 (986 BOXSTER) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-017.webp "PORSCHE 1998 (986 BOXSTER) COOLER FOR COOLANT CENTER D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 1998 (986 BOXSTER) COOLANT COOLING SYSTEM 4 PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1998 (986 BOXSTER) AIR FILTER PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1998 (986 BOXSTER) THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1998 (986 BOXSTER) FUEL COLLECTION PIPE PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1998 (986 BOXSTER) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 1998 (986 BOXSTER) SECONDARY AIR PUMP D >>- MJ 1999 PARTS DIAGRAM")
-part-diagram-108-006.webp "PORSCHE 1998 (986 BOXSTER) SECONDARY AIR PUMP D - MJ 2000>>- MJ 2002 PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1998 (986 BOXSTER) ENGINE LIFTING TACKLE PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1998 (986 BOXSTER) ENGINE OIL PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1998 (986 BOXSTER) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1998 (986 BOXSTER) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 1998 (986 BOXSTER) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1998 (986 BOXSTER) EXHAUST SYSTEM M 96.20 PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1998 (986 BOXSTER) EXHAUST SYSTEM M 96.21/22 00-02 M 96.23/24 03- PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1998 (986 BOXSTER) EXHAUST SYSTEM SPORT VERSION D - MJ 1997>>- MJ 2005 PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1998 (986 BOXSTER) PORSCHE CLASSIC ADDITIVE FOR FUEL PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 1998 (986 BOXSTER) BRAKE LINE FRONT AXLE UNDERBODY VACUUM LINE PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 1998 (986 BOXSTER) BRAKE LINE UNDERBODY REAR AXLE VACUUM LINE PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1998 (986 BOXSTER) COUPLING PARTS DIAGRAM")
-part-diagram-301-001.webp "PORSCHE 1998 (986 BOXSTER) COUPLING PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1998 (986 BOXSTER) HYDRAULIC COUPLING ACTUATION PARTS DIAGRAM")
-part-diagram-301-006.webp "PORSCHE 1998 (986 BOXSTER) HYDRAULIC COUPLING ACTUATION D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1998 (986 BOXSTER) GEARBOX 5-SPEED MANUAL TRANSMISSION 2,5L/2,7L GEAR HOUSING PARTS DIAGRAM")
-part-diagram-302-001.webp "PORSCHE 1998 (986 BOXSTER) 6-SPEED MANUAL TRANSMISSION D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 1998 (986 BOXSTER) GEARBOX INDIVIDUAL PARTS D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-302-006.webp "PORSCHE 1998 (986 BOXSTER) GEARBOX INDIVIDUAL PARTS D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-302-007.webp "PORSCHE 1998 (986 BOXSTER) GEAR HOUSING GEARBOX COVER PARTS DIAGRAM")
-part-diagram-302-008.webp "PORSCHE 1998 (986 BOXSTER) GEAR HOUSING GEARBOX COVER PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS -1999 PARTS DIAGRAM")
-part-diagram-303-001.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS GEARBOX FOR GEARBOX CODE: D >>- MJ 2004 -1999 2000- PARTS DIAGRAM")
-part-diagram-303-006.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS GEARBOX FOR GEARBOX CODE: PARTS DIAGRAM")
-part-diagram-303-007.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-303-008.webp "PORSCHE 1998 (986 BOXSTER) GEARS AND SHAFTS PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1998 (986 BOXSTER) MANUAL GEARBOX -99 INDIVIDUAL PARTS 00- PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1998 (986 BOXSTER) SELECTOR SHAFT SELECTOR FORK PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1998 (986 BOXSTER) DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-001.webp "PORSCHE 1998 (986 BOXSTER) DIFFERENTIAL D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-305-002.webp "PORSCHE 1998 (986 BOXSTER) DIFFERENTIAL REAR AXLE PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1998 (986 BOXSTER) MANUAL GEARBOX GEARBOX MOUNTING ENGINE PARTS DIAGRAM")
-part-diagram-306-001.webp "PORSCHE 1998 (986 BOXSTER) MANUAL GEARBOX GEARBOX MOUNTING D - MJ 2000>> PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC -1999 2000- PARTS DIAGRAM")
-part-diagram-320-003.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC -1999 DIFFERENTIAL 2000- DIFFERENTIAL HOUSING PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC TRANSMISSION SWITCH PARTS DIAGRAM")
-part-diagram-330-000.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC CONVERTER PARTS DIAGRAM")
-part-diagram-330-001.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC OIL PUMP PARTS DIAGRAM")
-part-diagram-340-001.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC OIL FILTER OIL SUMP PARTS DIAGRAM")
-part-diagram-340-002.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC VALVE BODY SOLENOID VALVE PRESSURE REGULATOR PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC GEAR OIL COOLER OIL PRESSURE LINE FOR GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-370-000.webp "PORSCHE 1998 (986 BOXSTER) TIPTRONIC GEARBOX MOUNTING PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1998 (986 BOXSTER) CROSS MEMBER WISHBONE PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1998 (986 BOXSTER) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1998 (986 BOXSTER) SUSPENSION SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1998 (986 BOXSTER) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1998 (986 BOXSTER) POWER STEERING STEERING GEAR PARTS DIAGRAM")
-part-diagram-403-001.webp "PORSCHE 1998 (986 BOXSTER) POWER STEERING HYDRAULIC LINE PARTS DIAGRAM")
-part-diagram-403-003.webp "PORSCHE 1998 (986 BOXSTER) POWER STEERING VANE PUMP FOR POWER STEERING CONTAINER PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1998 (986 BOXSTER) STEERING PROTECTIVE PIPE INTERMEDIATE STEERING SHAFT STEERING WHEEL PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 1998 (986 BOXSTER) AIRBAG PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1998 (986 BOXSTER) REAR AXLE WHEEL CARRIER GUIDE WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 1998 (986 BOXSTER) REAR AXLE SIDE PART CARRIER PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 1998 (986 BOXSTER) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1998 (986 BOXSTER) DRIVE SHAFT -02 WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-006.webp "PORSCHE 1998 (986 BOXSTER) DRIVE SHAFT WHEEL HUB D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1998 (986 BOXSTER) SHOCK ABSORBERS COIL SPRING PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1998 (986 BOXSTER) ALUMINIUM RIM PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 1998 (986 BOXSTER) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1998 (986 BOXSTER) BRAKE MASTER CYLINDER BRAKE SERVO PRE-CHARGING PUMP PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1998 (986 BOXSTER) BRAKE LINE FRONT END PARTS DIAGRAM")
-part-diagram-604-008.webp "PORSCHE 1998 (986 BOXSTER) BRAKE LINE FRONT END PARTS DIAGRAM")
-part-diagram-604-009.webp "PORSCHE 1998 (986 BOXSTER) BRAKE LINE FRONT END D - MJ 2001>> PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1998 (986 BOXSTER) SELECTOR MECHANISM MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 1998 (986 BOXSTER) SELECTOR LEVER TIPTRONIC PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1998 (986 BOXSTER) HANDBRAKE BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1998 (986 BOXSTER) BRAKE AND ACCEL. LEVER MECH. PARTS DIAGRAM")
-part-diagram-702-001.webp "PORSCHE 1998 (986 BOXSTER) BRAKE AND ACCEL. LEVER MECH. D - MJ 1998>> PARTS DIAGRAM")
-part-diagram-702-008.webp "PORSCHE 1998 (986 BOXSTER) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER PIPE/HOSE LINE PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1998 (986 BOXSTER) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1998 (986 BOXSTER) CAR BODY PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 1998 (986 BOXSTER) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1998 (986 BOXSTER) FRONT END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1998 (986 BOXSTER) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 1998 (986 BOXSTER) FLOOR PLATES CENTER PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 1998 (986 BOXSTER) REAR END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 1998 (986 BOXSTER) WING PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 1998 (986 BOXSTER) SCUTTLE PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 1998 (986 BOXSTER) SIDE PART PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 1998 (986 BOXSTER) UNDERBODY TRIM PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 1998 (986 BOXSTER) WHEEL HOUSING TRIM PARTS DIAGRAM")
-part-diagram-801-080.webp "PORSCHE 1998 (986 BOXSTER) ENGINE COMPARTMENT COOLER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1998 (986 BOXSTER) BUMPER FRONT PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1998 (986 BOXSTER) BUMPER REAR PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1998 (986 BOXSTER) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1998 (986 BOXSTER) COVER REAR PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 1998 (986 BOXSTER) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1998 (986 BOXSTER) DOOR SHELL DOOR LOCK PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1998 (986 BOXSTER) DOOR SEAL SEAL WINDSHIELD FRAME PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 1998 (986 BOXSTER) DOOR HANDLE, EXTERIOR PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 1998 (986 BOXSTER) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1998 (986 BOXSTER) WINDOW GLASSES PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1998 (986 BOXSTER) LUGGAGE COMPARTMENT FRONT PARTS DIAGRAM")
-part-diagram-807-001.webp "PORSCHE 1998 (986 BOXSTER) LUGGAGE COMPARTMENT REAR PARTS DIAGRAM")
-part-diagram-807-002.webp "PORSCHE 1998 (986 BOXSTER) INTERIOR EQUIPMENT FLOORING TRIMS PARTS DIAGRAM")
-part-diagram-807-003.webp "PORSCHE 1998 (986 BOXSTER) TRIM SILL PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1998 (986 BOXSTER) TRIMS ENGINE BAY PARTS DIAGRAM")
-part-diagram-807-007.webp "PORSCHE 1998 (986 BOXSTER) STOWAGE BOX F 98-WS605 603>>D - MJ 1998>> PARTS DIAGRAM")
-part-diagram-807-009.webp "PORSCHE 1998 (986 BOXSTER) WINDSHIELD FRAME SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1998 (986 BOXSTER) DOOR PANEL ACCESSORIES PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 1998 (986 BOXSTER) BODY SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1998 (986 BOXSTER) INSTRUMENT PANEL TRIM WITH: RETAINING FRAME PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1998 (986 BOXSTER) ACCESSORIES INSTRUMENT PANEL TRIM D >>- MJ 2002 PARTS DIAGRAM")
-part-diagram-809-002.webp "PORSCHE 1998 (986 BOXSTER) ACCESSORIES INSTRUMENT PANEL TRIM PARTS DIAGRAM")
-part-diagram-809-003.webp "PORSCHE 1998 (986 BOXSTER) GLOVE BOX D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1998 (986 BOXSTER) INTERIOR MIRROR EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 1998 (986 BOXSTER) CENTRE CONSOLE FRONT PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 1998 (986 BOXSTER) CENTRE CONSOLE CENTER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1998 (986 BOXSTER) INSCRIPTIONS/LETTERING PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1998 (986 BOXSTER) CONVERTIBLE TOP COVERING SOFT TOP HEADLINER PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1998 (986 BOXSTER) TOP FRAME INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1998 (986 BOXSTER) CONVERTIBLE TOP SEAL PARTS DIAGRAM")
-part-diagram-811-012.webp "PORSCHE 1998 (986 BOXSTER) TOP FRAME DRIVE UNIT CONVERTIBLE TOP STOWAGE BOX COVER PARTS DIAGRAM")
-part-diagram-811-013.webp "PORSCHE 1998 (986 BOXSTER) CONVERTIBLE TOP STOWAGE BOX COVER GASKETS PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 1998 (986 BOXSTER) HARDTOP ACCESSORIES GASKETS PARTS DIAGRAM")
-part-diagram-811-016.webp "PORSCHE 1998 (986 BOXSTER) HARDTOP INTERIOR EQUIPMENT PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1998 (986 BOXSTER) ROLL BAR PARTS DIAGRAM")
-part-diagram-812-001.webp "PORSCHE 1998 (986 BOXSTER) WINDBREAK AND TRIMS ROLL BAR PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1998 (986 BOXSTER) HEATER 1 SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-001.webp "PORSCHE 1998 (986 BOXSTER) HEATER AIR GUIDE CHANNEL PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1998 (986 BOXSTER) AIR DISTRIBUTION HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-006.webp "PORSCHE 1998 (986 BOXSTER) HEATER UNIT INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1998 (986 BOXSTER) WATER DRAIN PIPE FOR HEATER UNIT AIR DISTRIBUTION HOUSING PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1998 (986 BOXSTER) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1998 (986 BOXSTER) DUST AND POLLEN FILTER INSERT COVERS SCUTTLE PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1998 (986 BOXSTER) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 1998 (986 BOXSTER) CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRONT STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-005.webp "PORSCHE 1998 (986 BOXSTER) SEAT COVERS BACKREST COVERS FOAM PART STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-007.webp "PORSCHE 1998 (986 BOXSTER) LUMBAR SUPPORT PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 1998 (986 BOXSTER) BACKREST SHELL STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-012.webp "PORSCHE 1998 (986 BOXSTER) BACKREST SHELL STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-015.webp "PORSCHE 1998 (986 BOXSTER) BACKREST FRAME FRAME FOR SEAT STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-016.webp "PORSCHE 1998 (986 BOXSTER) BACKREST FRAME FRAME FOR SEAT STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-017.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRAME STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRAME STANDARD SEAT FOR VEHICLES WITH SEAT HEIGHT ADJUSTMENT PARTS DIAGRAM")
-part-diagram-817-019.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRAME COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-020.webp "PORSCHE 1998 (986 BOXSTER) SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 1998 (986 BOXSTER) BACKREST COVERS SEAT COVERS FOAM PART SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-030.webp "PORSCHE 1998 (986 BOXSTER) BACKREST SHELL SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-035.webp "PORSCHE 1998 (986 BOXSTER) BACKREST SHELL SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 1998 (986 BOXSTER) BACKREST FRAME FRAME FOR SEAT SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-042.webp "PORSCHE 1998 (986 BOXSTER) BACKREST FRAME FRAME FOR SEAT SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-045.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRAME SPORTS SEAT FOR VEHICLES WITH SEAT HEIGHT ADJUSTMENT PARTS DIAGRAM")
-part-diagram-817-050.webp "PORSCHE 1998 (986 BOXSTER) SEAT FRAME SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-060.webp "PORSCHE 1998 (986 BOXSTER) WIRING LOOMS SWITCH STANDARD SEAT SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-065.webp "PORSCHE 1998 (986 BOXSTER) WIRING LOOMS SWITCH COMFORT SEAT PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 1998 (986 BOXSTER) REPAIR KITS 1 SET OF LOCK CYLINDERS PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1998 (986 BOXSTER) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 1998 (986 BOXSTER) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1998 (986 BOXSTER) CENTRAL ELECTRICS DASHBOARD PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 1998 (986 BOXSTER) CENTRAL ELECTRICS REAR PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 1998 (986 BOXSTER) BATTERY CENTRAL EXTRACTION STARTER ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1998 (986 BOXSTER) WIRING LOOMS PASSENGER COMPARTMENT GLOVE BOX FRONT END REPAIR SET ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY FRONT AXLE PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 1998 (986 BOXSTER) WIRING LOOMS DRIVER'S DOOR PASSENGER'S DOOR HARDTOP PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1998 (986 BOXSTER) WIRING LOOMS REAR END LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT ENGINE REPAIR SET ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY REAR AXLE PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 1998 (986 BOXSTER) FIBRE OPTIC WAVE CONDUCTOR D - MJ 2003>> PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1998 (986 BOXSTER) FANFARE SIGNAL HORN ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 1998 (986 BOXSTER) INTERIOR LIGHT LUGGAGE COMPARTMENT LAMP ENGINE COMPARTMENT LIGHT FOOTWELL LIGHT DOOR HANDLE LIGHT INNER ACTUATOR PARTS DIAGRAM")
