porsche 2000 (986 boxster) coolant cooling system parts diagram

105-015 - COOLANT COOLING SYSTEM

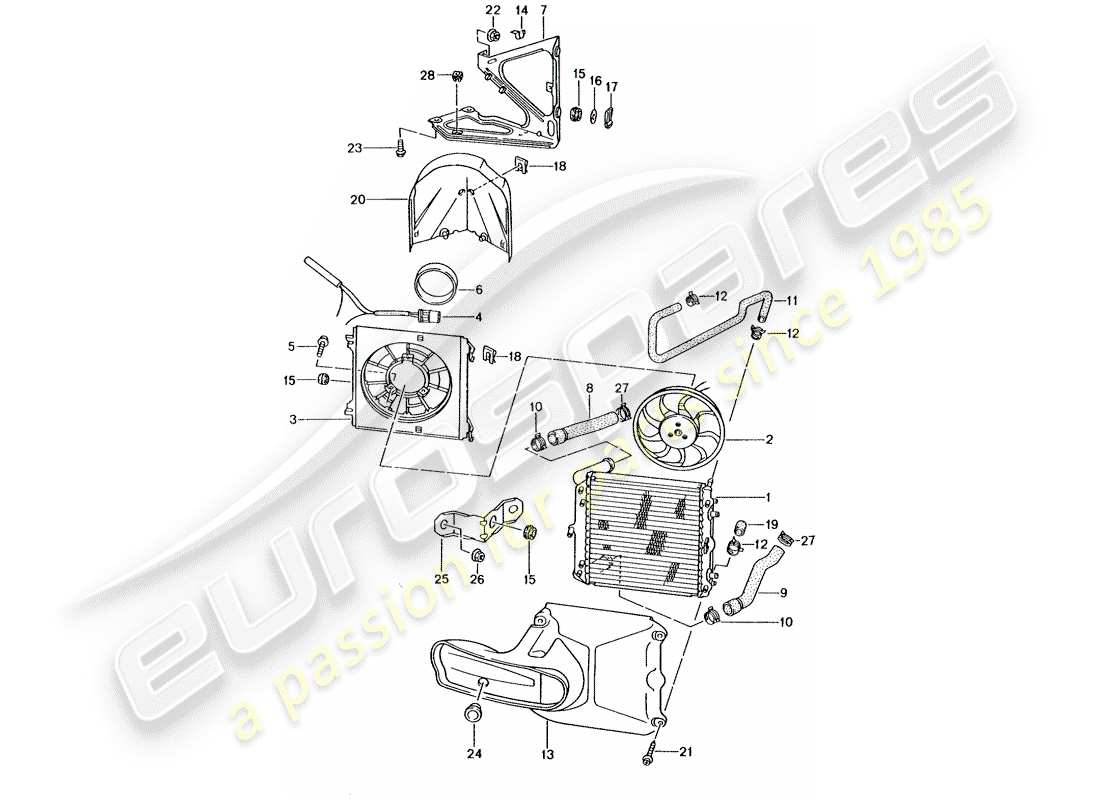

Porsche 2000 (986 Boxster) Coolant cooling system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 99610613150
                                              Cooler for coolant alternatively, you can use: 996.106.131.51 left or 996.106.132.51 right
                                              Cooler for coolant alternatively, you can use: 996.106.131.51 left or 996.106.132.51 right
                                              RADIATOR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                              # 1
                                              MPN: 99610613151
                                              Cooler for coolant left
                                              from £364.30
                                              from £364.30
                                              RADIATOR Genuine Porsche Part - New (to order)
                                              # 1
                                              MPN: 99610613251
                                              Cooler for coolant right
                                              from £364.30
                                              from £364.30
                                              RADIATOR Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 99662413500
                                              RADIATOR FAN
                                              from £380.82
                                              from £380.82
                                              ELECTRIC FAN Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 99965293640
                                              PUSH-ON CONNECTOR
                                              from £5.33
                                              from £5.33
                                              PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 99965277622
                                              FLAT CONTACT
                                              from £0.82
                                              from £0.82
                                              FLAT CONTACT Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 99965277840
                                              SEAL
                                              from £0.82
                                              from £0.82
                                              GASKET Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 99965281140
                                              BUNGS
                                              from £0.63
                                              from £0.63
                                              PLUG Genuine Porsche Part - New (to order)
                                              # 3
                                              MPN: 99662413100
                                              AIR GUIDE
                                              from £86.08
                                              from £86.08
                                              AIR DUCT Genuine Porsche Part - New (to order)
                                              # 4
                                              MPN: 99661610100
                                              SERIES RESISTOR
                                              from £148.27
                                              from £148.27
                                              SERIES RESISTOR Genuine Porsche Part - New (to order)
                                              # 5
                                              MPN: 90014611609
                                              Screw M 5 X 16
                                              from £2.68
                                              from £2.68
                                              SCREW - M 5 X 16 Genuine Porsche Part - New (to order)
                                              # 6
                                              MPN: 99662413600
                                              PROTECTIVE CAP
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 7
                                              MPN: 99650417503
                                              CONSOLE LEFT D >>- MJ 1997
                                              BRACKET - D >>- MJ 1997 Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 99650417504
                                              CONSOLE LEFT D - MJ 1998>>
                                              bracket - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 99650417509
                                              Console
                                              from £135.34
                                              from £135.34
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 99650417603
                                              CONSOLE RIGHT D >>- MJ 1997
                                              BRACKET - D >>- MJ 1997 Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 99650417604
                                              CONSOLE RIGHT D - MJ 1998>>
                                              bracket - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 99650417609
                                              Console
                                              from £135.34
                                              from £135.34
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610662101
                                              HOSE LEFT FEED D >>- MJ 1998
                                              Hose - - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610662102
                                              HOSE LEFT FEED D - MJ 1999>>
                                              from £10.90
                                              from £10.90
                                              Hose - - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610666553
                                              HOSE CENTER COOLER FOR COOLANT FEED
                                              HOSE - RADIATOR Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610666555
                                              HOSE LEFT COOLER FOR COOLANT CENTER D - MJ 2000>>FEED
                                              P008 (986 S 3,2 litres displacement)
                                              Hose - radiator - D - MJ 2000>> Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610662200
                                              HOSE RIGHT D >>- MJ 1998 FEED
                                              Hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610662201
                                              HOSE RIGHT FEED D - MJ 1999>>
                                              Hose - - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99610662252
                                              HOSE RIGHT FEED D - MJ 2000>>
                                              P008 (986 S 3,2 litres displacement)
                                              Hose - - D - MJ 2000>> Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610662501
                                              RETURN HOSE LEFT D >>- MJ 1998
                                              return hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610662502
                                              RETURN HOSE LEFT D - MJ 1999>>
                                              from £10.88
                                              from £10.88
                                              return hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610662554
                                              RETURN HOSE LEFT D - MJ 2000>>
                                              P008 (986 S 3,2 litres displacement)
                                              return hose - D - MJ 2000>> Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610666651
                                              RETURN HOSE RIGHT COOLER FOR COOLANT CENTER D - MJ 2000>>
                                              P008 (986 S 3,2 litres displacement)
                                              return hose - radiator - D - MJ 2000>> Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610666652
                                              COOLANT HOSE CENTER COOLER FOR COOLANT FEED
                                              water hose - Return line Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610662600
                                              RETURN HOSE RIGHT D >>- MJ 1998
                                              return hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 99610662601
                                              RETURN HOSE RIGHT D - MJ 1999>>
                                              return hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                              # 10
                                              MPN: 99951261109
                                              Hose clamp 42 X 12 D >>- MJ 1998
                                              Hose Clamp - 42 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 10
                                              MPN: 99951266609
                                              Hose clamp 42 X 12 D - MJ 1999>>
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 10
                                              MPN: 99951249900
                                              HOSE CLAMP 32 - 50 MM
                                              from £8.23
                                              from £8.23
                                              This part replaces part number 99951266609
                                              HOSE CLAMP - 45 X 9 Genuine Porsche Part - New (to order)
                                              # 11
                                              MPN: 99610613753
                                              VENT HOSE LEFT
                                              from £27.65
                                              from £27.65
                                              VENT HOSE Genuine Porsche Part - New (to order)
                                              # 11
                                              MPN: 99610613853
                                              VENT HOSE RIGHT
                                              from £13.45
                                              from £13.45
                                              VENT HOSE Genuine Porsche Part - New (to order)
                                              # 12
                                              MPN: 99951258509
                                              HOSE CLAMP 15 X 12
                                              from £1.51
                                              from £1.51
                                              HOSE CLAMP - 15 X 12 Genuine Porsche Part - New (to order)
                                              # 13
                                              MPN: 99657532100
                                              AIR GUIDE LEFT
                                              from £91.36
                                              from £91.36
                                              air duct - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                              # 13
                                              MPN: 99657532200
                                              AIR GUIDE RIGHT
                                              from £91.36
                                              from £91.36
                                              air duct - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                              # 15
                                              MPN: 99970221440
                                              GROMMET 14 X 20,5 X 7,5
                                              from £2.96
                                              from £2.96
                                              GROMMET - 14 X 20,5 X 7,5 Genuine Porsche Part - New (to order)
                                              # 16
                                              MPN: 99902525502
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 17
                                              MPN: 99916608309
                                              RETAINING PLATE B 25
                                              from £4.52
                                              from £4.52
                                              retainer plate - SLB 14 Genuine Porsche Part - New In stock
                                              # 18
                                              MPN: 99916607702
                                              SECURING CLIP B 22
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 19
                                              MPN: 99970341840
                                              CAP
                                              CAP
                                              CAP - NO LONGER USE THE PART HERE Genuine Porsche Part - New (to order)
                                              # 19
                                              MPN: 99610633400
                                              RUBBER FLAP
                                              from £3.52
                                              from £3.52
                                              RUBBER FLAP Genuine Porsche Part - New (to order)
                                              # 20
                                              MPN: 99657534103
                                              Air guide D >>- MJ 1998
                                              air duct - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                              # 20
                                              MPN: 99657534104
                                              AIR GUIDE LEFT D - MJ 1999>>
                                              from £141.04
                                              from £141.04
                                              air duct - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                              # 20
                                              MPN: 99657534200
                                              AIR GUIDE RIGHT D - MJ 1999>>
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 21
                                              MPN: 99991913409
                                              FILLISTER HD. BOLT 6,0 X 16
                                              from £0.91
                                              from £0.91
                                              FILLISTER HD. SCREW - 6,0 X 16 Genuine Porsche Part - New In stock
                                              # 22
                                              MPN: 99908463009
                                              HEXAGON NUT M 8
                                              hex. nut - M 8 Genuine Porsche Part - New (to order)
                                              # 23
                                              MPN: 90037807409
                                              HEXAGON BOLT M 8 X 16
                                              screw, hex. hd. - M 8X16 Genuine Porsche Part - New (to order)
                                              # 24
                                              MPN: 803803583
                                              Rubber grommet right 30,0 X 40,0
                                              Rubber grommet right 30,0 X 40,0
                                              Rubber grommet - Discontinued part Genuine Porsche Part - New (to order)
                                              # 24
                                              MPN: 99970319540
                                              Rubber grommet right 30,0 X 40,0
                                              from £0.65
                                              from £0.65
                                              RUBBER GROMMET - 30,0 X 40,0 Genuine Porsche Part - New In stock
                                              # 25
                                              MPN: 99650472100GRV
                                              BRACKET - PRIMED
                                              from £22.87
                                              from £22.87
                                              SUPPORT Genuine Porsche Part - New (to order)
                                              # 26
                                              MPN: 90037700302
                                              HEXAGON NUT M 8
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 27
                                              MPN: 99951265909
                                              HOSE CLAMP 28 X 12
                                              from £1.25
                                              from £1.25
                                              Hose Clamp - 28 X 12 - D - MJ 1999>> - MJ 1999 Genuine Porsche Part - New (to order)
                                              # 27
                                              MPN: 99951255200
                                              HOSE CLAMP
                                              HOSE CLAMP
                                              Supersession
                                              Supersession
                                              Genuine Porsche Part (no longer available to order)
                                              # 27
                                              MPN: 99951255201
                                              HOSE CLAMP
                                              from £2.29
                                              from £2.29
                                              This part replaces part number 99951250702 - and 1 more. Click to view details
                                              Hose Clamp - S25/9ZY Genuine Porsche Part - New (to order)
                                              # 28
                                              MPN: 99950759002
                                              CAGE NUT
                                              NUT Genuine Porsche Part - New (to order)
