porsche 2000 (986 boxster) coolant cooling system 4 parts diagram

105-020 - Coolant cooling system 4

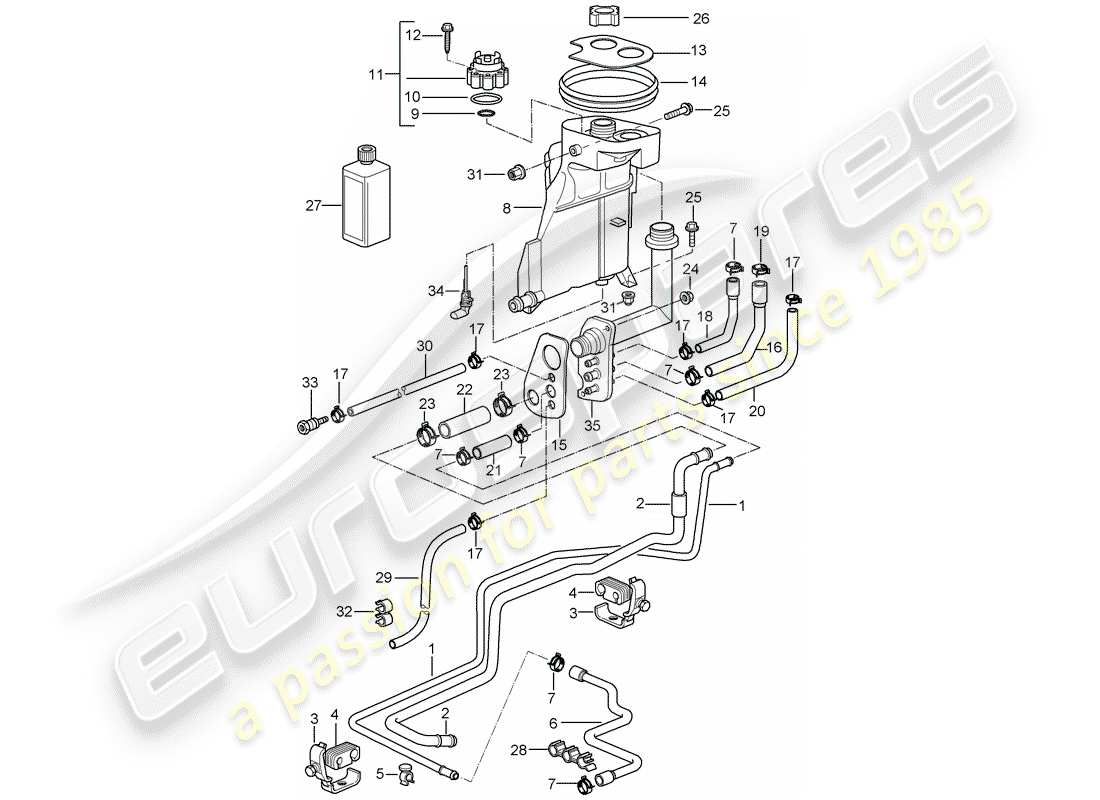

Porsche 2000 (986 Boxster) Coolant cooling system 4 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 99610668101
                                                        BREATHER LINE D >>- MJ 1998
                                                        Breather line - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                                        # 1
                                                        MPN: 99610668102
                                                        BREATHER LINE D - MJ 1999>>
                                                        Breather line - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                        # 1
                                                        MPN: 99610668103
                                                        breather line
                                                        from £25.39
                                                        from £25.39
                                                        breather line Genuine Porsche Part - New (to order)
                                                        # 2
                                                        MPN: 99610666300
                                                        Coolant pipe D >>- MJ 1998
                                                        water tube - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                                        # 2
                                                        MPN: 99610666301
                                                        Coolant pipe D - MJ 1999>>
                                                        water tube - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                        # 2
                                                        MPN: 99610666302
                                                        COOLANT PIPE
                                                        from £50.77
                                                        from £50.77
                                                        water tube Genuine Porsche Part - New (to order)
                                                        # 3
                                                        MPN: 99951123040
                                                        CABLE HOLDER
                                                        from £2.29
                                                        from £2.29
                                                        cable holder - also use: Genuine Porsche Part - New In stock
                                                        # 4
                                                        MPN: 99951123141
                                                        RUBBER BUSH
                                                        from £2.68
                                                        from £2.68
                                                        RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                                                        # 5
                                                        MPN: 99950750040
                                                        CABLE HOLDER
                                                        from £0.56
                                                        from £0.56
                                                        CABLE HOLDER Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: 99610613501
                                                        VENT HOSE D >>- MJ 1998
                                                        vent hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: 99610613502
                                                        VENT HOSE D - MJ 1999>>
                                                        vent hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99951265309
                                                        HOSE CLAMP 20 X 12
                                                        from £2.29
                                                        from £2.29
                                                        Hose Clamp - 20 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99951255400
                                                        HOSE CLAMP 12 - 22 / 9
                                                        from £2.68
                                                        from £2.68
                                                        This part replaces part number 90027200302
                                                        Hose Clamp - SGT 12-22/9 Genuine Porsche Part - New In stock
                                                        # 8
                                                        MPN: 99610614703
                                                        Reservoir D >>- MJ 1997
                                                        Reservoir D >>- MJ 1997
                                                        reservoir - D >> - MJ 1997 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 99610614704
                                                        Reservoir D >>- MJ 1998
                                                        Reservoir D >>- MJ 1998
                                                        reservoir - D >> - MJ 1998 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 99610614706
                                                        RESERVOIR
                                                        RESERVOIR
                                                        RESERVOIR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 99610614707
                                                        RESERVOIR
                                                        RESERVOIR
                                                        RESERVOIR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 99610614708
                                                        RESERVOIR
                                                        from £242.53
                                                        from £242.53
                                                        RESERVOIR Genuine Porsche Part - New (to order)
                                                        # 9
                                                        MPN: 99970737140
                                                        O-RING 17 X 4
                                                        from £1.10
                                                        from £1.10
                                                        O-RING - 17 X 4 Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 99970737040
                                                        O-RING 47 X 4
                                                        from £2.68
                                                        from £2.68
                                                        O-RING - 47 X 4 Genuine Porsche Part - New (to order)
                                                        # 11
                                                        MPN: 99610634700
                                                        BLEED VALVE D >>- MJ 1997
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 11
                                                        MPN: 99610634701
                                                        BLEED VALVE D - MJ 1998>>
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 13
                                                        MPN: 99610623401
                                                        COVER
                                                        from £10.17
                                                        from £10.17
                                                        COVER Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: 98650464400
                                                        SEAL
                                                        from £45.95
                                                        from £45.95
                                                        GASKET Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 99610623501
                                                        SEAL D >>- MJ 1997
                                                        gasket - D >> - MJ 1997 Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 99610623502
                                                        SEAL D - MJ 1998>>
                                                        from £7.90
                                                        from £7.90
                                                        gasket - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 99610623700
                                                        HOSE
                                                        HOSE Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 99951258509
                                                        HOSE CLAMP 15 X 12
                                                        from £1.51
                                                        from £1.51
                                                        HOSE CLAMP - 15 X 12 Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 99610624700
                                                        VENT HOSE
                                                        VENT HOSE Genuine Porsche Part - New (to order)
                                                        # 19
                                                        MPN: 99951258709
                                                        Hose clamp 21 X 12 D >>- MJ 1998
                                                        from £2.17
                                                        from £2.17
                                                        Hose Clamp - 21 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                                        # 19
                                                        MPN: 99951265409
                                                        Hose clamp 21 X 12 D - MJ 1999>>
                                                        from £2.29
                                                        from £2.29
                                                        Hose Clamp - 21 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 99610625700
                                                        VENT HOSE
                                                        VENT HOSE Genuine Porsche Part - New (to order)
                                                        # 22
                                                        MPN: 99610626700
                                                        HOSE
                                                        HOSE Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 99951255200
                                                        HOSE CLAMP 27 X 12
                                                        HOSE CLAMP 27 X 12
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 23
                                                        MPN: 99951255201
                                                        HOSE CLAMP 27 X 12
                                                        from £2.29
                                                        from £2.29
                                                        This part replaces part number 99951250702 - and 1 more. Click to view details
                                                        Hose Clamp - S25/9ZY Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: 90007533302
                                                        BOLT WITH WASHER M 6 X 25
                                                        BOLT WITH WASHER M 6 X 25
                                                        Bolt with washer - M 6 X 25 Z2 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: 90007533301
                                                        BOLT WITH WASHER M 6 X 25
                                                        from £9.41
                                                        from £9.41
                                                        Bolt with washer - M 6 X 25 Z2 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 443121321
                                                        END CAP D >>- MJ 1997
                                                        sealing cap - D >> - MJ 1997 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 99610644700
                                                        END CAP D - MJ 1998>>
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 26
                                                        MPN: 99610644701
                                                        cap for expansion tank See technical manual see main group 1 (engine) NR.190101
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 27
                                                        MPN: 00004320378
                                                        Coolant additive 1 LTR. container
                                                        Coolant additive 1 LTR. container
                                                        COOLANT ADDITIVE - 1 LTR. - CONTAINER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 00004320379
                                                        Coolant additive 25 LTR. container
                                                        Coolant additive 25 LTR. container
                                                        COOLANT ADDITIVE - 25 LTR. - CONTAINER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 00004330103
                                                        Coolant additive 1 LTR. container
                                                        COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: 00004330104
                                                        Coolant additive 20 LTR. container
                                                        COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 99610641101
                                                        RETAINER FOR BREATHER HOSE D >>- MJ 1997
                                                        BRACKET FOR - BREATHER HOSE - D >>- MJ 1997 Genuine Porsche Part - New (to order)
                                                        # 28
                                                        MPN: 99610641102
                                                        BRACKET D - MJ 1998>>
                                                        from £1.62
                                                        from £1.62
                                                        bracket - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: 99950008402
                                                        INSERT NUT
                                                        INSERT NUT
                                                        SPEED NUT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: 99950008401
                                                        INSERT NUT M 6
                                                        from £2.68
                                                        from £2.68
                                                        SPEED NUT - M 6 Genuine Porsche Part - New (to order)
                                                        # 32
                                                        MPN: 99950757040
                                                        HOSE BRACKET 11,0/18,0
                                                        from £2.49
                                                        from £2.49
                                                        BRACKET FOR HOSE - 11,0/18,0 - D >>- MJ 1999 Genuine Porsche Part - New (to order)
                                                        # 33
                                                        MPN: 99610625300
                                                        HOSE CONNECTOR
                                                        from £17.98
                                                        from £17.98
                                                        HOSE CONNECTOR Genuine Porsche Part - New (to order)
                                                        # 34
                                                        MPN: 99664150300
                                                        SWITCH
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 34
                                                        MPN: 99965291240
                                                        PUSH-ON CONNECTOR
                                                        PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
                                                        # 34
                                                        MPN: 99965049040
                                                        PUSH-ON CONNECTOR
                                                        from £3.66
                                                        from £3.66
                                                        push-on connector - D - MJ 1996>> Genuine Porsche Part - New (to order)
                                                        # 34
                                                        MPN: 99965293422
                                                        ROUND INSERT SLEEVE
                                                        from £1.15
                                                        from £1.15
                                                        sleeve (female) terminal - 2,5 - 0,4 - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                                        # 35
                                                        -
                                                        see illustration: 104-005
