porsche 2000 (986 boxster) front end parts diagram

801-005 - front end

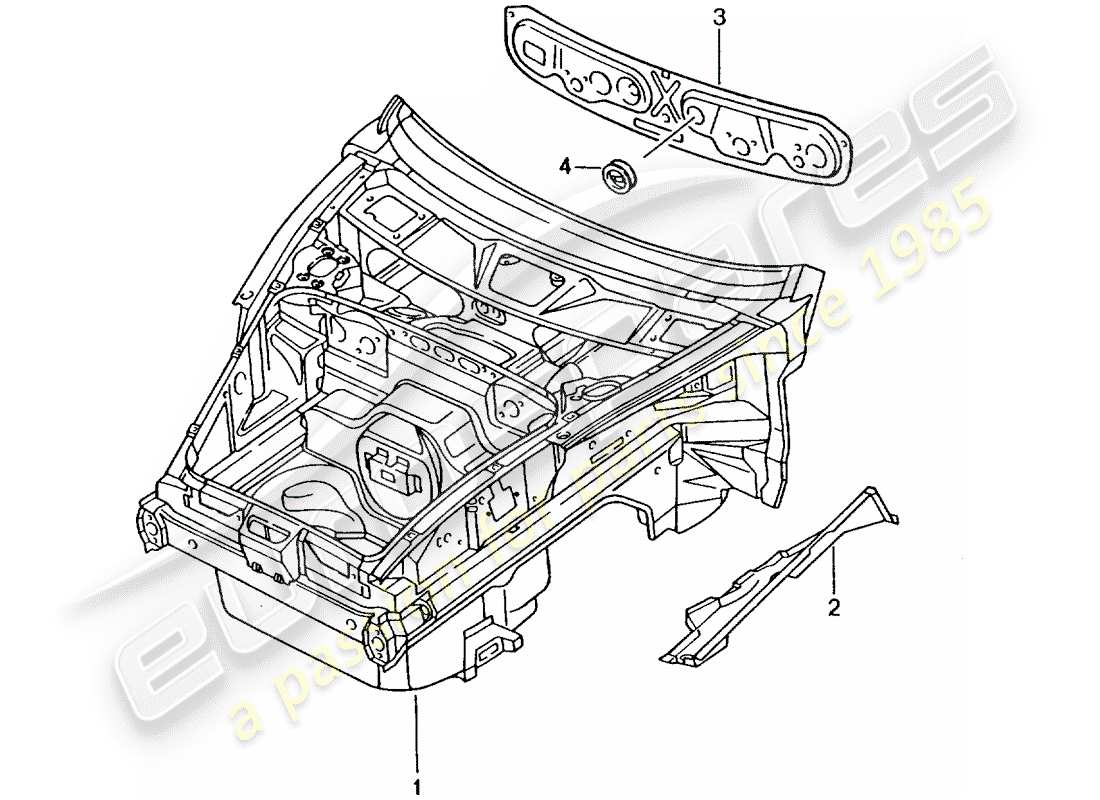

Porsche 2000 (986 Boxster) Front end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 99650191100GRV
          FRONT END - PRIMED
          from £6,753.57
          from £6,753.57
          This part replaces part number 99650191100
          BODY, FRONT SECTION Genuine Porsche Part - New (to order)
          # 1
          MPN: 99650243100
          CROSS MEMBER
          CROSS MEMBER Genuine Porsche Part - New (to order)
          # 1
          MPN: 99650191100GRV
          FRONT END - PRIMED FOR FIREWALL FRONT END
          from £6,753.57
          from £6,753.57
          This part replaces part number 99650191100
          BODY, FRONT SECTION Genuine Porsche Part - New (to order)
          # 1
          MPN: 99650213107
          FIREWALL
          FIREWALL Genuine Porsche Part - New (to order)
          # 1
          MPN: 99650191100GRV
          FRONT END - PRIMED FOR FRONT END
          from £6,753.57
          from £6,753.57
          This part replaces part number 99650191100
          BODY, FRONT SECTION Genuine Porsche Part - New (to order)
          # 1
          -
          ALSO USE:
          # 2
          MPN: 99650144301GRV
          DEFORMATION ELEMENT LEFT - PRIMED
          from £126.96
          from £126.96
          Lower part Genuine Porsche Part - New (to order)
          # 2
          MPN: 99650144402GRV
          DEFORMATION ELEMENT RIGHT - PRIMED
          from £126.96
          from £126.96
          Lower part Genuine Porsche Part - New (to order)
          # 3
          MPN: 99650412102
          COVER LHD ALSO USE:
          from £258.54
          from £258.54
          cover - Firewall Genuine Porsche Part - New (to order)
          # 3
          MPN: 00004330094
          Adhesive set A to use before: F >>98-YS600 434 F >>98-YU600 165 F >>98-YS640 520
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 3
          MPN: 99650412102
          COVER LHD ALSO USE:
          from £258.54
          from £258.54
          cover - Firewall Genuine Porsche Part - New (to order)
          # 3
          MPN: 00004330094
          Adhesive set B to use after: F 98-YS600 435>>F 98-YU600 166>>F 98-YS640 521>>
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 3
          MPN: 99650412103
          COVER RHD A TO USE BEFORE: F >>98-YS600 434 F >>98-YU600 165 F >>98-YS640 520 F >>98-YU640 062
          from £270.19
          from £270.19
          cover - Firewall Genuine Porsche Part - New (to order)
          # 3
          MPN: 99650412103
          COVER RHD B TO USE AFTER: F 98-YS600 435>>F 98-YU600 166>>F 98-YS640 521>>F 98-YU640 063>>
          from £270.19
          from £270.19
          cover - Firewall Genuine Porsche Part - New (to order)
          # 4
          MPN: 99970225541
          END CAP 62,5 X 72,6
          from £4.67
          from £4.67
          SEALING CAP - 62,5 X 72,6 Genuine Porsche Part - New (to order)
