porsche 2000 (986 boxster) bumper front parts diagram

802-000 - BUMPER FRONT

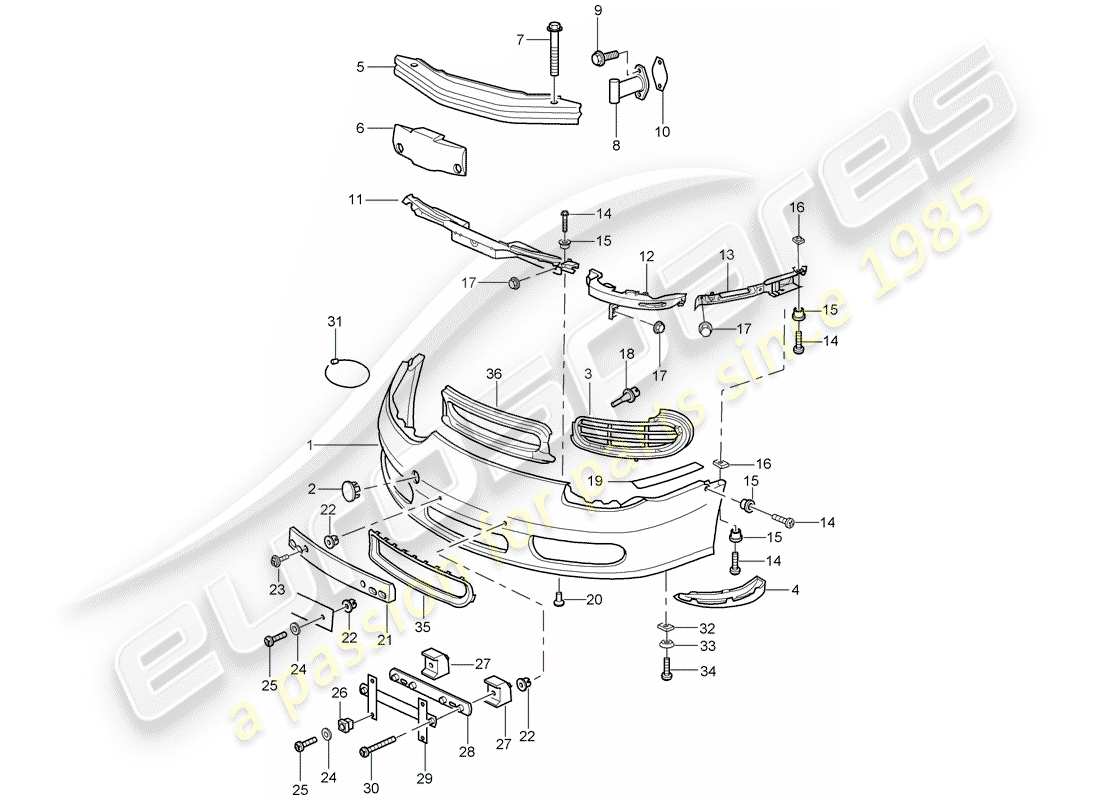

Porsche 2000 (986 Boxster) bumper front Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 98650531103G2X
                                        TRIM D >>- MJ 2002 - PRIMED
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        Porsche PART 98650531103G2X Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531107
                                        TRIM D >>- MJ 2002
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        from £1,112.40
                                        from £1,112.40
                                        lining - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531104G2X
                                        TRIM D >>- MJ 2002 - PRIMED
                                        P008 (986 S 3,2 litres displacement)
                                        Porsche PART 98650531104G2X Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531108
                                        TRIM D >>- MJ 2002
                                        P008 (986 S 3,2 litres displacement)
                                        from £1,112.40
                                        from £1,112.40
                                        lining - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531105G2X
                                        Trim D - MJ 2003>>- primed
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        Porsche PART 98650531105G2X Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531109
                                        TRIM D - MJ 2003>>
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        from £701.78
                                        from £701.78
                                        lining - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531106G2X
                                        Trim D - MJ 2003>>- primed
                                        P008 (986 S 3,2 litres displacement)
                                        Porsche PART 98650531106G2X Genuine Porsche Part - New (to order)
                                        # 1
                                        MPN: 98650531110
                                        TRIM D - MJ 2003>>
                                        P008 (986 S 3,2 litres displacement)
                                        from £701.78
                                        from £701.78
                                        lining - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 96450510300G2X
                                        COVER CAP D >>- MJ 2002 - COVER CAP
                                        from £18.66
                                        from £18.66
                                        This part replaces part number 96450510300
                                        CAP Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 98650551100G2X
                                        COVER CAP D - MJ 2003>>- PRIMED
                                        from £28.94
                                        from £28.94
                                        This part replaces part number 98650551100
                                        Porsche PART 98650551100G2X Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 9865055530101C
                                        FRAME FOR VENTILATION GRILLE LEFT D >>- MJ 2002 - SATIN BLACK
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        from £169.96
                                        from £169.96
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 9865055530301C
                                        FRAME FOR VENTILATION GRILLE LEFT D - MJ 2003>>- SATIN BLACK
                                        from £222.35
                                        from £222.35
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 9865055540101C
                                        FRAME FOR VENTILATION GRILLE RIGHT D >>- MJ 2002 - SATIN BLACK
                                        P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
                                        from £64.34
                                        from £64.34
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 9865055540301C
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- SATIN BLACK
                                        from £222.35
                                        from £222.35
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 98650553100
                                        DISC LEFT UPPER D - MJ 2003>>
                                        Disc - - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986 505 554 03 G2X
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 98650553200
                                        DISC RIGHT UPPER D - MJ 2003>>
                                        Disc - - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986 505 554 03 G2X
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 98650553300
                                        DISC LEFT LOWER D - MJ 2003>>
                                        Disc - - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986 505 554 03 G2X
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 98650553400
                                        DISC RIGHT LOWER D - MJ 2003>>
                                        Disc - - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986 505 554 03 G2X
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED
                                        FRAME FOR VENTILATION GRILLE RIGHT D - MJ 2003>>- PRIMED Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99950770809
                                        CLAMPING WASHER
                                        CLAMPING WASHER Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986505553029A4
                                        FRAME FOR VENTILATION GRILLE LEFT D >>- MJ 2002 - TITANIUM METALLIC
                                        P008 (986 S 3,2 litres displacement)
                                        from £248.19
                                        from £248.19
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 986505554029A4
                                        FRAME FOR VENTILATION GRILLE RIGHT D >>- MJ 2002 - TITANIUM METALLIC
                                        P008 (986 S 3,2 litres displacement)
                                        from £248.19
                                        from £248.19
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 9965055250001C
                                        TRIM LEFT - SATIN BLACK
                                        from £41.97
                                        from £41.97
                                        This part replaces part number 99650552500
                                        HIDER Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 9965055260001C
                                        TRIM RIGHT - SATIN BLACK
                                        from £39.70
                                        from £39.70
                                        This part replaces part number 99650552600
                                        HIDER Genuine Porsche Part - New (to order)
                                        # 5
                                        MPN: 99650501100
                                        BUMPER CARRIER
                                        from £399.37
                                        from £399.37
                                        BUMPER BRACKET - D >>- MJ 2001 Genuine Porsche Part - New (to order)
                                        # 6
                                        MPN: 98650577701
                                        foam part
                                        from £94.14
                                        from £94.14
                                        foam part Genuine Porsche Part - New (to order)
                                        # 7
                                        MPN: 90037808809
                                        HEXAGON BOLT M 12 X 100
                                        HEXAGON BOLT M 12 X 100
                                        screw, hex. hd. - M 12X100 - Discontinued part Genuine Porsche Part - New (to order)
                                        # 7
                                        MPN: 90037808801
                                        HEXAGON BOLT M 12 X 100
                                        from £5.97
                                        from £5.97
                                        screw, hex. hd. - M 12X100 Genuine Porsche Part - New (to order)
                                        # 8
                                        MPN: 99650501901
                                        SHOCK ABSORBER
                                        from £24.53
                                        from £24.53
                                        BUFFER Genuine Porsche Part - New In stock
                                        # 8
                                        MPN: 99650501500
                                        SHOCK ABSORBER
                                        P058 (Impact absorbers, front and rear)
                                        from £134.51
                                        from £134.51
                                        buffer - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 90007545702
                                        BOLT WITH WASHER M 8 X 30
                                        BOLT WITH WASHER M 8 X 30
                                        Bolt with washer - M 8X30 - Discontinued part Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 90037826709
                                        BOLT WITH WASHER M 8 X 30
                                        Bolt with washer - M 8X30 Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: 96450577500
                                        UNDERLAY
                                        UNDERLAY
                                        PACKING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: 99650577500
                                        UNDERLAY
                                        from £3.68
                                        from £3.68
                                        PACKING Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 99650553100
                                        RETAINING STRIP
                                        RETAINING STRIP
                                        RETAINING STRIP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 99650553101
                                        RETAINING STRIP CENTER
                                        from £64.82
                                        from £64.82
                                        RETAINING STRIP Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 99650553900
                                        SUPPORT LEFT
                                        from £67.01
                                        from £67.01
                                        support - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 99650554000
                                        SUPPORT RIGHT
                                        from £53.60
                                        from £53.60
                                        support - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 99650553500
                                        RETAINING STRIP LEFT
                                        from £66.15
                                        from £66.15
                                        retaining strip - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 99650553600
                                        RETAINING STRIP RIGHT
                                        from £66.15
                                        from £66.15
                                        retaining strip - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 90014410102
                                        PANEL SCREW B 4,8 X 19
                                        from £2.38
                                        from £2.38
                                        TAPPING SCREW - ST 4,8 X 19 Genuine Porsche Part - New In stock
                                        # 15
                                        MPN: 99920904509
                                        SHIM
                                        from £1.86
                                        from £1.86
                                        SPACER WASHER Genuine Porsche Part - New In stock
                                        # 16
                                        MPN: 99950707202
                                        PANEL NUT B 4,8
                                        from £2.30
                                        from £2.30
                                        SPEED NUT - ST 4,8 Genuine Porsche Part - New (to order)
                                        # 17
                                        MPN: 99908463309
                                        HEXAGON NUT M 6
                                        from £1.86
                                        from £1.86
                                        hex. nut - M 6 Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 99664114200
                                        TEMPERATURE SENSOR
                                        TEMPERATURE SENSOR
                                        TEMPERATURE SENSOR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 95850553500
                                        SENSOR MODULE
                                        from £27.94
                                        from £27.94
                                        SENSOR MODULE Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 99965291140
                                        PUSH-ON CONNECTOR
                                        from £3.66
                                        from £3.66
                                        PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 99965293422
                                        ROUND INSERT SLEEVE
                                        from £1.15
                                        from £1.15
                                        sleeve (female) terminal - 2,5 - 0,4 - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 99965012740
                                        SEAL
                                        from £0.82
                                        from £0.82
                                        GASKET Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 99991160640
                                        ADHESIVE TAPE
                                        ADHESIVE TAPE
                                        ADHESIVE TAPE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 00004320483
                                        ADHESIVE TAPE ROLLER 16,5 METER
                                        from £159.03
                                        from £159.03
                                        Adhesive tape - roller - 16,5 METER - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 99950749740
                                        SPREADER RIVET 8 X 14
                                        from £0.59
                                        from £0.59
                                        rivet - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                        # 21
                                        MPN: 98670110500
                                        LICENCE PLATE HOLDER D >>- MJ 2002
                                        (BRD) | F.., E.., GB.
                                        from £12.70
                                        from £12.70
                                        LICENSE PLATE BRACKET - - D >>- MJ 2002 Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 98670110501
                                        LICENCE PLATE HOLDER D - MJ 2003>>
                                        (BRD) | F.., E.., GB.
                                        from £12.70
                                        from £12.70
                                        license plate bracket - - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 22
                                        MPN: 99950704040
                                        EXPANDING NUT 4,2
                                        from £1.45
                                        from £1.45
                                        expanding nut - ST 4,2 Genuine Porsche Part - New In stock
                                        # 23
                                        MPN: 90014315102
                                        panel screw 4,2 X 16
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 24
                                        MPN: 90002502440
                                        WASHER
                                        from £0.86
                                        from £0.86
                                        Washer - A 4,3 Genuine Porsche Part - New In stock
                                        # 25
                                        MPN: 90014313400
                                        panel screw B 4,2 X 9,5
                                        panel screw B 4,2 X 9,5
                                        TAPPING SCREW - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 25
                                        MPN: 9001431340A
                                        panel screw 4,2 X 9,5
                                        from £1.78
                                        from £1.78
                                        tapping screw - 4,2 X 9,5 - D - MJ 1985>> Genuine Porsche Part - New In stock
                                        # 27
                                        MPN: 99670180100
                                        DISTANCE PIECE LEFT D >>- MJ 2002
                                        from £2.04
                                        from £2.04
                                        SPACER - D >>- MJ 2002 Genuine Porsche Part - New In stock
                                        # 27
                                        MPN: 99670180200
                                        DISTANCE PIECE RIGHT D >>- MJ 2002
                                        from £2.04
                                        from £2.04
                                        SPACER - D >>- MJ 2002 Genuine Porsche Part - New In stock
                                        # 27
                                        MPN: 98670180100
                                        DISTANCE PIECE LEFT D - MJ 2003>>
                                        from £3.61
                                        from £3.61
                                        spacer - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 27
                                        MPN: 98670180200
                                        DISTANCE PIECE RIGHT D - MJ 2003>>
                                        from £3.61
                                        from £3.61
                                        spacer - D - MJ 2003>> Genuine Porsche Part - New (to order)
                                        # 28
                                        MPN: 91170112103
                                        LICENCE PLATE HOLDER
                                        from £21.79
                                        from £21.79
                                        license plate bracket - Number plate - as required use: Genuine Porsche Part - New (to order)
                                        # 30
                                        MPN: 90014501207
                                        COUNTERSUNK PANEL SCREW B 4,2 X 32
                                        from £1.65
                                        from £1.65
                                        TAPP. SCREW, COUNTERSUNK HD. - B 4,2 X 32 Genuine Porsche Part - New (to order)
                                        # 31
                                        MPN: 99965122540
                                        WIRE
                                        from £0.86
                                        from £0.86
                                        WIRE Genuine Porsche Part - New (to order)
                                        # 32
                                        MPN: 99959169902
                                        PANEL NUT ST 4,8
                                        PANEL NUT ST 4,8
                                        SPEED NUT - ST 4,8 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 32
                                        MPN: 99959169901
                                        PANEL NUT ST 4,8
                                        from £0.59
                                        from £0.59
                                        speed nut - ST 4,8 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                        # 34
                                        MPN: 99907319809
                                        PANEL SCREW
                                        PANEL SCREW
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 34
                                        MPN: 99907322709
                                        PANEL SCREW ST 4,8 X 19
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 35
                                        MPN: 98650555100G2X
                                        TRIM D >>- MJ 2002 - PRIMED
                                        P008 (986 S 3,2 litres displacement)
                                        from £103.25
                                        from £103.25
                                        This part replaces part number 98650555100
                                        TRIM Genuine Porsche Part - New (to order)
                                        # 35
                                        MPN: 98650555101G2X
                                        Trim D - MJ 2003>>- primed
                                        P008 (986 S 3,2 litres displacement)
                                        from £344.17
                                        from £344.17
                                        TRIM Genuine Porsche Part - New (to order)
                                        # 36
                                        MPN: 9865055550001C
                                        RETAINING FRAME D >>- MJ 2002 - SATIN BLACK
                                        P008 (986 S 3,2 litres displacement)
                                        from £32.51
                                        from £32.51
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 36
                                        MPN: 9865055550201C
                                        RETAINING FRAME D - MJ 2003>>- SATIN BLACK
                                        P008 (986 S 3,2 litres displacement)
                                        from £43.01
                                        from £43.01
                                        retaining frame Genuine Porsche Part - New (to order)
                                        # 36
                                        MPN: 99950770700
                                        U-CLIP
                                        P008 (986 S 3,2 litres displacement)
                                        from £0.82
                                        from £0.82
                                        U-CLIP Genuine Porsche Part - New (to order)
                                        # 37
                                        MPN: 98650585700
                                        HEAT INSULATION LEFT LOWER
                                        from £23.58
                                        from £23.58
                                        heat deflector Genuine Porsche Part - New (to order)
                                        # 37
                                        MPN: 98650585800
                                        HEAT INSULATION RIGHT LOWER
                                        from £23.58
                                        from £23.58
                                        heat deflector Genuine Porsche Part - New (to order)
