porsche 2004 (986 boxster) disc brake rear axle parts diagram

603-000 - Disc brake Rear axle

Porsche 2004 (986 Boxster) Disc brake Rear axle Parts Diagram

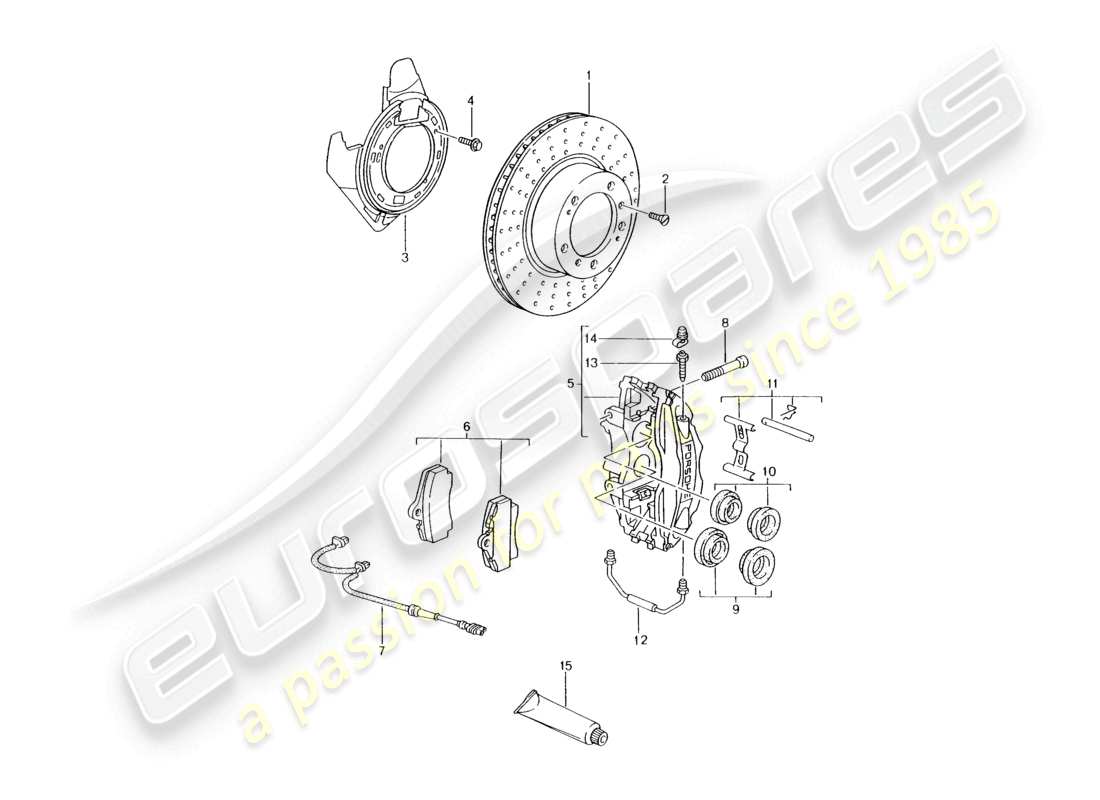

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 98635240104
              BRAKE DISC ALSO USE: 1X 986 352 939 10 2X 986 612 365 00 1X 996 352 959 01 4X 900 269 047 01 4X 999 073 402 01 1X 000 043 305 08
              from £193.63
              from £193.63
              BRAKE DISK RA Genuine Porsche Part - New (to order)
              # 1
              MPN: 98635240301
              BRAKE DISC D - MJ 2000>>ALSO USE: 1X 986 352 939 10 2X 986 612 365 00 1X 996 352 959 01 4X 900 269 047 01 4X 999 073 402 01 1X 000 043 305 08
              P008 (986 S 3,2 litres displacement)
              from £212.51
              from £212.51
              BRAKE DISK RA Genuine Porsche Part - New (to order)
              # 2
              MPN: 90026904709
              countersunk bolt M 6 X 12
              countersunk bolt M 6 X 12
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 2
              MPN: 90026904701
              countersunk bolt M 6 X 12
              from £0.59
              from £0.59
              This part replaces part number 90026904709
              SCREW, COUNTERSUNK HD. - M 6 X 12 - D - MJ 2004>> Genuine Porsche Part - New In stock
              # 2
              MPN: 90026910609
              COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
              COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
              SCREW, COUNTERSUNK HD. - M 6 X 16 - D >>- MJ 2002 - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 2
              MPN: 90026910601
              COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
              PXRP (5-mm spacers, front/rear)
              from £2.29
              from £2.29
              SCREW, COUNTERSUNK HD. - M 6 X 16 Genuine Porsche Part - New (to order)
              # 2
              MPN: 90026910609
              countersunk bolt M 6 X 16 See technical information See main group 4 NR.1/04 NR.2/04 D - MJ 2004>>- MJ 2004
              countersunk bolt M 6 X 16 See technical information See main group 4 NR.1/04 NR.2/04 D - MJ 2004>>- MJ 2004
              SCREW, COUNTERSUNK HD. - M 6 X 16 - D >>- MJ 2002 - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 2
              MPN: 90026910601
              COUNTERSUNK BOLT M 6 X 16 SEE TECHNICAL INFORMATION SEE MAIN GROUP 4 NR.1/04 NR.2/04 D - MJ 2004>>
              P091 (Special model '50 years Spyder')
              from £2.29
              from £2.29
              SCREW, COUNTERSUNK HD. - M 6 X 16 Genuine Porsche Part - New (to order)
              # 3
              MPN: 986 352 081 03
              PROTECTIVE PLATE LEFT F >>98-XS601 524
              PROTECTIVE PLATE LEFT F >>98-XS601 524 Genuine Porsche Part - New (to order)
              # 3
              MPN: 98635208104
              PROTECTIVE PLATE LEFT F 98-XS601 525>>
              from £25.03
              from £25.03
              AS COVER PANEL Genuine Porsche Part - New (to order)
              # 3
              MPN: 986 352 082 03
              PROTECTIVE PLATE RIGHT F >>98-XS601 186
              PROTECTIVE PLATE RIGHT F >>98-XS601 186 Genuine Porsche Part - New (to order)
              # 3
              MPN: 98635208204
              PROTECTIVE PLATE RIGHT F 98-XS601 187>>
              from £25.03
              from £25.03
              AS COVER PANEL Genuine Porsche Part - New (to order)
              # 3
              MPN: 986 352 801 00
              PROTECTIVE PLATE
              PROTECTIVE PLATE
              PROTECTIVE PLATE Genuine Porsche Part - New (to order)
              # 3
              MPN: 98735280100
              PROTECTIVE PLATE
              P008 (986 S 3,2 litres displacement)
              from £23.89
              from £23.89
              PROTECTIVE PLATE Genuine Porsche Part - New (to order)
              # 4
              MPN: 99921711609
              HEXAGON BOLT M 6 X 16
              SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
              # 5
              MPN: 98635242301
              caliper without brake pads left
              from £438.11
              from £438.11
              CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
              # 5
              MPN: 99635242113
              CALIPER WITHOUT BRAKE PADS LEFT D - MJ 2000>>
              P008 (986 S 3,2 litres displacement)
              from £602.96
              from £602.96
              CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
              # 5
              MPN: 99635242124
              CALIPER WITHOUT BRAKE PADS LEFT D - MJ 2004>>- MJ 2004
              P091 (Special model '50 years Spyder')
              from £583.93
              from £583.93
              AS FIXED CALIPER Genuine Porsche Part - New (to order)
              # 5
              MPN: 98635242401
              caliper without brake pads right
              from £438.11
              from £438.11
              CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
              # 5
              MPN: 99635242213
              CALIPER WITHOUT BRAKE PADS RIGHT D - MJ 2000>>
              P008 (986 S 3,2 litres displacement)
              from £602.96
              from £602.96
              CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
              # 5
              MPN: 99635242224
              CALIPER WITHOUT BRAKE PADS RIGHT D - MJ 2004>>- MJ 2004
              P091 (Special model '50 years Spyder')
              from £583.93
              from £583.93
              AS FIXED CALIPER Genuine Porsche Part - New (to order)
              # 6
              MPN: 98635293910
              1 SET OF BRAKE PADS FOR DISK BRAKE
              P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 6
              MPN: 98635293911
              1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 1X 000 043 305 08 2X 986 612 365 01 1X 996 352 959 01
              P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --)
              from £136.99
              from £136.99
              This part replaces part number 98635293910
              1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
              # 6
              MPN: 996 352 939 00
              1 SET OF BRAKE PADS FOR DISK BRAKE
              1 SET OF BRAKE PADS FOR DISK BRAKE
              1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
              # 6
              MPN: 996 352 939 03
              1 set of brake pads for disk brake also use: Fasteners
              1 set of brake pads for disk brake also use: Fasteners
              1 set of brake pads for disk brake also use: Fasteners Genuine Porsche Part - New (to order)
              # 6
              MPN: 98635293910
              1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 1X 000 043 305 08 2X 986 612 365 01 1X 996 352 959 01
              P008 (986 S 3,2 litres displacement)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 6
              MPN: 98635293911
              1 set of brake pads for disk brake also use: Fasteners
              P008 (986 S 3,2 litres displacement)
              from £136.99
              from £136.99
              This part replaces part number 98635293910
              1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
              # 7
              MPN: 98661236500
              SENDER WIRE (PAD WEAR INDICATOR)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 8
              MPN: 99906704109
              SOCKET HEAD BOLT M 12 X 1,5 X 72
              SOCKET HEAD BOLT M 12 X 1,5 X 72
              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
              # 8
              MPN: 99906704101
              SOCKET HEAD BOLT M 12 X 1,5 X 72
              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
              # 8
              MPN: 94461262700
              Line holder for brake pad wear display
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 9
              MPN: 95135291701
              REPAIR SET 1 SET PROTECTIVE CAPS 30 MM $
              from £10.88
              from £10.88
              repair kit - Protection caps - 30 MM Genuine Porsche Part - New (to order)
              # 10
              MPN: 95135291700
              REPAIR SET 1 SET PROTECTIVE CAPS 28 MM $
              from £12.52
              from £12.52
              repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
              # 11
              MPN: 99635295901
              REPAIR SET FASTENERS PIN 2X CUP EXPANDER SPRING 2X SECURING BARS 2X
              from £37.82
              from £37.82
              repair kit Genuine Porsche Part - New In stock
              # 11
              MPN: 96435209600
              DAMPING PLATE 30 MM $ D - MJ 2000>>
              DAMPING PLATE 30 MM $ D - MJ 2000>>
              Damping plate - for - piston - $ 30 MM - Discontinued part Genuine Porsche Part - New (to order)
              # 11
              MPN: 99635208600
              DAMPING PLATE 30 MM D - MJ 2000>>
              P008 (986 S 3,2 litres displacement)
              from £12.79
              from £12.79
              Damping plate - for - piston - $ 30 MM Genuine Porsche Part - New (to order)
              # 11
              MPN: 96435209601
              DAMPING PLATE 28 MM $ D - MJ 2000>>
              P008 (986 S 3,2 litres displacement)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 12
              MPN: 99635296100
              Connecting line left
              from £32.62
              from £32.62
              connecting line Genuine Porsche Part - New (to order)
              # 12
              MPN: 99635296200
              Connecting line right
              connecting line Genuine Porsche Part - New (to order)
              # 13
              MPN: 93035191900
              BREATHER VALVE
              from £13.16
              from £13.16
              bleeder valve - with: - dust cap Genuine Porsche Part - New (to order)
              # 14
              MPN: 93035192700
              DUST CAP
              DUST CAP
              dust cap - Discontinued part Genuine Porsche Part - New (to order)
              # 14
              MPN: 93035192701
              DUST CAP
              from £1.73
              from £1.73
              DUST CAP Genuine Porsche Part - New (to order)
              # 15
              MPN: 00004311700
              BRAKE CYLINDER PASTE 50 G
              BRAKE CYLINDER PASTE 50 G
              brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
              # 15
              MPN: 00004330511
              BRAKE CYLINDER PASTE 50 G
              from £22.38
              from £22.38
              BRAKE CYLINDER PASTE - 50 GR Genuine Porsche Part - New (to order)
              # 15
              MPN: 00004302000
              ASSEMBLY PASTE 100 G
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 15
              MPN: 00004330508
              ASSEMBLY PASTE 100 GRAM
              from £17.99
              from £17.99
              This part replaces part number 00004302000
              ASSEMBLY PASTE Genuine Porsche Part - New (to order)
