porsche 2005 (987 boxster) clutch parts diagram

301-000 - clutch

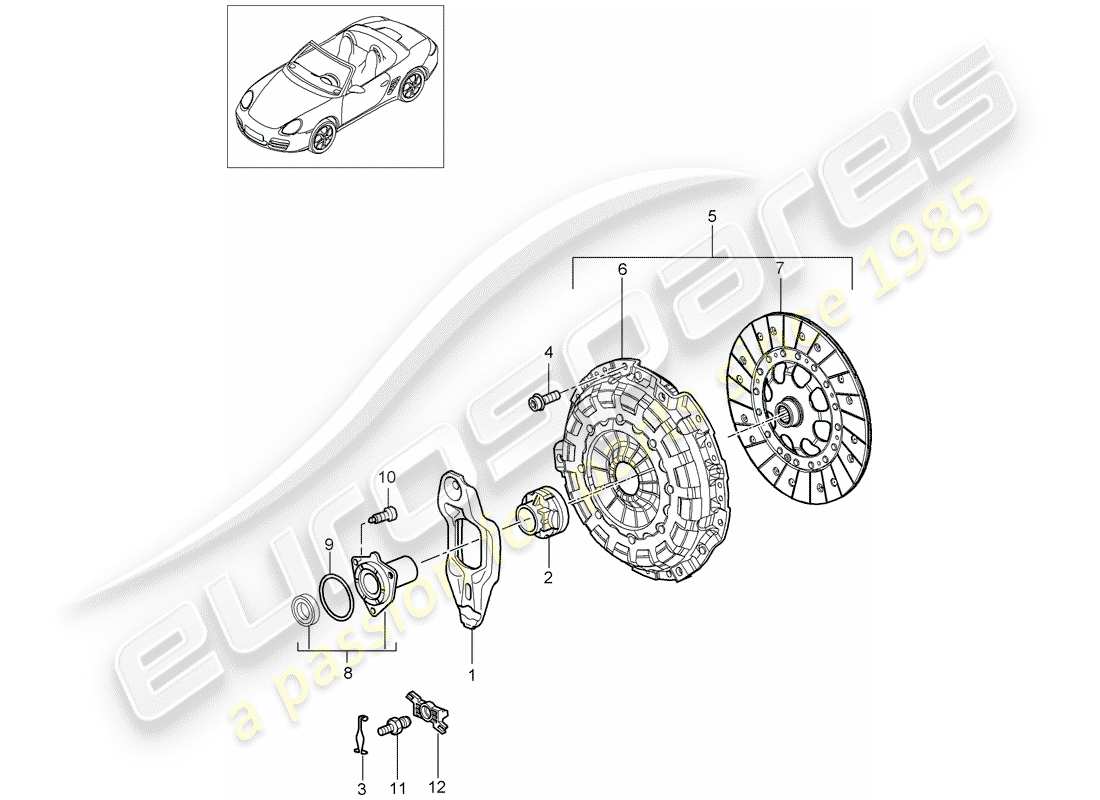

Porsche 2005 (987 Boxster) CLUTCH Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 012141719B
            CLUTCH OPERATING LEVER
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 2
            MPN: 012141165E
            RELEASE BEARING
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 3
            MPN: 012141741
            RETAINING SPRING
            from £1.21
            from £1.21
            RETAINING SPRING Genuine Porsche Part - New (to order)
            # 4
            MPN: 90006713103
            SCREW, CHEESE HD.
            M 8 X 16 | No longer use the part here
            from £1.51
            from £1.51
            This part replaces part number 90006713102
            screw, cheese hd. - M8X15 Genuine Porsche Part - New In stock
            # 4
            MPN: 99907345801
            SCREW
            M 8 X 16
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 5
            MPN: 98711691400
            clutch
            Set
            Supersession
            Supersession
            Genuine Porsche Part (no longer available to order)
            # 6
            MPN: 98611602804
            PRESSURE PLATE
            from £313.91
            from £313.91
            pressure plate - D - MJ 2000>> Genuine Porsche Part - New (to order)
            # 7
            MPN: 98711601400
            CLUTCH DISC
            Discontinued part
            CLUTCH DISC Genuine Porsche Part - New (to order)
            # 7
            MPN: 98711601401
            CLUTCH DISC
            from £344.80
            from £344.80
            CLUTCH DISC Genuine Porsche Part - New (to order)
            # 8
            MPN: 012141180B
            GUIDE SLEEVE
            from £57.61
            from £57.61
            GUIDE SLEEVE Genuine Porsche Part - New (to order)
            # 9
            MPN: N 90354201
            O-RING
            56,8 X 2,6
            from £4.63
            from £4.63
            O-Ring - 56,8 X 2,6 Genuine Porsche Part - New (to order)
            # 10
            MPN: N 90366301
            SCREW, CHEESE HD.
            M 8 X 22
            from £3.18
            from £3.18
            SCREW, CHEESE HD. - M 8 X 22 Genuine Porsche Part - New (to order)
            # 11
            MPN: 012141777D
            BALL PIN
            Discontinued part
            BALL PIN Genuine Porsche Part - New (to order)
            # 11
            MPN: 0B1141777A
            BALL PIN
            from £8.35
            from £8.35
            BALL PIN Genuine Porsche Part - New (to order)
            # 12
            MPN: 012141751B
            INTERMEDIATE PIECE
            Discontinued part
            INTERMEDIATE PIECE - DISCONTINUED PART Genuine Porsche Part - New (to order)
            # 12
            MPN: 012141751C
            INTERMEDIATE PIECE
            from £2.33
            from £2.33
            INTERMEDIATE PIECE Genuine Porsche Part - New (to order)
            # -
            -
            CLUTCH DISC
            # -
            -
            GREASE
            KLUEBERALFA HM83-801 | 50 GR. | Discontinued part
            # -
            -
            GREASE
            KLÃœBERALFA HM83-801 | 50 GR.
            # -
            -
            EXTREME-PRESSURE GREASE
            LONGTIME 3EP | 80 GR.
