porsche 2007 (987 boxster) front end parts diagram

801-005 - front end

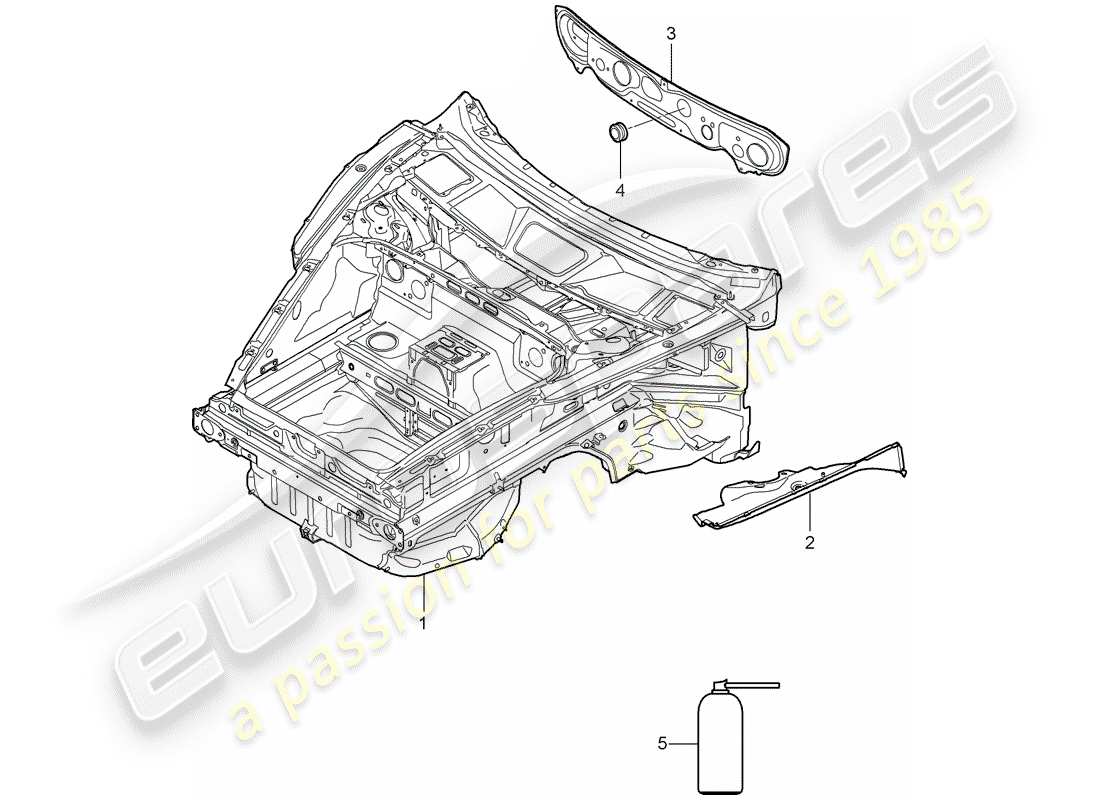

Porsche 2007 (987 Boxster) Front end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 98750191100GRV
          FRONT END - PRIMED ALSO USE: SEALANT POS.5 PROCESSING INSTRUCTIONS SEE TECHNICAL MANUAL
          from £7,700.10
          from £7,700.10
          This part replaces part number 98750191100
          PRIMED Genuine Porsche Part - New (to order)
          # 1
          -
          ALSO USE:
          # 2
          MPN: 99750194500GRV
          COVER PLATE FOR SLIDE MEMBER LEFT - PRIMED
          from £368.69
          from £368.69
          This part replaces part number 99750194500
          PRIMED Genuine Porsche Part - New (to order)
          # 2
          MPN: 99750194600GRV
          TRIM - LOWER PART RIGHT - PRIMED
          This part replaces part number 99750194600
          PRIMED Genuine Porsche Part - New (to order)
          # 3
          MPN: 99750412100
          COVER LHD
          P098 (Left-hand drive version)
          from £211.47
          from £211.47
          COVER Genuine Porsche Part - New (to order)
          # 3
          MPN: 99750412101
          COVER RHD ALSO USE:
          P099 (Right-hand drive version)
          from £164.19
          from £164.19
          COVER Genuine Porsche Part - New (to order)
          # 3
          MPN: 00004330094
          ADHESIVE SET
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 4
          MPN: 99970225541
          END CAP 62,5 X 72,6
          from £4.67
          from £4.67
          SEALING CAP - 62,5 X 72,6 Genuine Porsche Part - New (to order)
          # 5
          MPN: 99991533740
          Acoustic foam
          Acoustic foam Genuine Porsche Part - New (to order)
