porsche 2007 (987 boxster) compressor parts diagram

813-015 - COMPRESSOR

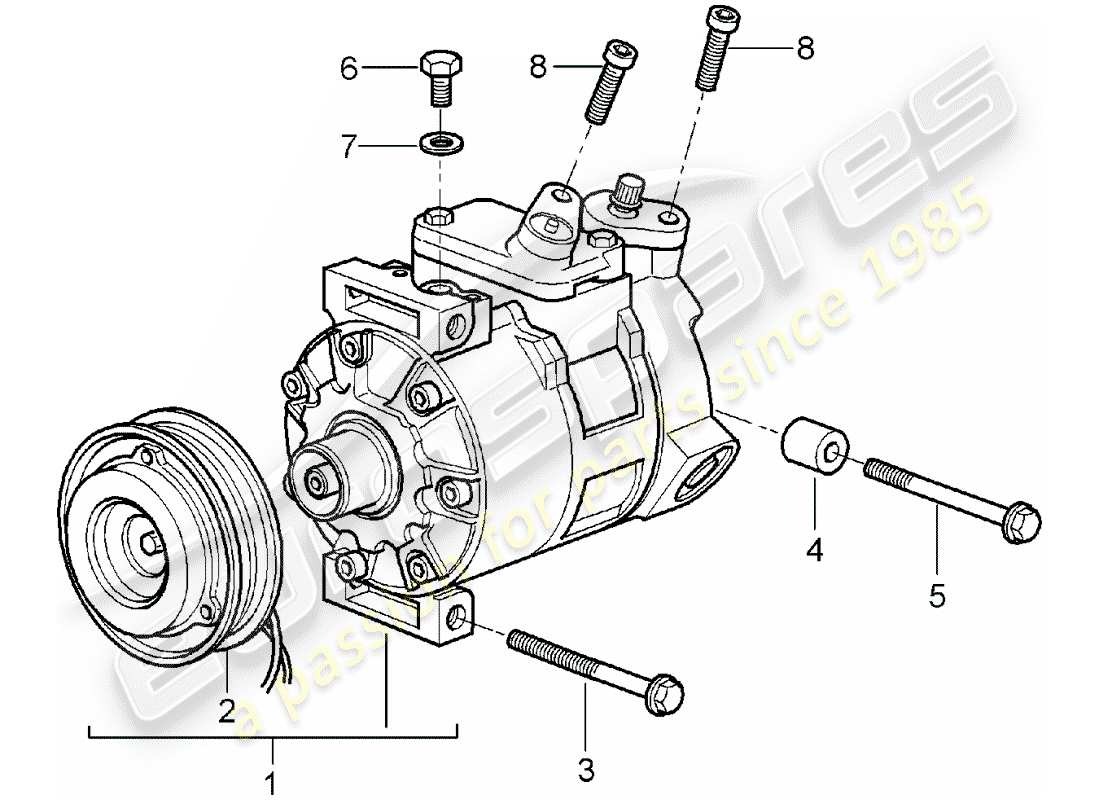

Porsche 2007 (987 Boxster) Compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 99612601152
                COMPRESSOR
                from £1,610.93
                from £1,610.93
                COMPRESSOR Genuine Porsche Part - New (to order)
                # 2
                MPN: 99657392600
                MAGNETIC COUPLING
                from £822.35
                from £822.35
                MAGNETIC COUPLING Genuine Porsche Part - New (to order)
                # 3
                MPN: 90037807509
                HEXAGON BOLT M 8X90 D >>- MJ 2006
                from £2.12
                from £2.12
                screw, hex. hd. - M 8X90 Genuine Porsche Part - New (to order)
                # 3
                MPN: 90038510201
                TORX SCREW M 8X90 D - MJ 2007>>
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 4
                MPN: 99612610253
                DISTANCE PIECE
                from £8.10
                from £8.10
                spacer - D - MJ 2004>> Genuine Porsche Part - New (to order)
                # 5
                MPN: 90037813609
                HEXAGON BOLT M 8X120 D >>- MJ 2006
                screw, hex. hd. - M 8X120 Genuine Porsche Part - New (to order)
                # 5
                MPN: 90038528101
                TORX SCREW M 8X120 D - MJ 2007>>
                from £4.31
                from £4.31
                TORX SCREW Genuine Porsche Part - New In stock
                # 6
                MPN: 99657392601
                SEALING PLUG
                from £3.95
                from £3.95
                THREADED PLUG Genuine Porsche Part - New (to order)
                # 7
                MPN: 99657392602
                SEAL RING
                from £3.95
                from £3.95
                SEAL RING Genuine Porsche Part - New (to order)
                # 8
                MPN: 90006714702
                SOCKET HEAD BOLT
                SOCKET HEAD BOLT
                SCREW, CHEESE HD. - M 8 X 25 Genuine Porsche Part - New (to order)
                # 8
                MPN: 90006714701
                SOCKET HEAD BOLT
                from £7.83
                from £7.83
                SCREW, CHEESE HD. - M 8 X 25 Genuine Porsche Part - New (to order)
                # 8
                MPN: 00004330579
                COMPRESSOR OIL 250 ML
                from £35.15
                from £35.15
                COMPRESSOR OIL Genuine Porsche Part - New (to order)
