porsche 2007 (987 boxster) radio unit parts diagram

911-000 - radio unit

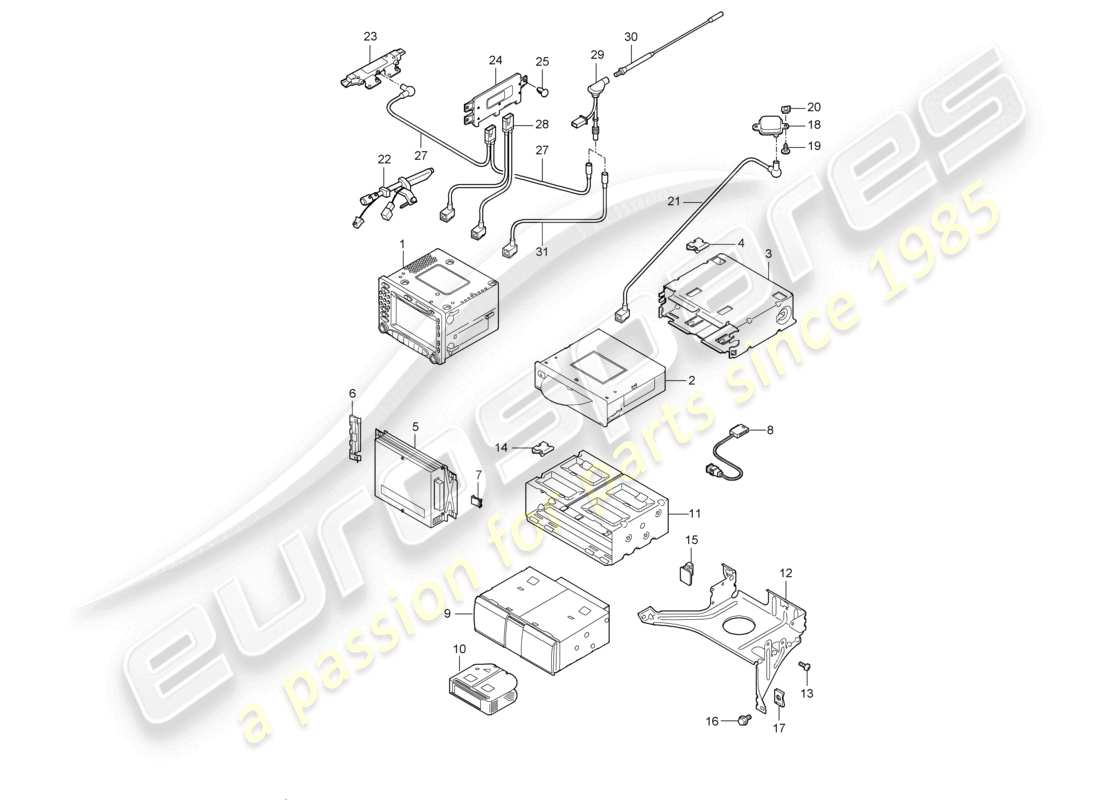

Porsche 2007 (987 Boxster) RADIO UNIT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # -
    -
    radio unit
    See catalogue | Tequipment
    # 1
    MPN: 99764210106
    operating unit
    Discontinued part (PR:665)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F >> 98-5S700 061 |
    F >> 98-5U700 847 |
    F >> 98-5U720 253 | See technical information | GR. 9 , NR. 1/04
    This part replaces part number 99764210106
    # 1
    MPN: 99764210306
    operating unit
    Discontinued part (PR:665,680)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F >> 98-5S700 061 |
    F >> 98-5U700 273 |
    F >> 98-5S720 299 | See technical information | GR. 9 , NR. 1/04
    This part replaces part number 99764210306
    # 1
    MPN: 99764210111
    operating unit
    (PR:665)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F >> 98-5S720 584 |
    F >> 98-5U702 718 |
    F >> 98-5U722 919
    This part replaces part number 99764210111
    # 1
    MPN: 99764210311
    operating unit
    (PR:665,680)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-5S700 062>> 98-5S720 584 | F 98-5U700 274>> 98-5U702 718 | F 98-5U720 300>> 98-5U722 919
    This part replaces part number 99764210311
    # 1
    MPN: 99764214102
    operating unit
    Discontinued part (PR:665)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-5S720 585>> | F 98-5U702 719>> 98-6U704 749 | F 98-5U722 920>> 98-6U723 352 | See technical information | GR. 9 , NR. 20/05
    This part replaces part number 99764214102
    # 1
    MPN: 99764214103
    operating unit
    (PR:665)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-5S720 585>> | F 98-5U702 719>> 98-6U704 749 | F 98-5U722 920>> 98-6U723 352 | See technical information | GR. 9 , NR. 20/05
    This part replaces part number 99764214103
    # 1
    MPN: 99764214302
    operating unit
    Discontinued part (PR:665,680)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-5S720 585>> | F 98-5U702 719>> 98-6U704 749 | F 98-5U722 920>> 98-6U723 352 | See technical information | GR. 9 , NR. 20/05
    This part replaces part number 99764214302
    # 1
    MPN: 99764214303
    operating unit
    (PR:665,680)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-5S720 585>> | F 98-5U702 719>> 98-6U704 749 | F 98-5U722 920>> 98-6U723 352 | See technical information | GR. 9 , NR. 20/05
    This part replaces part number 99764214303
    # 1
    MPN: 99764214110
    operating unit
    (PR:665)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-6U704 750>> | F 98-6U723 353>>
    This part replaces part number 99764214110
    # 1
    MPN: 99764214310
    operating unit
    (PR:665,680)
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # -
    -
    VOLCANO GREY/BLACK MAT
    F 98-6U704 750>> | F 98-6U723 353>>
    This part replaces part number 99764214310
    # -
    -
    ROTARY KNOB
    LEFT
    # -
    -
    MATT BLACK
    for | operating unit
    This part replaces part number 99764220100
    # -
    -
    ROTARY KNOB
    RIGHT
    # -
    -
    MATT BLACK
    for | operating unit
    This part replaces part number 99764220200
    # -
    -
    TRIM
    drawer | SIM card | for | operating unit
    # -
    -
    tapping screw
    ST 4,2 X 19 | for | Mount | Radio unit | and | operating unit | center console
    # 2
    MPN: 99764213503
    DVD-PLAYER
    Navigation system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 | Discontinued part (PR:670)
    DVD-PLAYER Genuine Porsche Part - New (to order)
    # 2
    MPN: 99764213504
    DVD-PLAYER
    Navigation system |
    F >> 98-5S720 584 |
    F >> 98-5U702 718 |
    F >> 98-5U722 919 (PR:670)
    from £1,827.78
    from £1,827.78
    DVD-PLAYER Genuine Porsche Part - New (to order)
    # 2
    MPN: 99764213702
    DVD-PLAYER
    Navigation system | F 98-5S720 585>> | F 98-5U702 719>> 98-6U704 749 | F 98-5U722 920>> 98-6U723 352 (PR:670,672)
    from £1,696.99
    from £1,696.99
    DVD-PLAYER Genuine Porsche Part - New (to order)
    # 2
    MPN: 99764215700
    DVD-PLAYER
    Navigation system | F 98-6U704 750>> | F 98-6U723 353>> (PR:670,672)
    DVD-PLAYER Genuine Porsche Part - New (to order)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 | Discontinued part (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 | Discontinued part (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 | Discontinued part (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    F >> 98-5U720 253 |
    F >> 98-5S700 061 (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U720 254>> 98-5U722 919 |
    F >> 98-5U702 718 | F 98-5S700 062>> 98-5S720 584 (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U720 254>> 98-5U722 919 |
    F >> 98-5U702 718 | F 98-5S700 062>> 98-5S720 584 (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U720 254>> 98-5U722 919 |
    F >> 98-5U702 718 | F 98-5S700 062>> 98-5S720 584 (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U720 254>> 98-5U722 919 |
    F >> 98-5U702 718 | F 98-5S700 062>> 98-5S720 584 (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U720 254>> 98-5U722 919 |
    F >> 98-5U702 718 | F 98-5S700 062>> 98-5S720 584 (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> | Discontinued part (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-5U722 920>> 98-6U723 352 | F 98-5U702 719>> 98-6U704 749 | F 98-5S720 585>> (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system | F 98-6U704 750>> | F 98-6U723 353>> |
    D >> - MJ 2006 (PR:616)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:610)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:611)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:612)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:613)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:614)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2007>> - MJ 2007 (PR:616)
    # -
    -
    DVD-ROM FOR NAVIGATION
    system |
    D - MJ 2008>> - MJ 2008 (PR:616)
    # -
    -
    CD-ROM FOR ELECTRONIC LOG
    BOOK |
    D - MJ 2006>> (PR:641)
    # 3
    MPN: 99764223100
    BRACKET
    DVD device (PR:670,672)
    from £34.47
    from £34.47
    BRACKET Genuine Porsche Part - New (to order)
    # 4
    MPN: 99764534201
    U-CLIP
    from £4.31
    from £4.31
    U-CLIP Genuine Porsche Part - New (to order)
    # 5
    MPN: 98764533101
    AMPLIFIER
    (PR:490)
    from £500.24
    from £500.24
    AMPLIFIER Genuine Porsche Part - New (to order)
    # 5
    MPN: 99764533306
    AMPLIFIER
    F >> 98-5S700 061 |
    F >> 98-5U700 273 |
    F >> 98-5U720 299 | See technical information | GR. 9 , NR. 1/04 | GR. 9 , NR. 8/04 (PR:680 BOXSTER BOXSTER BOXSTER S)
    AMPLIFIER Genuine Porsche Part - New (to order)
    # 5
    MPN: 99764533422
    AMPLIFIER
    Note coding | F 98-5S700 062>> | F 98-5U700 274>> | F 98-5U720 300>> |
    D - MJ 2005>> - MJ 2005 (PR:680 BOXSTER BOXSTER BOXSTER S)
    AMPLIFIER Genuine Porsche Part - New (to order)
    # 5
    MPN: 99764533432
    AMPLIFIER
    Note coding |
    D - MJ 2006>> - MJ 2006 | Discontinued part (PR:680)
    AMPLIFIER Genuine Porsche Part - New (to order)
    # 5
    MPN: 99764533433
    AMPLIFIER
    Note coding |
    D - MJ 2006>> (PR:680)
    from £1,370.27
    from £1,370.27
    AMPLIFIER Genuine Porsche Part - New (to order)
    # 6
    MPN: 99764534000
    SECURING CLIP
    (PR:490,680)
    from £6.59
    from £6.59
    SECURING CLIP Genuine Porsche Part - New (to order)
    # 7
    MPN: 99950753201
    U-CLIP
    (PR:490,680)
    from £0.65
    from £0.65
    U-clip - - D - MJ 1999>> Genuine Porsche Part - New (to order)
    # 8
    MPN: 99764630702
    MICROPHONE
    (PR:680)
    MICROPHONE Genuine Porsche Part - New (to order)
    # 8
    MPN: 99764630701
    MICROPHONE
    (PR:618,666, 680)
    from £129.56
    from £129.56
    MICROPHONE Genuine Porsche Part - New (to order)
    # -
    -
    WIRING CONDUIT
    microphone |
    D >> - MJ 2007
    # -
    -
    WIRING CONDUIT
    microphone |
    D - MJ 2008>> - MJ 2008
    # 9
    MPN: 99764514002
    CD-CHANGER
    D - MJ 2005>> - MJ 2005 | Discontinued part (PR:692)
    CD-CHANGER - CDC 4 - SEE TECHNICAL INFORMATION - GR.9 , NR. 4/03 - GR.9 , NR. 5/03 - DISCONTINUED PART Genuine Porsche Part - New (to order)
    # 9
    MPN: 99764514003
    CD-CHANGER
    CDC 4 | Adjustment | Installation | Attention (PR:692)
    from £1,312.21
    from £1,312.21
    CD-CHANGER - CDC 4 - SEE TECHNICAL INFORMATION - GR.9 , NR. 4/03 - GR.9 , NR. 5/03 Genuine Porsche Part - New (to order)
    # 10
    MPN: 99664511300
    CD-MAGAZINE
    CD-changer (PR:692)
    from £113.78
    from £113.78
    CD-MAGAZINE - CD-CHANGER Genuine Porsche Part - New (to order)
    # 11
    MPN: 99764522200
    BRACKET FOR CD-CHANGER
    (PR:692)
    from £43.02
    from £43.02
    BRACKET FOR CD-CHANGER Genuine Porsche Part - New (to order)
    # 12
    MPN: 99764522100
    BRACKET FOR CD-CHANGER
    (PR:664,692)
    from £43.02
    from £43.02
    BRACKET FOR CD-CHANGER Genuine Porsche Part - New (to order)
    # 13
    MPN: 90014602401
    SCREW, ROUND HD.
    M 5 X 8 (PR:692)
    from £0.65
    from £0.65
    SCREW, ROUND HD Genuine Porsche Part - New (to order)
    # 14
    MPN: 99764534201
    U-CLIP
    (PR:692)
    from £4.31
    from £4.31
    U-CLIP Genuine Porsche Part - New (to order)
    # 15
    MPN: 99970350140
    ATTACHMENT ELEMENT
    (PR:664,692)
    from £1.10
    from £1.10
    ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
    # 16
    MPN: 90037817909
    SCREW, HEX. HD.
    M 6 X 16 (PR:664,692)
    from £2.68
    from £2.68
    screw, hex. hd. - M 6 X 16 - D - MJ 2002>> Genuine Porsche Part - New (to order)
    # 17
    MPN: 99950776602
    SPEED NUT
    M 6 (PR:664,692)
    from £0.91
    from £0.91
    speed nut - M 6 - M 6,0 X 25 Genuine Porsche Part - New (to order)
    # 18
    MPN: 99764210500
    ANTENNA
    GPS (PR:670,672)
    from £129.56
    from £129.56
    ANTENNA Genuine Porsche Part - New (to order)
    # 19
    MPN: 99907321000
    tapping screw
    4,8 X 13 (PR:670,672)
    from £2.86
    from £2.86
    tapping screw - 4,8 X 13 - D - MJ 2001>> Genuine Porsche Part - New (to order)
    # 20
    MPN: 99950744101
    SPEED NUT
    4,8 (PR:670,672)
    from £1.10
    from £1.10
    speed nut - 4,8 - D - MJ 2001>> Genuine Porsche Part - New (to order)
    # 21
    MPN: 99761206025
    ANTENNA CONNECTING CABLE
    DVD device | Navigation system (PR:670,672)
    from £82.71
    from £82.71
    ANTENNA CONNECTING CABLE Genuine Porsche Part - New (to order)
    # 22
    MPN: 98664710500
    antenna booster
    Radio unit |
    D - MJ 2005>> - MJ 2005 | Discontinued part (PR:441,694)
    antenna booster - Radio unit - Discontinued part Genuine Porsche Part - New (to order)
    # 22
    MPN: 98764710500
    antenna booster
    Radio unit (PR:441,694)
    from £70.68
    from £70.68
    antenna booster - Radio unit Genuine Porsche Part - New (to order)
    # -
    -
    connecting line
    antenna booster | Radio unit (PR:441,694)
    # 23
    MPN: 99764711700
    antenna booster
    left (PR:440)
    from £85.92
    from £85.92
    antenna booster Genuine Porsche Part - New (to order)
    # 23
    MPN: 99764711800
    antenna booster
    right (PR:440)
    from £85.92
    from £85.92
    antenna booster Genuine Porsche Part - New (to order)
    # 24
    MPN: 99764712400
    electronic control module
    (PR:440)
    from £215.39
    from £215.39
    electronic control module Genuine Porsche Part - New (to order)
    # 25
    MPN: 99959190440
    ATTACHMENT ELEMENT
    (PR:440)
    from £0.65
    from £0.65
    ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
    # 27
    MPN: 99761206600
    connecting line
    lhd | antenna booster | electronic control module (PR:098,461, 665)
    from £81.04
    from £81.04
    connecting line Genuine Porsche Part - New (to order)
    # 27
    MPN: 99761206650
    connecting line
    rhd | antenna booster | electronic control module (PR:099,461, 665)
    from £81.04
    from £81.04
    connecting line Genuine Porsche Part - New (to order)
    # 27
    MPN: 99761205500
    connecting line
    lhd | antenna booster | electronic control module (PR:098,665)
    from £82.71
    from £82.71
    connecting line Genuine Porsche Part - New (to order)
    # 27
    MPN: 99761205600
    connecting line
    rhd | antenna booster | electronic control module (PR:099,665)
    from £82.71
    from £82.71
    connecting line Genuine Porsche Part - New (to order)
    # 27
    MPN: 99761206250
    connecting line
    antenna booster | electronic control module (PR:461,694)
    from £55.80
    from £55.80
    connecting line Genuine Porsche Part - New (to order)
    # 28
    MPN: 99761205800
    connecting line
    electronic control module | operating unit | or | Radio unit (PR:665,694)
    from £101.84
    from £101.84
    connecting line Genuine Porsche Part - New (to order)
    # 29
    MPN: 99764722100
    ANTENNA BASE
    (PR:461)
    from £148.91
    from £148.91
    ANTENNA BASE Genuine Porsche Part - New (to order)
    # 30
    MPN: 99764722300
    ANTENNA ROD
    (PR:461)
    from £64.53
    from £64.53
    ANTENNA ROD Genuine Porsche Part - New (to order)
    # 31
    MPN: 99761206800
    connecting line
    lhd | antenna base | Radio unit (PR:098,461, 694)
    from £55.80
    from £55.80
    connecting line Genuine Porsche Part - New (to order)
    # 31
    MPN: 99761206850
    connecting line
    rhd | antenna base | Radio unit (PR:099,461, 694)
    from £55.80
    from £55.80
    connecting line Genuine Porsche Part - New (to order)
    # 31
    MPN: 99761206701
    connecting line
    antenna base | Power supply (PR:461)
    from £49.70
    from £49.70
    connecting line Genuine Porsche Part - New (to order)
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
