porsche 2011 (987 boxster) crankshaft parts diagram

102-000 - crankshaft

Porsche 2011 (987 Boxster) Crankshaft Parts Diagram

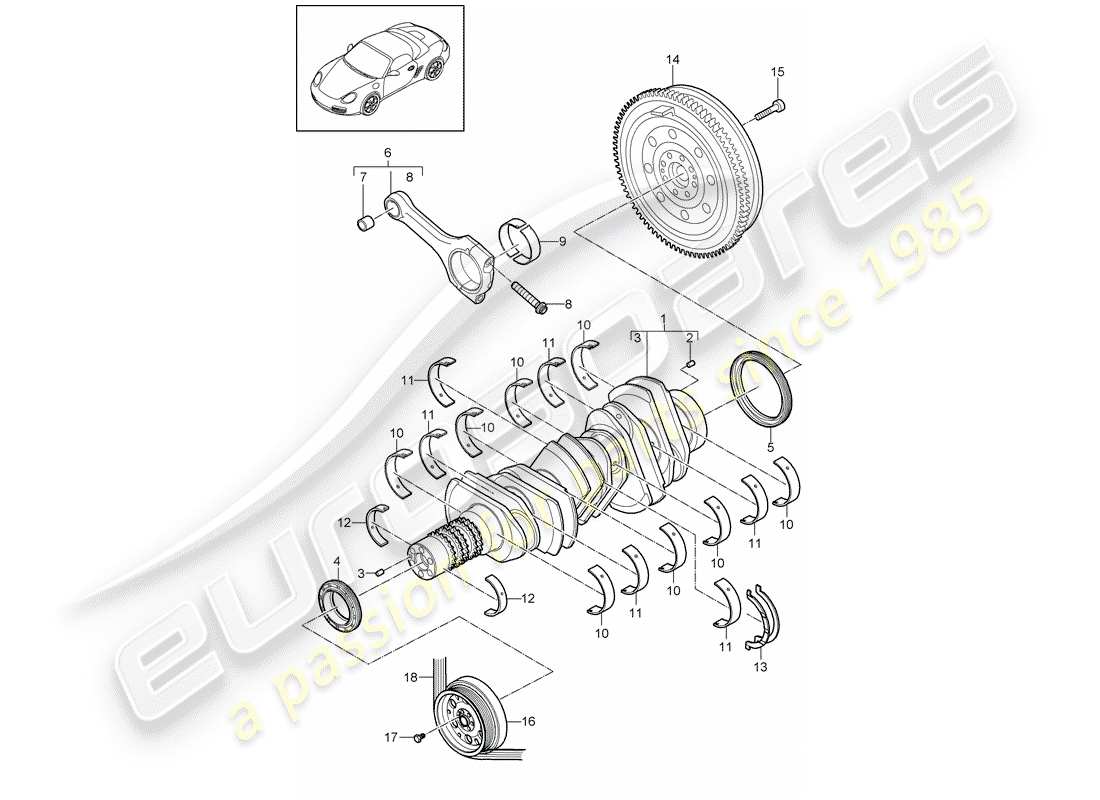

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 9A110207704
                                  crankshaft
                                  crankshaft
                                  crankshaft Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 9A110207720
                                  crankshaft
                                  from £3,591.66
                                  from £3,591.66
                                  crankshaft Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 90009503100
                                  SPRING PIN 6,0 X 16
                                  from £0.56
                                  from £0.56
                                  SPRING PIN - 6 X 16 Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 90030201600
                                  CYLINDER PIN A 6,0 X 16
                                  from £1.20
                                  from £1.20
                                  DOWEL PIN Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 9A110122202
                                  SHAFT OIL SEAL 52X72X9
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 5
                                  MPN: 99710121201
                                  SHAFT OIL SEAL 85X105X11
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 6
                                  MPN: 9A110391402
                                  CONROD COMPRISING: CONROD 6 PCS
                                  from £1,344.29
                                  from £1,344.29
                                  CONNECTING ROD Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A110312202
                                  BUSH - CONNECTING ROD D = 22 REWORK REQUIRED
                                  from £5.02
                                  from £5.02
                                  BUSHING-CONNECTING ROD Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A110311502
                                  BOLT - CONNECTING ROD M 10 X 1,25 X 51
                                  BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 9A110305300
                                  connecting rod bearing shell Identification: >>>>red
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 9
                                  MPN: 9A110305301
                                  connecting rod bearing shell Identification: >>>>yellow
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 9
                                  MPN: 9A110305302
                                  connecting rod bearing shell Identification: >>>>blue
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 10
                                  MPN: 9A110106400
                                  crankshaft bearing Identification: >>>>red
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 10
                                  MPN: 9A110106401
                                  crankshaft bearing Identification: >>>>yellow
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 10
                                  MPN: 9A110106402
                                  crankshaft bearing Identification: >>>>blue
                                  from £13.21
                                  from £13.21
                                  CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 9A110106300
                                  crankshaft bearing with: Partial-groove Identification: >>>>red
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 11
                                  MPN: 9A110106301
                                  crankshaft bearing with: Partial-groove Identification: >>>>yellow
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 11
                                  MPN: 9A110106302
                                  crankshaft bearing with: Partial-groove Identification: >>>>blue
                                  CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 9A110105200
                                  crankshaft bearing Identification: >>>>red
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 12
                                  MPN: 9A110105201
                                  crankshaft bearing Identification: >>>>yellow
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 12
                                  MPN: 9A110105202
                                  crankshaft bearing Identification: >>>>blue
                                  CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 99610113200
                                  THRUST WASHER D = 63
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 14
                                  MPN: 9G211401200
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211401201
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211401202
                                  DUAL-MASS FLYWHEEL
                                  A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) with, P480 (6-speed manual transmission)
                                  from £1,237.31
                                  from £1,237.31
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211401220
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211401221
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211401222
                                  DUAL-MASS FLYWHEEL
                                  A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012) with, P480 (6-speed manual transmission)
                                  from £1,237.31
                                  from £1,237.31
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211402000
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211402001
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 9G211402002
                                  DUAL-MASS FLYWHEEL
                                  P250 (PDK transmission (dual clutch))
                                  from £1,237.31
                                  from £1,237.31
                                  DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: N 90665101
                                  SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M 10 X 1 X 29
                                  from £2.21
                                  from £2.21
                                  Genuine Porsche Part (no longer available to order)
                                  TRIPLE SQUARE BOLT Genuine Lamborghini - New (to order)
                                  # 16
                                  MPN: 9A110214602
                                  PULLEY WITH: VIBRATION DAMPER
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 17
                                  MPN: 90038512701
                                  HEXAGON HEAD BOLT M 8 X 25
                                  HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                  # 18
                                  -
                                  V-BELT SEE ILLUSTRATION: 101-010
