porsche 2012 (987 boxster) piston parts diagram

102-005 - PISTON

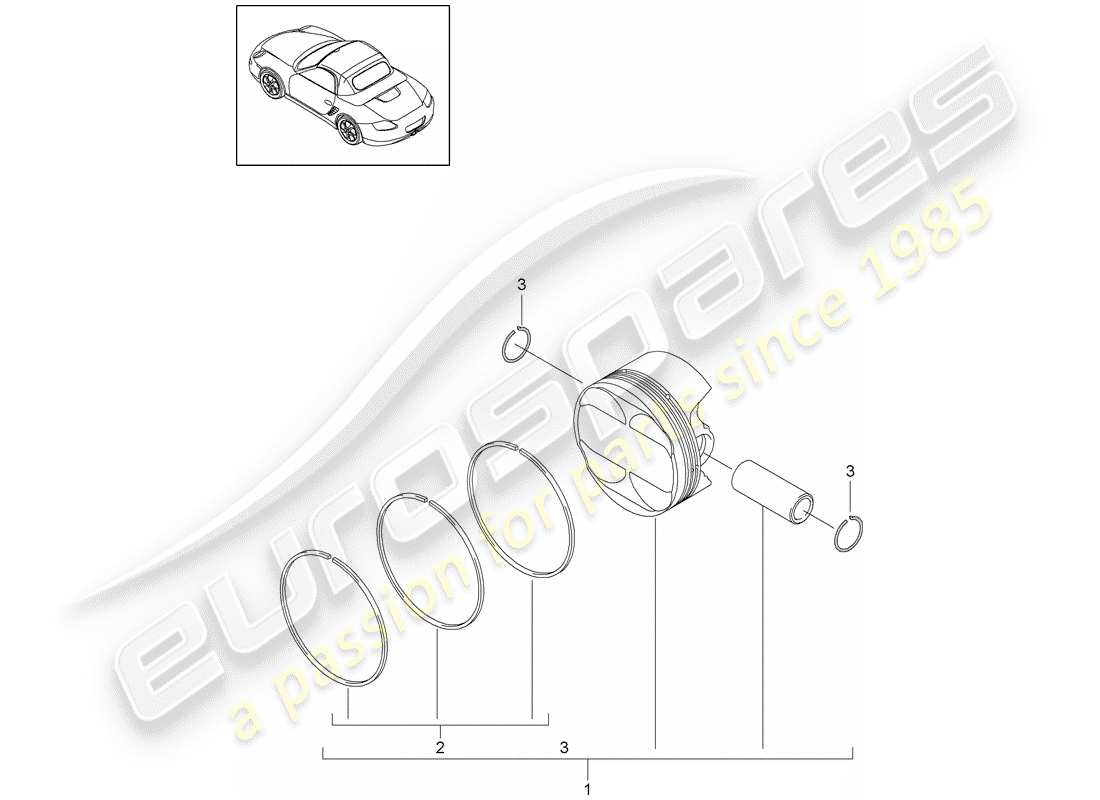

Porsche 2012 (987 Boxster) piston Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 9A110302903
    piston Dimension group X
    piston Dimension group X
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110302906
    piston Dimension group X
    piston Dimension group X
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110302909
    piston Dimension group X
    A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
    from £755.12
    from £755.12
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110303403
    piston Dimension group X
    piston Dimension group X
    from £216.23
    from £216.23
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110393409
    1 SET PISTONS CONTAINS: PISTON 6X DIMENSION GROUP X
    A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
    from £755.12
    from £755.12
    PISTON KIT Genuine Porsche Part - New (to order)
    # 2
    MPN: 9A110305002
    1 SET: PISTON RINGS
    A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
    from £139.86
    from £139.86
    1 SET OF PISTON RINGS Genuine Porsche Part - New (to order)
    # 2
    MPN: 9A110306502
    1 SET: PISTON RINGS
    A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
    from £160.57
    from £160.57
    1 SET OF PISTON RINGS Genuine Porsche Part - New (to order)
    # 3
    MPN: 9A110314101
    SECURING RING
    from £2.86
    from £2.86
    LOCK RING Genuine Porsche Part - New (to order)
