porsche 2013 (981 boxster) crankshaft parts diagram

102-000 - crankshaft

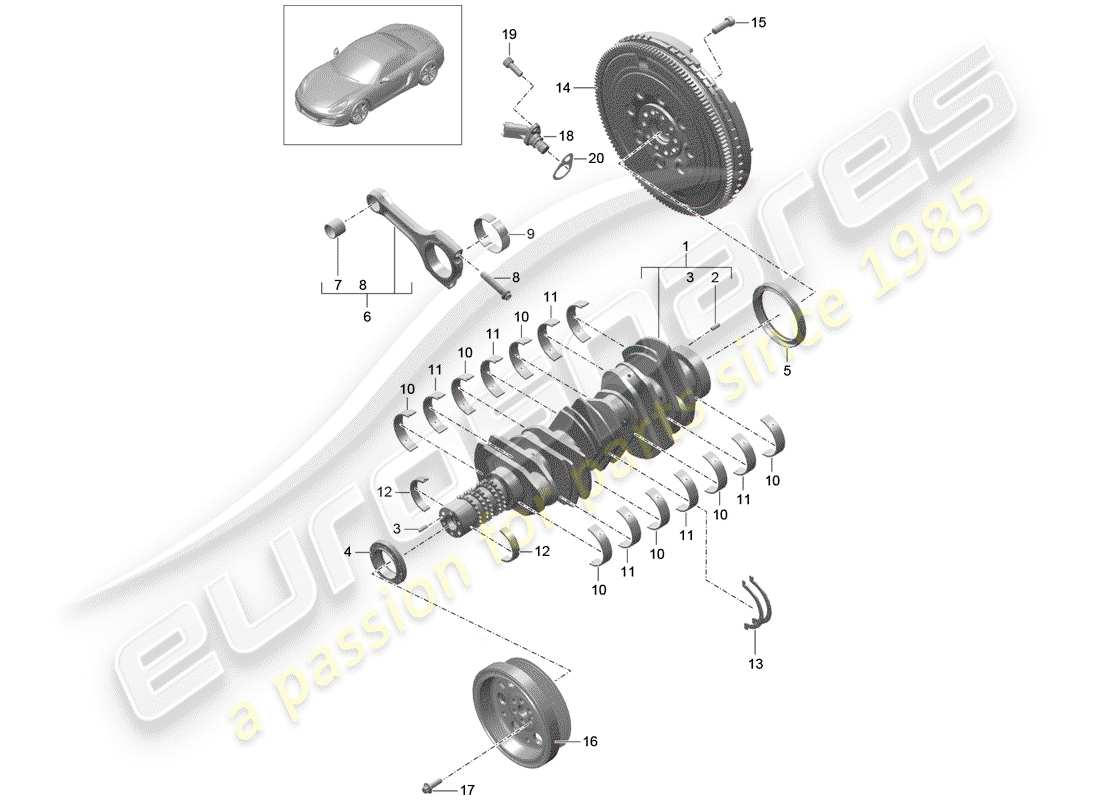

Porsche 2013 (981 Boxster) Crankshaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 9A110207720
                                      CRANKSHAFT HUB 77,5
                                      A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016)
                                      from £3,591.66
                                      from £3,591.66
                                      crankshaft Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 9A110207200
                                      CRANKSHAFT HUB 72,5
                                      A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016)
                                      from £2,963.18
                                      from £2,963.18
                                      crankshaft Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 90009503100
                                      SPRING PIN 6X16
                                      from £0.56
                                      from £0.56
                                      SPRING PIN - 6 X 16 Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 90030201600
                                      CYLINDER PIN 6,0X16
                                      from £1.20
                                      from £1.20
                                      DOWEL PIN Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 9A110122202
                                      SHAFT OIL SEAL 52X72X9
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 5
                                      MPN: 99710121201
                                      SHAFT OIL SEAL 85X105X11
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 6
                                      MPN: 9A110391402
                                      CONROD COMPRISING: CONROD 6 PCS
                                      from £1,344.29
                                      from £1,344.29
                                      CONNECTING ROD Genuine Porsche Part - New (to order)
                                      # 7
                                      -
                                      BUSH - CONNECTING ROD D = 22 * SINGLE PARTS NO AVAILABLE * ALTERNATIVELY, YOU CAN USE: 9A1 103 914 02
                                      # 8
                                      MPN: 9A110311502
                                      bolt - connecting rod M10X1,25X51
                                      BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 9A110305300
                                      connecting rod bearing shell Identification: >>>>red
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 9
                                      MPN: 9A110305301
                                      connecting rod bearing shell Identification: >>>>yellow
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 9
                                      MPN: 9A110305302
                                      connecting rod bearing shell Identification: >>>>blue
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 10
                                      MPN: 9A110106400
                                      crankshaft bearing Identification: >>>>red
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 10
                                      MPN: 9A110106401
                                      crankshaft bearing Identification: >>>>yellow
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 10
                                      MPN: 9A110106402
                                      crankshaft bearing Identification: >>>>blue
                                      from £13.21
                                      from £13.21
                                      CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: 9A110106300
                                      crankshaft bearing with: Partial-groove Identification: >>>>red
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 11
                                      MPN: 9A110106301
                                      crankshaft bearing with: Partial-groove Identification: >>>>yellow
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 11
                                      MPN: 9A110106302
                                      crankshaft bearing with: Partial-groove Identification: >>>>blue
                                      CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 9A110105200
                                      crankshaft bearing Identification: >>>>red
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 12
                                      MPN: 9A110105201
                                      crankshaft bearing Identification: >>>>yellow
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 12
                                      MPN: 9A110105202
                                      crankshaft bearing Identification: >>>>blue
                                      CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 99610113200
                                      thrust washer D=63
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 14
                                      MPN: 98111401210
                                      DUAL-MASS FLYWHEEL
                                      P480 (6-speed manual transmission)
                                      from £791.85
                                      from £791.85
                                      DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: 98111402000
                                      DUAL-MASS FLYWHEEL
                                      P250 (PDK transmission (dual clutch))
                                      from £811.67
                                      from £811.67
                                      DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: N 90665101
                                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                                      from £2.21
                                      from £2.21
                                      Genuine Porsche Part (no longer available to order)
                                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                                      TRIPLE SQUARE BOLT Genuine Lamborghini - New (to order)
                                      # 16
                                      MPN: 9A110214602
                                      PULLEY INCLUDED VIBRATION DAMPER
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 17
                                      MPN: 90038512701
                                      HEXAGON HEAD BOLT BM8X1X25
                                      HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 99160611200
                                      speed sensor also use: 1X 991 606 912 00
                                      from £91.15
                                      from £91.15
                                      SPEED SENSOR Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 99160611202
                                      SPEED SENSOR ALSO USE: 1X 991 606 912 00 NOT FOR: 981 300 010 25 981 300 010 EX 981 300 020 25 981 300 020 EX
                                      from £130.00
                                      from £130.00
                                      SPEED SENSOR Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 99160611202
                                      SPEED SENSOR WITHOUT: 991 606 912 00 WHEN USING: 981 300 010 25 981 300 010 EX 981 300 020 25 981 300 020 EX
                                      from £130.00
                                      from £130.00
                                      SPEED SENSOR Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: N 10546403
                                      Hexagon socket head M6X16 bolt
                                      from £1.03
                                      from £1.03
                                      hexagonal socket head - screw - M 6 X 18 Genuine Porsche Part - New In stock
                                      HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New (to order)
                                      # 20
                                      MPN: 99160691200
                                      SHIM SPEED SENSOR
                                      from £1.87
                                      from £1.87
                                      SPACER WASHER Genuine Porsche Part - New (to order)
