porsche 2013 (981 boxster) piston parts diagram

102-005 - PISTON

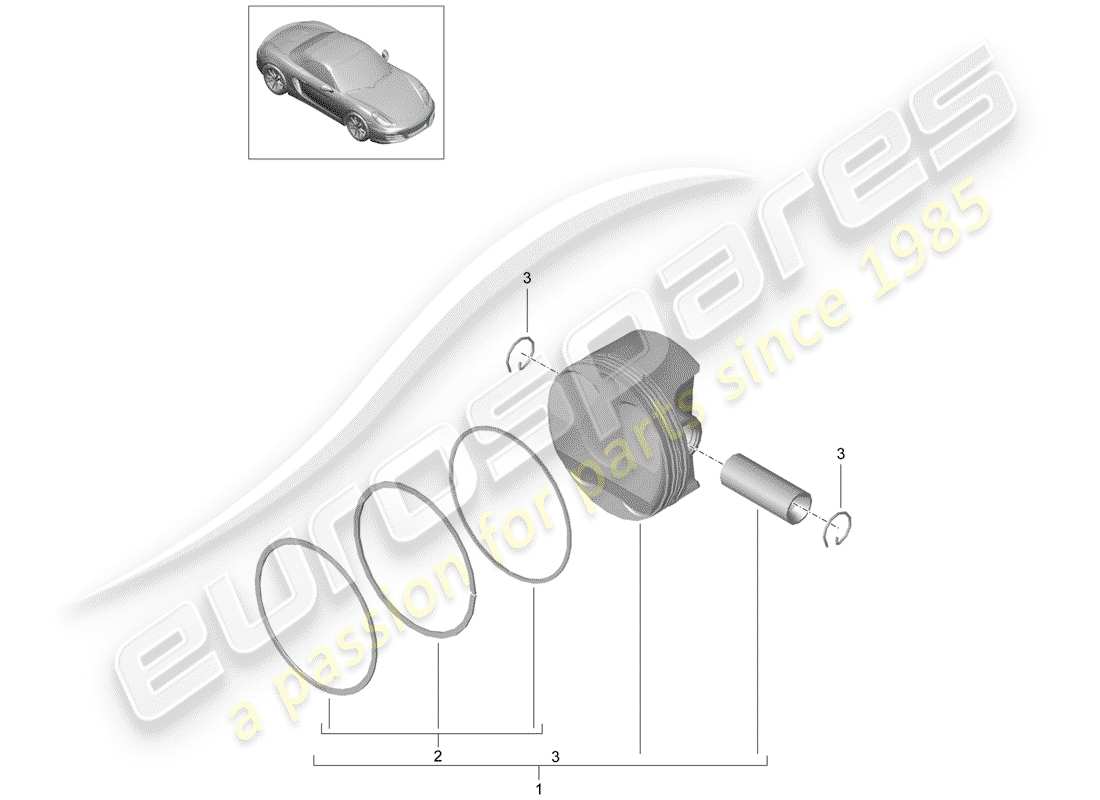

Porsche 2013 (981 Boxster) piston Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 9A110392700
    piston Dimension group X Identification: >>>>-
    A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016) with, P without 145
    from £276.62
    from £276.62
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110392750
    piston Dimension group X Identification: >>>>+
    A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016) with, P without 145
    from £276.62
    from £276.62
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110392600
    piston Dimension group X Identification: >>>>-
    A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016) with, P145 (Compression variant)
    from £276.62
    from £276.62
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110392650
    piston Dimension group X Identification: >>>>+
    A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016) with, P145 (Compression variant)
    from £276.62
    from £276.62
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110393400
    piston Dimension group X Identification: >>>>-
    A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016) with, P without 145
    from £344.11
    from £344.11
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110393450
    piston Dimension group X Identification: >>>>+
    A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016) with, P without 145
    from £344.11
    from £344.11
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110393300
    piston Dimension group X Identification: >>>>-
    A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016) with, P145 (Compression variant)
    from £344.11
    from £344.11
    PISTON Genuine Porsche Part - New (to order)
    # 1
    MPN: 9A110393350
    piston Dimension group X Identification: >>>>+
    A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016) with, P145 (Compression variant)
    from £344.11
    from £344.11
    PISTON Genuine Porsche Part - New (to order)
    # 2
    MPN: 9A110305002
    1 SET: PISTON RINGS
    A122 (2.7 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A122 and installed 05/2011-05/2016)
    from £139.86
    from £139.86
    1 SET OF PISTON RINGS Genuine Porsche Part - New (to order)
    # 2
    MPN: 9A110306502
    1 SET: PISTON RINGS
    A123 (3.4 Litre 6 Cyliner Engine (315 Horsepower / 232 Kilowatt with Engine Code: A123 and installed 05/2011-05/2016)
    from £160.57
    from £160.57
    1 SET OF PISTON RINGS Genuine Porsche Part - New (to order)
    # 3
    MPN: 9A110314101
    SECURING RING
    from £2.86
    from £2.86
    LOCK RING Genuine Porsche Part - New (to order)
