402-000 - VIBRATION DAMPER

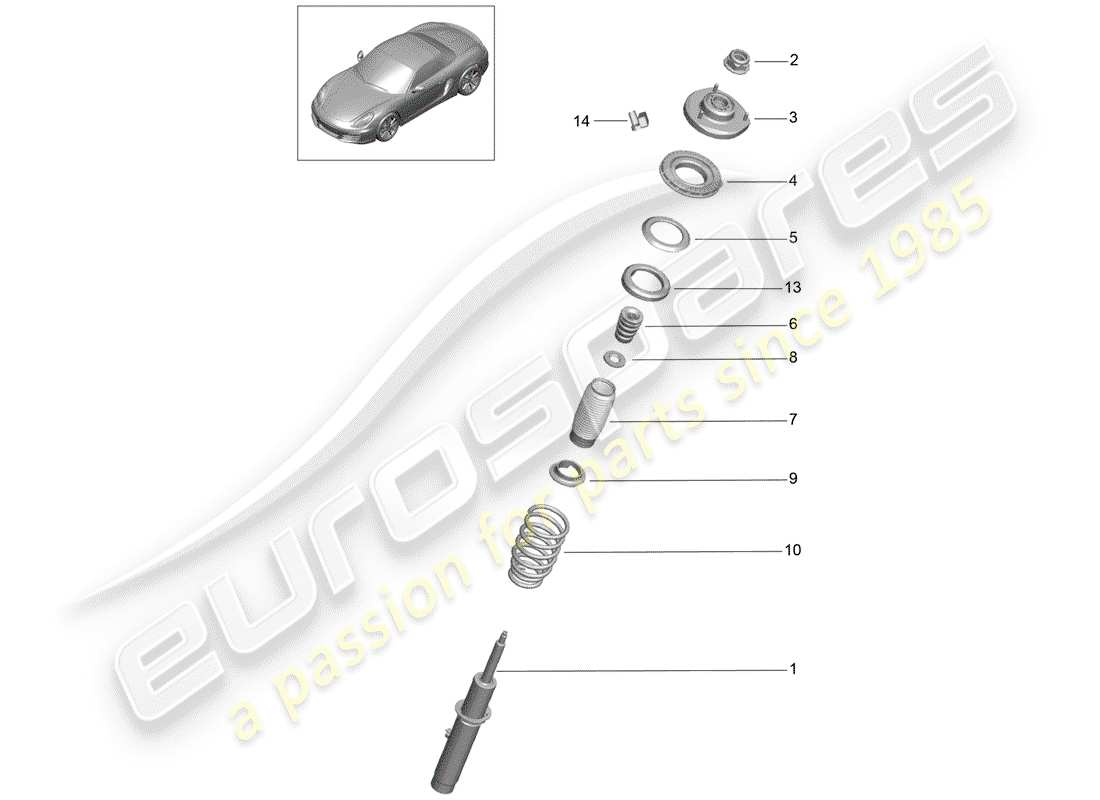

Porsche 2013 (981 Boxster) vibration damper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98134304104
Shock Absorbers
Shock Absorbers
# 1
MPN: 98134304111
Shock absorbers Front axle
P029 (Standard chassis)
from £293.10
from £293.10
# 1
MPN: 98134304504
Shock Absorbers
Shock Absorbers
# 1
MPN: 98134304508
Shock absorbers Front axle
P475 (PASM electronic damper control)
from £358.46
from £358.46
# 1
MPN: 98134304504
Shock Absorbers
Shock Absorbers
# 1
MPN: 98134304508
Shock absorbers Front axle
P477 (PASM w/o lowering)
from £358.46
from £358.46
# 1
MPN: 98134398004
Shock Absorbers
Shock Absorbers
Supersession
Supersession
# 1
MPN: 98134398013
Shock absorbers Front axle
PX73 (Sports chassis -20 mm, without PASM)
from £320.68
from £320.68
This part replaces part number 98134398004
# 2
MPN: 99908413301
HEXAGON NUT M14X1,5
from £0.65
from £0.65
# 3
MPN: 99134301502
SHOCK ABSORBER BEARING
from £245.74
from £245.74
# 3
MPN: 99908444701
HEXAGON NUT M8
# 3
MPN: PAF003923
HEXAGON NUT M8
from £0.87
from £0.87
This part replaces part number 99908444709
# 3
MPN: 99134357100
DISTANCE PIECE
P477 (PASM w/o lowering)
from £7.90
from £7.90
# 4
MPN: 99134350102
MOUNTING
MOUNTING
# 4
MPN: 99134350103
MOUNTING
from £80.19
from £80.19
# 5
MPN: 99134351300
COMPENSATION RING SEE TECHNICAL MANUAL 40 85 37
# 6
MPN: 99134330104
HELPER SPRING
P029 (Standard chassis)
from £27.05
from £27.05
# 6
MPN: 99134330105
HELPER SPRING
PX73 (Sports chassis -20 mm, without PASM)
from £27.05
from £27.05
# 6
MPN: 99134330101
HELPER SPRING
HELPER SPRING
# 6
MPN: 99134330103
HELPER SPRING
P475 (PASM electronic damper control)
from £27.05
from £27.05
# 6
MPN: 99134330103
HELPER SPRING
P477 (PASM w/o lowering)
from £27.05
from £27.05
# 7
MPN: 99134350902
BELLOWS
# 8
MPN: 99134356101
WASHER
from £10.03
from £10.03
# 9
MPN: 99134352502
Support element lower
Supersession
Supersession
# 10
MPN: 98134353113504
COIL SPRING - 1 PAIR OF SPRINGS IDENTIFICATION: >>>>LIGHT BLUE GREY
P029 (Standard chassis)
from £220.01
from £220.01
This part replaces part number 98134353113
# 10
MPN: 98134353112504
COIL SPRING - 1 PAIR OF SPRINGS IDENTIFICATION: >>>>FIRE RED PURE WHITE
P475 (PASM electronic damper control)
from £220.01
from £220.01
This part replaces part number 98134353112
# 10
MPN: 98134353112504
COIL SPRING - 1 PAIR OF SPRINGS IDENTIFICATION: >>>>FIRE RED PURE WHITE
P477 (PASM w/o lowering)
from £220.01
from £220.01
This part replaces part number 98134353112
# 10
MPN: 98134398001504
Coil spring - 1 pair of springs
Coil spring - 1 pair of springs
This part replaces part number 98134398001
# 10
MPN: 98134398006504
Coil spring - 1 pair of springs
PX73 (Sports chassis -20 mm, without PASM)
from £198.65
from £198.65
This part replaces part number 98134398006
# 13
MPN: 99134351101
UNDERLAY
Supersession
Supersession
# 13
MPN: 99134312500
INSERT
from £32.82
from £32.82
# 14
MPN: 99160611100
ACCELERATION SENSOR FOR BODYWORK
from £175.17
from £175.17
# 14
MPN: 99161844006
CONTROL UNIT D >>- MJ 2013
CONTROL UNIT D >>- MJ 2013
# 14
MPN: 99161844009
CONTROL UNIT
P without IY2, P475 (PASM electronic damper control) | P477 (PASM w/o lowering)
# 14
MPN: 99161844008
CONTROL UNIT D - MJ 2013>>- MJ 2013
PIY2 (Model year period from week 45 to week 22) | P475 (PASM electronic damper control) | P477 (PASM w/o lowering)
# 14
MPN: 99161844011
CONTROL UNIT D - MJ 2014>>
P475 (PASM electronic damper control) | P477 (PASM w/o lowering)
# 14
MPN: 99161845006
CONTROL UNIT D >>- MJ 2013
P without IY2, P475 (PASM electronic damper control) | P477 (PASM w/o lowering) | P140 (Dynamic engine mounts (PADM))
# 14
MPN: 99161845008
CONTROL UNIT D - MJ 2013>>- MJ 2013
CONTROL UNIT D - MJ 2013>>- MJ 2013
# 14
MPN: 99161845011
CONTROL UNIT D - MJ 2013>>- MJ 2013
PIY2 (Model year period from week 45 to week 22) | P475 (PASM electronic damper control) | P477 (PASM w/o lowering) | P140 (Dynamic engine mounts (PADM))
Supersession
Supersession
# 14
MPN: 99161845011
CONTROL UNIT D - MJ 2014>>
P475 (PASM electronic damper control) | P140 (Dynamic engine mounts (PADM))
Supersession
Supersession
# 14
MPN: 99161846506
CONTROL UNIT D >>- MJ 2013
CONTROL UNIT D >>- MJ 2013
# 14
MPN: 99161846509
CONTROL UNIT
CONTROL UNIT
# 14
MPN: 99161846510
CONTROL UNIT
CONTROL UNIT
# 14
MPN: 99161846511
CONTROL UNIT
P without IY2, PX73 (Sports chassis -20 mm, without PASM) | P029 (Standard chassis) | P140 (Dynamic engine mounts (PADM))
# 14
MPN: 99161846508
CONTROL UNIT D - MJ 2013>>
PIY2 (Model year period from week 45 to week 22) | PX73 (Sports chassis -20 mm, without PASM) | P029 (Standard chassis) | P140 (Dynamic engine mounts (PADM))
# 14
MPN: 99161846511
CONTROL UNIT D >>- MJ 2014
PX73 (Sports chassis -20 mm, without PASM) | P029 (Standard chassis) | P140 (Dynamic engine mounts (PADM))
# 14
MPN: 99161846511
CONTROL UNIT D - MJ 2014>>
PX73 (Sports chassis -20 mm, without PASM) | P029 (Standard chassis) | P140 (Dynamic engine mounts (PADM))
