porsche 2016 (981 boxster spyder) oil pump parts diagram

104-000 - oil pump

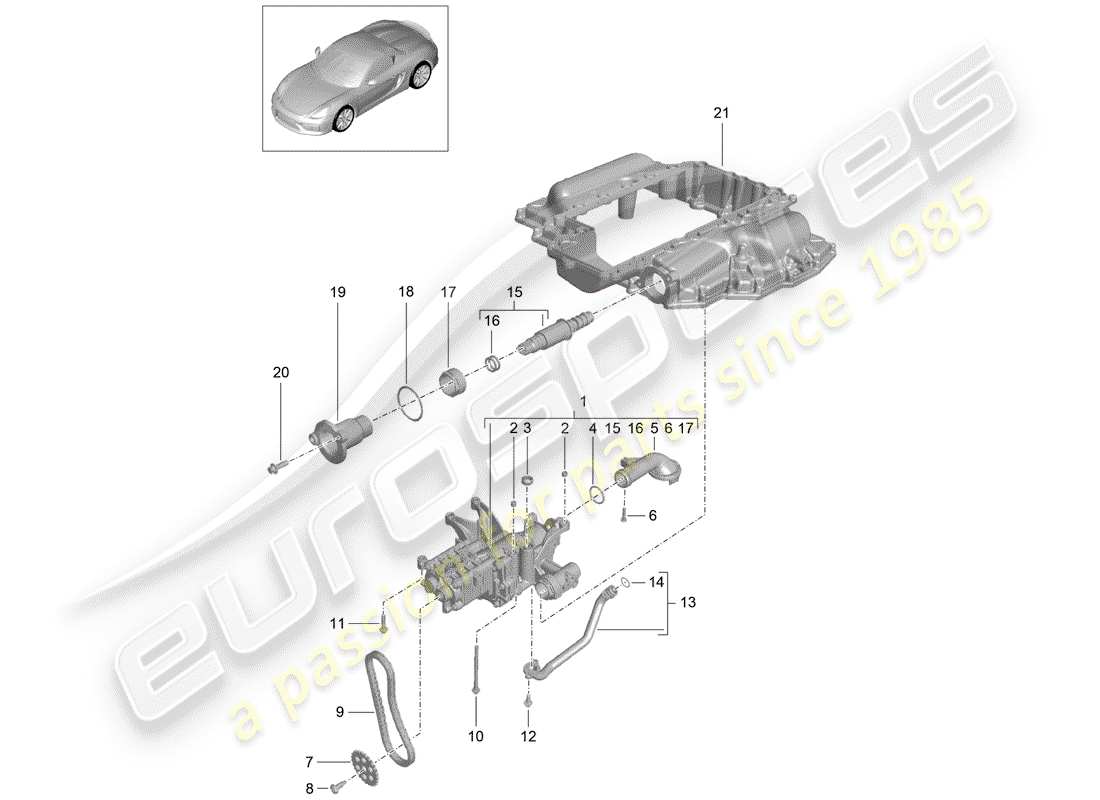

Porsche 2016 (981 Boxster Spyder) OIL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 9A110705012
          oil pump
          from £895.45
          from £895.45
          oil pump Genuine Porsche Part - New (to order)
          # 2
          MPN: 99610610350
          SLEEVE
          8,2 X 7,0
          from £1.97
          from £1.97
          SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
          # 3
          MPN: 9A110732700
          SEAL RING
          from £10.54
          from £10.54
          SEAL RING Genuine Porsche Part - New (to order)
          # 4
          MPN: 99970737540
          O-RING
          30,00 X 3,00
          from £4.52
          from £4.52
          O-RING - 30 X 3 Genuine Porsche Part - New (to order)
          # 5
          MPN: 9A110707510
          INTAKE MANIFOLD
          from £129.34
          from £129.34
          INTAKE MANIFOLD Genuine Porsche Part - New (to order)
          # 6
          MPN: 99907310201
          SCREW, ROUND HD.
          M6 X 25
          from £0.91
          from £0.91
          SCREW, ROUND HD Genuine Porsche Part - New (to order)
          # 7
          MPN: 9A110522502
          SPROCKET
          oil pump
          from £29.18
          from £29.18
          SPROCKET Genuine Porsche Part - New (to order)
          # 8
          MPN: 99907338001
          TORX SCREW
          M8 X 22
          TORX SCREW Genuine Porsche Part - New (to order)
          # 9
          -
          CHAIN
          oil pump |
          see illustration: 103-015
          # 10
          MPN: 90038512601
          TORX SCREW
          M6 X 95
          from £2.29
          from £2.29
          TORX SCREW Genuine Porsche Part - New (to order)
          # 11
          MPN: 90038504801
          TORX SCREW
          M6 X 30
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 12
          MPN: 90038500901
          TORX SCREW
          BM6X16
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 13
          MPN: 9A110702501
          OIL PIPE
          oil pump | crankcase
          from £49.42
          from £49.42
          OIL PIPE Genuine Porsche Part - New (to order)
          # 14
          MPN: 99970757540
          O-RING
          20,00 X 3,00
          from £4.52
          from £4.52
          O-RING Genuine Porsche Part - New In stock
          # 15
          MPN: 94810711311
          SOLENOID VALVE
          from £238.55
          from £238.55
          This part replaces part number 94810711301
          SOLENOID VALVE Genuine Porsche Part - New (to order)
          # 16
          MPN: 99970756740
          O-RING
          17,00 X 3,00
          from £2.29
          from £2.29
          O-RING Genuine Porsche Part - New In stock
          # 17
          MPN: 99926102401
          UNION NUT
          M36 X 1,0 X 12
          from £17.84
          from £17.84
          UNION NUT Genuine Porsche Part - New (to order)
          # 18
          MPN: 99970757040
          O-RING
          44,00 X 3,00
          from £4.52
          from £4.52
          O-RING Genuine Porsche Part - New In stock
          # 19
          MPN: 9A110733001
          SEALING FLANGE
          CONTROL VALVE
          from £25.38
          from £25.38
          SEALING FLANGE Genuine Porsche Part - New (to order)
          # 20
          MPN: 90038501901
          TORX SCREW
          M6 X 20
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 21
          -
          OIL PAN
          Upper part |
          see illustration: 104-002
          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
