porsche 2003 (cayenne e1 9pa) rear end parts diagram

801-030 - REAR END

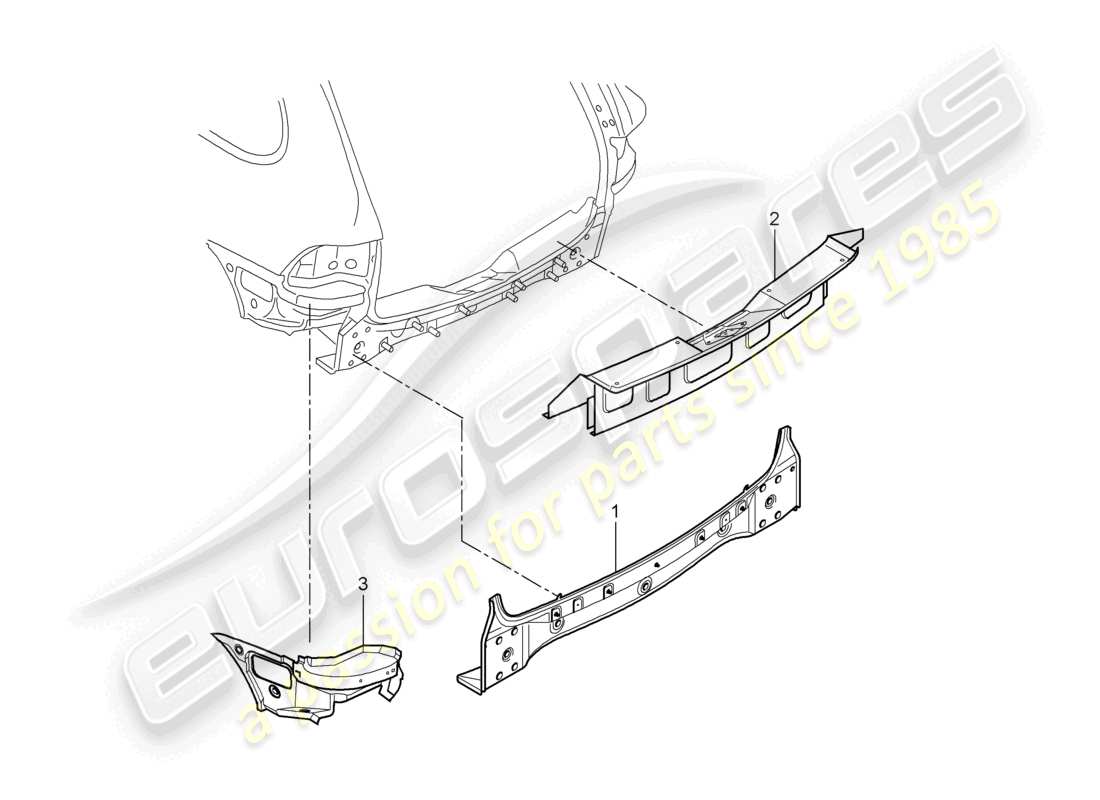

Porsche 2003 (Cayenne E1 9PA) Rear end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 1
      MPN: 95550130300GRV
      CROSS PANEL D >>- MJ 2005 - PRIMED
      This part replaces part number 95550130300
      # 2
      MPN: 95550131100GRV
      LOCK CARRIER - PRIMED
      LOCK CARRIER - PRIMED
      # 2
      MPN: 95550131101GRV
      LOCK CARRIER - PRIMED
      This part replaces part number 95550131101
      # 3
      MPN: 95550274500GRV
      RETAINER FOR BUMPER LEFT - PRIMED
      from £34.54
      from £34.54
      This part replaces part number 95550274500
      # 3
      MPN: 95550274600GRV
      RETAINER FOR BUMPER RIGHT - PRIMED
      from £34.54
      from £34.54
      This part replaces part number 95550274600
      # 3
      MPN: 00004320485
      CAVITY PRESERVATIVE AGENT 400 ML
      # 3
      MPN: 95550418700
      BUNGS 20 MM
      from £1.14
      from £1.14
      # 3
      MPN: 95551218800
      WATER DRAIN VALVE 20 MM
      from £5.68
      from £5.68
      # 3
      MPN: 95550418200
      BUNGS 20 MM
      from £0.56
      from £0.56
