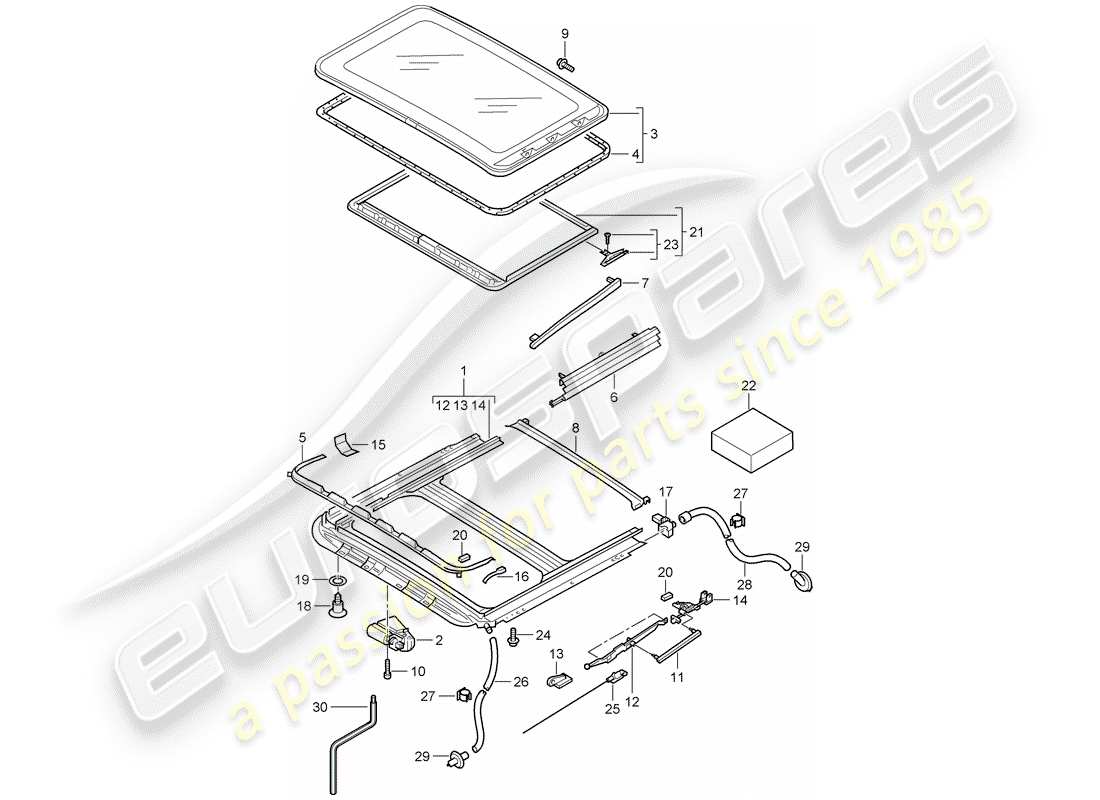

porsche 2003 (cayenne e1 9pa) glass sliding roof parts diagram

811-000 - glass sliding roof

Porsche 2003 (Cayenne E1 9PA) glass sliding roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 1
                                                        MPN: 95556402500
                                                        Frame for sliding sunroof aperture (complete)
                                                        from £1,277.26
                                                        from £1,277.26
                                                        # 2
                                                        MPN: 95556400100
                                                        ELECTRIC DRIVE
                                                        ELECTRIC DRIVE
                                                        # 2
                                                        MPN: 95556400110
                                                        ELECTRIC DRIVE
                                                        from £600.85
                                                        from £600.85
                                                        # 3
                                                        MPN: 95556400210
                                                        glass roof
                                                        glass roof
                                                        # 3
                                                        MPN: 95556400220
                                                        glass roof
                                                        from £873.44
                                                        from £873.44
                                                        # 4
                                                        MPN: 95556400300
                                                        SEAL
                                                        SEAL
                                                        # 4
                                                        MPN: 95556400301
                                                        SEAL
                                                        from £91.13
                                                        from £91.13
                                                        # 5
                                                        MPN: 95556400400
                                                        WIND DEFLECTOR
                                                        from £179.74
                                                        from £179.74
                                                        # 6
                                                        MPN: 95556400500
                                                        BELLOWS LEFT
                                                        from £20.82
                                                        from £20.82
                                                        # 6
                                                        MPN: 95556400600
                                                        BELLOWS RIGHT
                                                        from £20.82
                                                        from £20.82
                                                        # 7
                                                        MPN: 95556400700
                                                        FILLER PIECE
                                                        from £47.21
                                                        from £47.21
                                                        # 8
                                                        MPN: 95556400800
                                                        WATER DEFLECTOR STRIP
                                                        from £75.43
                                                        from £75.43
                                                        # 9
                                                        MPN: 95556400900
                                                        SOCKET HEAD BOLT GLASS ROOF
                                                        from £3.97
                                                        from £3.97
                                                        # 10
                                                        MPN: 95556401000
                                                        SCREW
                                                        from £3.02
                                                        from £3.02
                                                        # 11
                                                        MPN: 95556401100
                                                        DISTANCE PIECE
                                                        from £5.28
                                                        from £5.28
                                                        # 12
                                                        MPN: 95556401200
                                                        GATE GUIDE RIGHT
                                                        from £79.89
                                                        from £79.89
                                                        # 12
                                                        MPN: 95556401300
                                                        GATE GUIDE LEFT
                                                        from £79.89
                                                        from £79.89
                                                        # 13
                                                        MPN: 95556401400
                                                        Guide Right
                                                        from £64.53
                                                        from £64.53
                                                        # 13
                                                        MPN: 95556401500
                                                        Guide left
                                                        from £64.53
                                                        from £64.53
                                                        # 14
                                                        MPN: 95556401600
                                                        LOCKING SEGMENT RIGHT
                                                        from £64.53
                                                        from £64.53
                                                        # 14
                                                        MPN: 95556401700
                                                        LOCKING SEGMENT LEFT
                                                        from £43.47
                                                        from £43.47
                                                        # 15
                                                        MPN: 95556401800
                                                        INSTALLATION KIT WIND DEFLECTOR
                                                        from £31.37
                                                        from £31.37
                                                        # 16
                                                        MPN: 95556401900
                                                        LEAF SPRING
                                                        from £33.15
                                                        from £33.15
                                                        # 17
                                                        MPN: 95556402000
                                                        INSTALLATION KIT 1 SET CORNER PIECES
                                                        from £40.72
                                                        from £40.72
                                                        # 18
                                                        MPN: 95556402100
                                                        SOCKET HEAD BOLT
                                                        from £9.28
                                                        from £9.28
                                                        # 19
                                                        MPN: 95556402200
                                                        WASHER
                                                        from £25.38
                                                        from £25.38
                                                        # 20
                                                        MPN: 95556402301
                                                        DAMPER
                                                        from £56.50
                                                        from £56.50
                                                        # 21
                                                        MPN: 955564024006L2
                                                        FRAME FOR SLIDING SUNROOF CLOTH APERTURE - STEEL GREY
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024006K1
                                                        FRAME FOR SLIDING SUNROOF CLOTH APERTURE - SAND BEIGE
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024006M3
                                                        FRAME FOR SLIDING SUNROOF CLOTH APERTURE - PALM GREEN
                                                        from £347.63
                                                        from £347.63
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024005E6
                                                        FRAME FOR SLIDING SUNROOF APERTURE ALCANTARA - BLACK
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024005E5
                                                        FRAME FOR SLIDING SUNROOF APERTURE ALCANTARA - STEEL GREY
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024005G6
                                                        FRAME FOR SLIDING SUNROOF APERTURE ALCANTARA - SAND BEIGE
                                                        This part replaces part number 95556402400
                                                        # 21
                                                        MPN: 955564024005L6
                                                        FRAME FOR SLIDING SUNROOF APERTURE ALCANTARA - PALM GREEN
                                                        from £343.26
                                                        from £343.26
                                                        This part replaces part number 95556402400
                                                        # 22
                                                        MPN: 95556402600
                                                        SEALING CORD FRONT
                                                        from £25.86
                                                        from £25.86
                                                        # 23
                                                        MPN: 95556402700
                                                        GLIDE PIECE FRONT
                                                        from £41.42
                                                        from £41.42
                                                        # 24
                                                        MPN: N 90749803
                                                        OVAL HEXAGON SOCKET HEAD BOLT SIDE M6
                                                        from £0.47
                                                        from £0.47
                                                        # 25
                                                        MPN: 95556402900
                                                        PULL CABLE GUIDE FRONT WITH:
                                                        from £151.06
                                                        from £151.06
                                                        # 26
                                                        MPN: 95556403100
                                                        WATER DRAINAGE HOSE LEFT FRONT
                                                        # 26
                                                        MPN: 95556220102
                                                        WATER DRAINAGE HOSE LEFT FRONT
                                                        from £37.47
                                                        from £37.47
                                                        # 26
                                                        MPN: 95556403000
                                                        WATER DRAINAGE HOSE RIGHT FRONT
                                                        # 26
                                                        MPN: 95556220202
                                                        WATER DRAINAGE HOSE RIGHT FRONT
                                                        from £76.94
                                                        from £76.94
                                                        # 27
                                                        MPN: 95562826000
                                                        HOSE BRACKET REAR
                                                        from £0.47
                                                        from £0.47
                                                        # 28
                                                        MPN: 95556403200
                                                        Water drainage hose left rear
                                                        from £15.41
                                                        from £15.41
                                                        # 28
                                                        MPN: 95556403800
                                                        Water drainage hose right rear
                                                        from £15.41
                                                        from £15.41
                                                        # 29
                                                        MPN: 95556403500
                                                        DRAIN TUBE
                                                        from £5.40
                                                        from £5.40
                                                        # 30
                                                        MPN: 95556403600
                                                        CRANK EMERGENCY OPERATION
                                                        from £4.71
                                                        from £4.71
