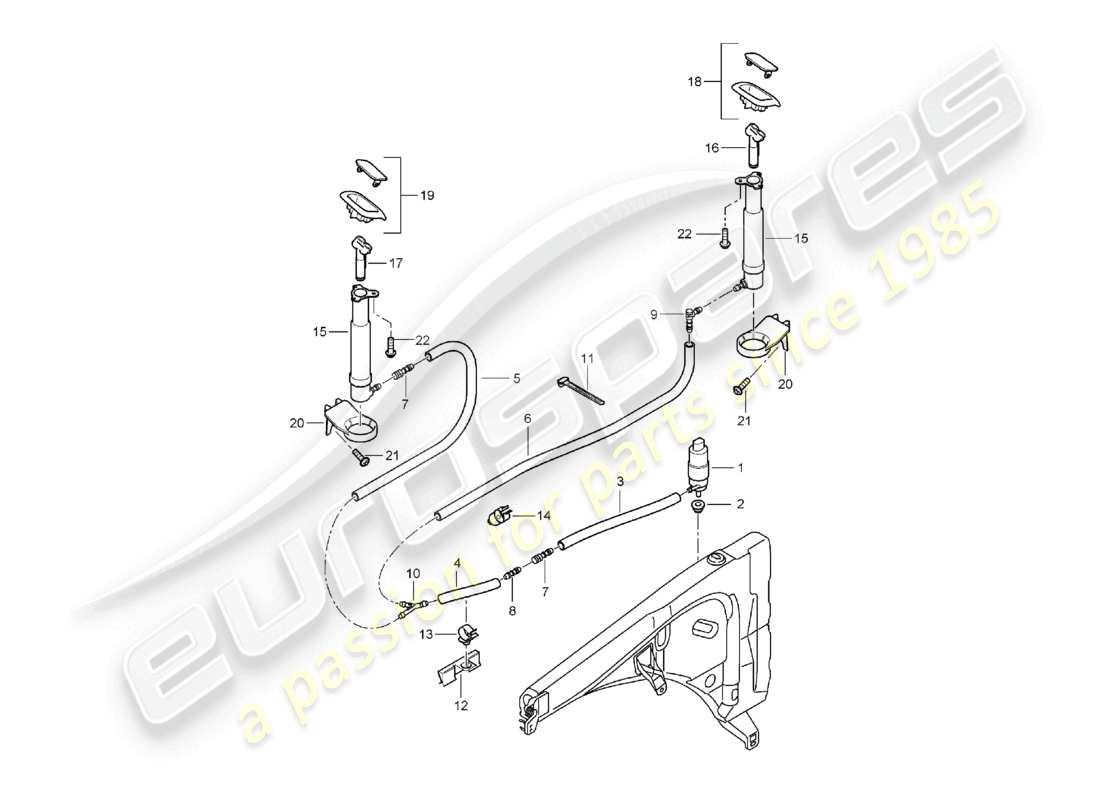

904-020 - HEADLIGHT WASHER SYSTEM
Porsche 2004 (Cayenne E1 9PA) headlight washer system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 95562450200
PUMP FOR HEADLIGHT- WASHER SYSTEM
from £51.50
from £51.50
# 2
MPN: 431955465A
SEAL
from £2.30
from £2.30
# 2
MPN: 95562818100
HOSE 10 X 3 MM 5000 MM
from £20.99
from £20.99
# 3
-
SHORTEN TO: 834 MM
# 4
-
SHORTEN TO: 195 MM
# 5
-
SHORTEN TO: 260 MM
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
# 5
-
SHORTEN TO: 220 MM
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
# 6
-
SHORTEN TO: 2070 MM
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
# 6
-
SHORTEN TO: 1915 MM
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
# 6
-
SHORTEN TO: 2140 MM
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
# 6
-
SHORTEN TO: 1915 MM
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
# 7
MPN: 95562820400
CONNECTION PIECE
from £15.77
from £15.77
# 8
MPN: 95562820500
CONNECTION PIECE
from £9.81
from £9.81
# 9
MPN: 95562820600
CONNECTION PIECE
from £11.61
from £11.61
# 10
MPN: 95562816000
DISTRIBUTOR
from £14.31
from £14.31
# 11
MPN: N 90005101
CABLE TIES 4,6 X 172
from £0.47
from £0.47
# 12
MPN: 95562802500
CLIP
from £0.76
from £0.76
# 13
MPN: 95562826000
HOSE BRACKET
from £0.47
from £0.47
# 14
MPN: 95562826100
HOSE BRACKET
from £1.65
from £1.65
# 15
MPN: 95562818000
NOZZLE HOLDER
from £78.03
from £78.03
# 16
MPN: 95562816100
NOZZLE HOLDER LEFT
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
from £18.73
from £18.73
# 16
MPN: 95562816300
NOZZLE HOLDER LEFT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £18.73
from £18.73
# 17
MPN: 95562816200
NOZZLE HOLDER RIGHT
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
from £18.73
from £18.73
# 17
MPN: 95562816400
NOZZLE HOLDER RIGHT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £18.73
from £18.73
# 18
MPN: 95562830100G2X
COVER PANEL LEFT - PRIMED COMPRISING: DISTANCE PIECE HINGE SUPPORT ADHESIVE TAPE
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
from £39.12
from £39.12
This part replaces part number 95562830100
# 18
MPN: 95562830300G2X
COVER PANEL LEFT - PRIMED COMPRISING: DISTANCE PIECE HINGE SUPPORT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £39.12
from £39.12
This part replaces part number 95562830300
# 19
MPN: 95562830200G2X
COVER PANEL RIGHT - PRIMED COMPRISING: DISTANCE PIECE HINGE SUPPORT ADHESIVE TAPE
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
from £39.12
from £39.12
This part replaces part number 95562830200
# 19
MPN: 95562830400G2X
COVER PANEL RIGHT - PRIMED COMPRISING: DISTANCE PIECE HINGE SUPPORT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £39.12
from £39.12
This part replaces part number 95562830400
# 20
MPN: 95562818500
BRACKET
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves))
from £25.50
from £25.50
# 20
MPN: 95562818700
BRACKET LEFT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £25.50
from £25.50
# 20
MPN: 95562818800
BRACKET RIGHT
PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £25.50
from £25.50
# 21
MPN: N 90808201
HEXAGON SOCKET HEAD PANEL BOLT 6,0 X 18,5 4X
PD9K (8-cylinder petrol engine, 4.5 l/250 kW (V 8)) | PD9J (6-cylinder petrol engine, 3.2 l/177 kW (24 valves)) | PD9L (8-cylinder petrol engine, 4.5 l/330 kW (V 8) biturbo)
from £0.96
from £0.96
# 22
MPN: N 90562401
OVAL HEAD PANEL SCREW 3,5 X 10,0
from £0.88
from £0.88
