porsche 2009 (cayenne e1 9pa) car body parts diagram

801-000 - car body

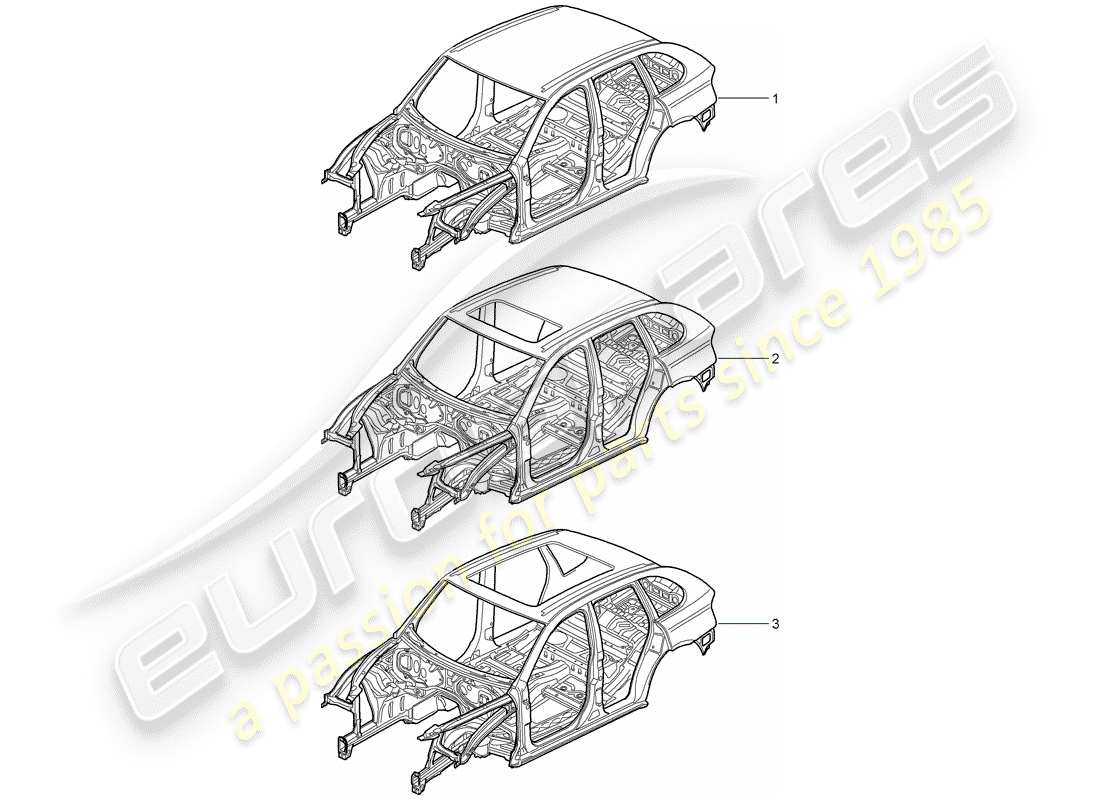

Porsche 2009 (Cayenne E1 9PA) CAR BODY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # -
    -
    BODYWORK PRIMED AND SEALED, WITHOUT DOORS, FLAPS AND WINGS, AND WITH UNDERBODY PROTECTION
    # -
    -
    BODIES CAN ONLY BE DELIVERED FROM THE CURRENT MODEL YEAR
    # -
    -
    THE DATA THAT IS REQUIRED FOR THE ORDER, SUCH AS THE VIN, ORDER TYPE, COUNTRY EQUIPMENT, OPTIONAL EQUIPMENT AND AMENDMENTS CAN BE FOUND IN THE VEHICLE'S DATA MEDIUM AND SPECIFIED WHEN PLACING THE ORDER
    # 1
    MPN: 95550090000GRV
    Car body - primed
    This part replaces part number 95550090000
    # 1
    MPN: 95550090000
    car body
    Supersession
    Supersession
    # -
    -
    PRIMED
    This part replaces part number 95550090000
    # 2
    MPN: 95550090001GRV
    Car body - primed
    P3FE
    This part replaces part number 95550090001
    # 2
    MPN: 95550090001
    car body
    (PR:3FE)
    Supersession
    Supersession
    # -
    -
    PRIMED
    This part replaces part number 95550090001
    # 3
    MPN: 95550090002GRV
    Car body - primed
    P3FU
    This part replaces part number 95550090002
    # -
    -
    BODYWORK PRIMED AND
    sealed, without doors, | flaps and wings, and | with underbody protection
    # -
    -
    BODIES CAN ONLY BE DELIVERED
    from the current model | year
    # -
    -
    THE DATA THAT IS REQUIRED FOR
    the order, such as the VIN, | order type, country equipment, | optional equipment and | amendments can be found in the | vehicle's data medium and | specified when placing the | order
    # -
    -
    PLEASE STATE THE COLOUR
    # 3
    MPN: 95550090002
    car body
    (PR:3FU)
    Supersession
    Supersession
    # -
    -
    PRIMED
    This part replaces part number 95550090002
