porsche 2010 (cayenne e1 9pa) crankcase housing individual parts parts diagram

101-042 - Crankcase housing Individual parts

Porsche 2010 (Cayenne E1 9PA) Crankcase housing Individual parts Parts Diagram

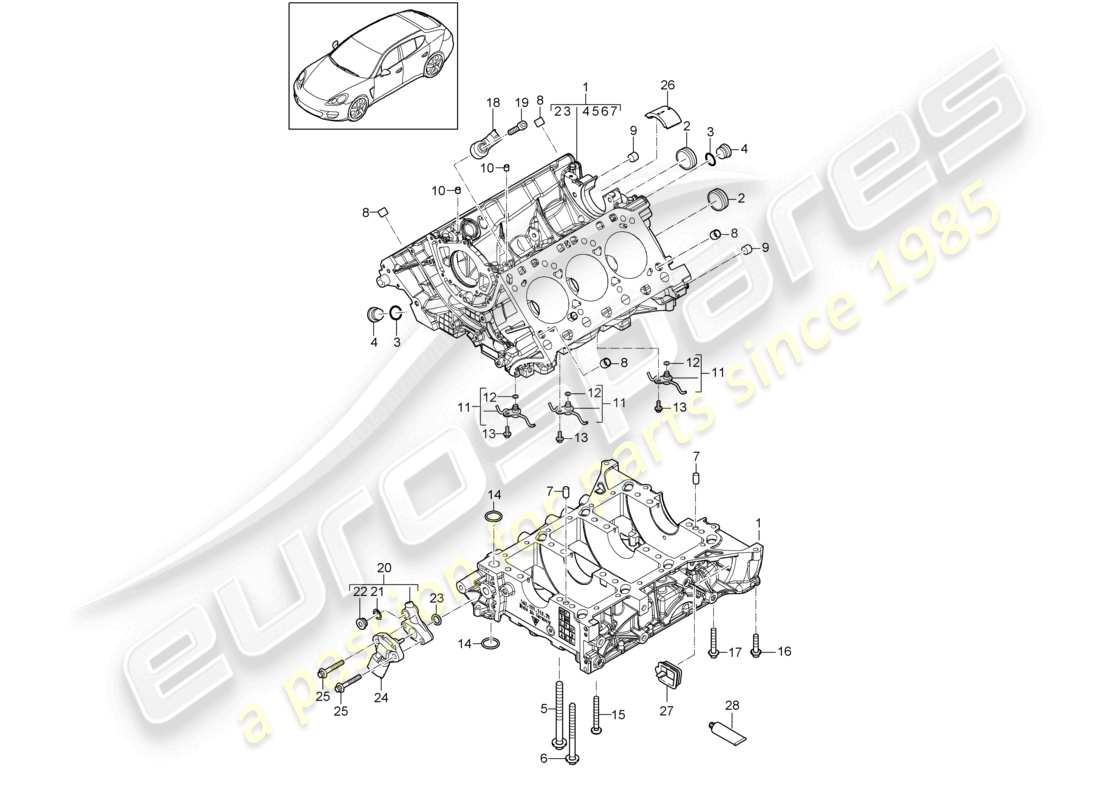

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 94610100160
                                                    Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 2x 996 106 103 50 3x 946 101 017 77 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13
                                                    Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 2x 996 106 103 50 3x 946 101 017 77 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13
                                                    crankcase Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 94610100161
                                                    Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 2x 996 106 103 50 3x 946 101 017 77 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13
                                                    from £6,318.45
                                                    from £6,318.45
                                                    crankcase Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 94810121600
                                                    END CAP
                                                    from £11.04
                                                    from £11.04
                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 99906302430
                                                    SEALING PLUG M 22 X 1,5
                                                    from £11.30
                                                    from £11.30
                                                    THREADED PLUG Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 94810119001
                                                    HEXAGON HEAD BOLT M 11 X 1,5 X 130
                                                    from £5.39
                                                    from £5.39
                                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 94810119040
                                                    HEXAGON HEAD BOLT M 11 X 1,5 X 113,5
                                                    from £4.21
                                                    from £4.21
                                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 94810119101
                                                    HEXAGON HEAD BOLT M 10 X 1,5 X 117
                                                    from £3.56
                                                    from £3.56
                                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 94810119141
                                                    HEXAGON HEAD BOLT M 10 X 1,5 X 107,5
                                                    from £4.21
                                                    from £4.21
                                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 99901205100
                                                    CYLINDER PIN BM 10 X 18
                                                    from £1.60
                                                    from £1.60
                                                    DOWEL PIN Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 014301153B
                                                    DOWEL SLEEVE 13 X 16 X 13,5
                                                    from £4.43
                                                    from £4.43
                                                    SLEEVE - 13 X 16 X13,5 Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 94610115330
                                                    DOWEL SLEEVE 13 X 16 X 15 SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1001 34/15 M >>CWF 013 940
                                                    from £9.90
                                                    from £9.90
                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 94610115331
                                                    DOWEL SLEEVE 13 X 16 X 16,5 FOR GEARBOX SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1001 34/15 M CWF 013 941>>
                                                    from £9.90
                                                    from £9.90
                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 99610610350
                                                    DOWEL SLEEVE 8,2 X 7
                                                    from £1.99
                                                    from £1.99
                                                    SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: 94610101777
                                                    WATER JET M >>CWD 006 880 M >>CWF 009 271
                                                    , CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
                                                    from £44.95
                                                    from £44.95
                                                    NOZZLE Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: 94610101778
                                                    WATER JET M CWD 006 881>>M CWF 009 272>>
                                                    , CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
                                                    from £86.89
                                                    from £86.89
                                                    NOZZLE Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 99970750940
                                                    O-RING 8,55 X 2
                                                    from £2.29
                                                    from £2.29
                                                    O-RING Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: 90038500901
                                                    HEXAGON HEAD BOLT BM 6 X 16
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 14
                                                    MPN: 99970748140
                                                    O-RING 24 X 3
                                                    from £4.52
                                                    from £4.52
                                                    O-RING - 24 X 3,0 Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: 99907391531
                                                    FILLISTER HD. BOLT ALUMINIUM M 8 X 70
                                                    from £2.32
                                                    from £2.32
                                                    FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 90038504201
                                                    TORX SCREW BM 8 X 35
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 17
                                                    MPN: 90038507101
                                                    TORX SCREW BM 8 X 50
                                                    TORX SCREW Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 99760612100
                                                    KNOCK SENSOR
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 19
                                                    MPN: 90006710202
                                                    SOCKET HEAD BOLT M 8 X 35
                                                    from £0.91
                                                    from £0.91
                                                    SCREW, CHEESE HD. - M 8 X 35 Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: 94810731420
                                                    ADAPTER
                                                    from £41.96
                                                    from £41.96
                                                    ADAPTER Genuine Porsche Part - New (to order)
                                                    # 21
                                                    MPN: 90012314430
                                                    SEAL RING A 10 X 13,5
                                                    from £0.59
                                                    from £0.59
                                                    SEAL RING - A 10 X 35 Genuine Porsche Part - New In stock
                                                    # 22
                                                    MPN: 90021902301
                                                    SEALING PLUG M 10 X 1
                                                    from £2.29
                                                    from £2.29
                                                    THREADED PLUG Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 99970757540
                                                    O-RING 20 X 3
                                                    from £4.52
                                                    from £4.52
                                                    O-RING Genuine Porsche Part - New In stock
                                                    # 24
                                                    MPN: 94860621300
                                                    OIL PRESSURE SENDER
                                                    from £144.13
                                                    from £144.13
                                                    OIL PRESSURE GAUGE SENDER Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90038504501
                                                    TORX SCREW BM6X40
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 26
                                                    MPN: 7PP103113
                                                    END CAP
                                                    from £4.03
                                                    from £4.03
                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                    # 27
                                                    MPN: 95530172910
                                                    SEALING CAP
                                                    from £2.75
                                                    from £2.75
                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: 99991557343
                                                    sealant 75ml 1 tube for Crankcase housing
                                                    sealant 75ml 1 tube for Crankcase housing
                                                    SEALANT Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: 00004330533
                                                    sealant 75ml 1 tube for Crankcase housing
                                                    from £47.01
                                                    from £47.01
                                                    SEALANT Genuine Porsche Part - New (to order)
