porsche 2010 (cayenne e1 9pa) crankcase housing individual parts parts diagram

101-045 - Crankcase housing Individual parts

Porsche 2010 (Cayenne E1 9PA) Crankcase housing Individual parts Parts Diagram

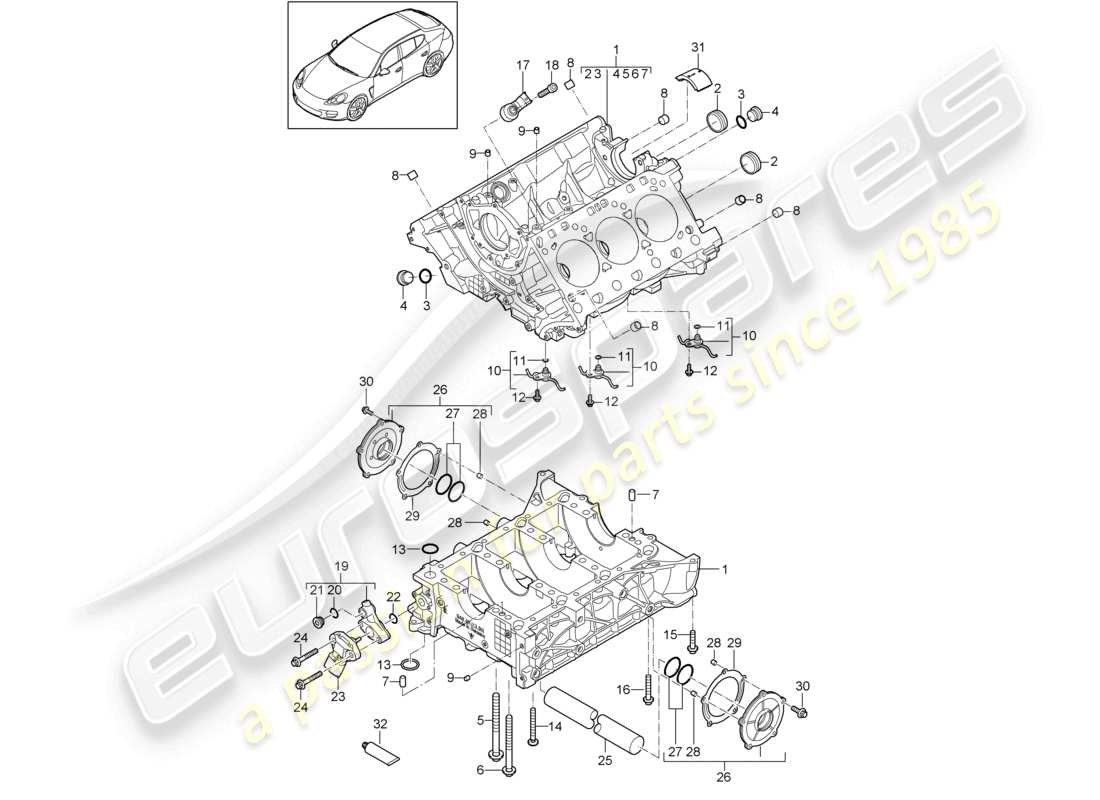

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 94610100142
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100143
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100144
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x M >>C 08729 M >>V C 08728
                                                      Crankcase housing but without: piston also use: 6x 014 301 153 B 3x 996 106 103 50 3x 948 101 017 11 3x 900 385 009 01 2x 999 707 481 40 piston 6x M >>C 08729 M >>V C 08728
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100145
                                                      CRANKCASE HOUSING BUT WITHOUT: PISTON ALSO USE: 3X 948 103 058 21 3X 948 103 057 21 4X 014 301 153 B 2X 946 101 153 30 3X 996 106 103 50 3X 948 101 017 13 3X 900 385 009 01 2X 999 707 481 40 SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1010 25/13 M
                                                      Crankcase housing but without: piston also use: 3x 948 103 058 21 3x 948 103 057 21 4x 014 301 153 B 2x 946 101 153 30 3x 996 106 103 50 3x 948 101 017 13 3x 900 385 009 01 2x 999 707 481 40 See technical information see main group 1 (engine) 1010 25/13 M C 08730 >>D >>- MJ 2013
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100145
                                                      CRANKCASE HOUSING BUT WITHOUT: PISTON ALSO USE: 3X 948 103 058 51 3X 948 103 057 51 4X 014 301 153 B 2X 946 101 153 30 3X 996 106 103 50 3X 948 101 017 13 3X 900 385 009 01 2X 999 707 481 40 SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1010 25/13 M
                                                      Crankcase housing but without: piston also use: 3x 948 103 058 51 3x 948 103 057 51 4x 014 301 153 B 2x 946 101 153 30 3x 996 106 103 50 3x 948 101 017 13 3x 900 385 009 01 2x 999 707 481 40 See technical information see main group 1 (engine) 1010 25/13 M V C 08729 >>D >>- MJ 2013
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100146
                                                      Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 3x 996 106 103 50 3x 948 101 017 13 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13 D - MJ 2014>>
                                                      Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 3x 996 106 103 50 3x 948 101 017 13 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13 D - MJ 2014>>
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 94610100147
                                                      Crankcase housing but without: piston also use: 4x 014 301 153 B 2x 946 101 153 30 3x 996 106 103 50 3x 948 101 017 13 3x 900 385 009 01 2x 999 707 481 40 piston 6x See technical information see main group 1 (engine) 1359 24/13 D - MJ 2014>>
                                                      from £6,332.20
                                                      from £6,332.20
                                                      crankcase Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 94810121600
                                                      END CAP
                                                      from £11.04
                                                      from £11.04
                                                      SEALING CAP Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 99906302430
                                                      SEALING PLUG M 22 X 1,5
                                                      from £11.30
                                                      from £11.30
                                                      THREADED PLUG Genuine Porsche Part - New (to order)
                                                      # 5
                                                      MPN: 94810119001
                                                      HEXAGON HEAD BOLT M 11 X 1,5 X 130
                                                      from £5.39
                                                      from £5.39
                                                      HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                      # 5
                                                      MPN: 94810119040
                                                      HEXAGON HEAD BOLT M 11 X 1,5 X 113,5
                                                      from £4.21
                                                      from £4.21
                                                      HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 94810119101
                                                      HEXAGON HEAD BOLT M 10 X 1,5 X 117
                                                      from £3.56
                                                      from £3.56
                                                      HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 94810119141
                                                      HEXAGON HEAD BOLT M 10 X 1,5 X 107,5
                                                      from £4.21
                                                      from £4.21
                                                      HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                      # 7
                                                      MPN: 99901205100
                                                      CYLINDER PIN BM 10 X 18
                                                      from £1.60
                                                      from £1.60
                                                      DOWEL PIN Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 014301153B
                                                      DOWEL SLEEVE 13 X 16 X 13,5 CYLINDER HEAD
                                                      from £4.43
                                                      from £4.43
                                                      SLEEVE - 13 X 16 X13,5 Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 94610115330
                                                      DOWEL SLEEVE 13 X 16 X 15 GEARBOX SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1001 34/15 M >>CWF 013 940
                                                      from £9.90
                                                      from £9.90
                                                      SLEEVE Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 94610115331
                                                      DOWEL SLEEVE 13 X 16 X 16,5 GEARBOX SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1001 34/15 M CWF 013 941>>
                                                      from £9.90
                                                      from £9.90
                                                      SLEEVE Genuine Porsche Part - New (to order)
                                                      # 9
                                                      MPN: 99610610350
                                                      DOWEL SLEEVE 8,2 X 7
                                                      from £1.99
                                                      from £1.99
                                                      SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 94810101711
                                                      WATER JET
                                                      WATER JET
                                                      NOZZLE Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 94810101712
                                                      WATER JET
                                                      WATER JET
                                                      NOZZLE Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 94810101713
                                                      WATER JET
                                                      from £45.86
                                                      from £45.86
                                                      NOZZLE Genuine Porsche Part - New (to order)
                                                      # 11
                                                      MPN: 99970750940
                                                      O-RING 8,55 X 2
                                                      from £2.29
                                                      from £2.29
                                                      O-RING Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 90038500901
                                                      HEXAGON HEAD BOLT BM 6 X 16
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 13
                                                      MPN: 99970748140
                                                      O-RING 24 X 3
                                                      from £4.52
                                                      from £4.52
                                                      O-RING - 24 X 3,0 Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 99907391531
                                                      FILLISTER HD. BOLT ALUMINIUM M 8 X 70
                                                      from £2.32
                                                      from £2.32
                                                      FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 90038504201
                                                      TORX SCREW BM 8 X 35
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 16
                                                      MPN: 90038507101
                                                      TORX SCREW BM 8 X 50
                                                      TORX SCREW Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 99760612100
                                                      KNOCK SENSOR
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 18
                                                      MPN: 90006710202
                                                      SOCKET HEAD BOLT M 8 X 35
                                                      from £0.91
                                                      from £0.91
                                                      SCREW, CHEESE HD. - M 8 X 35 Genuine Porsche Part - New (to order)
                                                      # 19
                                                      MPN: 94810731420
                                                      ADAPTER
                                                      from £41.96
                                                      from £41.96
                                                      ADAPTER Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 90012314430
                                                      SEAL RING A 10 X 13,5
                                                      from £0.59
                                                      from £0.59
                                                      SEAL RING - A 10 X 35 Genuine Porsche Part - New In stock
                                                      # 21
                                                      MPN: 90021902301
                                                      SEALING PLUG M 10 X 1
                                                      from £2.29
                                                      from £2.29
                                                      THREADED PLUG Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 99970757540
                                                      O-RING 20 X 3
                                                      from £4.52
                                                      from £4.52
                                                      O-RING Genuine Porsche Part - New In stock
                                                      # 23
                                                      MPN: 94860621300
                                                      OIL PRESSURE SENDER
                                                      from £144.13
                                                      from £144.13
                                                      OIL PRESSURE GAUGE SENDER Genuine Porsche Part - New (to order)
                                                      # 24
                                                      MPN: 90038504501
                                                      TORX SCREW BM 6 X 40
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 25
                                                      MPN: 94810118000
                                                      CROSS TUBE
                                                      CROSS TUBE
                                                      CROSS TUBE Genuine Porsche Part - New (to order)
                                                      # 25
                                                      MPN: 94810118001
                                                      CROSS TUBE
                                                      from £32.34
                                                      from £32.34
                                                      CROSS TUBE Genuine Porsche Part - New (to order)
                                                      # 26
                                                      MPN: 94810107001
                                                      SEALING FLANGE
                                                      from £65.33
                                                      from £65.33
                                                      SEALING FLANGE Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 99970764140
                                                      O-RING 30 X 3
                                                      from £4.52
                                                      from £4.52
                                                      O-RING Genuine Porsche Part - New (to order)
                                                      # 28
                                                      MPN: 99610610350
                                                      DOWEL SLEEVE 8,2 X 7
                                                      from £1.99
                                                      from £1.99
                                                      SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 94810122340
                                                      SEAL
                                                      SEAL
                                                      GASKET Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 94810122341
                                                      SEAL
                                                      from £7.15
                                                      from £7.15
                                                      GASKET Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: 90038501901
                                                      TORX SCREW BM 6 X 20
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 31
                                                      MPN: 7P5103113
                                                      END CAP
                                                      END CAP
                                                      from £2.79
                                                      from £2.79
                                                      SEALING CAP Genuine Porsche Part - New (to order)
                                                      # 31
                                                      MPN: 7PP103113
                                                      END CAP
                                                      from £4.03
                                                      from £4.03
                                                      SEALING CAP Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: 99991557343
                                                      sealant 75ml 1 tube for Crankcase housing
                                                      sealant 75ml 1 tube for Crankcase housing
                                                      SEALANT Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: 00004330533
                                                      sealant 75ml 1 tube for Crankcase housing
                                                      from £47.01
                                                      from £47.01
                                                      SEALANT Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: 00004320435
                                                      sealant 50ml 1 tube for Sealing flange Cross tube
                                                      sealant 50ml 1 tube for Sealing flange Cross tube
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 32
                                                      MPN: 00004330560
                                                      SEALANT 50ML LOCTITE 5900 FOR SEALING FLANGE CROSS TUBE
                                                      from £21.87
                                                      from £21.87
                                                      This part replaces part number 00004320435
                                                      SEALANT Genuine Porsche Part - New In stock
