CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016) | CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
porsche 2010 (cayenne e1 9pa) crankcase housing individual parts parts diagram

101-055 - Crankcase housing Individual parts

Porsche 2010 (Cayenne E1 9PA) Crankcase housing Individual parts Parts Diagram

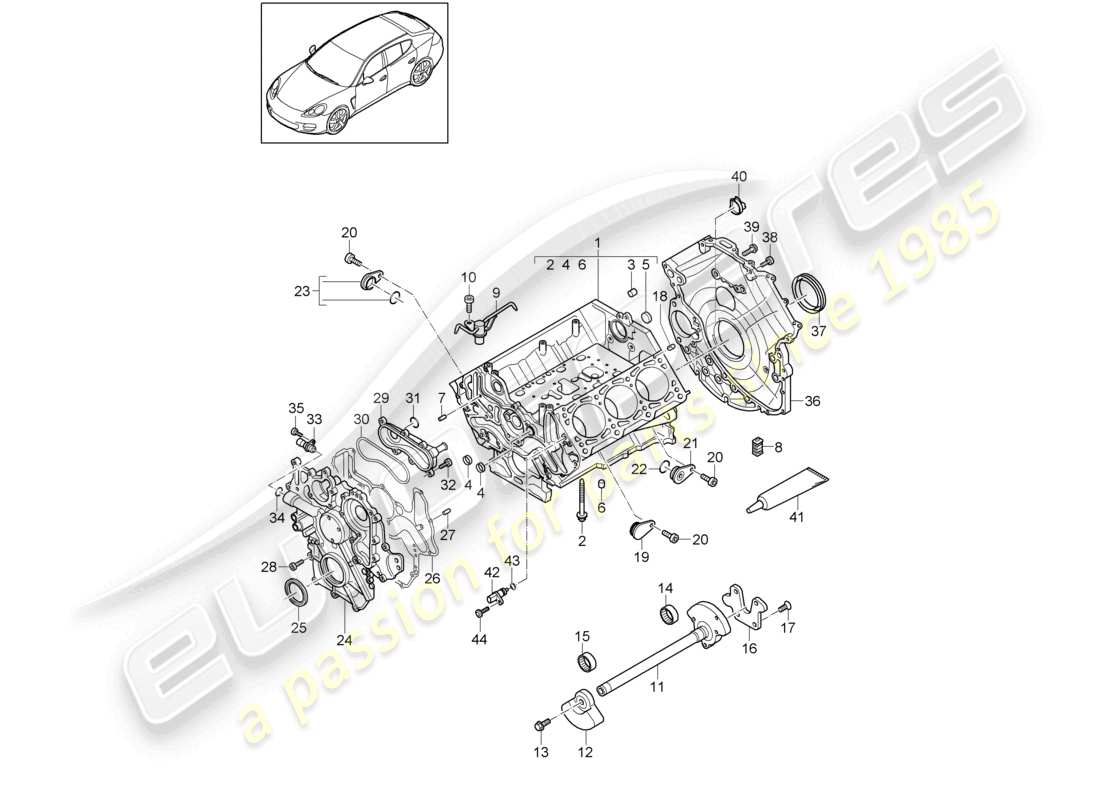

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 1
                                                                    MPN: 95810101120
                                                                    Crankcase housing also use: piston 6x
                                                                    Crankcase housing also use: piston 6x
                                                                    crankcase Genuine Porsche Part - New (to order)
                                                                    # 1
                                                                    MPN: 95810101121
                                                                    Crankcase housing also use: piston 6x
                                                                    from £4,043.88
                                                                    from £4,043.88
                                                                    crankcase Genuine Porsche Part - New (to order)
                                                                    # 2
                                                                    MPN: WHT003959
                                                                    HEXAGON HEAD BOLT M 11 X 1,5 X 107
                                                                    from £6.73
                                                                    from £6.73
                                                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                                                    # 3
                                                                    MPN: 95510113901
                                                                    DOWEL SLEEVE 16 X 13,5
                                                                    from £3.64
                                                                    from £3.64
                                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                                    # 4
                                                                    MPN: N 01190310
                                                                    END CAP A 16
                                                                    from £0.71
                                                                    from £0.71
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    COVER Genuine Lamborghini - New In stock
                                                                    # 5
                                                                    MPN: N 01191410
                                                                    End Cap 24
                                                                    from £1.39
                                                                    from £1.39
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 6
                                                                    MPN: 95510113910
                                                                    DOWEL SLEEVE
                                                                    from £3.64
                                                                    from £3.64
                                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                                    # 7
                                                                    MPN: N 10667801
                                                                    CYLINDER PIN 6 X 16
                                                                    from £0.47
                                                                    from £0.47
                                                                    DOWEL PIN Genuine Porsche Part - New (to order)
                                                                    # 8
                                                                    MPN: 95510114700
                                                                    Seal rear Sealing flange
                                                                    from £4.56
                                                                    from £4.56
                                                                    GASKET Genuine Porsche Part - New In stock
                                                                    # 9
                                                                    MPN: 95810101730
                                                                    WATER JET ENGINE OIL
                                                                    CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                                    from £25.63
                                                                    from £25.63
                                                                    NOZZLE Genuine Porsche Part - New (to order)
                                                                    # 9
                                                                    MPN: 95810101740
                                                                    WATER JET ENGINE OIL
                                                                    CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                                    from £25.63
                                                                    from £25.63
                                                                    NOZZLE Genuine Porsche Part - New (to order)
                                                                    # 10
                                                                    MPN: N 91054701
                                                                    HEX SOCKET HEAD LOCATING BOLT M 6 X 6 X 12
                                                                    from £0.65
                                                                    from £0.65
                                                                    HEX SOCKET HEAD LOCATING BOLT Genuine Porsche Part - New (to order)
                                                                    # 11
                                                                    MPN: 95810102510
                                                                    BALANCER SHAFT
                                                                    BALANCER SHAFT
                                                                    SHAFT Genuine Porsche Part - New (to order)
                                                                    # 11
                                                                    MPN: 95810102511
                                                                    BALANCER SHAFT
                                                                    from £102.94
                                                                    from £102.94
                                                                    SHAFT Genuine Porsche Part - New (to order)
                                                                    # 12
                                                                    MPN: 95510133200
                                                                    BALANCER WEIGHT FRONT
                                                                    from £34.86
                                                                    from £34.86
                                                                    BALANCE WEIGHT Genuine Porsche Part - New (to order)
                                                                    # 13
                                                                    MPN: N 90893202
                                                                    FITTED BOLT, HEXAGON HEAD M 10 X 20
                                                                    from £1.88
                                                                    from £1.88
                                                                    FITTED BOLT, HEX. HEAD Genuine Porsche Part - New (to order)
                                                                    SCREW Genuine Lamborghini - New In stock
                                                                    # 14
                                                                    MPN: 95810186930
                                                                    NEEDLE BEARING - DURCHM. 25 MM FOR CRANKCASE HOUSING 059.103.011.ED
                                                                    from £14.90
                                                                    from £14.90
                                                                    NEEDLE BEARING - Genuine Porsche Part - New (to order)
                                                                    # 14
                                                                    MPN: 95810186940
                                                                    NEEDLE BEARING - DURCHM. 25 MM FOR CRANKCASE HOUSING 059.103.011.FA
                                                                    from £14.90
                                                                    from £14.90
                                                                    NEEDLE BEARING - Genuine Porsche Part - New (to order)
                                                                    # 15
                                                                    MPN: 95510186910
                                                                    NEEDLE BEARING - DURCHM. 22 MM
                                                                    from £17.39
                                                                    from £17.39
                                                                    NEEDLE BEARING - Genuine Porsche Part - New (to order)
                                                                    # 16
                                                                    MPN: 95810140701
                                                                    END CAP
                                                                    from £25.51
                                                                    from £25.51
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 17
                                                                    MPN: N 10456004
                                                                    HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M 6 X 12
                                                                    from £0.47
                                                                    from £0.47
                                                                    HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                                                                    # 18
                                                                    MPN: 95510227700
                                                                    SPRING PIN 6,2 X 22
                                                                    from £1.74
                                                                    from £1.74
                                                                    PIN Genuine Porsche Part - New (to order)
                                                                    # 19
                                                                    MPN: 95810615520
                                                                    END CAP
                                                                    from £15.86
                                                                    from £15.86
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 20
                                                                    MPN: N 10170302
                                                                    ROUND HD. SCREW M 6 X 10
                                                                    from £0.61
                                                                    from £0.61
                                                                    ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                    HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New (to order)
                                                                    # 21
                                                                    MPN: 95810615500
                                                                    END CAP
                                                                    END CAP
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 21
                                                                    MPN: 95810615501
                                                                    END CAP
                                                                    from £7.57
                                                                    from £7.57
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 22
                                                                    MPN: N 90783402
                                                                    O-RING 13,1 X 1,6
                                                                    from £0.47
                                                                    from £0.47
                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                    # 23
                                                                    MPN: 95810615520
                                                                    END CAP
                                                                    from £15.86
                                                                    from £15.86
                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 95810115020
                                                                    Sealing flange front also use: 1x WHT 005 400
                                                                    Sealing flange front also use: 1x WHT 005 400
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 95810115110
                                                                    Sealing flange front
                                                                    Sealing flange front
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 95810115111
                                                                    SEALING FLANGE FRONT D >>- MJ 2013
                                                                    CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 95810115112
                                                                    SEALING FLANGE FRONT D - MJ 2014>>
                                                                    CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                                    from £458.35
                                                                    from £458.35
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 958103151
                                                                    SEALING FLANGE FRONT D - MJ 2014>>
                                                                    CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                                    from £1,185.98
                                                                    from £1,185.98
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 95810115121
                                                                    Sealing flange front
                                                                    CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                                    from £458.35
                                                                    from £458.35
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: WHT005400
                                                                    WASHER 11 X 67 X 3,5
                                                                    from £3.96
                                                                    from £3.96
                                                                    WASHER Genuine Porsche Part - New (to order)
                                                                    # 25
                                                                    MPN: 95810105200
                                                                    SHAFT OIL SEAL
                                                                    SHAFT OIL SEAL
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 25
                                                                    MPN: 95810105201
                                                                    SHAFT OIL SEAL
                                                                    SHAFT OIL SEAL
                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                    # 25
                                                                    MPN: 95510105200
                                                                    SHAFT OIL SEAL
                                                                    from £29.95
                                                                    from £29.95
                                                                    This part replaces part number 95810105200
                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                    # 26
                                                                    MPN: 95810116101
                                                                    SEAL
                                                                    SEAL
                                                                    GASKET Genuine Porsche Part - New (to order)
                                                                    # 26
                                                                    MPN: 95810116102
                                                                    SEAL RUBBER D >>- MJ 2013
                                                                    from £81.74
                                                                    from £81.74
                                                                    GASKET Genuine Porsche Part - New (to order)
                                                                    # 26
                                                                    MPN: 95810116103
                                                                    SEAL METAL D - MJ 2014>>
                                                                    from £77.33
                                                                    from £77.33
                                                                    GASKET Genuine Porsche Part - New (to order)
                                                                    # 27
                                                                    MPN: N 10667801
                                                                    CYLINDER PIN 6 X 16
                                                                    from £0.47
                                                                    from £0.47
                                                                    DOWEL PIN Genuine Porsche Part - New (to order)
                                                                    # 28
                                                                    MPN: N 91180401
                                                                    HEXALOBULAR FLANGE SCREW M 6 X 22
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 29
                                                                    MPN: 95810152500
                                                                    COVER
                                                                    from £40.32
                                                                    from £40.32
                                                                    COVER Genuine Porsche Part - New (to order)
                                                                    # 30
                                                                    MPN: 95810116110
                                                                    SEAL
                                                                    SEAL
                                                                    GASKET Genuine Porsche Part - New (to order)
                                                                    # 30
                                                                    MPN: 95810116111
                                                                    SEAL
                                                                    from £21.25
                                                                    from £21.25
                                                                    GASKET Genuine Porsche Part - New In stock
                                                                    # 31
                                                                    MPN: N 90465004
                                                                    O-RING 23 X 2,6
                                                                    from £2.42
                                                                    from £2.42
                                                                    O-RING Genuine Porsche Part - New In stock
                                                                    # 32
                                                                    MPN: N 10700201
                                                                    HEXAGON SOCKET HEAD BOLT M 6 X 22
                                                                    from £1.17
                                                                    from £1.17
                                                                    HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                    HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                    # 33
                                                                    MPN: 95860662320
                                                                    TEMPERATURE SENSOR
                                                                    from £82.32
                                                                    from £82.32
                                                                    TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                    # 33
                                                                    MPN: 95810182602
                                                                    SLEEVE FOR TEMPERATURE SENSOR
                                                                    from £5.33
                                                                    from £5.33
                                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                                    # 34
                                                                    MPN: WHT002287C
                                                                    O-RING 5,6 X 2
                                                                    from £2.87
                                                                    from £2.87
                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                    O-RING Genuine Lamborghini - New (to order)
                                                                    O-RING Genuine Lamborghini - New (other) In stock
                                                                    O-RING
                                                                    # 34
                                                                    MPN: N 90851401
                                                                    O-RING 14 X 1,78 ADAPTER SLEEVE TEMPERATURE SENSOR
                                                                    from £2.32
                                                                    from £2.32
                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                    # 35
                                                                    MPN: N 10451408
                                                                    OVAL HEXAGON SOCKET HEAD BOLT M 6 X 16
                                                                    from £0.84
                                                                    from £0.84
                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                    HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                    # 36
                                                                    MPN: 95810107130
                                                                    Sealing flange rear also use: 2x 955 101 147 00 000 043 207 49
                                                                    Sealing flange rear also use: 2x 955 101 147 00 000 043 207 49
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 36
                                                                    MPN: 95810107131
                                                                    Sealing flange rear also use: 2x 955 101 147 00 000 043 300 39
                                                                    Sealing flange rear also use: 2x 955 101 147 00 000 043 300 39
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 36
                                                                    MPN: 95810107132
                                                                    Sealing flange rear also use: 2x 955 101 147 00 000 043 300 39
                                                                    from £465.88
                                                                    from £465.88
                                                                    SEALING FLANGE Genuine Porsche Part - New (to order)
                                                                    # 37
                                                                    MPN: 95810115300
                                                                    SHAFT OIL SEAL
                                                                    SHAFT OIL SEAL
                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                    # 37
                                                                    MPN: 95810115301
                                                                    SHAFT OIL SEAL
                                                                    from £30.77
                                                                    from £30.77
                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                    # 38
                                                                    MPN: N 10700201
                                                                    HEXAGON SOCKET HEAD BOLT M 6 X 22
                                                                    from £1.17
                                                                    from £1.17
                                                                    HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                    HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                    # 39
                                                                    MPN: N 10745301
                                                                    OVAL HEXAGON SOCKET HEAD BOLT M 8 X 30
                                                                    from £1.43
                                                                    from £1.43
                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                    SCREW M8X30 Genuine Lamborghini - New (to order)
                                                                    # 40
                                                                    MPN: 95810156510
                                                                    COVER
                                                                    from £4.47
                                                                    from £4.47
                                                                    COVER Genuine Porsche Part - New (to order)
                                                                    # 41
                                                                    MPN: 00004320749
                                                                    sealant 1 tube 80 ML
                                                                    sealant 1 tube 80 ML
                                                                    SEALANT Genuine Porsche Part - New (to order)
                                                                    # 41
                                                                    MPN: 00004330039
                                                                    sealant 1 tube 50 ML
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 42
                                                                    MPN: 95860662300
                                                                    COOLANT TEMPERATURE SENDER
                                                                    from £53.39
                                                                    from £53.39
                                                                    COOLANT TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                    # 43
                                                                    MPN: WHT002287B
                                                                    O-RING 5,6 X 2 -N-
                                                                    from £2.76
                                                                    from £2.76
                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                    O-RING Genuine Lamborghini - New (to order)
                                                                    # 44
                                                                    MPN: N 10170302
                                                                    ROUND HD. SCREW M 6 X 10
                                                                    from £0.61
                                                                    from £0.61
                                                                    ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                    HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New (to order)
