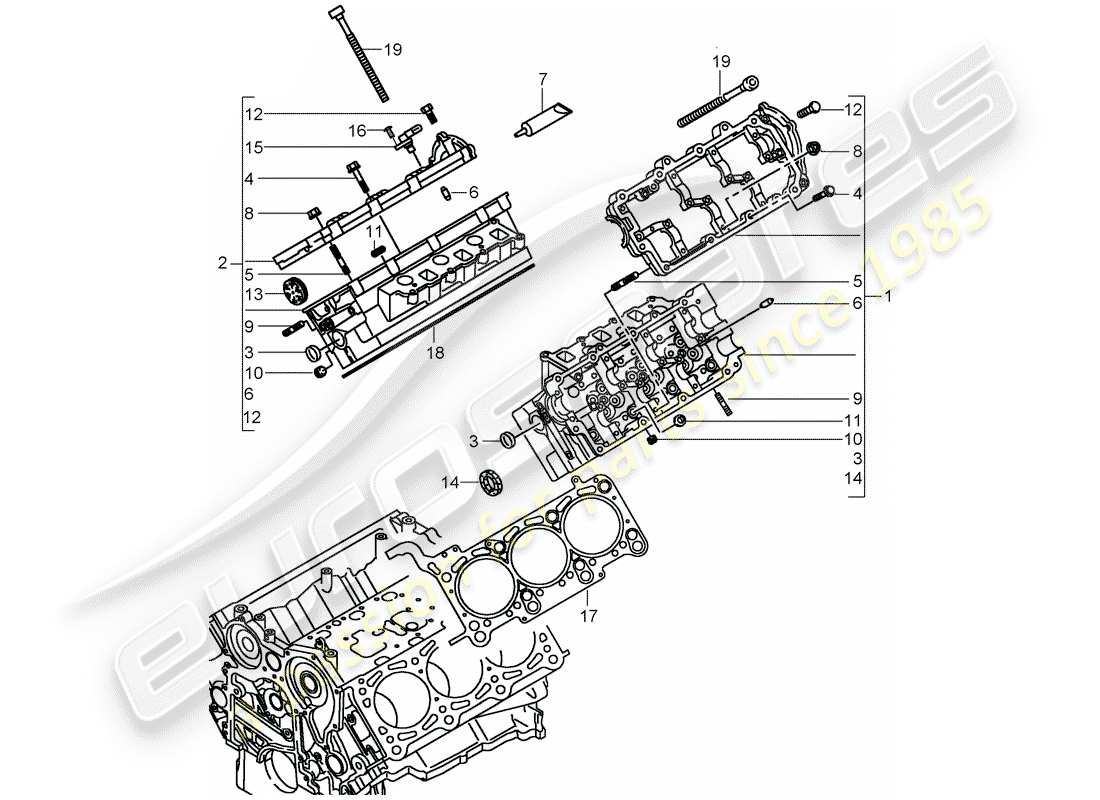

porsche 2010 (cayenne e1 9pa) cylinder head parts diagram

103-003 - CYLINDER HEAD

Porsche 2010 (Cayenne E1 9PA) Cylinder head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 1
                            MPN: 95510401600
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            # 1
                            MPN: 95510401601
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            # 1
                            MPN: 95510401602
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            # 1
                            MPN: 95510401603
                            COMPLETE CYLINDER HEAD CYLINDERS 4-6
                            from £4,347.16
                            from £4,347.16
                            # 2
                            MPN: 95510401500
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            # 2
                            MPN: 95510401501
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            # 2
                            MPN: 95510401502
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            # 2
                            MPN: 95510401503
                            COMPLETE CYLINDER HEAD CYLINDERS 1-3
                            from £4,347.16
                            from £4,347.16
                            # 3
                            MPN: N 0119085
                            End Cap 28
                            from £1.45
                            from £1.45
                            # 4
                            MPN: N 10205604
                            HEXAGON HEAD BOLT (COMBI) M 6 X 32
                            from £1.15
                            from £1.15
                            # 5
                            MPN: 95510439900
                            THREADED PIN M 6 X 49 ONLY IN CONJ. WITH: CYLINDER HEAD 059.103.063.ES/FB 059.103.064.CS/EJ
                            from £12.16
                            from £12.16
                            # 5
                            MPN: N 91164201
                            Threaded stud M 6 X 50 only in conj. with: Cylinder head 059.103.063.GH 059.103.064.GA
                            from £1.13
                            from £1.13
                            # 6
                            MPN: 95510425100
                            DOWEL SLEEVE 8 M 6 X 32
                            from £8.73
                            from £8.73
                            # 7
                            MPN: 00004320749
                            SEALANT 80ml
                            SEALANT 80ml
                            # 7
                            MPN: 95810190200
                            SEALANT 80ml
                            SEALANT 80ml
                            # 7
                            MPN: 00004330635
                            SEALANT 80ml
                            from £36.44
                            from £36.44
                            # 8
                            MPN: N 90446502
                            HEXAGON COLLAR NUT M 6
                            from £1.08
                            from £1.08
                            # 9
                            MPN: N 0444415
                            THREADED PIN M 8 X 40
                            from £1.78
                            from £1.78
                            # 10
                            MPN: N 10283304
                            SEALING PLUG M 8 X 1
                            from £1.23
                            from £1.23
                            # 11
                            MPN: 95510437700
                            SPACER 12,6 X 22,4 X 4,5
                            from £4.35
                            from £4.35
                            # 12
                            MPN: N 91131501
                            SEALING PLUG M 10 X 1 X 8
                            from £2.43
                            from £2.43
                            # 13
                            MPN: 95510411300
                            END CAP
                            from £17.22
                            from £17.22
                            # 14
                            MPN: 95510418500
                            SHAFT OIL SEAL
                            from £31.44
                            from £31.44
                            # 15
                            MPN: 95560610620
                            IMPULSE SENDER CAMSHAFT
                            IMPULSE SENDER CAMSHAFT
                            # 15
                            MPN: 95860610600
                            IMPULSE SENDER CAMSHAFT
                            IMPULSE SENDER CAMSHAFT
                            # 15
                            MPN: 95860610601
                            IMPULSE SENDER CAMSHAFT
                            from £78.74
                            from £78.74
                            # 16
                            MPN: N 10196103
                            OVAL SOCKET HEAD BOLT WITH HEX DRIVE M 6 X 18
                            from £0.78
                            from £0.78
                            # 17
                            MPN: 95510417400
                            Cylinder head gasket 1,1 MM 1 LOCH
                            Cylinder head gasket 1,1 MM 1 LOCH
                            # 17
                            MPN: 95510417401
                            Cylinder head gasket 1,1 MM 1 LOCH
                            Cylinder head gasket 1,1 MM 1 LOCH
                            # 17
                            MPN: 95510417402
                            Cylinder head gasket 1,1 MM 1 LOCH
                            from £72.34
                            from £72.34
                            # 17
                            MPN: 95510417410
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            # 17
                            MPN: 95510417411
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            # 17
                            MPN: 95510417412
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            from £72.34
                            from £72.34
                            # 17
                            MPN: 95510417420
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            from £29.81
                            from £29.81
                            # 17
                            MPN: 95510417421
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            # 17
                            MPN: 95510417422
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            from £72.34
                            from £72.34
                            # 18
                            MPN: 95510417300
                            Cylinder head gasket 1,1 MM 1 LOCH
                            Cylinder head gasket 1,1 MM 1 LOCH
                            from £29.81
                            from £29.81
                            # 18
                            MPN: 95510417301
                            Cylinder head gasket 1,1 MM 1 LOCH
                            Cylinder head gasket 1,1 MM 1 LOCH
                            # 18
                            MPN: 95510417302
                            Cylinder head gasket 1,1 MM 1 LOCH
                            from £72.34
                            from £72.34
                            # 18
                            MPN: 95510417310
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            # 18
                            MPN: 95510417311
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            # 18
                            MPN: 95510417312
                            Cylinder head gasket 1,15 MM 2 LOECHER
                            from £72.34
                            from £72.34
                            # 18
                            MPN: 95510417320
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            from £29.81
                            from £29.81
                            # 18
                            MPN: 95510417321
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            # 18
                            MPN: 95510417322
                            Cylinder head gasket 1,2 MM 3 LOECHER
                            from £72.34
                            from £72.34
                            # 19
                            MPN: 95510418100
                            SOCKET HEAD BOLT M 12 X 1,5 X 159,5
                            from £12.81
                            from £12.81
