porsche 2010 (cayenne e1 9pa) cylinder head vacuum pump parts diagram

103-005 - Cylinder head Vacuum pump

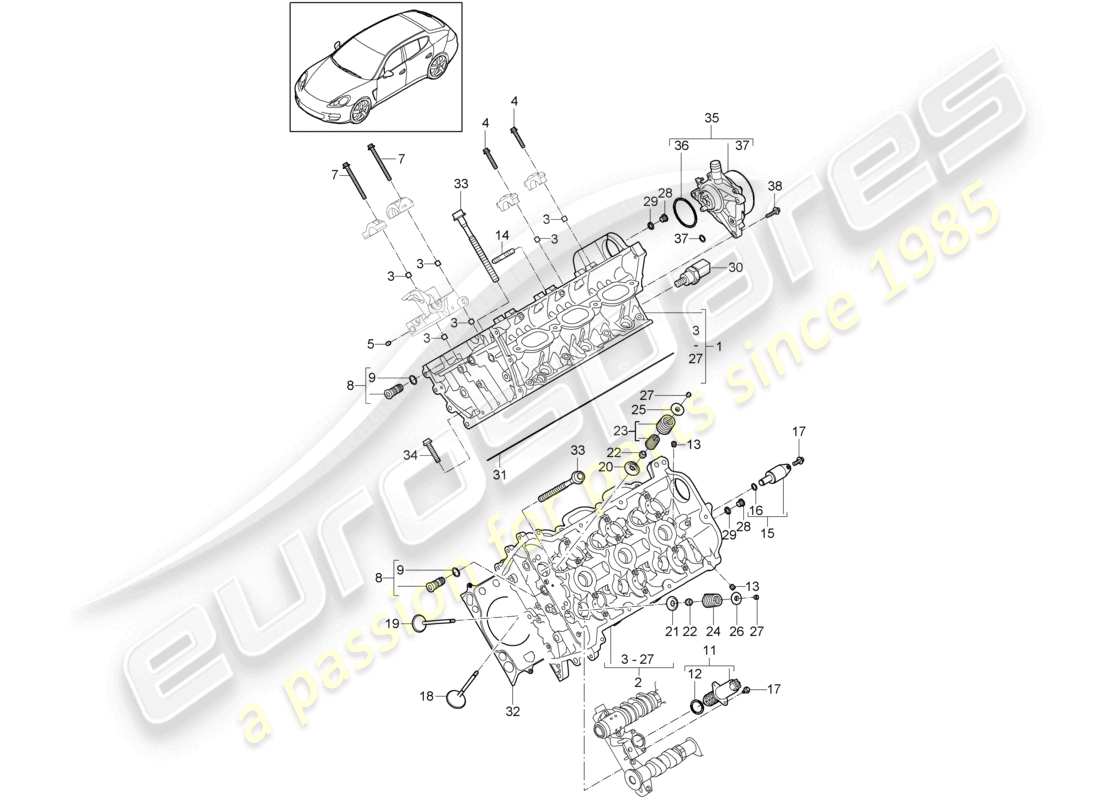

Porsche 2010 (Cayenne E1 9PA) Cylinder head Vacuum pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: 94610401505
                                                            Cylinder head cylinders 1-3 with: Spark plug
                                                            Cylinder head cylinders 1-3 with: Spark plug
                                                            CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 1
                                                            MPN: 94610401506
                                                            Cylinder head cylinders 1-3 with: Spark plug
                                                            from £4,599.87
                                                            from £4,599.87
                                                            CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: 94610401605
                                                            Cylinder head cylinders 4-6 with: Spark plug
                                                            Cylinder head cylinders 4-6 with: Spark plug
                                                            CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: 94610401606
                                                            Cylinder head cylinders 4-6 with: Spark plug
                                                            from £4,673.47
                                                            from £4,673.47
                                                            CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 3
                                                            MPN: 94410436100
                                                            DOWEL SLEEVE
                                                            from £2.93
                                                            from £2.93
                                                            sleeve - for - flange - seal - crankshaft Genuine Porsche Part - New (to order)
                                                            # 4
                                                            MPN: 99907336301
                                                            TORX SCREW M 6 X 35
                                                            from £2.29
                                                            from £2.29
                                                            TORX SCREW Genuine Porsche Part - New (to order)
                                                            # 5
                                                            MPN: 99950102330
                                                            SEALING CAP 6,7
                                                            from £6.45
                                                            from £6.45
                                                            Sealing cap - 6,7 Genuine Porsche Part - New (to order)
                                                            # 7
                                                            MPN: 90038502701
                                                            TORX SCREW BM 6 X 70
                                                            from £1.73
                                                            from £1.73
                                                            Torx screw - M 6 X 70 Genuine Porsche Part - New (to order)
                                                            # 8
                                                            MPN: 94810425001
                                                            CHOKE
                                                            from £14.84
                                                            from £14.84
                                                            RESTRICTOR Genuine Porsche Part - New (to order)
                                                            # 9
                                                            MPN: 99970757740
                                                            O-RING 10,0 X 2,5
                                                            O-RING Genuine Porsche Part - New (to order)
                                                            # 11
                                                            MPN: 94810530405
                                                            throttle control element Camshaft
                                                            throttle control element Camshaft
                                                            ACTUATOR Genuine Porsche Part - New (to order)
                                                            # 11
                                                            MPN: 94810530406
                                                            throttle control element Camshaft
                                                            throttle control element Camshaft
                                                            ACTUATOR Genuine Porsche Part - New (to order)
                                                            # 11
                                                            MPN: 94810530407
                                                            throttle control element Camshaft
                                                            from £171.52
                                                            from £171.52
                                                            ACTUATOR Genuine Porsche Part - New (to order)
                                                            # 12
                                                            MPN: 99970744640
                                                            O-RING 18 X 2,5
                                                            from £2.29
                                                            from £2.29
                                                            O-Ring - 18,00 X 2,5 Genuine Porsche Part - New In stock
                                                            # 13
                                                            MPN: 90006301000
                                                            SEALING PLUG M 8 X 1
                                                            from £5.80
                                                            from £5.80
                                                            THREADED PLUG Genuine Porsche Part - New (to order)
                                                            # 14
                                                            MPN: 99906000101
                                                            THREADED STUD MFS 8 X 42
                                                            from £2.75
                                                            from £2.75
                                                            THREADED BOLT Genuine Porsche Part - New (to order)
                                                            # 15
                                                            MPN: 94810530802
                                                            THROTTLE CONTROL ELEMENT VALVE
                                                            THROTTLE CONTROL ELEMENT VALVE
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
                                                            # 15
                                                            MPN: 94810530803
                                                            THROTTLE CONTROL ELEMENT VALVE
                                                            from £111.51
                                                            from £111.51
                                                            This part replaces part number 94810530802
                                                            ACTUATOR Genuine Porsche Part - New (to order)
                                                            # 16
                                                            MPN: 99970158240
                                                            O-RING 11,5 X 1,8
                                                            from £9.00
                                                            from £9.00
                                                            O-RING Genuine Porsche Part - New (to order)
                                                            # 17
                                                            MPN: 90038511201
                                                            TORX SCREW BM 5 X 12
                                                            from £2.29
                                                            from £2.29
                                                            TORX SCREW Genuine Porsche Part - New (to order)
                                                            # 18
                                                            MPN: 94810532102
                                                            INLET VALVE
                                                            from £46.51
                                                            from £46.51
                                                            INTAKE VALVE Genuine Porsche Part - New (to order)
                                                            # 19
                                                            MPN: 94810532202
                                                            EXHAUST VALVE
                                                            from £45.02
                                                            from £45.02
                                                            EXHAUST VALVE Genuine Porsche Part - New (to order)
                                                            # 20
                                                            MPN: 94810515101
                                                            SPRING DISC INLET LOWER
                                                            from £7.82
                                                            from £7.82
                                                            SPRING SEAT Genuine Porsche Part - New (to order)
                                                            # 21
                                                            MPN: 94810515301
                                                            SPRING DISC OUTLET LOWER
                                                            from £4.72
                                                            from £4.72
                                                            SPRING SEAT Genuine Porsche Part - New (to order)
                                                            # 22
                                                            MPN: 99610511552
                                                            VALVE STEM SEAL
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
                                                            # 23
                                                            MPN: 94810509402
                                                            1 SET OF VALVE SPRINGS INLET
                                                            from £10.18
                                                            from £10.18
                                                            SET OF VALVE SPRINGS Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: 94810542002
                                                            VALVE SPRING OUTLET
                                                            from £6.53
                                                            from £6.53
                                                            VALVE SPRING Genuine Porsche Part - New (to order)
                                                            # 25
                                                            MPN: 94810515001
                                                            SPRING DISC INLET UPPER
                                                            from £7.82
                                                            from £7.82
                                                            SPRING SEAT Genuine Porsche Part - New (to order)
                                                            # 26
                                                            MPN: 99610512154
                                                            SPRING DISC OUTLET UPPER
                                                            from £3.55
                                                            from £3.55
                                                            SPRING SEAT Genuine Porsche Part - New (to order)
                                                            # 27
                                                            MPN: 99610512352
                                                            COTTER, SPLIT
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
                                                            # 28
                                                            MPN: 90021902301
                                                            SEALING PLUG M 10 X 1
                                                            from £2.29
                                                            from £2.29
                                                            THREADED PLUG Genuine Porsche Part - New (to order)
                                                            # 29
                                                            MPN: 90012314430
                                                            SEAL RING A 10 X 13,5
                                                            from £0.59
                                                            from £0.59
                                                            SEAL RING - A 10 X 35 Genuine Porsche Part - New In stock
                                                            # 30
                                                            MPN: 94860642000
                                                            TEMPERATURE SENSOR
                                                            from £25.25
                                                            from £25.25
                                                            TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                            # 31
                                                            MPN: 94610417301
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 31
                                                            MPN: 94610417302
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            from £42.64
                                                            from £42.64
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 31
                                                            MPN: 94610417303
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            from £61.96
                                                            from £61.96
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 32
                                                            MPN: 94610417401
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 32
                                                            MPN: 94610417402
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            from £42.64
                                                            from £42.64
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 32
                                                            MPN: 94610417403
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            from £61.96
                                                            from £61.96
                                                            CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                            # 33
                                                            MPN: 94810418110
                                                            SOCKET HEAD BOLT M 11 X 1,5 X 140
                                                            from £9.06
                                                            from £9.06
                                                            SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                            # 34
                                                            MPN: 99921904401
                                                            SOCKET HEAD BOLT M 8 X 40
                                                            from £4.52
                                                            from £4.52
                                                            SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                            # 35
                                                            MPN: 94811005006
                                                            VACUUM PUMP
                                                            VACUUM PUMP
                                                            from £122.83
                                                            from £122.83
                                                            VACUUM PUMP Genuine Porsche Part - New (to order)
                                                            # 35
                                                            MPN: 94811005007
                                                            VACUUM PUMP
                                                            from £148.95
                                                            from £148.95
                                                            VACUUM PUMP Genuine Porsche Part - New (to order)
                                                            # 36
                                                            MPN: 99970758141
                                                            O-RING 54 X 3
                                                            from £7.21
                                                            from £7.21
                                                            O-RING Genuine Porsche Part - New In stock
                                                            # 37
                                                            MPN: 99970758241
                                                            O-RING 13 X 3
                                                            from £2.92
                                                            from £2.92
                                                            O-RING Genuine Porsche Part - New In stock
                                                            # 38
                                                            MPN: 90038507201
                                                            TORX SCREW M 6 X 25
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
