porsche 2010 (cayenne e1 9pa) coolant cooling system 2 parts diagram

105-032 - Coolant cooling system 2

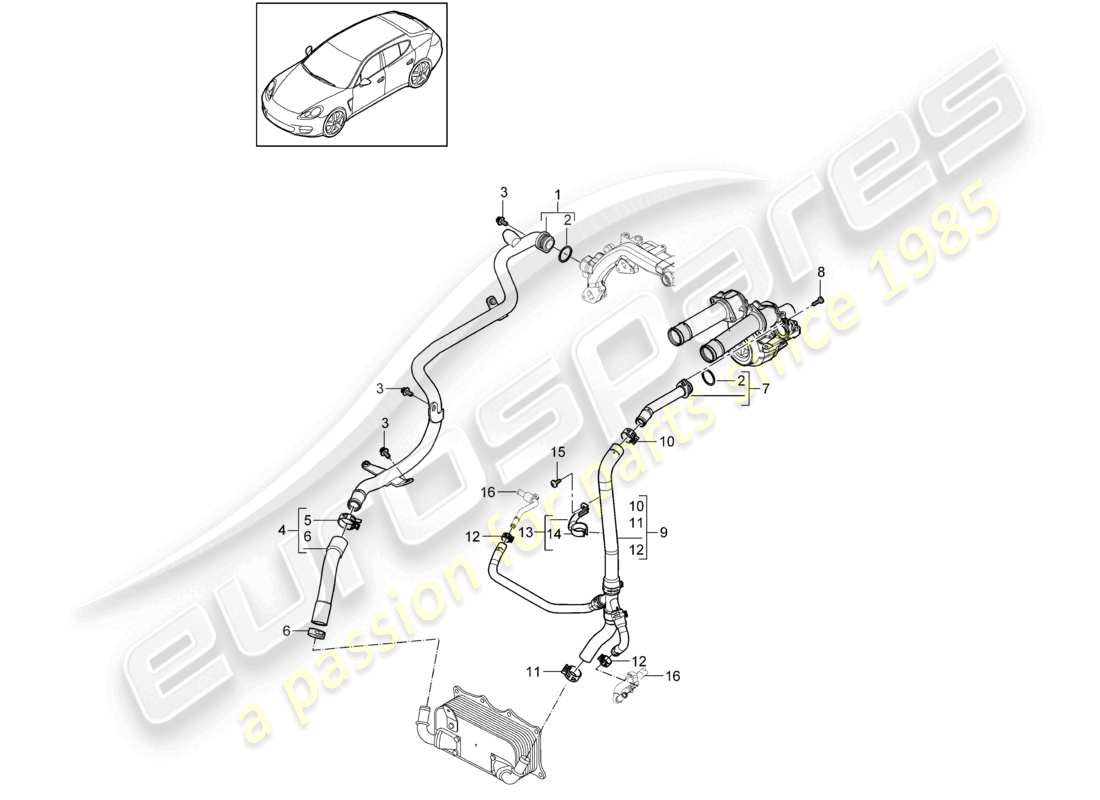

Porsche 2010 (Cayenne E1 9PA) Coolant cooling system 2 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 94610602260
                                COOLANT PIPE FEED
                                from £183.49
                                from £183.49
                                water tube Genuine Porsche Part - New (to order)
                                # 2
                                MPN: 99970182540
                                O-RING 19,6 X 3,53
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 3
                                MPN: 90038500901
                                HEXAGON HEAD BOLT BM 6 X 16
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 3
                                MPN: 90038504101
                                HEXAGON HEAD BOLT BM 6 X 12
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 4
                                MPN: 94610645760
                                Coolant hose feed
                                from £26.51
                                from £26.51
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 99951265809
                                HOSE CLAMP B 27 X 12
                                from £2.29
                                from £2.29
                                HOSE CLAMP Genuine Porsche Part - New In stock
                                # 6
                                MPN: 99951265609
                                HOSE CLAMP B 25 X 12
                                from £2.29
                                from £2.29
                                Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                # 7
                                MPN: 94610642160
                                COOLANT PIPE RETURN
                                from £54.01
                                from £54.01
                                water tube Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 99907334401
                                FLAT ROUND HEAD BOLT M 6 X 20
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 9
                                MPN: 94610605161
                                COOLANT HOSE RETURN (COMPLETE)
                                from £63.41
                                from £63.41
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 10
                                MPN: 99951265809
                                HOSE CLAMP B 27 X 12
                                from £2.29
                                from £2.29
                                HOSE CLAMP Genuine Porsche Part - New In stock
                                # 11
                                MPN: 99951265609
                                HOSE CLAMP B 25 X 12
                                from £2.29
                                from £2.29
                                Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                # 12
                                MPN: 99951268609
                                HOSE CLAMP B 17 X 12
                                from £2.29
                                from £2.29
                                HOSE CLAMP - B 17 X 12 - FOR - PLUG - AIR DUCT Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 7PP121224
                                RETAINER FOR COOLANT HOSE
                                RETAINER FOR COOLANT HOSE
                                RETAINER FOR COOLANT Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 7PP121224A
                                RETAINER FOR COOLANT HOSE
                                from £11.15
                                from £11.15
                                RETAINER FOR COOLANT Genuine Porsche Part - New (to order)
                                # 14
                                MPN: N 10576901
                                HOSE BRACKET
                                from £0.95
                                from £0.95
                                BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                                # 15
                                MPN: 99907390231
                                FILLISTER HD. BOLT ALUMINIUM M 6 X 16
                                from £0.97
                                from £0.97
                                FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                # 16
                                -
                                RETURN LINE EXHAUST GAS TURBOCHARGER SEE ILLUSTRATION: 202-096
