107-065 - Charge air cooler pressure pipe

Porsche 2010 (Cayenne E1 9PA) Charge air cooler pressure pipe Parts Diagram

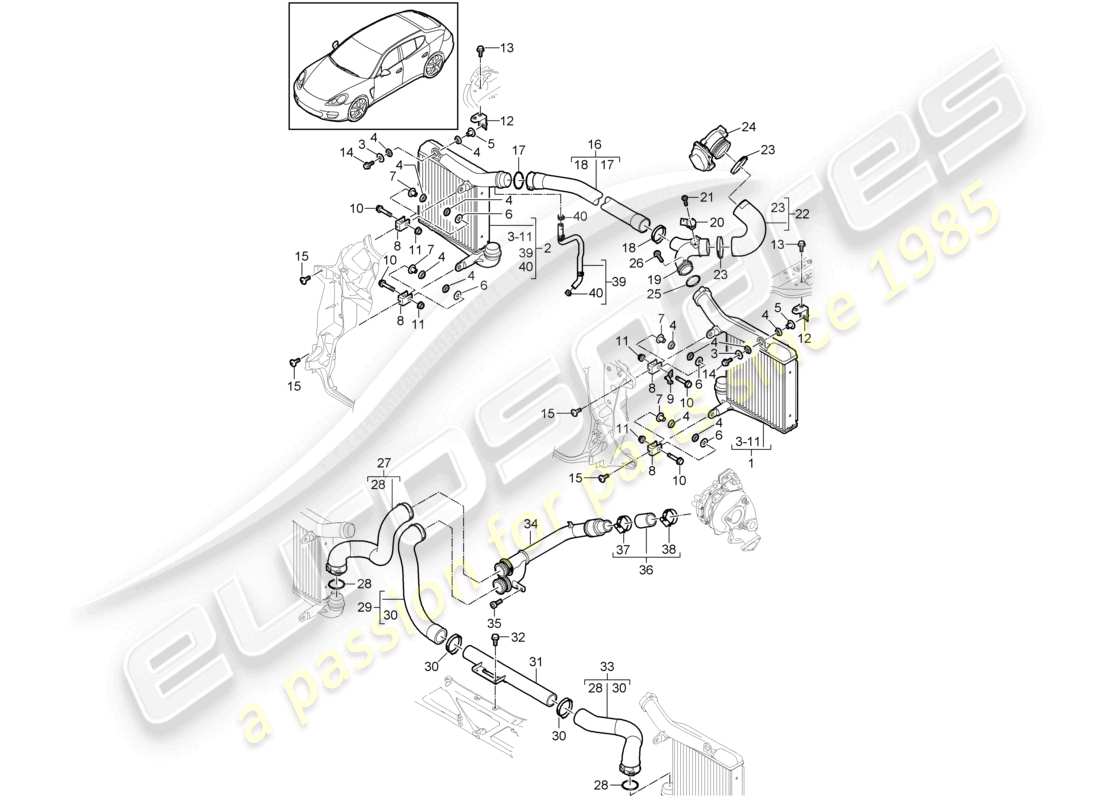

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 97011020935
                                                      Charge air cooler left See technical information See main group 2 2143 60/13
                                                      Charge air cooler left See technical information See main group 2 2143 60/13
                                                      CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 1
                                                      MPN: 97011020940
                                                      Charge air cooler left See technical information See main group 2 2143 60/13
                                                      from £1,037.82
                                                      from £1,037.82
                                                      CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 97011021035
                                                      Charge air cooler right See technical information See main group 2 2143 60/13
                                                      Charge air cooler right See technical information See main group 2 2143 60/13
                                                      CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 97011021041
                                                      Charge air cooler right See technical information See main group 2 2143 60/13
                                                      from £1,037.82
                                                      from £1,037.82
                                                      CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 3
                                                      MPN: 97011040800
                                                      WASHER
                                                      from £3.31
                                                      from £3.31
                                                      WASHER Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 7P0253147B
                                                      RUBBER BUSH
                                                      from £11.70
                                                      from £11.70
                                                      RUBBER BUSH Genuine Porsche Part - New (to order)
                                                      # 5
                                                      MPN: 97011040700
                                                      SLEEVE
                                                      from £5.47
                                                      from £5.47
                                                      SLEEVE Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 97011040600
                                                      SLEEVE SHORT
                                                      from £2.75
                                                      from £2.75
                                                      SLEEVE Genuine Porsche Part - New (to order)
                                                      # 7
                                                      MPN: 97011040500
                                                      SLEEVE LONG
                                                      from £2.95
                                                      from £2.95
                                                      SLEEVE Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 97011040430
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      from £10.26
                                                      from £10.26
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 9
                                                      MPN: 97011040330
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      from £10.26
                                                      from £10.26
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: N 10662001
                                                      HEX COLLARED BOLT M 8 X 40
                                                      from £1.00
                                                      from £1.00
                                                      BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                                      # 11
                                                      MPN: N 10609201
                                                      HEXAGON COLLAR NUT M 8
                                                      from £0.53
                                                      from £0.53
                                                      shouldered hex. nut Genuine Porsche Part - New (to order)
                                                      HEXAGON FLANGE NUT M8 Genuine Lamborghini - New In stock
                                                      # 12
                                                      MPN: 97011040900
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 97011040901
                                                      BRACKET FOR CHARGE AIR COOLER D >>- MJ 2013
                                                      from £14.17
                                                      from £14.17
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 97011040970
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      BRACKET FOR CHARGE AIR COOLER
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 97011040971
                                                      BRACKET FOR CHARGE AIR COOLER D - MJ 2014>>
                                                      from £14.59
                                                      from £14.59
                                                      BRACKET FOR CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 90037803501
                                                      HEXAGON BOLT M 6 X 16
                                                      from £0.91
                                                      from £0.91
                                                      screw, hex. hd. - M 6 X 16 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 90037817701
                                                      HEXAGON BOLT AM 6 X 30
                                                      from £1.80
                                                      from £1.80
                                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 99907398130
                                                      FILLISTER HD. BOLT ALUMINIUM M 6 X 14
                                                      FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                      # 16
                                                      MPN: 97011017430
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £92.85
                                                      from £92.85
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 16
                                                      MPN: 97011017435
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £147.58
                                                      from £147.58
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 97011080302
                                                      SEAL RING
                                                      from £5.50
                                                      from £5.50
                                                      SEAL RING Genuine Porsche Part - New (to order)
                                                      # 18
                                                      MPN: N 10619801
                                                      HOSE CLAMP 45 - 65 X 12
                                                      from £6.90
                                                      from £6.90
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      HOSE CLAMP Genuine Lamborghini - New (to order)
                                                      # 19
                                                      MPN: 97011017530
                                                      PRESSURE PIPE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £146.28
                                                      from £146.28
                                                      PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                      # 19
                                                      MPN: 97011017535
                                                      PRESSURE PIPE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £146.28
                                                      from £146.28
                                                      PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 03G906051E
                                                      PRESSURE SENSOR
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £75.36
                                                      from £75.36
                                                      PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 03K906051
                                                      PRESSURE SENSOR
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £75.74
                                                      from £75.74
                                                      PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 99907327009
                                                      FILLISTER HD. BOLT M 5 X 20
                                                      from £1.62
                                                      from £1.62
                                                      FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 97011017630
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £61.74
                                                      from £61.74
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 97011017635
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £61.74
                                                      from £61.74
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 23
                                                      MPN: N 10544401
                                                      HOSE CLAMP 60 - 80 X 12
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £7.30
                                                      from £7.30
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      # 23
                                                      MPN: N 10731801
                                                      HOSE CLAMP 70 - 90 X 12
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £9.97
                                                      from £9.97
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      HOSE CLAMP Genuine Lamborghini - New (to order)
                                                      # 24
                                                      -
                                                      THROTTLE VALVE ADAPTER SEE ILLUSTRATION, ITEM: 107-057,21
                                                      # 25
                                                      MPN: 99970766240
                                                      O-RING 50 X 3,5
                                                      from £6.08
                                                      from £6.08
                                                      O-RING Genuine Porsche Part - New (to order)
                                                      # 26
                                                      MPN: N 10323103
                                                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M 6 X 20
                                                      from £3.59
                                                      from £3.59
                                                      SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 97011016430
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 27
                                                      MPN: 97011016435
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £284.01
                                                      from £284.01
                                                      This part replaces part number 97011016430
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 97011016435
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £284.01
                                                      from £284.01
                                                      This part replaces part number 97011016430
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 28
                                                      MPN: 97011080302
                                                      SEAL RING
                                                      from £5.50
                                                      from £5.50
                                                      SEAL RING Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 97011016130
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 97011016135
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £83.05
                                                      from £83.05
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 97011016135
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £83.05
                                                      from £83.05
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: N 10619801
                                                      HOSE CLAMP 45 - 65 X 12
                                                      from £6.90
                                                      from £6.90
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      HOSE CLAMP Genuine Lamborghini - New (to order)
                                                      # 31
                                                      MPN: 97011016230
                                                      PRESSURE PIPE
                                                      from £83.05
                                                      from £83.05
                                                      PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: 99921711601
                                                      HEXAGON BOLT M 6 X 16
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 33
                                                      MPN: 97011016330
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE
                                                      from £59.56
                                                      from £59.56
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 33
                                                      MPN: 97011016335
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £83.05
                                                      from £83.05
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 33
                                                      MPN: 97011016335
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £83.05
                                                      from £83.05
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 34
                                                      MPN: 059145731DD
                                                      PRESSURE PIPE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £188.18
                                                      from £188.18
                                                      PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                      # 34
                                                      MPN: 97011017836
                                                      PRESSURE PIPE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £160.45
                                                      from £160.45
                                                      PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                      # 35
                                                      MPN: N 10335206
                                                      HEXAGON SOCKET FLAT HEAD BOLT M 6 X 12
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £0.78
                                                      from £0.78
                                                      HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                      HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                      # 35
                                                      MPN: N 10335206
                                                      HEXAGON SOCKET FLAT HEAD BOLT M 6 X 12
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £0.78
                                                      from £0.78
                                                      HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                      HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                      # 36
                                                      MPN: 059145737A
                                                      PRESSURE HOSE
                                                      CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016)
                                                      from £35.06
                                                      from £35.06
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 36
                                                      MPN: 97011005936
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 36
                                                      MPN: 97011005937
                                                      PRESSURE HOSE
                                                      CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
                                                      from £27.31
                                                      from £27.31
                                                      PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                      # 37
                                                      MPN: N 10734901
                                                      HOSE CLAMP 45 - 65 X 12
                                                      from £9.70
                                                      from £9.70
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      HOSE CLAMP Genuine Lamborghini - New (to order)
                                                      # 38
                                                      MPN: N 10735601
                                                      HOSE CLAMP 45 - 65 X 12
                                                      from £9.70
                                                      from £9.70
                                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                                      HOSE CLAMP Genuine Lamborghini - New (to order)
                                                      # 39
                                                      MPN: 97011031641
                                                      connecting line
                                                      from £83.88
                                                      from £83.88
                                                      connecting line Genuine Porsche Part - New (to order)
                                                      # 40
                                                      MPN: 99951268609
                                                      HOSE CLAMP B 17 X 12
                                                      from £2.29
                                                      from £2.29
                                                      HOSE CLAMP - B 17 X 12 - FOR - PLUG - AIR DUCT Genuine Porsche Part - New (to order)
