porsche 2010 (cayenne e1 9pa) rear end parts diagram

801-030 - REAR END

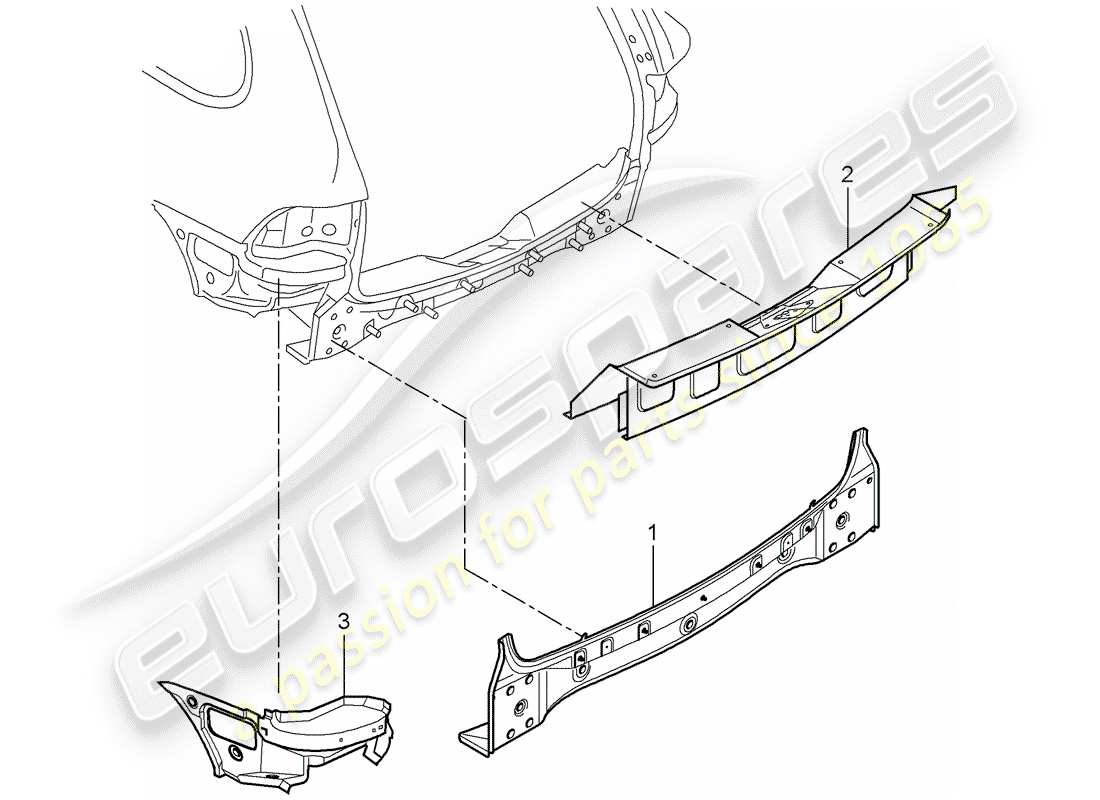

Porsche 2010 (Cayenne E1 9PA) Rear end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 1
        MPN: 95550130301GRV
        CROSS PANEL - PRIMED
        from £649.72
        from £649.72
        This part replaces part number 95550130301
        # 2
        MPN: 95550131102GRV
        LOCK CARRIER - PRIMED
        from £199.14
        from £199.14
        This part replaces part number 95550131102
        # 3
        MPN: 95550274500GRV
        RETAINER FOR BUMPER LEFT ALSO USE: 1X 000 043 207 67 1X 000 043 305 51 - PRIMED
        from £34.54
        from £34.54
        This part replaces part number 95550274500
        # 3
        MPN: 95550274600GRV
        RETAINER FOR BUMPER RIGHT ALSO USE: 1X 000 043 207 67 1X 000 043 305 51 - PRIMED
        from £34.54
        from £34.54
        This part replaces part number 95550274600
        # 3
        MPN: 00004320485
        CAVITY PRESERVATIVE AGENT 400 ML
        # 3
        MPN: 95550418700
        BUNGS 20 MM
        from £1.14
        from £1.14
        # 3
        MPN: 95551218800
        WATER DRAIN VALVE 20 MM
        from £5.68
        from £5.68
        # 3
        MPN: 95550418200
        BUNGS 20 MM
        from £0.56
        from £0.56
