CUDB (4.2 Litre 8 Cyliner Engine (382 Horsepower / 281 Kilowatt with Engine Code: CUDB and installed 05/2012-05/2014) | CUDC (4.2 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: CUDC and installed 05/2014-05/2018)
porsche 2017 (cayenne e2 92a) high pressure pump parts diagram

107-047 - high pressure pump

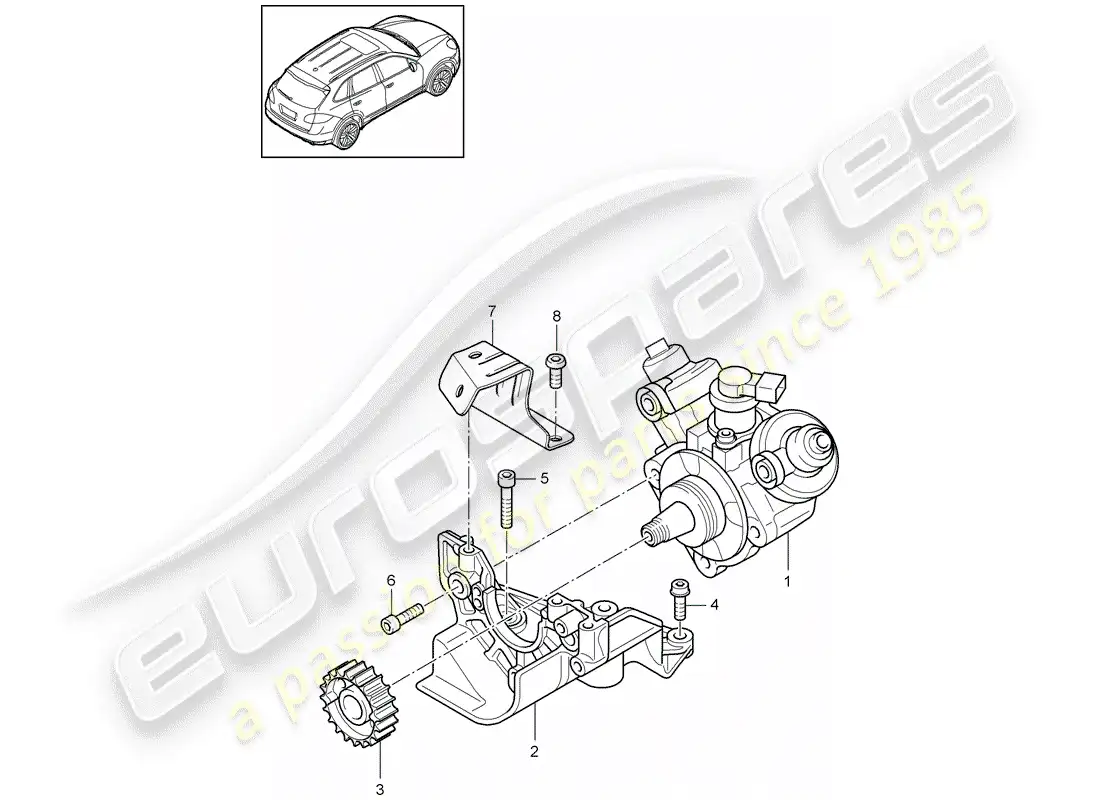

Porsche 2017 (Cayenne E2 92A) high pressure pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 95811031630
                  high pressure pump
                  from £2,050.23
                  from £2,050.23
                  high pressure pump Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 95811015000
                  Console
                  from £171.44
                  from £171.44
                  BRACKET Genuine Porsche Part - New (to order)
                  # 3
                  -
                  TOOTHED BELT PULLEY SEE ILLUSTRATION, ITEM: 103-095,3
                  # 4
                  MPN: N 10686001
                  flat round head bolt M8X20
                  from £1.08
                  from £1.08
                  SCREW, ROUND HD Genuine Porsche Part - New (to order)
                  # 5
                  MPN: N 91104701
                  SOCKET HEAD BOLT WITH INNER M8X80 MULTIPOINT HEAD
                  from £3.07
                  from £3.07
                  BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                  TRIPLE SQUARE BOLT M8X80 Genuine Lamborghini - New (to order)
                  # 6
                  MPN: N 91026602
                  OVAL HEAD LOCATING BOLT WITH M8X35 MULTI-POINT SOCKET HEAD
                  from £1.86
                  from £1.86
                  FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                  # 7
                  MPN: 95860684520
                  BRACKET
                  from £21.31
                  from £21.31
                  BRACKET Genuine Porsche Part - New (to order)
                  # 8
                  MPN: N 10405604
                  OVAL HEXAGON SOCKET HEAD BOLT M6X14
                  from £0.59
                  from £0.59
                  OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                  OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                  HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
