P8X1 (Headlamp washer system)
-part-diagram-904-020.webp)

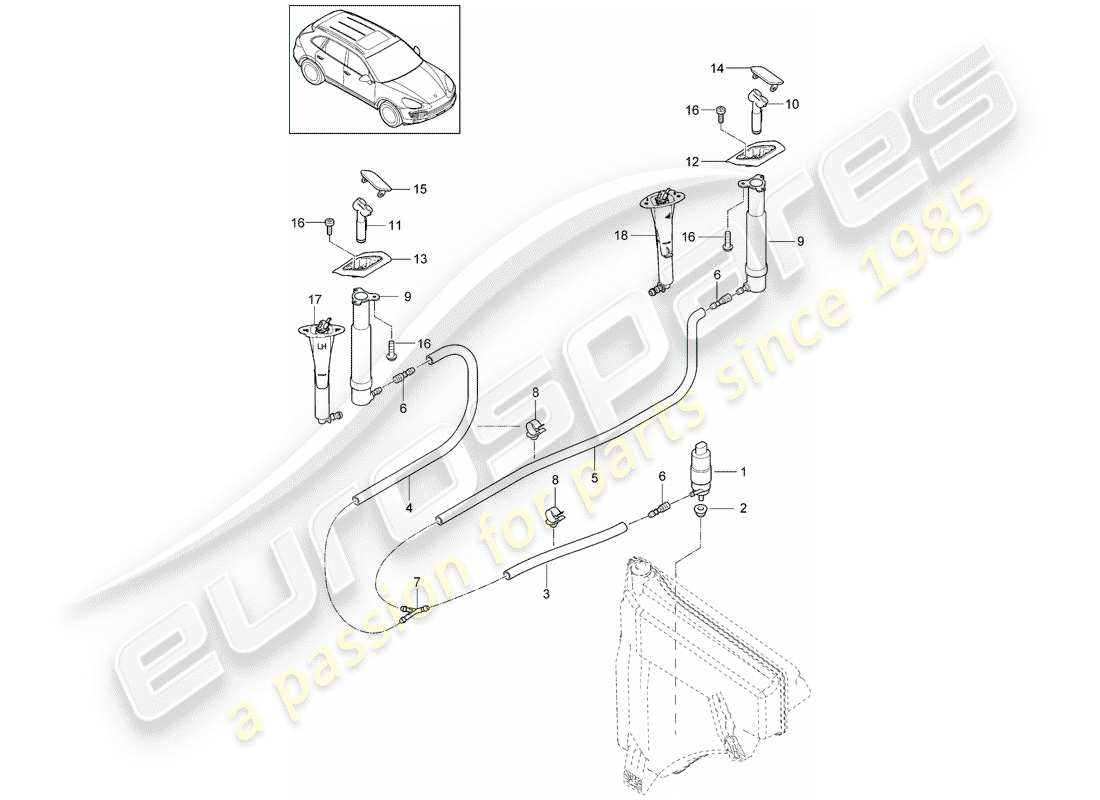

904-020 - HEADLIGHT WASHER SYSTEM
Porsche 2017 (Cayenne E2 92A) headlight washer system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 95862450200
PUMP FOR HEADLIGHT- WASHER SYSTEM
from £66.42
from £66.42
# 2
MPN: 431955465A
SEAL
from £2.30
from £2.30
# 2
MPN: 00004320479
Hose 8X3 See item: 3, 4, 5
from £11.55
from £11.55
# 3
-
SHORTEN TO: 1470 MM
# 4
-
SHORTEN TO: 255 MM
# 5
-
SHORTEN TO: 1710 MM
# 6
MPN: 95562820600
CONNECTION PIECE D >>- MJ 2014
from £11.61
from £11.61
# 6
MPN: 95562820400
CONNECTION PIECE D - MJ 2015>>
from £15.77
from £15.77
# 7
MPN: 113955975B
T-PIECE
from £6.89
from £6.89
# 8
MPN: N 90670601
CLIP
from £0.69
from £0.69
# 9
MPN: 95862818000
NOZZLE HOLDER D >>- MJ 2014
from £53.13
from £53.13
# 10
MPN: 95862816100
NOZZLE HEAD LEFT D >>- MJ 2014
from £20.15
from £20.15
# 11
MPN: 95862816200
Nozzle head right D >>- MJ 2014
from £20.15
from £20.15
# 12
MPN: 95862818500
Bracket left D >>- MJ 2014
P without D58, P without E0W
from £21.93
from £21.93
# 12
MPN: 95862818510
Bracket left D >>- MJ 2014
PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PE0W (GTS version)
from £21.93
from £21.93
# 12
MPN: 95862818520
BRACKET LEFT D - MJ 2015>>
BRACKET LEFT D - MJ 2015>>
# 12
MPN: 95862818521
BRACKET LEFT SEE TECHNICAL INFORMATION 113/14 ALSO USE: 1X 000 043 300 47 D - MJ 2015>>
from £21.93
from £21.93
# 12
MPN: 00004330047
Adhesive set adhesive Included emulsion tube 5 point D - MJ 2015>>
Supersession
Supersession
# 13
MPN: 95862818600
Bracket right D >>- MJ 2014
P without D58, P without E0W
from £21.93
from £21.93
# 13
MPN: 95862818610
Bracket right D >>- MJ 2014
PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PE0W (GTS version)
from £21.93
from £21.93
# 13
MPN: 95862818620
BRACKET RIGHT D - MJ 2015>>
BRACKET RIGHT D - MJ 2015>>
# 13
MPN: 95862818621
BRACKET RIGHT SEE TECHNICAL INFORMATION 113/14 ALSO USE: 1X 000 043 300 47 D - MJ 2015>>
from £21.93
from £21.93
# 13
MPN: 00004330047
Adhesive set adhesive Included emulsion tube 5 point D - MJ 2015>>
Supersession
Supersession
# 14
MPN: 95862830100G2X
COVER PANEL LEFT D >>- MJ 2014 - PRIMED
from £22.99
from £22.99
This part replaces part number 95862830100
# 14
MPN: 95862830100G2X
COVER PANEL LEFT D >>- MJ 2014 - PRIMED
from £22.99
from £22.99
This part replaces part number 95862830100
# 14
MPN: 95862830300G2X
COVER PANEL LEFT D >>- MJ 2014 - PRIMED
from £23.18
from £23.18
This part replaces part number 95862830300
# 14
MPN: 95850533300G2X
COVER PANEL LEFT HEADLIGHT WASHER SYSTEM D - MJ 2015>>- PRIMED
from £16.65
from £16.65
This part replaces part number 95850533300
# 15
MPN: 95862830200G2X
COVER PANEL RIGHT D >>- MJ 2014 - PRIMED
from £22.99
from £22.99
This part replaces part number 95862830200
# 15
MPN: 95862830200G2X
COVER PANEL RIGHT D >>- MJ 2014 - PRIMED
from £22.99
from £22.99
This part replaces part number 95862830200
# 15
MPN: 95862830400G2X
COVER PANEL RIGHT - PRIMED
from £23.18
from £23.18
This part replaces part number 95862830400
# 15
MPN: 95850533400G2X
COVER PANEL RIGHT HEADLIGHT WASHER SYSTEM D - MJ 2015>>- PRIMED
from £16.65
from £16.65
This part replaces part number 95850533400
# 16
MPN: WHT003954
Hexagon socket flat 5X16 head bolt
from £0.52
from £0.52
# 17
MPN: 95862816110
NOZZLE HEAD LEFT D - MJ 2015>>
P without B0M
from £46.90
from £46.90
# 17
MPN: 95862816120
NOZZLE HEAD LEFT D - MJ 2015>>
PB0M (Component set for AGCC countries)
from £46.90
from £46.90
# 18
MPN: 95862816210
NOZZLE HEAD RIGHT D - MJ 2015>>
P without B0M
from £46.90
from £46.90
# 18
MPN: 95862816220
NOZZLE HEAD RIGHT D - MJ 2015>>
PB0M (Component set for AGCC countries)
from £46.90
from £46.90
