porsche 2020 (cayenne e3 9ya/9yb) cylinder head parts diagram

103-010 - CYLINDER HEAD

Porsche 2020 (Cayenne E3 9YA/9YB) Cylinder head Parts Diagram

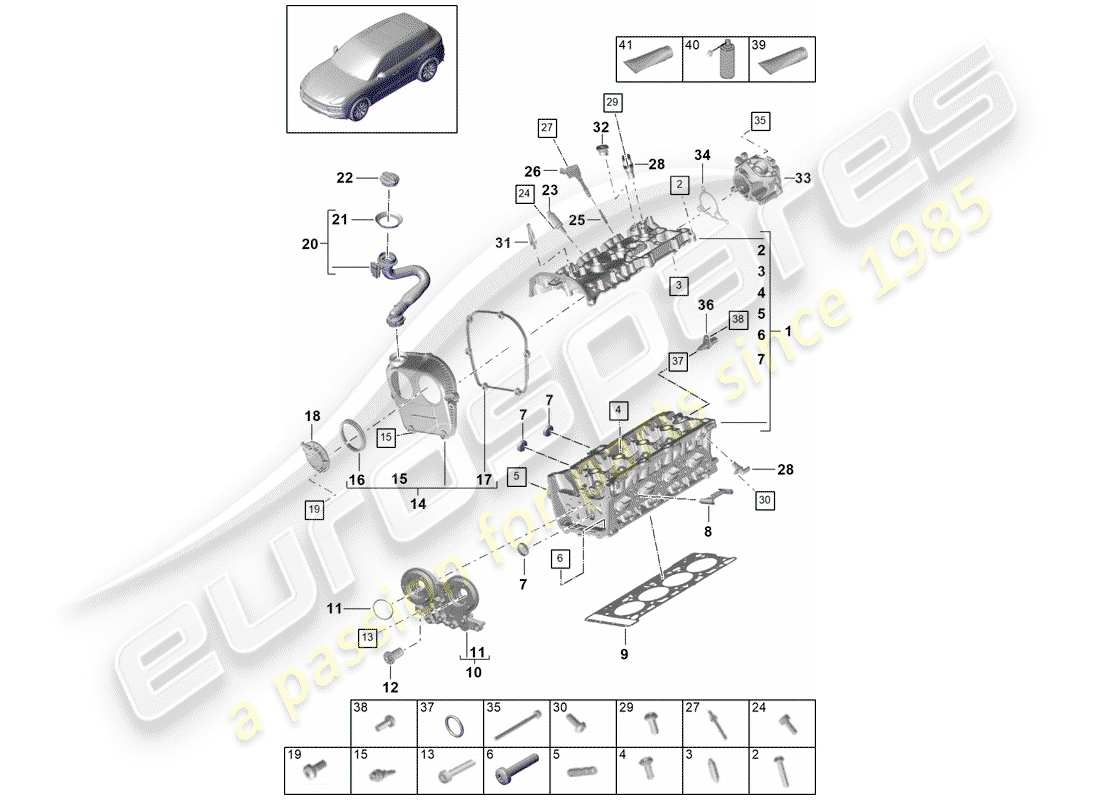

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Key
                                                                              Price
                                                                              # 1
                                                                              MPN: PAC103063A
                                                                              Complete cylinder head (without camshaft)
                                                                              from £3,008.23
                                                                              from £3,008.23
                                                                              COMPLETE CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                                              # 2
                                                                              MPN: N 10554005
                                                                              ROUND HD. SCREW M6X35
                                                                              ROUND HD. SCREW M6X35
                                                                              from £1.12
                                                                              from £1.12
                                                                              Genuine Porsche Part (no longer available to order)
                                                                              ROUND HD. SCREW Genuine Bentley Part - New (to order)
                                                                              SCREW M6X35 Genuine Lamborghini - New In stock
                                                                              # 2
                                                                              MPN: PAF105540
                                                                              ROUND HD. SCREW M6X35
                                                                              from £2.04
                                                                              from £2.04
                                                                              This part replaces part number N 10554005
                                                                              ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                              # 3
                                                                              MPN: 95510425100
                                                                              DOWEL SLEEVE M8X32
                                                                              from £8.73
                                                                              from £8.73
                                                                              SLEEVE Genuine Porsche Part - New (to order)
                                                                              # 4
                                                                              MPN: 9A700530502
                                                                              SOCKET HEAD BOLT M10X115X85
                                                                              from £3.93
                                                                              from £3.93
                                                                              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                                              # 5
                                                                              MPN: N 91231701
                                                                              THREADED PIN M8X25 EXHAUST GAS TURBOCHARGER
                                                                              from £0.78
                                                                              from £0.78
                                                                              STUD Genuine Porsche Part - New (to order)
                                                                              # 6
                                                                              MPN: N 10156206
                                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X30 D >>- 17.03.2022
                                                                              from £0.73
                                                                              from £0.73
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                              HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New (to order)
                                                                              # 6
                                                                              MPN: N 10156207
                                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X30 D - 18.03.2022>>
                                                                              from £0.57
                                                                              from £0.57
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                              HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New (to order)
                                                                              # 7
                                                                              MPN: PAF008983
                                                                              END CAP 36,5
                                                                              from £7.01
                                                                              from £7.01
                                                                              SEALING CAP Genuine Porsche Part - New (to order)
                                                                              # 8
                                                                              MPN: 95810341100
                                                                              PARTITION
                                                                              from £7.19
                                                                              from £7.19
                                                                              PARTITION Genuine Porsche Part - New (to order)
                                                                              # 9
                                                                              MPN: 95810338310
                                                                              CYLINDER HEAD GASKET
                                                                              from £75.63
                                                                              from £75.63
                                                                              CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                                              # 10
                                                                              MPN: 95810314410
                                                                              BRACKET ALSO USE: 6X N 104 514 09 D >>- 17.01.2022
                                                                              from £113.85
                                                                              from £113.85
                                                                              BRACKET Genuine Porsche Part - New (to order)
                                                                              # 10
                                                                              MPN: PAB103144
                                                                              BRACKET ALSO USE: 6X N 104 514 05 D - 18.01.2022>>
                                                                              from £149.56
                                                                              from £149.56
                                                                              BRACKET Genuine Porsche Part - New (to order)
                                                                              # 11
                                                                              MPN: 9A700721200
                                                                              O-RING 52X3
                                                                              from £3.38
                                                                              from £3.38
                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                              # 12
                                                                              MPN: PAC109257
                                                                              CONTROL VALVE
                                                                              CONTROL VALVE
                                                                              from £42.75
                                                                              from £42.75
                                                                              CONTROL VALVE Genuine Porsche Part - New (to order)
                                                                              # 12
                                                                              MPN: PAB109257A
                                                                              CONTROL VALVE
                                                                              from £51.92
                                                                              from £51.92
                                                                              CONTROL VALVE Genuine Porsche Part - New (to order)
                                                                              # 13
                                                                              MPN: N 91232801
                                                                              SOCKET HEAD BOLT WITH M6X52 INNER MULTIPOINT HEAD
                                                                              from £1.15
                                                                              from £1.15
                                                                              SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                                              # 14
                                                                              MPN: 95810326910
                                                                              cover for timing case upper
                                                                              from £83.07
                                                                              from £83.07
                                                                              timing case cover Genuine Porsche Part - New (to order)
                                                                              # 15
                                                                              MPN: 95810534301
                                                                              SECURING ELEMENT
                                                                              from £8.75
                                                                              from £8.75
                                                                              ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
                                                                              # 16
                                                                              MPN: 95810358300
                                                                              SEAL MAGNET
                                                                              from £12.21
                                                                              from £12.21
                                                                              GASKET Genuine Porsche Part - New (to order)
                                                                              # 17
                                                                              MPN: 95810348300
                                                                              SEAL
                                                                              from £23.26
                                                                              from £23.26
                                                                              GASKET Genuine Porsche Part - New (to order)
                                                                              # 18
                                                                              MPN: 95810925911
                                                                              MAGNET
                                                                              from £64.95
                                                                              from £64.95
                                                                              MAGNET Genuine Porsche Part - New (to order)
                                                                              # 19
                                                                              MPN: N 10451409
                                                                              HEXAGON SOCKET FLAT HEAD M6X16 BOLT, SELF-LOCKING D >>- 17.01.2022 ONLY TO BE USED FOR: 958 103 144 10
                                                                              from £0.79
                                                                              from £0.79
                                                                              BOLT, WITH HEX. SOCKET HD. Genuine Porsche Part - New (to order)
                                                                              HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING Genuine Bentley Part - New (to order)
                                                                              EXAGON SOCKET Genuine Lamborghini - New (to order)
                                                                              # 19
                                                                              MPN: N 10451405
                                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16 D - 18.01.2022>>ONLY TO BE USED FOR: PAB 103 144
                                                                              from £0.70
                                                                              from £0.70
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                              # 20
                                                                              MPN: PAB115301
                                                                              OIL FILLER PIPE
                                                                              from £54.46
                                                                              from £54.46
                                                                              oil filler tube Genuine Porsche Part - New (to order)
                                                                              # 21
                                                                              MPN: 9A713328703
                                                                              SEAL RING
                                                                              from £9.17
                                                                              from £9.17
                                                                              SEAL RING Genuine Porsche Part - New (to order)
                                                                              # 22
                                                                              MPN: 95810348500
                                                                              END CAP WITH SEAL
                                                                              from £15.02
                                                                              from £15.02
                                                                              END CAP WITH SEAL Genuine Porsche Part - New (to order)
                                                                              # 23
                                                                              MPN: 95810369702
                                                                              THROTTLE CONTROL ELEMENT
                                                                              THROTTLE CONTROL ELEMENT
                                                                              from £24.44
                                                                              from £24.44
                                                                              ACTUATOR Genuine Porsche Part - New (to order)
                                                                              # 24
                                                                              MPN: N 10622502
                                                                              Socket head bolt with M5X12 hexagon socket head
                                                                              from £0.55
                                                                              from £0.55
                                                                              BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                                              SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                                                                              # 25
                                                                              -
                                                                              SPARK PLUG SEE ILLUSTRATION: 103-020
                                                                              # 26
                                                                              -
                                                                              SPARK PLUG SEE ILLUSTRATION: 103-020
                                                                              # 27
                                                                              MPN: PAF912292
                                                                              DOUBLE STUD WITH HEXAGON DRIVE M6GFX45-M6X12
                                                                              from £3.74
                                                                              from £3.74
                                                                              DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                              # 28
                                                                              MPN: PAE907601
                                                                              IMPULSE SENDER
                                                                              from £61.95
                                                                              from £61.95
                                                                              IMPULSE SENDER Genuine Porsche Part - New (to order)
                                                                              # 29
                                                                              MPN: N 10654902
                                                                              FLAT HEAD BOLT WITH HEXAGON M6X16 SOCKET HEAD, THREAD FORMING
                                                                              from £0.51
                                                                              from £0.51
                                                                              FLAT HEAD BOLT WITH HEXAGON Genuine Porsche Part - New (to order)
                                                                              IN-6RD-FL-KOPF-SHR Genuine Lamborghini - New (to order)
                                                                              # 30
                                                                              MPN: N 10451405
                                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                              from £0.70
                                                                              from £0.70
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                              # 31
                                                                              MPN: WHT005404
                                                                              BALL PIN M6X12
                                                                              from £2.42
                                                                              from £2.42
                                                                              BALLPIN Genuine Porsche Part - New (to order)
                                                                              BALL PIN Genuine Bentley Part - New (to order)
                                                                              # 32
                                                                              MPN: 95811541810
                                                                              SEALING CAP
                                                                              from £5.30
                                                                              from £5.30
                                                                              SEALING CAP Genuine Porsche Part - New (to order)
                                                                              # 33
                                                                              MPN: PAC145100
                                                                              Vacuum pump use if required: 1x PAC 133 054
                                                                              Vacuum pump use if required: 1x PAC 133 054
                                                                              from £272.38
                                                                              from £272.38
                                                                              VACUUM PUMP Genuine Porsche Part - New (to order)
                                                                              # 33
                                                                              MPN: PAC145100B
                                                                              VACUUM PUMP USE IF REQUIRED: PAC 133 054
                                                                              from £364.12
                                                                              from £364.12
                                                                              VACUUM PUMP Genuine Porsche Part - New (to order)
                                                                              # 34
                                                                              MPN: 95810312100
                                                                              SEAL
                                                                              from £17.58
                                                                              from £17.58
                                                                              GASKET Genuine Porsche Part - New (to order)
                                                                              # 35
                                                                              MPN: N 10739401
                                                                              BOLT,HEX.HD.WITH SHOUL.(COMBI) M6X90X70
                                                                              from £2.29
                                                                              from £2.29
                                                                              BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
                                                                              DUO HEXAGON FLANGEBM6X90X70 Genuine Lamborghini - New (to order)
                                                                              # 36
                                                                              MPN: PAB919523
                                                                              TEMPERATURE SENSOR
                                                                              from £58.66
                                                                              from £58.66
                                                                              TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                              # 37
                                                                              MPN: WHT002287B
                                                                              O-RING 5,6X2
                                                                              from £1.93
                                                                              from £1.93
                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                              O-RING Genuine Bentley Part - New (to order)
                                                                              O-RING Genuine Lamborghini - New (to order)
                                                                              # 38
                                                                              MPN: N 91096701
                                                                              OVAL HEXAGON SOCKET HEAD BOLT
                                                                              from £0.64
                                                                              from £0.64
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                              # 39
                                                                              MPN: 00004330510
                                                                              SEALANT 50ML LOCTITE 5970 (BETWEEN THE CAMSHAFT COVER AND THE CYLINDER HEAD)
                                                                              from £27.36
                                                                              from £27.36
                                                                              This part replaces part number 00004330039 - and 1 more. Click to view details
                                                                              SEALANT Genuine Porsche Part - New (to order)
                                                                              # 39
                                                                              MPN: 00004330510
                                                                              SEALANT 50ML LOCTITE 5970 TO BE USED FOR ITEM: 14
                                                                              from £27.36
                                                                              from £27.36
                                                                              This part replaces part number 00004330039 - and 1 more. Click to view details
                                                                              SEALANT Genuine Porsche Part - New (to order)
                                                                              # 40
                                                                              -
                                                                              NOT FOR THIS MODEL
                                                                              # 41
                                                                              MPN: 00004330636
                                                                              SEALANT 18ML DOBOSEAL 84-32 TO BE USED FOR ITEM: 7
                                                                              from £24.77
                                                                              from £24.77
                                                                              SEALANT Genuine Porsche Part - New (to order)
                                                                              # 42
                                                                              MPN: PAC133054
                                                                              QUICK ACTING COUPLING
                                                                              from £10.42
                                                                              from £10.42
                                                                              QUICK ACTING COUPLING Genuine Porsche Part - New (to order)
