porsche 2009 (987 cayman) oil pump parts diagram

104-000 - oil pump

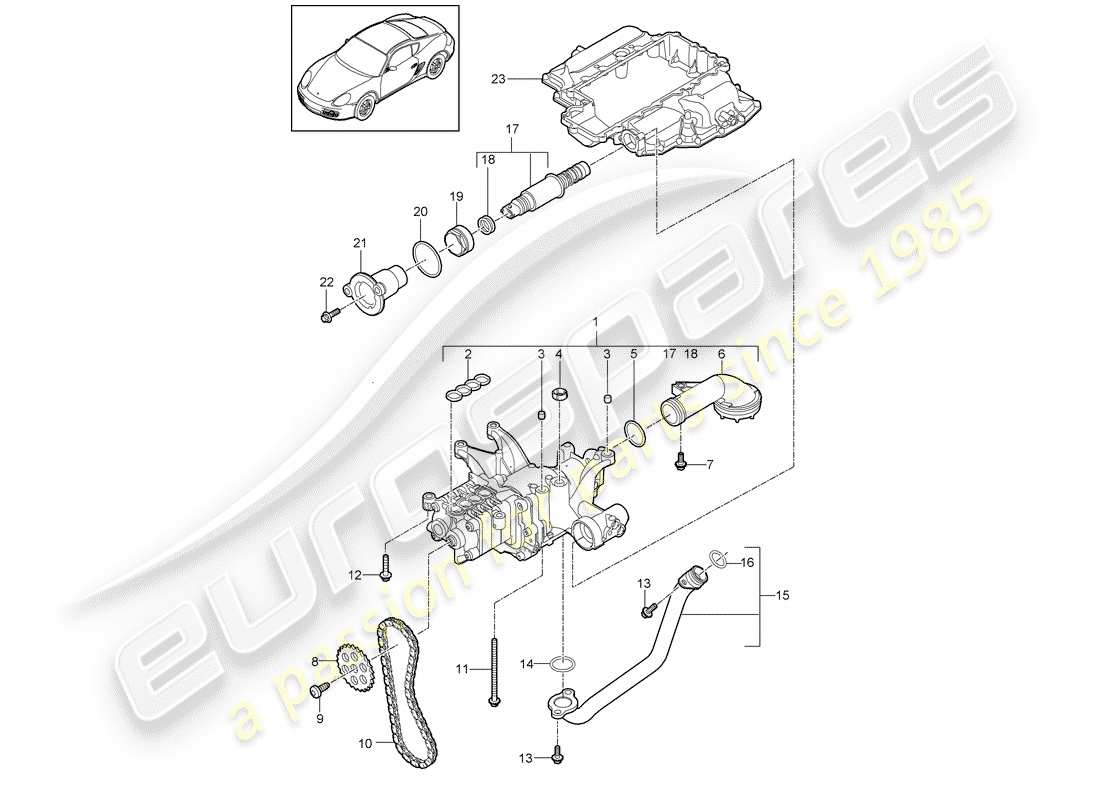

Porsche 2009 (987 Cayman) oil pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 9A110705003
                                            oil pump
                                            oil pump
                                            oil pump Genuine Porsche Part - New (to order)
                                            # 1
                                            MPN: 9A110705004
                                            oil pump
                                            oil pump
                                            oil pump Genuine Porsche Part - New (to order)
                                            # 1
                                            MPN: 9A110705005
                                            oil pump
                                            oil pump
                                            oil pump Genuine Porsche Part - New (to order)
                                            # 1
                                            MPN: 9A110705011
                                            oil pump
                                            oil pump
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 1
                                            MPN: 9A110705012
                                            oil pump
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 2
                                            MPN: 9A110737000
                                            SEAL FOR OIL PUMP WHEN USING: 9A1.107.050.03 9A1.107.050.04 9A1.107.050.05
                                            from £24.22
                                            from £24.22
                                            SEAL FOR OIL PUMP Genuine Porsche Part - New (to order)
                                            # 3
                                            MPN: 99610610350
                                            DOWEL SLEEVE 8,2 X 7,0
                                            from £1.99
                                            from £1.99
                                            SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                            # 4
                                            MPN: 9A110732700
                                            SEAL RING
                                            from £11.07
                                            from £11.07
                                            SEAL RING Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 99970737540
                                            O-RING 30,00 X 3,00
                                            from £4.52
                                            from £4.52
                                            O-RING - 30 X 3 Genuine Porsche Part - New (to order)
                                            # 6
                                            MPN: 9A110707502
                                            INTAKE MANIFOLD
                                            INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 99907310201
                                            FLAT ROUND HEAD BOLT M6 X 25
                                            from £0.91
                                            from £0.91
                                            SCREW, ROUND HD Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 9A110522502
                                            CHAIN SPROCKET OIL PUMP
                                            from £29.18
                                            from £29.18
                                            SPROCKET Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 99907338001
                                            TORX SCREW M8 X 22
                                            TORX SCREW Genuine Porsche Part - New (to order)
                                            # 10
                                            -
                                            DRIVE CHAIN OIL PUMP SEE ILLUSTRATION: 103-015
                                            # 11
                                            MPN: 90038512601
                                            TORX SCREW M6 X 95
                                            from £2.29
                                            from £2.29
                                            TORX SCREW Genuine Porsche Part - New (to order)
                                            # 12
                                            MPN: 90038504801
                                            TORX SCREW M6 X 30
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 13
                                            MPN: 90038500901
                                            HEXAGON HEAD BOLT M6 X 25
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 14
                                            MPN: 99970740941
                                            O-RING 26,00 X 3,00
                                            from £2.29
                                            from £2.29
                                            O-RING Genuine Porsche Part - New In stock
                                            # 15
                                            MPN: 9A110725001
                                            OIL PIPE OIL PUMP CRANKCASE HOUSING
                                            OIL PIPE Genuine Porsche Part - New (to order)
                                            # 16
                                            MPN: 99970757540
                                            O-RING 20,00 X 3,00
                                            from £4.52
                                            from £4.52
                                            O-RING Genuine Porsche Part - New In stock
                                            # 17
                                            MPN: 94810711301
                                            SOLENOID VALVE
                                            SOLENOID VALVE
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 17
                                            MPN: 94810711302
                                            SOLENOID VALVE
                                            SOLENOID VALVE Genuine Porsche Part - New (to order)
                                            # 17
                                            MPN: 94810711311
                                            SOLENOID VALVE
                                            from £240.27
                                            from £240.27
                                            This part replaces part number 94810711301
                                            SOLENOID VALVE Genuine Porsche Part - New (to order)
                                            # 18
                                            MPN: 99970756740
                                            O-RING 17,00 X 3,00
                                            from £2.29
                                            from £2.29
                                            O-RING Genuine Porsche Part - New In stock
                                            # 19
                                            MPN: 99926102401
                                            UNION NUT M36 X 1,0 X 12
                                            from £17.84
                                            from £17.84
                                            UNION NUT Genuine Porsche Part - New (to order)
                                            # 20
                                            MPN: 99970757040
                                            O-RING 44,00 X 3,00
                                            from £4.52
                                            from £4.52
                                            O-RING Genuine Porsche Part - New In stock
                                            # 21
                                            MPN: 9A110733001
                                            SEALING FLANGE CONTROL VALVE
                                            from £26.62
                                            from £26.62
                                            SEALING FLANGE Genuine Porsche Part - New (to order)
                                            # 22
                                            MPN: 90038501901
                                            TORX SCREW M6 X 20
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 23
                                            -
                                            OIL SUMP UPPER PART SEE ILLUSTRATION: 104-002
