porsche 2010 (987 cayman) exhaust system parts diagram

202-000 - Exhaust System

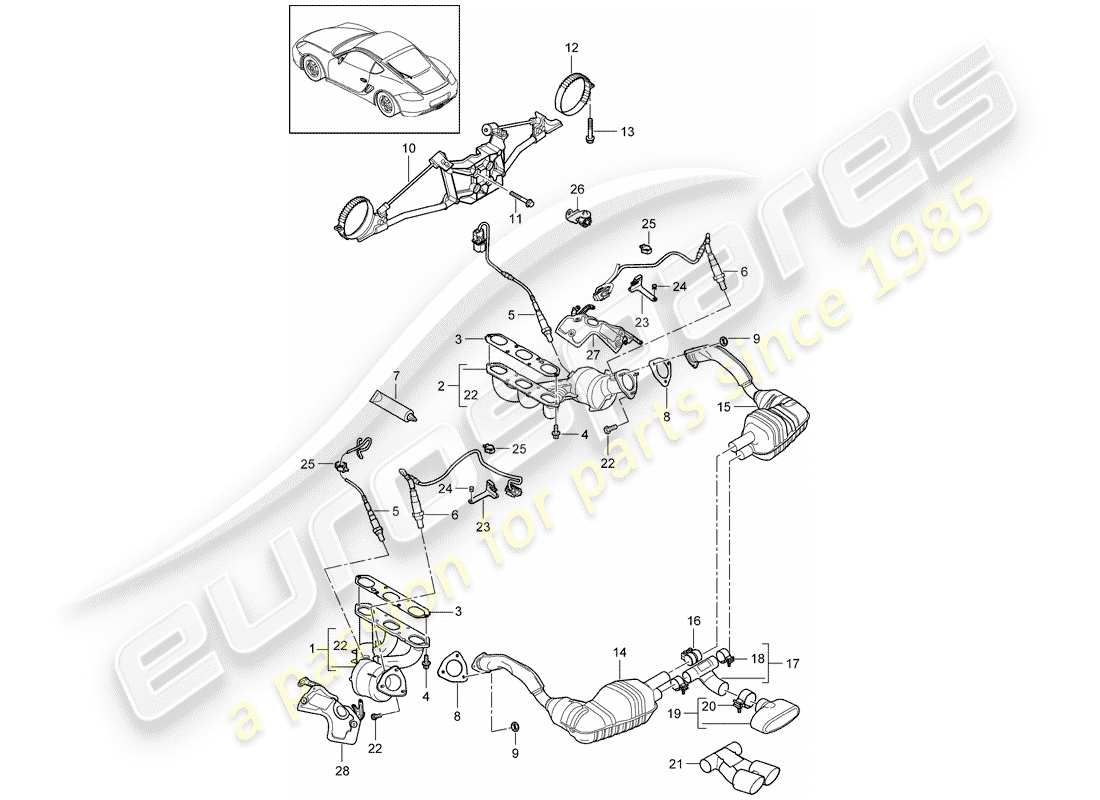

Porsche 2010 (987 Cayman) exhaust system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 98711310133
                                        EXHAUST MANIFOLDS CYLINDERS 4-6
                                        from £1,362.24
                                        from £1,362.24
                                        EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 98711310233
                                        EXHAUST MANIFOLDS CYLINDERS 1-3
                                        from £2,609.72
                                        from £2,609.72
                                        EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 99711110730
                                        SEAL EXHAUST MANIFOLDS
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 4
                                        MPN: 99907347101
                                        TORX SCREW M 8 X 21
                                        TORX SCREW Genuine Porsche Part - New (to order)
                                        # 5
                                        MPN: 9A160612301
                                        LAMBDA PROBE (IN FRONT OF CATALYST) IF NOT FITTED IN THE VEHIC., ALSO USE: 1X 997 113 209 30 LEFT 1X 987 113 208 30 RIGHT
                                        OXYGEN SENSOR Genuine Porsche Part - New (to order)
                                        # 6
                                        MPN: 9A160612400
                                        LAMBDA PROBE (DOWNSTR. OF CATALYTIC CONV.)
                                        from £237.36
                                        from £237.36
                                        OXYGEN SENSOR Genuine Porsche Part - New (to order)
                                        # 7
                                        MPN: 00004320707
                                        grease for lambda probe
                                        grease - for oxygen sensor Genuine Porsche Part - New (to order)
                                        # 8
                                        MPN: 99711111300
                                        SEAL
                                        from £7.66
                                        from £7.66
                                        GASKET Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 90091000303
                                        HEXAGON NUT M 8
                                        from £2.29
                                        from £2.29
                                        hex. nut - M 8 Genuine Porsche Part - New In stock
                                        # 10
                                        MPN: 98711104430
                                        RETAINER FOR EXHAUST SYSTEM
                                        A120 (2.9 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (330 Horsepower / 243 Kilowatt with Engine Code: A121 and installed 05/2011-05/2012) with, P250 (PDK transmission (dual clutch))
                                        from £384.19
                                        from £384.19
                                        BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: 98711104530
                                        RETAINER FOR EXHAUST SYSTEM
                                        A120 (2.9 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (330 Horsepower / 243 Kilowatt with Engine Code: A121 and installed 05/2011-05/2012) with, P480 (6-speed manual transmission)
                                        from £384.19
                                        from £384.19
                                        BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 90038501101
                                        TORX SCREW M 10 X 45
                                        P250 (PDK transmission (dual clutch))
                                        from £2.29
                                        from £2.29
                                        TORX SCREW Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 90038509601
                                        TORX SCREW M 8 X 60
                                        P480 (6-speed manual transmission)
                                        from £2.17
                                        from £2.17
                                        TORX SCREW Genuine Porsche Part - New In stock
                                        # 12
                                        MPN: 98711121001
                                        CLIP
                                        from £28.27
                                        from £28.27
                                        CLAMP Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 90037810801
                                        HEXAGON BOLT
                                        from £2.29
                                        from £2.29
                                        screw, hex. hd. - AM 8 X 35 - D - MJ 2001>> Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711311731
                                        Silencer left cylinders 4-6
                                        Silencer left cylinders 4-6
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711311732
                                        Silencer left cylinders 4-6
                                        P170 (Acoustic package RoW) | P171 (Acoustic package USA) | P without XLF
                                        from £864.54
                                        from £864.54
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711313131
                                        Silencer left cylinders 4-6
                                        Silencer left cylinders 4-6
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711313132
                                        Silencer left cylinders 4-6
                                        P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £2,061.22
                                        from £2,061.22
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 987113131AX
                                        Silencer left cylinders 4-6
                                        P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711314130
                                        Silencer left cylinders 4-6
                                        Cayman R, P170 (Acoustic package RoW) | P171 (Acoustic package USA) | P without XLF
                                        from £1,040.27
                                        from £1,040.27
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 98711314140
                                        Silencer left cylinders 4-6
                                        Cayman R, P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £615.68
                                        from £615.68
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 987113141AX
                                        Silencer left cylinders 4-6
                                        Cayman R, P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £1,033.01
                                        from £1,033.01
                                        MAIN EXHAUST MUFFLER Genuine Porsche Part - New (to order)
                                        # 14
                                        -

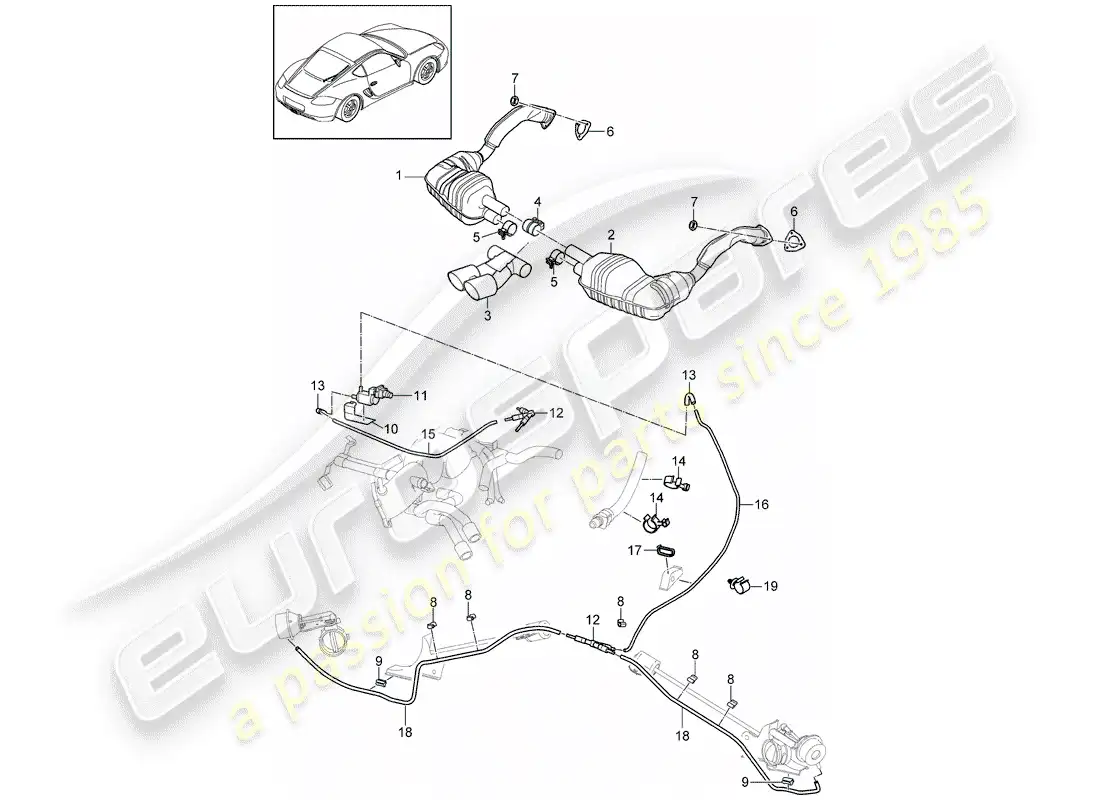

                                        SILENCER LEFT CYLINDERS 4-6 SEE ILLUSTRATION: 202-005
                                        PXLF (Sports exhaust system) | Psports, Pversion
                                        # 15
                                        MPN: 98711311831
                                        Silencer right cylinders 1-3
                                        Silencer right cylinders 1-3
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 98711311832
                                        Silencer right cylinders 1-3
                                        P170 (Acoustic package RoW) | P171 (Acoustic package USA) | P without XLF
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 98711313231
                                        Silencer right cylinders 1-3
                                        Silencer right cylinders 1-3
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 98711313232
                                        Silencer right cylinders 1-3
                                        P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £789.78
                                        from £789.78
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 987113132AX
                                        Silencer right cylinders 1-3
                                        P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £1,648.99
                                        from £1,648.99
                                        MAIN EXHAUST MUFFLER Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 98711314230
                                        Silencer right cylinders 1-3
                                        Cayman R, P170 (Acoustic package RoW) | P171 (Acoustic package USA) | P without XLF
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 987113142AX
                                        Silencer right cylinders 1-3
                                        Cayman R, P170 (Acoustic package RoW) | P171 (Acoustic package USA) | P without XLF
                                        from £1,033.01
                                        from £1,033.01
                                        MAIN EXHAUST MUFFLER Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 98711314240
                                        Silencer right cylinders 1-3
                                        Cayman R, P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £1,498.16
                                        from £1,498.16
                                        muffler - exhaust Genuine Porsche Part - New (to order)
                                        # 15
                                        MPN: 987113142BX
                                        Silencer right cylinders 1-3
                                        Cayman R, P172 (Acoustic package PAP, China, Korea) | P without XLF
                                        from £1,198.54
                                        from £1,198.54
                                        MAIN EXHAUST MUFFLER Genuine Porsche Part - New (to order)
                                        # 15
                                        -
                                        SILENCER RIGHT CYLINDERS 1-3 SEE ILLUSTRATION: 202-005
                                        PXLF (Sports exhaust system) | Psports, Pversion
                                        # 16
                                        MPN: 98711122000
                                        CLAMPING SLEEVE
                                        from £38.35
                                        from £38.35
                                        CLAMPING SLEEVE Genuine Porsche Part - New (to order)
                                        # 17
                                        MPN: 98711135330
                                        EXHAUST PIPE
                                        A120 (2.9 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) with, P without XLS, P without 178
                                        from £195.63
                                        from £195.63
                                        EXHAUST PIPE Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 00004330054
                                        CLAMP FOR EXHAUST PIPE ASSEMBLY KIT (COMPLETE)
                                        from £36.89
                                        from £36.89
                                        CLAMP Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 98711125730
                                        TAILPIPE (COMPLETE)
                                        A120 (2.9 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) with, P without XLS, P without 178
                                        from £404.94
                                        from £404.94
                                        TAILPIPE Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 00004330053
                                        CLAMP FOR TRIM ASSEMBLY KIT (COMPLETE)
                                        A120 (2.9 Litre 6 Cyliner Engine (265 Horsepower / 195 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                        from £36.89
                                        from £36.89
                                        CLAMP Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 98711125831
                                        TAILPIPE (COMPLETE)
                                        A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (330 Horsepower / 243 Kilowatt with Engine Code: A121 and installed 05/2011-05/2012) with, P without XLS, P without 178
                                        from £539.12
                                        from £539.12
                                        TAILPIPE Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 98711198130
                                        TAILPIPE (COMPLETE)
                                        PXLS (Sports tailpipe 98X)
                                        from £441.67
                                        from £441.67
                                        SPORTS TAILPIPES Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 98711125860
                                        TAILPIPE (COMPLETE)
                                        P without XLF
                                        from £588.11
                                        from £588.11
                                        TAILPIPE Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 98711125860
                                        TAILPIPE (COMPLETE)
                                        P178 (Twin tailpipes, Black)
                                        from £588.11
                                        from £588.11
                                        TAILPIPE Genuine Porsche Part - New (to order)
                                        # 21
                                        -
                                        TAILPIPE (COMPLETE) SPORT VERSION SEE ILLUSTRATION: 202-005
                                        PXLF (Sports exhaust system)
                                        # 22
                                        MPN: 90007536502
                                        Screw M 8 X 30
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 23
                                        MPN: 98760610501
                                        BRACKET CONNECTOR LAMBDA PROBE
                                        from £5.57
                                        from £5.57
                                        BRACKET Genuine Porsche Part - New (to order)
                                        # 24
                                        MPN: 99959171240
                                        SPREADER RIVET 6,0 X 12,0
                                        from £0.59
                                        from £0.59
                                        RIVET - BRACKET - 6,0 X 12,0 - D >>- MJ 2002 Genuine Porsche Part - New In stock
                                        # 25
                                        MPN: 99950707540
                                        CABLE HOLDER 3,0 - 12,0
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 26
                                        MPN: 9A160615301
                                        BRACKET
                                        from £5.12
                                        from £5.12
                                        BRACKET Genuine Porsche Part - New (to order)
                                        # 27
                                        MPN: 98711320830
                                        Heat insulation right Catalytic converter See technical manual exhaust system
                                        Heat insulation right Catalytic converter See technical manual exhaust system
                                        heat deflector Genuine Porsche Part - New (to order)
                                        # 27
                                        MPN: 99711320830
                                        Heat insulation right Catalytic converter See technical manual exhaust system
                                        from £146.74
                                        from £146.74
                                        heat deflector Genuine Porsche Part - New (to order)
                                        # 28
                                        MPN: 99711320930
                                        HEAT INSULATION LEFT CATALYTIC CONVERTER SEE TECHNICAL MANUAL EXHAUST SYSTEM
                                        from £146.74
                                        from £146.74
                                        heat deflector Genuine Porsche Part - New (to order)
