302-015 - MANUAL GEARBOX

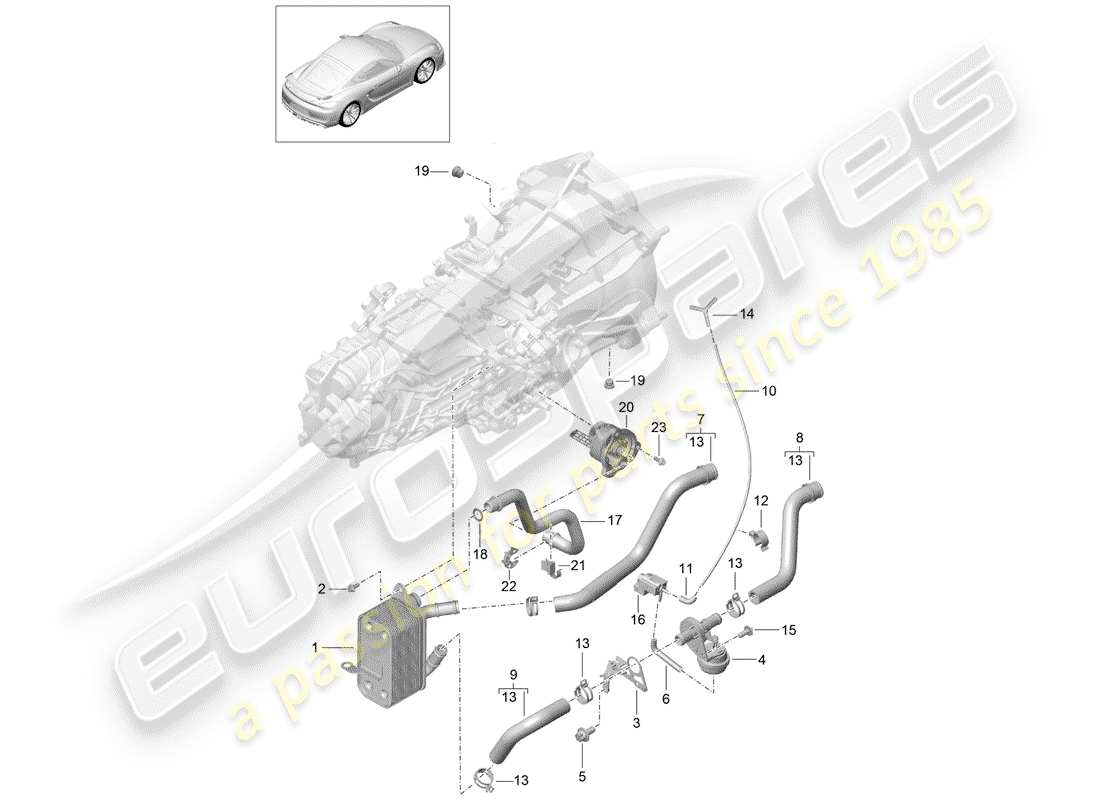

Porsche 2016 (981 Cayman GT4) MANUAL GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 98130701700
                        HEATER CORE
                        from £238.43
                        from £238.43
                        HEATER CORE Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 98130782100
                        SCREW, ROUND HD.
                        M 8 X 20
                        from £2.69
                        from £2.69
                        SCREW, ROUND HD Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 98130740100
                        BRACKET
                        DISC VALVE
                        from £9.39
                        from £9.39
                        BRACKET Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 99130757300
                        VALVE UNIT
                        Discontinued part
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 4
                        MPN: 9P1317233
                        VALVE
                        from £27.68
                        from £27.68
                        This part replaces part number 99130757300
                        VALVE Genuine Porsche Part - New In stock
                        # 5
                        MPN: 90038504101
                        HEXAGON HEAD BOLT
                        M 6 X 12
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 6
                        MPN: 9G130767300
                        MOLDED HOSE
                        from £6.94
                        from £6.94
                        MOLDED HOSE Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 98130707700
                        WATER HOSE
                        Coolant | Return line
                        from £28.05
                        from £28.05
                        WATER HOSE Genuine Porsche Part - New (to order)
                        # 8
                        MPN: 98130707400
                        WATER HOSE
                        Coolant | Supply
                        from £26.24
                        from £26.24
                        WATER HOSE Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 98130707500
                        WATER HOSE
                        Coolant | Supply
                        from £23.07
                        from £23.07
                        WATER HOSE Genuine Porsche Part - New (to order)
                        # -
                        -
                        TUBE
                        4,0 X 1,0 | to fit use workshop material | Shorten
                        # 10
                        -
                        VACUUM LINE
                        L = 400 MM
                        # 11
                        MPN: 92857471705
                        MOLDED HOSE
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 12
                        MPN: 99950787240
                        BRACKET
                        from £1.93
                        from £1.93
                        BRACKET Genuine Porsche Part - New (to order)
                        # 14
                        MPN: 92857372705
                        DISTRIBUTOR PIECE
                        (PR:XLF)
                        from £11.71
                        from £11.71
                        This part replaces part number 92857372703
                        DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                        # 15
                        MPN: N 91068201
                        HEXAGON SOCKET FLAT
                        head bolt | M 4 X 10
                        from £0.47
                        from £0.47
                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                        HEXALOBULAR SOCKETM4X10 Genuine Lamborghini - New In stock
                        # 16
                        MPN: 7PP906270
                        Change-over valve
                        from £36.78
                        from £36.78
                        This part replaces part number 99660512301
                        Change-over valve - M 61T 02072 >> Genuine Porsche Part - New In stock
                        # 17
                        MPN: 98130705300
                        OIL PIPE
                        from £71.52
                        from £71.52
                        OIL PIPE Genuine Porsche Part - New (to order)
                        # 18
                        MPN: 98130785300
                        O-RING
                        from £2.56
                        from £2.56
                        O-RING Genuine Porsche Part - New (to order)
                        # 19
                        MPN: N 91059701
                        THREADED PLUG
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 20
                        MPN: 98130702300
                        oil pump
                        from £840.66
                        from £840.66
                        oil pump Genuine Porsche Part - New (to order)
                        # 21
                        MPN: 98130781500
                        CLIP
                        from £3.06
                        from £3.06
                        CLIP Genuine Porsche Part - New (to order)
                        # 22
                        MPN: 98130782500
                        BRACKET
                        from £6.50
                        from £6.50
                        BRACKET Genuine Porsche Part - New (to order)
                        # 23
                        MPN: 98130785000
                        SCREW, ROUND HD.
                        M8 X 25
                        from £3.14
                        from £3.14
                        SCREW, ROUND HD Genuine Porsche Part - New (to order)
