porsche 2016 (981 cayman gt4) rear end parts diagram

801-035 - REAR END

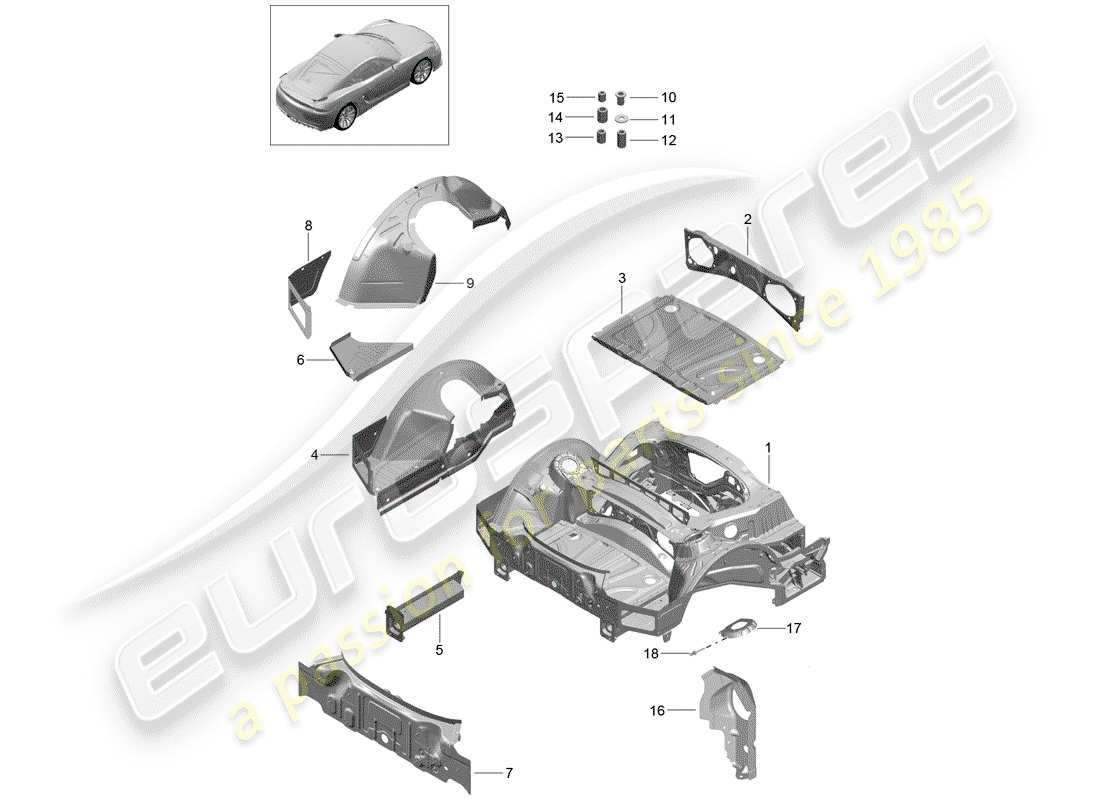

Porsche 2016 (981 Cayman GT4) Rear end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 98150196180GRV
                                    REAR END - PRIMED
                                    from £6,999.61
                                    from £6,999.61
                                    This part replaces part number 98150196180
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 98150137101GRV
                                    REAR PANEL - PRIMED
                                    from £353.41
                                    from £353.41
                                    This part replaces part number 98150137101
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 98150157101GRV
                                    BOTTOM PLATE - PRIMED
                                    from £306.51
                                    from £306.51
                                    This part replaces part number 98150157101
                                    floor pan primed Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 98150149501GRV
                                    WHEEL HOUSING LEFT - PRIMED (COMPLETE)
                                    from £736.04
                                    from £736.04
                                    This part replaces part number 98150149501
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 98150149601GRV
                                    WHEEL HOUSING RIGHT - PRIMED (COMPLETE)
                                    from £736.04
                                    from £736.04
                                    This part replaces part number 98150149601
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 98150197700GRV
                                    CARRIER LEFT - PRIMED
                                    from £480.59
                                    from £480.59
                                    This part replaces part number 98150197700
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 98150197800GRV
                                    CARRIER RIGHT - PRIMED
                                    from £480.59
                                    from £480.59
                                    This part replaces part number 98150197800
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 98150152300GRV
                                    REINFORCEMENT FOR WHEEL HSG LEFT - PRIMED
                                    from £348.08
                                    from £348.08
                                    This part replaces part number 98150152300
                                    REINFORCEM. FOR WHEEL HOUSING LEFT primed Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 98150152400GRV
                                    REINFORCEMENT FOR WHEEL HSG RIGHT - PRIMED
                                    from £348.08
                                    from £348.08
                                    This part replaces part number 98150152400
                                    REINFORCEM. FOR WHEEL HOUSING RIGHT primed Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 98150124301GRV
                                    CROSS PANEL LEFT - PRIMED
                                    from £207.50
                                    from £207.50
                                    This part replaces part number 98150124301
                                    END PLATE primed Genuine Porsche Part - New (to order)
                                    # 8
                                    MPN: 98150165101GRV
                                    CORNER PART LEFT FOR LUGGAGE COMPARTMENT - PRIMED
                                    Supersession
                                    Supersession
                                    This part replaces part number 98150165101
                                    Genuine Porsche Part (no longer available to order)
                                    # 8
                                    MPN: 98150155201GRV
                                    CORNER PART RIGHT FOR LUGGAGE COMPARTMENT - PRIMED
                                    from £122.55
                                    from £122.55
                                    This part replaces part number 98150155201
                                    CORNER PANEL Luggage comp. right primed Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 98150198300GRV
                                    Wheel housing left - primed
                                    from £331.16
                                    from £331.16
                                    This part replaces part number 98150198300
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 98150198400GRV
                                    Wheel housing right - primed
                                    from £331.16
                                    from £331.16
                                    This part replaces part number 98150198400
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 10
                                    MPN: 99950019601
                                    NUT M8
                                    from £2.43
                                    from £2.43
                                    NUT Genuine Porsche Part - New (to order)
                                    Genuine Bentley Part (no longer available to order)
                                    # 11
                                    MPN: 99902528531
                                    WASHER 8,4X20X1,5
                                    from £5.45
                                    from £5.45
                                    WASHER Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: 99950426701
                                    THREADED INSERT M10X27
                                    from £40.63
                                    from £40.63
                                    THREADED INSERT Genuine Porsche Part - New (to order)
                                    THREADED INSERT Genuine Bentley Part - New (to order)
                                    # 13
                                    MPN: 99950426801
                                    THREADED INSERT M10X20
                                    from £37.06
                                    from £37.06
                                    THREADED INSERT Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 99950426301
                                    threaded insert M12X1,5X22
                                    threaded insert M12X1,5X22
                                    from £38.44
                                    from £38.44
                                    THREADED INSERT Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: PAF008977
                                    threaded insert M12X1,5X22
                                    from £42.34
                                    from £42.34
                                    THREADED INSERT Genuine Porsche Part - New (to order)
                                    # 15
                                    MPN: 99950426201
                                    THREADED INSERT M8X15
                                    from £40.67
                                    from £40.67
                                    THREADED INSERT Genuine Porsche Part - New (to order)
                                    THREADED INSERT Genuine Bentley Part - New (to order)
                                    # 15
                                    MPN: 00004320630
                                    ADHESIVE
                                    adhesive - 50 ML Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 98150169500GRV
                                    CLOSING ELEMENT LEFT - PRIMED
                                    from £150.48
                                    from £150.48
                                    This part replaces part number 98150169500
                                    PRIMED Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: 98150178780
                                    REINFORCEMENT LEFT PRIMED SUSPENSION STRUT BEARING
                                    from £151.90
                                    from £151.90
                                    REINFORCEMENT Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: 98150178880
                                    REINFORCEMENT RIGHT PRIMED SUSPENSION STRUT BEARING
                                    from £151.90
                                    from £151.90
                                    REINFORCEMENT Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 99919022701
                                    Pop rivet 6,5X12,5
                                    from £1.39
                                    from £1.39
                                    Genuine Porsche Part (no longer available to order)
                                    POP RIVET Genuine Bentley Part - New (to order)
