porsche 2020 (718 cayman) timing chain parts diagram

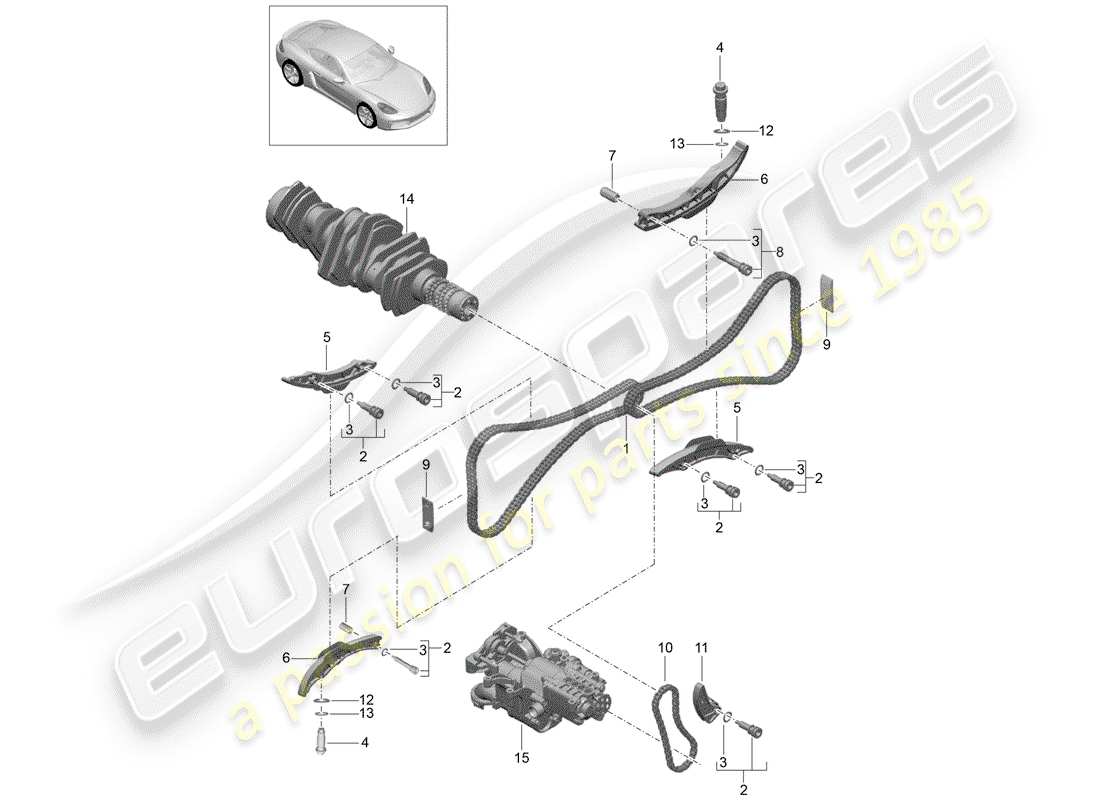

103-015 - TIMING CHAIN

Porsche 2020 (718 Cayman) timing chain Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 9A210514801
              TIMING CHAIN CAMSHAFT CRANKSHAFT
              from £160.01
              from £160.01
              TIMING CHAIN Genuine Porsche Part - New (to order)
              # 2
              MPN: 9A110506201
              SOCKET HEAD BOLT TENSIONER BLADE
              SOCKET HEAD BOLT TENSIONER BLADE
              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
              # 2
              MPN: 9A700836500
              SOCKET HEAD BOLT TENSIONER BLADE
              from £9.07
              from £9.07
              SCREW, CHEESE HD Genuine Porsche Part - New (to order)
              # 3
              MPN: 99970734640
              O-RING 15X3
              O-RING 15X3
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 3
              MPN: PAF008261
              O-RING 15X3
              from £2.29
              from £2.29
              This part replaces part number 99970734640
              O-RING Genuine Porsche Part - New (to order)
              # 4
              MPN: 9A210515701
              CHAIN TENSIONER
              CHAIN TENSIONER
              TENSIONER - CHAIN Genuine Porsche Part - New (to order)
              # 4
              MPN: 0PB109507
              CHAIN TENSIONER
              CHAIN TENSIONER
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 4
              MPN: 0PB109507B
              CHAIN TENSIONER INCLUDED SEAL RING N 013.827.7
              from £71.49
              from £71.49
              CHAIN TENSIONER Genuine Porsche Part - New (to order)
              # 5
              MPN: 9A210512301
              SLIDE RAIL
              SLIDE RAIL
              GUIDE RAIL Genuine Porsche Part - New (to order)
              # 5
              MPN: PAA109513
              SLIDE RAIL
              from £22.98
              from £22.98
              SLIDE RAIL Genuine Porsche Part - New (to order)
              # 6
              MPN: 9A210512501
              TENSIONER BLADE
              TENSIONER BLADE
              TENSIONER BLADE Genuine Porsche Part - New (to order)
              # 6
              MPN: 0PB109509
              TENSIONER BLADE
              from £25.40
              from £25.40
              TENSIONER BLADE Genuine Porsche Part - New (to order)
              # 7
              MPN: 9A110516502
              SPACER SLEEVE
              from £6.38
              from £6.38
              SPACER SLEEVE Genuine Porsche Part - New (to order)
              # 8
              MPN: 9A110506301
              BOLT WITH WASHER
              from £8.26
              from £8.26
              SCREW Genuine Porsche Part - New (to order)
              # 9
              MPN: 9A110510103
              SLIDE RAIL
              SLIDE RAIL
              from £10.61
              from £10.61
              GUIDE RAIL Genuine Porsche Part - New (to order)
              # 9
              MPN: 0PB109514
              SLIDE RAIL
              from £11.65
              from £11.65
              SLIDE RAIL Genuine Porsche Part - New (to order)
              # 10
              MPN: 9A110523302
              TIMING CHAIN OIL PUMP CRANKSHAFT
              from £47.14
              from £47.14
              TIMING CHAIN Genuine Porsche Part - New (to order)
              # 11
              MPN: 9A110523502
              TENSIONER BLADE
              TENSIONER BLADE
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 11
              MPN: 0PB109508
              TENSIONER BLADE TIMING CHAIN OIL PUMP
              Supersession
              Supersession
              This part replaces part number 9A110523502
              Genuine Porsche Part (no longer available to order)
              # 12
              MPN: 90012301121
              SEAL RING A22X27 CHAIN TENSIONER
              SEAL RING A22X27 CHAIN TENSIONER
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 12
              MPN: N 0138277
              SEAL RING A22X27 CHAIN TENSIONER
              from £1.67
              from £1.67
              This part replaces part number 90012301121
              SEAL RING Genuine Porsche Part - New In stock
              # 13
              MPN: 99970106640
              O-RING CHAIN TENSIONER
              O-RING CHAIN TENSIONER
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 13
              MPN: PAF008646
              O-RING CHAIN TENSIONER
              from £7.43
              from £7.43
              This part replaces part number 99970106640
              O-RING Genuine Porsche Part - New (to order)
              # 14
              -
              CRANKSHAFT SEE ILLUSTRATION: 102-000
              # 15
              -
              OIL PUMP SEE ILLUSTRATION: 104-000
